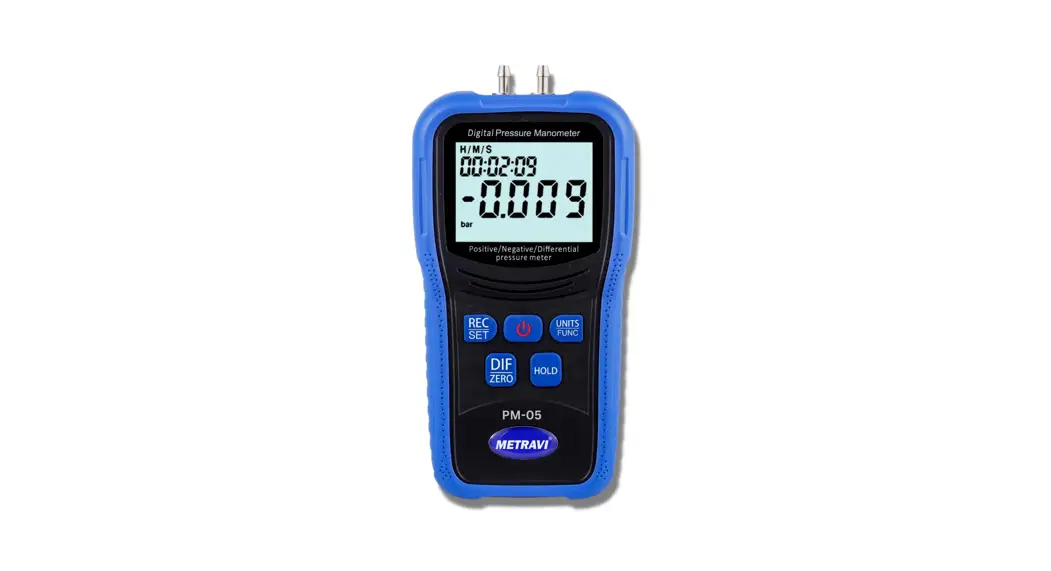

PM-05 Multifunction Manometer
User Guide
INTRODUCTION
The Metra PM-05 Manometer measures negative, positive, and differential pressure. Option for 11 measurement units: bar, ozin², psi, bar, mmHg, cmH2O, ftH2O, kgcm², and kPa.

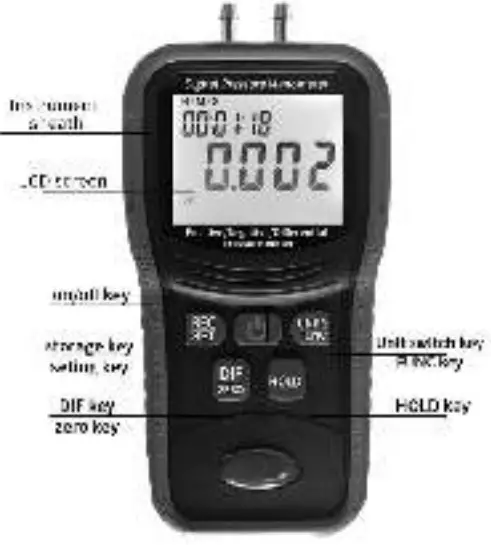

The battery-powered instrument is equipped with a TPU sheath with a simple hose connection device.
Simple and easy to use, with a clear display, it is an ideal instrument for the HVAC and Automobile Repairing industries.
It is suitable for detecting waste gas pressure, engine intake manifold vacuum negative pressure, and ventilation duct system pressure, and also is ideal for line pressure stress tests during troubleshooting systems.
FEATURES
- ±30psi / 206.8 kPa Differential Pressure Sensor
- Built-in option for 11 different measurement units
- ZERO setting function
- TPU sheath for protection when used in harsh and rugged environments
- 32 Data Storage
- Auto Power-off (manual option available)
SPECIFICATIONS
| Accuracy: | ±1% FS |
| Linear Hysteresis Phenomenon: | ±0.1% FS |
| Max. Pressure Limit: | 206.8kPa(*) |
| Repeatability: | ±0.25% FS |
| Reaction Time: | 0.5 secs (25°C ±2°C) |
| Pressure Connection: | 1/8th inch (3.18mm) quick connectors |
| Operating Temperature: | 0°C ～ 40°C |
| Storage Temperature: | -10°C ～ 60°C |
| Overload Alert: | HI display (*) |
| Power: | 1 no 9V 6F22 Battery |
| Weight: | 163 gms |
| Dimensions: | 155 x 80 x 32 mm |
*IMPORTANT NOTE!
Excess or over-limit pressure will damage the meter
THE PRODUCT PACKAGE INCLUDES:
- Pressure Meter
- Hose
- Rubber Head
- Metal Quick Connector
- PP Carry Case
- User Manual
Pressure range table
| Pressure unit | Range | Resolution |
| Kpa | ±206.8 | 0.1Kpa |
| bar | ±2.068 | 0.001 bar |
| ozin2 | ±480 | 0.1 ozin2 |
| psi | ±30 | 0.01 psi |
| inHg | ±61.08 | 0.01 inHg |
| mbar | ±2068 | 1 mbar |
| mmHg | ±1551 | 1 mmHg |
| cmH2O | ±2109 | 1 cmH2O |
| ftH2O | ±69.20 | 0.01 ftH2O |
| inH2O | ±830 | 0.1 inH2O |
| Kgcm2 | ±2.109 | 0.001 Kgcm2 |
Setting Trends. Showing the Way.
*Technical Specifications & Appearance are subject to change without prior notice
