Quick Start Guide
MS6252A

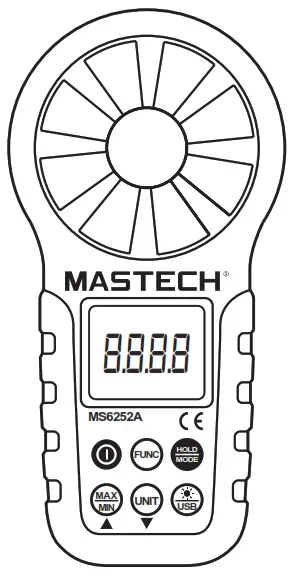

Digital Anemometer
700019246 MAY 2021 Rev. 1
Specifications are subject to change without notification.
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
– Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
– When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
– Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
– Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
– Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test
– Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.
Contents
Specifications
Range | Resolution | Accuracy | |
| M/S | 0.80-30.00 m/s 30.00-40.00 m/s | 0.01 m/s 0.01 m/s | ±(2.0%+50) Reference |
| km/h | 2.88-108.0 km/h 108.0-144.0km/h | 0.01 km/h 0.1 km/h | ±(2.0%+50) Reference |
| ft/s | 98.5-131.2ft/s | 0.01 ft/s 0.01 ft/s | ±(2.0%+50) Reference |
| knots | 1.6-58.30knots 58.30-77.70knots | 0.01 knots 0.01 knots | ±(2.0%+50) Reference |
| mile/h | 1.8-67.20mil/h 67.20-90.00mil/h | 0.01 mil/h 0.01 mil/h | ±(2.0%+50) Reference |
| ft/m | 157.5-5900ft/m 5900-7874ft/m | 1 ft/m 1 ft/m | ±(2.0%+50) Reference |
 |  |
 |  |  |
