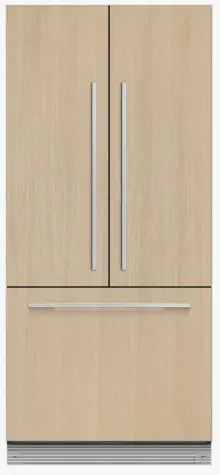

QUICK REFERENCE GUIDE > RS80A2
Integrated French Door
Refrigerator, 80cm
Series 7 | Integrated
Panel Ready | French hinge
This large capacity refrigerator with a bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Features SmartTouch control panel for ease of use The spacious bottom freezer with full extension drawer

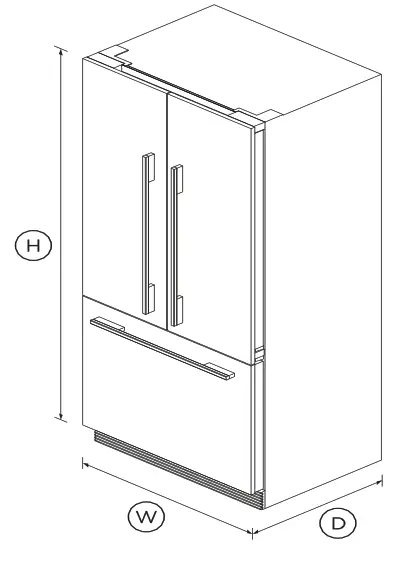

DIMENSIONS
| Height | 1798mm |
| Width | 796mm |
| Depth | 606mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
ActiveSmart™ Foodcare learns how you live. It’s a technology that understands how you use your refrigerator and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
Flexible storage
Designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
Easy cleaning
Secure, spill-safe glass shelves easily capture any drips or leaks, and can be easily removed for fast and easy cleaning.
Fast freezing
When freezing fresh food, the freshness, texture and taste are retained with rapid freezing. The Fast Freeze function boosts the freezing speed by dropping the freezer to its coldest temperature for 12 hours, ensuring food is fast and fully frozen.
Beautiful lighting
LED lighting illuminates the interior with a crisp, clean glow for enhanced visibility. Our energy-saving LEDs use less power than comparable halogen lights.
Clever energy
This refrigerator adapts to daily use by cooling and defrosting only when needed, providing greater energy efficiency without compromising on food care.
SPECIFICATIONS
Accessories
| Contemporary round handle | AHSRS80A |
| Contemporary square handle | AHD3RS80A |
| Square fine aluminum handle | AHD5RD80A |
| Square fine black handle kit | AHD5RD80AB |
| Stainless steel door panel | RD80A |
Capacity
| Total net volume | 417L |
| Volume freezer | 129L |
| Volume refrigerator | 288L |
Consumption
| Energy consumption | 342kWh/year |
| Energy rating | F |
Features
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
Freezer Features
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| LED lighting | • |
| Slide Out Pastry Tray | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
Power requirements
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 606mm |
| Height | 1798mm |
| Width | 796mm |
Warranty
| Parts and labour | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26517 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
