RS80AU2 Integrated French
Door Refrigerator Freezer
User Guide
Series 7 | Integrated
Panel Ready | French hinge

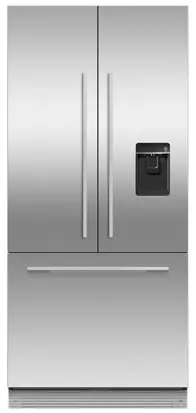

RS80AU2 Integrated French Door Refrigerator Freezer
This large capacity refrigerator with bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Slimline water dispenser available with stainless steel door panel accessory
- Spacious bottom freezer with full extension drawer and ice maker with boost function

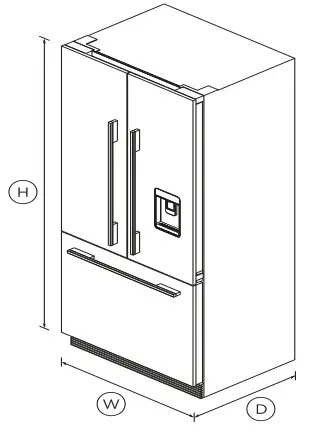

DIMENSIONS
| Height | 1798mm |
| Width | 796mm |
| Depth | 606mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
FLEXIBLE STORAGE
Designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space, or during busy times you can boost ice production by up to 30%.
EASY CLEANING
Secure, spill-safe glass shelves easily capture any drips or leaks, and can be easily removed for fast and easy cleaning.
BEAUTIFUL LIGHTING
LED lighting illuminates the interior with a crisp, clean glow for enhanced visibility. Our energy saving LEDs use less power than comparable halogen lights.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHSRS80A |
| Contemporary square handle | AHD3RS80A |
| Replacement water filter | 847200 |
| Square fine aluminium handle | AHD5RD80A |
| Square fine black handle kit | AHD5RD80AB |
| Stainless steel door panel | RD80U |
| Capacity | |
| Total net volume | 417L |
| Volume | 417L |
| Volume freezer | 129L |
| Volume refrigerator | 288L |
| Consumption | |
| Energy consumption | 342kWh/year |
| Energy rating | F |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| LED lighting | • |
| Large plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| Sabbath mode | • |
| Power requirements | |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 606mm |
| Height | 1798mm |
| Width | 796mm |
| Warranty | 5 years |
| Parts and labour | |
| SKU | 26520 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
