QUICK REFERENCE GUIDE > RS90A3
Integrated French Door
Refrigerator Freezer, 90cm
Series 7 | Integrated
Panel Ready | French hinge
User Guide

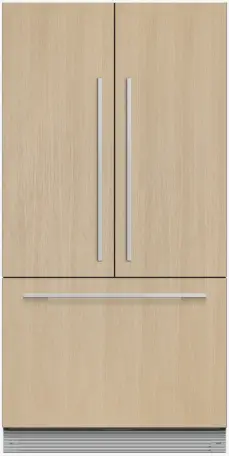

RS90A3 Integrated French Door Refrigerator Freezer
This large capacity refrigerator with bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Customise with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.

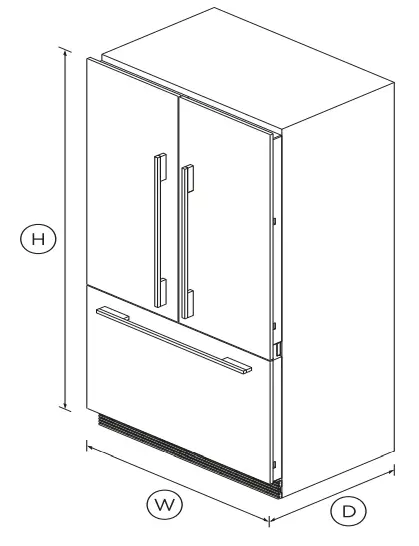

DIMENSIONS
| Height | 1798mm |
| Width | 896mm |
| Depth | 610mm |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This ActiveSmart™ technology means better energy efficiency without compromising on food care.
EASY CLEANING
Spill-safe secure glass shelves easily capture any drips or leaks and prevent them from falling on items below.
EASY INSTALLATION
Our integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customised to match your kitchen.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials.
We use real stainless steel, and solid glass for shelving.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | AHS-ASBI-A |
| Contemporary square handle | RS90A |
| Square fine aluminium handle | AHD5RD90A |
| Square fine black handle kit | AHD5RD90AB |
| Stainless steel door panel | RD90A |
| Capacity | |
| Volume freezer | 145L |
| Volume refrigerator | 331L |
| Consumption | |
| Energy rating | 2 ticks |
| Energy usage | 540kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| Gallon door shelves | 1 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Spill proof removable bins | • |
| Stackable bottle holders | 4 |
| Freezer Features | |
| Bottle chill | • |
| Door alarm | • |
| Ice trays | 1 |
| LED bin lighting | • |
| Large plastic bins | • |
| Slide Out Pastry Tray | • |
| Small plastic bins | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 610mm |
| Height | 1798mm |
| Width | 896mm |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26525 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
