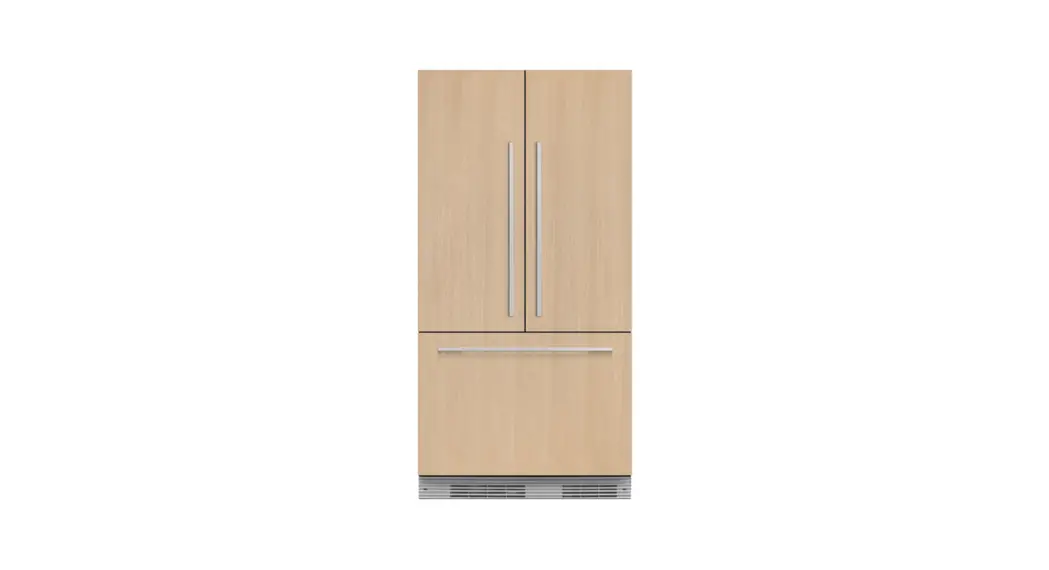

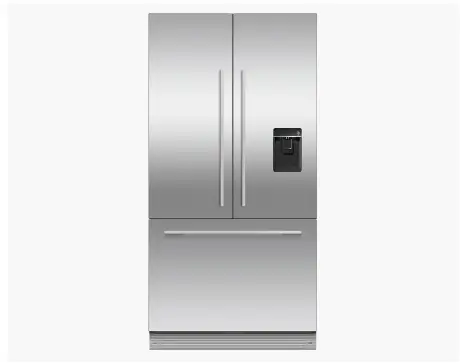

FISHER PAYKEL RS90AU1 Integrated French Door Refrigerator Freezer, 90cm, Ice and Water

This large-capacity refrigerator with a bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.

ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
Customize with your own kitchen cabinetry* or purchase our stainless steel door panel accessory
Water dispenser available with stainless steel door panel accessory
The spacious bottom freezer with a full extension drawer gives easy access to frozen goods.

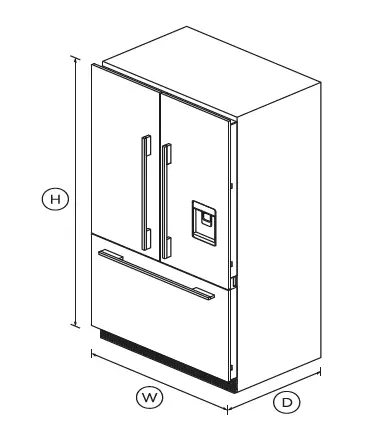

DIMENSIONS

Height

1798mm

Width

896mm

Depth

606mm

FEATURES & BENEFITS

ACTIVESMART™ FOOD CARE
ActiveSmart™ Foodcare learns how you live. It’s the technology that understands how you use your refrigerator and adjusts the temperature, airflow and humidity inside to help keep food fresher for longer.

SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.

ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.

WATER DISPENSER
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator. You’ll need to purchase our stainless steel door panel in order to use the water dispenser.

EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.

CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This ActiveSmart™ technology means better energy efficiency without compromising on food care.

SPECIFICATIONS

Contemporary round handle	AHS-ASBI-A
Contemporary square handle	RS90A
Professional round flush handle	AHP3RD90A
Replacement water filter	CA No. XXXXX-A or -B =
Square fine aluminium handle	AHD5RD90A
Square fine black handle kit	AHD5RD90AB
Stainless steel door panel	RD90AU

Volume	476L
Volume freezer	145L
Volume refrigerator	331L

Energy rating	3.5 star
Energy usage	422kWh/year

Features

Adjustable door shelves	6
Adjustable glass shelves	3
Covered door shelves	2
Door alarm	•
Fruit and vegetable bins	2
LED lighting	•
SmartTouch control panel	•
Soft close doors	•
Spill proof removable bins	•
Stackable bottle holders	4
Ultra slim water dispenser	•

Freezer Features
Automatic ice maker	•
Bottle chill	•
Door alarm	•
Fast freeze	•
Ice Boost	•
Ice bin and scoop	•
LED lighting	•

ActiveSmart™ Foodcare	•
Adaptive defrost	•
Frost free freezer	•
Humidity control system	•
Sabbath mode	•

Depth	606mm
Height	1798mm
Width	896mm

Parts and labour	2 years
Sealed system parts only	additional 3 years

This page’s product dimensions and specifications apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at anytime. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
