QUICK REFERENCE GUIDE > RS90AU1
Integrated French Door
Refrigerator Freezer, 90cm,
Ice & Water
Series 7 | Integrated
Panel Ready | French hinge

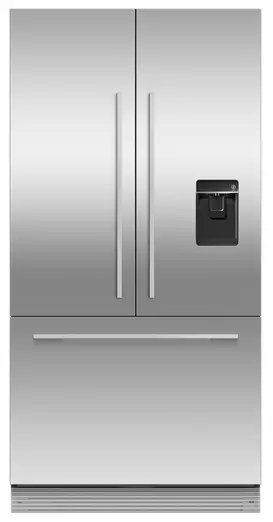

RS90AU1 90cm Integrated French Door Refrigerator Freezer
This large-capacity refrigerator with a bottom freezer seamlessly integrates into your kitchen, fitting flush into your cabinetry.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
- Water dispenser available with stainless steel door panel accessory
- The spacious bottom freezer with full extension drawer gives easy access to frozen goods.

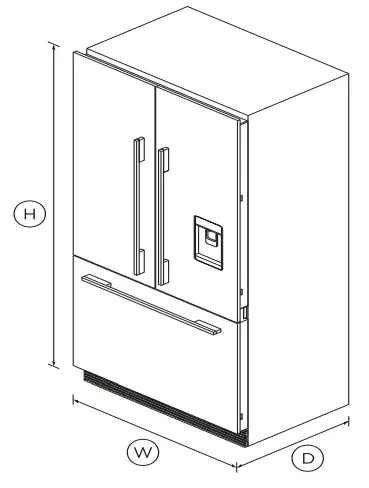

DIMENSIONS
| Height | 1798mm |
| Width | 896mm |
| Depth | 606mm |
FEATURES & BENEFITS
ACTIVESMART™ FOOD CARE
ActiveSmart™ Foodcare learns how you live. It’s the technology that understands how you use your refrigerator and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access, and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator. You’ll need to purchase our stainless steel door panel in order to use the water dispenser.
EASY CLEANING
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This ActiveSmart™ technology means better energy efficiency without compromising on food care.
SPECIFICATIONS
Accessories
| Contemporary square handle | RS90A |
| Replacement water filter | CA No. XXXXX-A or -B = |
| Stainless steel door panel | 25773 |
Capacity
| Volume | 476L |
| Volume freezer | 145L |
| Volume refrigerator | 331L |
Consumption
| Energy usage | 422kWh/year |
Features
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Spill-proof removable bins | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
Freezer Features
| Automatic ice maker | • |
| Fast freeze | • |
| Freezer bins | 2 |
| Ice bin and scoop | • |
| LED lighting | • |
Performance
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
Product dimensions
| Depth | 606mm |
| Depth (less door) | 606mm |
| Height | 1798mm |
| Width | 896mm |
Warranty
| Parts and labor | 2 years |
| Sealed system parts only | additional 3 years |
| SKU | 26529 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
User GuideService & WarrantyData Sheet Integrated French Door Fridge FreezerPlanning Guide Integrated French Door Fridge Freezer
