Outdoor Product Cr2032x3v Led Light Information User Guide

LED LIGHT INFORMATION

1. Battery type: CR2032x3V (included)
2. Two different settings:
   Setting 1: Solid light
   Setting 2: Strobe (Blinking)
3. Front light Red light
   Solid light lasts up to 8 hours Blinking light lasts up to 11 hours
4. Dual shoulder strap lights: White lightsSolid light lasts up to 8 hours Blinking light lasts up to 11 hours

OPERATING LIGHTS

Lights operate using the on/off button located on both the front and shoulder straps of the bag
To turn on the lights:

Simply locate the battery, and remove the pull tab, and press the on/off button.

1. Press once for blinking mode
2. Press a second time for solid mode
3. Press a third time to turn the light off

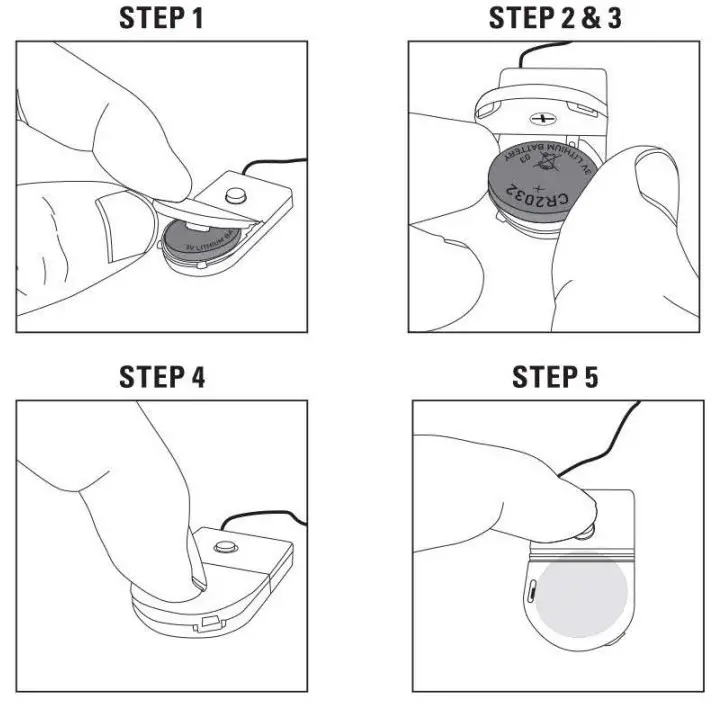

REPLACING BATTERY

To replace the battery:

1. Lift the rounded battery compartment door which is located on the same side as the power button
2. Remove the used batteries and dispose of them properly
3. Insert new CR2032 battery with correct polarity direction as indicated inside the compartment
   a.Positive (+) polarity towards compartment door
   b.Negative (-) towards the bottom of the compartment
4. Snap door to close compartment
5. Press the power button to ensure proper battery replacement
