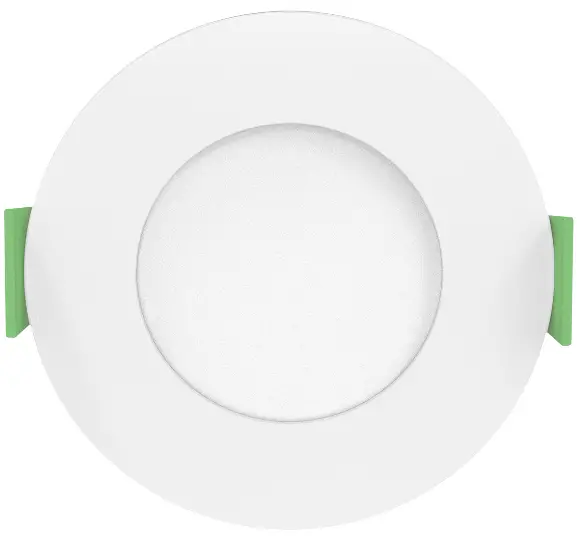

ESL Wafer Series Indoor Outdoor LED Fixtures
OVERVIEW
KEY FEATURES
- Shallow Construction at 1.5″
- Wet Location, IC, and Airtight Rated
- Title 24 and Ja8 Compliant
- 120 VAC – TRIAC Dimmable
EASY INSTALLATION

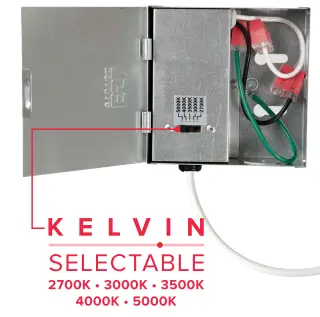

- Quick Connect Installation to Junction Box
- Knockouts on Both Sides for Easy Wiring
EASY INSTALLATION

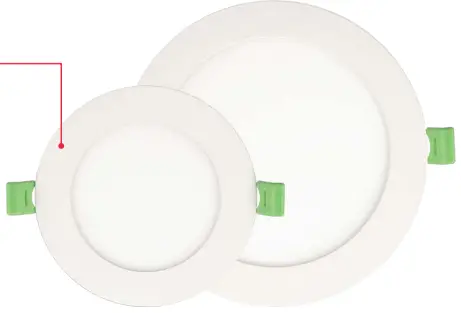

- 4″ Available at 10 Watts – 650 Lumens
- 6″ Available at 15 Watts – 1,100 Lumens
- Emergency Back-Up Capable
EASY INSTALLATION

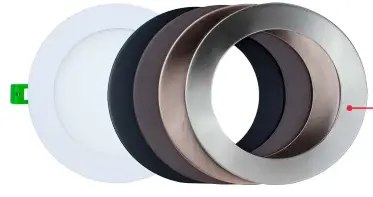

- Field Installable Bezel Finishes
- Black
- Rubbed Bronze
- Copper
- Brushed Nickel
ORDERING GUIDE & SPECS
| ESL | – | WFR | – | S | – | (yy)W | 2 | 22750 | |
| ESL | – | TYPE | – | SIZE | – | WATTS | – | GENERATION | KELVIN SELECTABLE |
| 4 INCH | PRODUCTS | SIZE (s) | WATTAGE (yy) | KELVIN | LUMEN OUTPUT | CRI | INPUT VOLTAGE |
|
ESL-WFR-4-10W-22750 |
4 Inch |
10 Watts | 2700K 3000K 3500K 4000K 5000K |
650 |
>90 |
120 VAC | |
| 6 INCH |
ESL-WFR-6-15W-22750 |
6 Inch |
15 Watts | 2700K 3000K 3500K 4000K 5000K |
1,100 |
>90 |
120 VAC |

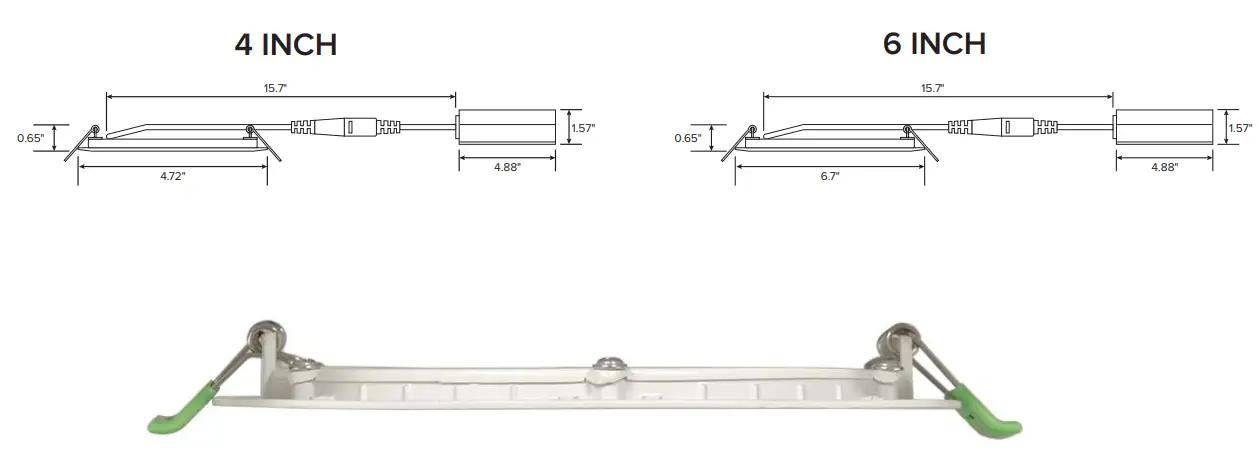

DIMENSIONS
ESL Vision © 2021
www.eslvision.com / 888.493.5559 / Catalog#WFR_2108
