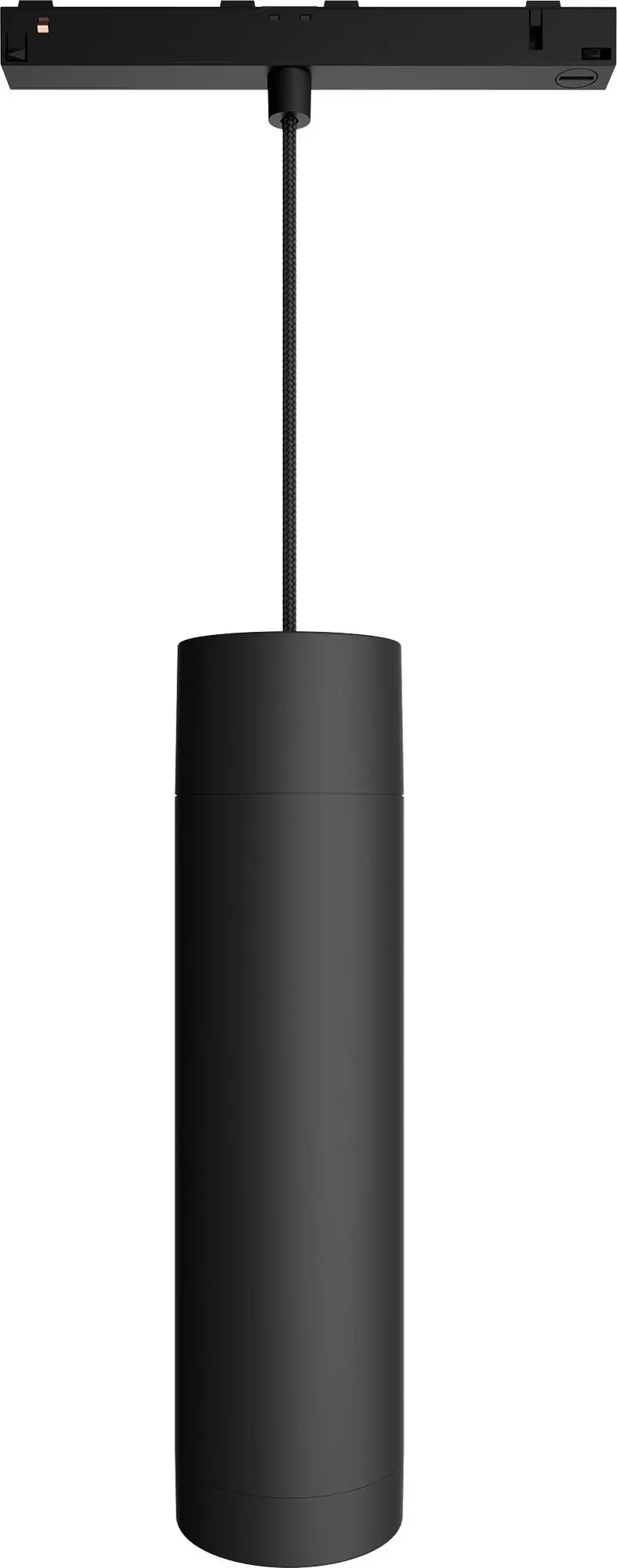

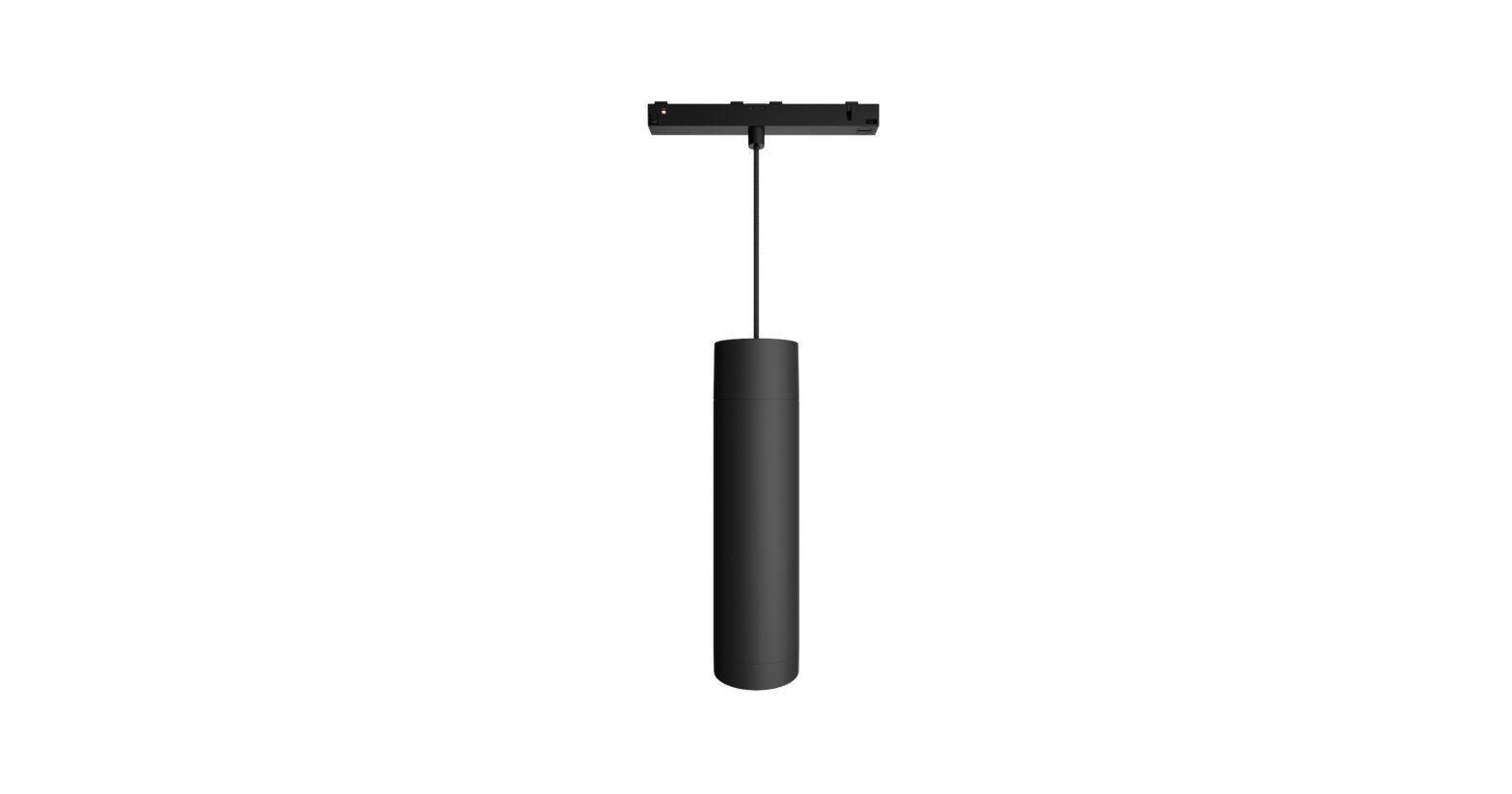

PHILIPS 929003115901 Perifo Pendant Spot Lamp Installation Guide

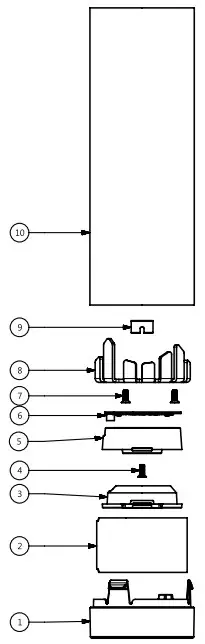

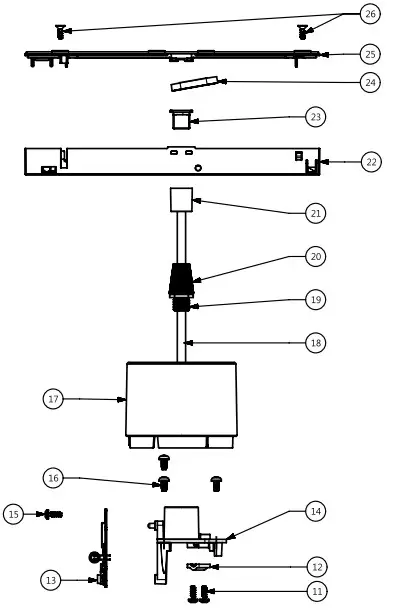

Product Overview
Warnings
Always make sure the luminaire is disconnected from mains.
Always make sure the DC cable is detached from the power supply. Staring at the operating light source may cause eye injury.
| # | COMPONENT | QTY |
| 1 | COVER | 1 |
| 2 | REFLECTOR | 1 |
| 3 | LENS | 1 |
| 4 | SCREW | 2 |
| 5 | BRACKET | 1 |
| 6 | LIGHT SOURCE – LED MODULE | 1 |
| 7 | SCREW | 3 |
| 8 | HEATSINK | 1 |
| 9 | NUT | 1 |
| 10 | PROFILE | 1 |
| 11 | SCREW | 2 |
| 12 | PULL RELIEF | 1 |
| 13 | LIGHT SOURCE -HUE CONNECT | 1 |
| 14 | BRACKET | 1 |
| 15 | SCREW | 1 |
| 16 | SCREW | 3 |
| 17 | COVER | 1 |
| 18 | cordset | 1 |
| 19 | PULL RELIEF | 1 |
| 20 | NUT | 1 |
| 21 | ||
| 22 | CONNECTION BOX | 1 |
| 23 | ||
| 24 | PULL RELIEF | 1 |
| 25 | COVER | 1 |
| 26 | SCREW | 2 |
| SKU | Color | Country |
| 929003115901 | Black | N/A |
| 929003116001 | White | N/A |
| # | Disassemble/dismantle steps | Tools needed |
| a | Remove COVER [1] by twisting and pulling at the same time | – |
| b | Remove REFLECTOR [2] | – |
| c | Remove LENS [3] by unclicking the snaps (put tool in the gap between LENS [3] and FRAME [5] at one of the snaps, tilt to disengage | FLATHEAD SCREWDRIVER 2mm |
| d | Undo SCREWS [4] 2x | TORXHEAD SCREWDRIVER T10 |
| e | Remove FRAME [5] | – |
| f | Remove LIGHT SOURCE – LED MODULE [6] after disconnecting wires | – |
| g | Undo SCREW [7] 3x | TORXHEAD SCREWDRIVER T10 |
| h | Dismantle HEATSINK [8] from PROFILE [10] | – |
| j | Remove SCREW [26] 2x | TORXHEAD SCREWDRIVER T8 |
| k | Remove COVER [25] by unclicking snaps in middle | FLATHEAD SCREWDRIVER 2mm |
| m | Disconnect IDC wire connection by pulling out wires | – |
| n | Pull CONNECTION BOX [22] and PULL RELIEF [24] off the cordset [18] | – |
| p | Unscrew NUT [20] and remove from cordset [18] | – |
| q | Pull cordest [18] out of BRACKET [14] to the front completely | – |
| r | Undo NUT [9] | FLATHEAD SCREWDRIVER 12-16mm |
| s | Remove PULL RELIEF [19] and COVER [17] from BRACKET [14] | – |
| t | Undo SCREW [16] 3x | TORXHEAD SCREWDRIVER T10 |
| u | Undo SCREW [15] and remove LIGHTSOURCE – HUE CONNECT [13] | TORXHEAD SCREWDRIVER T10 |
| STATUS Approved 2022-08-01 | DESCRIPTION Perifo Pendant Spot | 02 | 2022-07-18 | ||||
| DOC 12NC 442295716702 | |||||||
| NAME Ad Ga | LOCAL PART ID | SH 1 | SH. 511-1 | A3-P | |||
| CHECKED | DATE 2021-05-06 | ||||||
