Features
- Two-way phase reversed active wooden speaker with two professional efficient transducers, computer simulating design.
- Two-way active full-range speaker
- One 15” woofer
- One Φ75mm compression driver with Al-Mg Alloy diaphragm Bi-amplifier design for independent HF, LF, active frequency compensation , auto electrical limit protection adjust for LF/HF
- Cabinet built with high-intensity materials
- Flying point in the cabinet, support hole in the bottom
- High dynamics and sensitivity, HF is very clear and LF is very powerful
- Suited for venues where require high quality reinforcement, like bar, bands, cimema, multi-functional room,commercial meetingroom etc.
- Suitable for moving performance, such as commercial promotion, bands performance, party;Also can be used as the reinforcement speaker for living performance of electric guitar, keyboard.

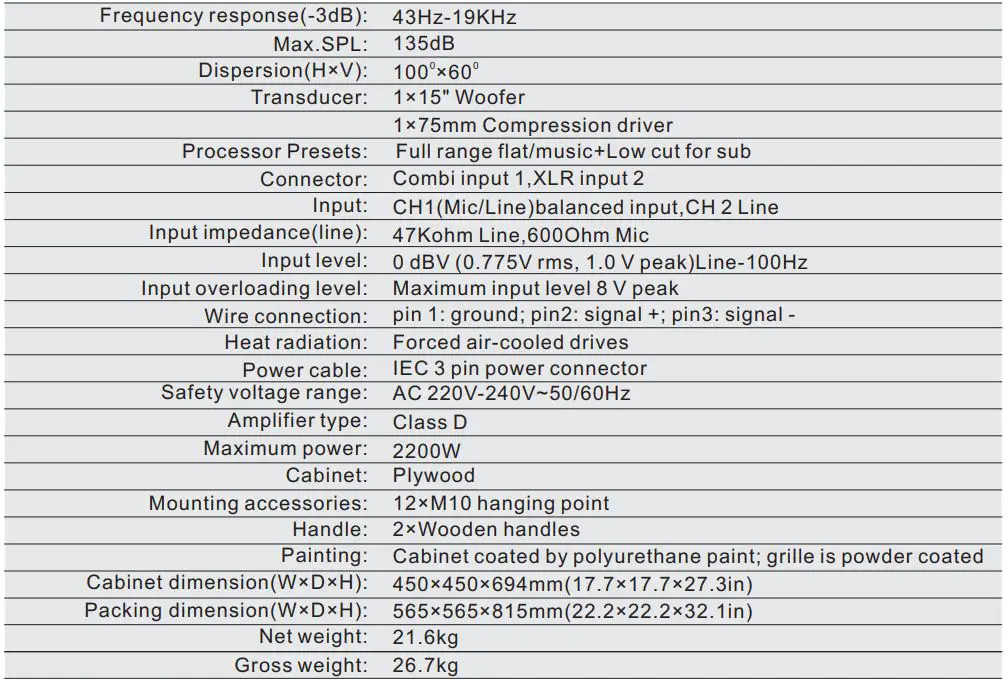

Specifications

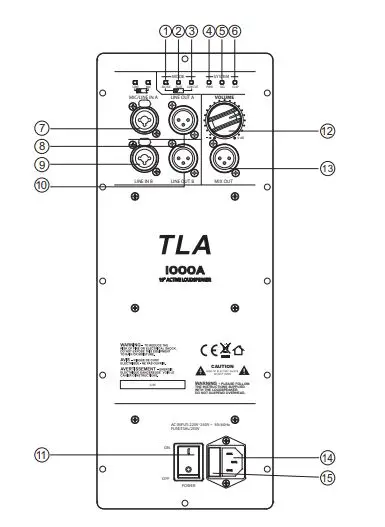

Function Introduction
- Music mode
- Flat mode
- Low cut mode
- Power indicator
- Signal indicator
- Clip indicator
- Line input A.
- Line output A.
- Line input B.
- Line output B.
- Power ON/OFF switch.
- Volume control.
- MIX output.
- Power supply input. Make sure that the voltage is set for your country’s correct voltage.
- Protection fuse. Use only fuse of the correct amp rating.
