User Manual
CLAYMORE Capon 40B
CLP-210(BK/RD/TN)
This portable light contains Li-Polymer batteries. Please follow the user manual before use. If any abnormality is found in the product, discontinue use and contact the dealer or a service center where the product was purchased. Any modifications to this product will void the warranty. Misuse of CLAYMORE products may cause user harm.
Caution
- Do not use near high temperatures such as fires or heating equipment. It may cause explosion and ignition.
- This product is water-resistant However, if left in the rain for a long time, it may cause malfunction. If the product gets soaked, please quickly wipe it off.
- Do not store or use in vehicles exposed to direct sunlight. It may cause an explosion and malfunction.
- Do not touch the light source directly as it may become very hot during use.
- Do not use if the product exceeds the operating temperature range (-10 ° C to 40 °C ).
- Do not look directly into the LED light source.
- Please do not place in the reach of infants. It may cause swallowing of parts or injury.
- Adult supervision is necessary when used by children. Misuse of headlamps may cause injury or electric shock.
- Do not insert any metal parts into the terminal block of the connector. It may cause heat explosion or electric shock.
- Do not disassemble or modify the product.
- Do not touch the connector with wet hands. There is a danger of electric shock.
- After use, be sure to turn off the power. If not, it may cause leakage.
- When adjusting the angle, please do not bend with force. It may cause damage to the product.
- Dropping or impacting the product can cause damage to the inside of the product, resulting in unexpected failures in normal use. Be careful not to apply impact to the body.

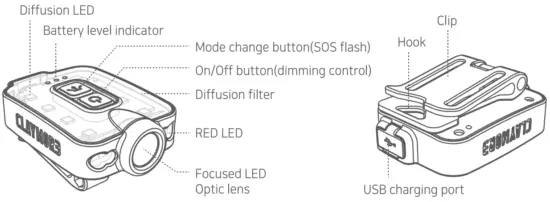

Components
Operation
ON/OFF
The light turns on when pushing

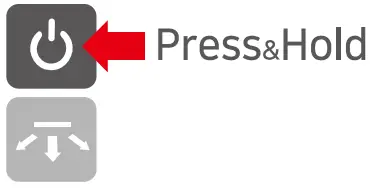

the button shortly. Repeat to turn off the light.Stepless Dimming
When light is on, press and hold buton to increase brightness. Repeat to decrease brightness.5 STEP Dimming
Hold down button and press
button to sequence to adjust brightness in 5 steps.
Light will blink once when Maximum and Minimum brightness is reached.CCT Change
When the light is on, press button shortly to change
**3 different light modes (Focused>Red>Flood)
MODE 1 | MODE 2 | MODE 3 |
 |  |  |
| Focused Light 12° spot Long-distance (narrow) | Diffused Light(Red) Flood Short distance (wide) | Diffused Light(Cool White) Flood Short distance (wide) |
SOS-Flash
When the light is on, press button for over 2 seconds to access the SOS signal in any mode.Charging method
Open rubber cover and connect USB cable to charge.
* This lantern contains a memory function that returns to the last setting it was set at.
Battery Level Check
When charging, the battery indicator will flicker in 3 steps to show the remaining battery (To see the remaining battery, press button)
Battery level indicator
  0-33% | Flickers |
 33-66% | |
| 66-99% | |
| Fully charged | Stop |
Instructions

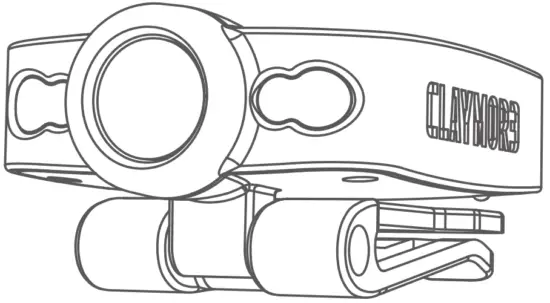

- Attaching to a cap
Fully insert clip to the visor of the hat and adjust the angle to use properly.

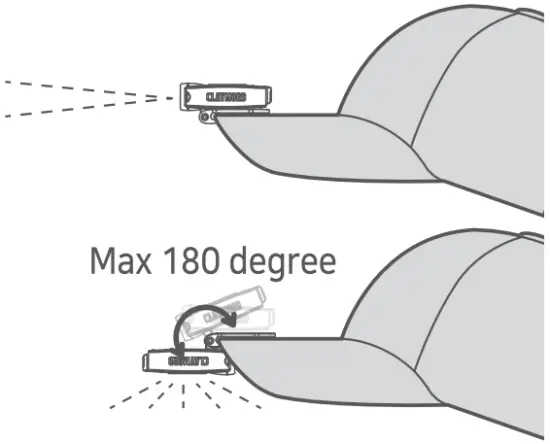

** Please check if the clip is fully attached to the cap bill before use. - Angle adjustment
Able to adjust up to 180 degrees and easy to use focused and diffused light.
** Please check if the clip is fully attached to the cap bill before use.

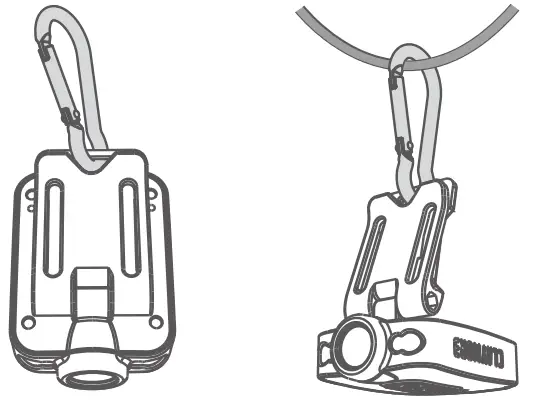

- Lantern Hook
Compatible with a carabiner or hang on string with the hook.
Specification
 Focused Light(12°) |  Diffused light(Red) |  Diffused light(Cool) | |
| Brightness | MIN MAX | MIN MAX | MIN MAX |
| 16Lm 230Lm | 1Lm 20Lm | 16Lm 230Lm | |
| Operating time | 12hour 2hour | 12hour 2.65hour | 12hour 2hour |
| Distance | 3m 50m |
| Product name | CLAYMORE Capon 40B | Size | 37×54.2x24mm |
| Model name | CLP-210(BK/RD/TN) | Weight | 29g |
| Battery capacity | Li-Polymer 3.7V 400mAh(1.48Wh) | Charging time | 1 hour 30-minute |
| Input | USB 5V 1A | Origin | MADE IN KOREA |
| Color temperature | Cool : 6200K (±15%), Red | ||
Contents
 | Capon 40B |
 | Carabiner |
 | Pouch |
 | USB charging cable (USB Type-C) |
Caution for long-term storage
- If the battery is completely drained, the battery indicator might not flash. If this happens, plug the USB cable back in or press the button to turn the battery indicator on again.
- For long-term storage, fully recharge the battery. (Repeat every six months)
- Please keep in mind that if stored below -10°C the battery life may be affected.
- Please keep it in a dry place without moisture.
Warranty
| Item | CLAYMORE Cap on 40B |
| Model No. | CLP-210(BK/RD/TN) |
| Seller | |
| Date of Purchase |
- Thank you for purchasing the CLAYMORE series of Prism Co., Ltd.
- This product has passed strict quality-control tests. If the product is not functioning properly, please contact an authorized service center.
Free Service
- Failure of the product under normal operating conditions during the warranty period will be repaired by Prism or an authorized service center free of charge. Some shipping or handling charges may be involved.
- Warranty period: 1 year.
Charged Service
- Damage is caused when the warranty period is over.
- Damage is caused due to the user’s mishandling, abuse, or improper operation.
- Damage caused by arbitrary or personal repair or disassembly in the unauthorized service center.
- Damage from input electricity or cable defect.
- Damage caused by natural disasters.
Official Import Distributor
Big tent Outdoor Equipment Ltd.
www.bigtentoutdoors.com
[email protected]
Manufacturer
Prism Co., Ltd. www.claymorelight.com / www.prismlight.co.kr
[email protected]
101-1501, Chunui-Technopark, Bucheon-ro 198 Road, 36,
Bucheon-si, Gyeonggi-do, Korea
