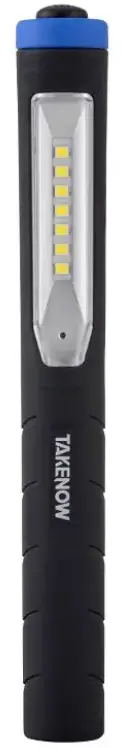

CONRAD PL012 Rechargeable Penlight Instruction Manual
Dismantling recommendations
- Disconnect from power supply.
- Ask help from a professional if needed.
Dismantling instructions
Step 1

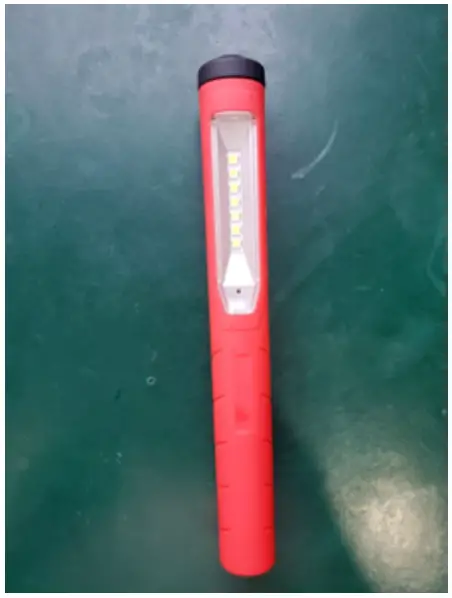

Overview
Step 2

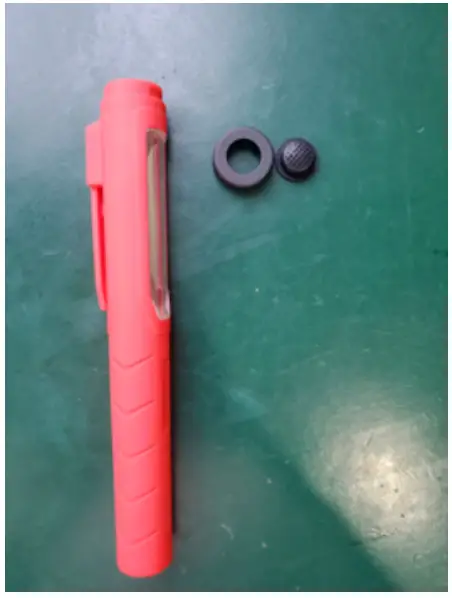

Disassemble from the top.
Step 3

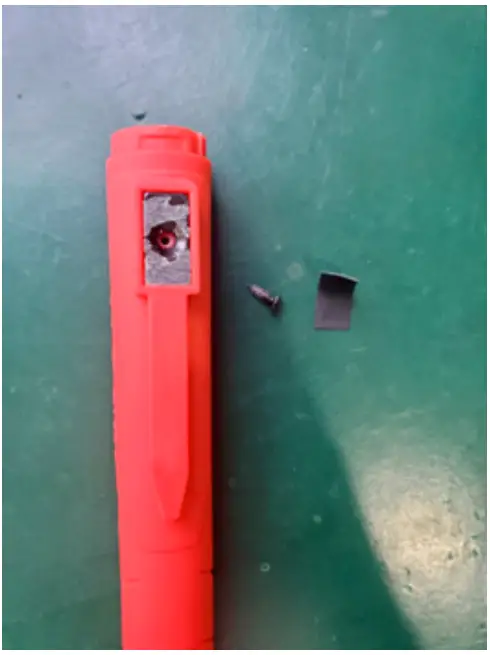

Remove the magnet.
Step 4

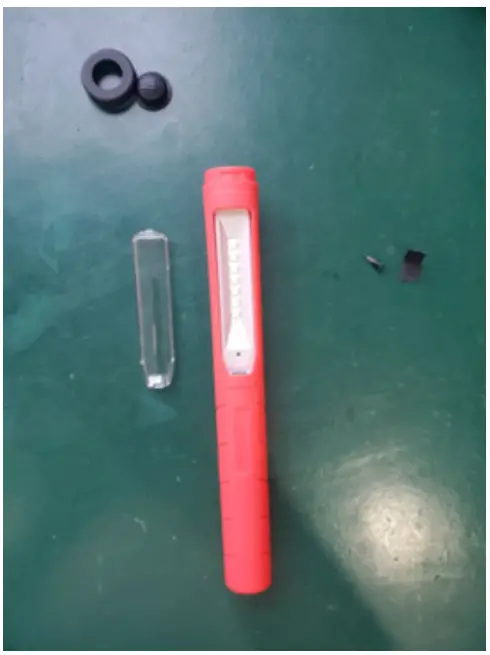

Carefully remove the lens
Step 5
Remove the battery, LED and PCB as shown.
