INSTALLATION INSTRUCTIONS
Product Name: LED High Bay Surface Mount Kit
Model #: P700 SMB
P700 SMB LED High Bay Surface Mount Kit

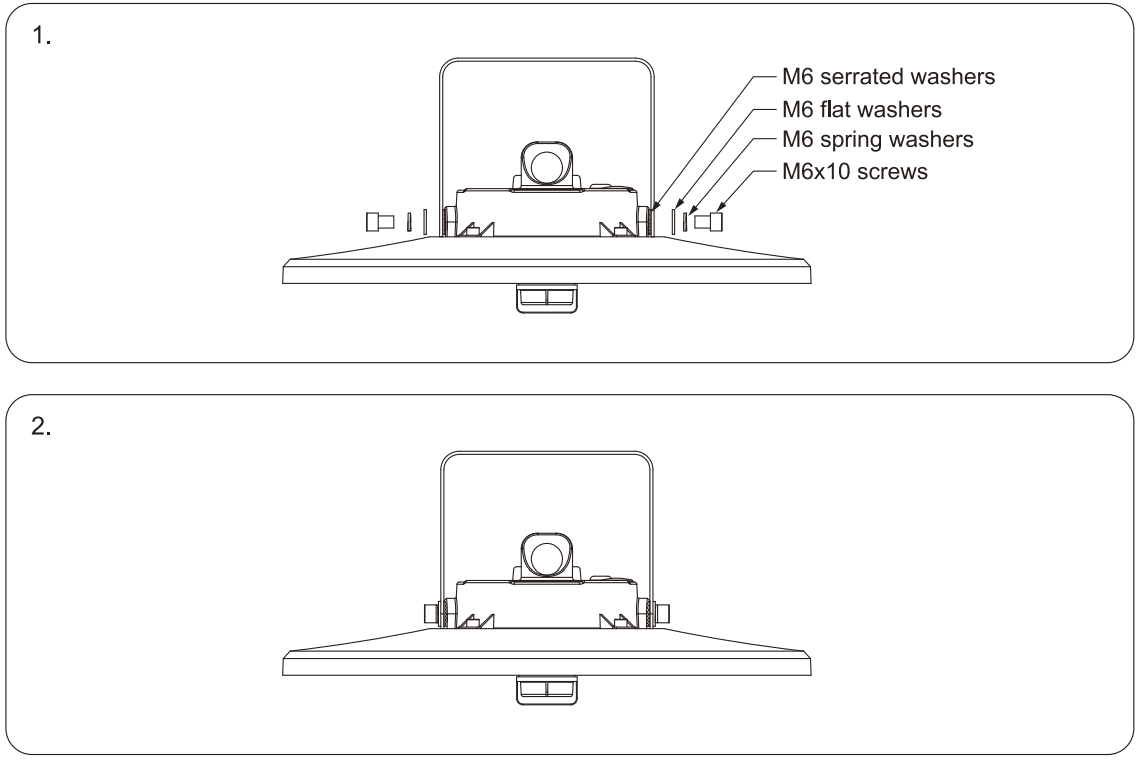

- Take out the mounting bracket and M6x10 screws, M6 flat washers, M6 spring washers, and M6 serrated washers in the accessories package, and assemble as shown in the picture.
- Tighten the screws with an alien key.
Installation note: Do not install on the same circuits as Metal halide, Fluorescent and other “Low power factor” devices. When installed on the same circuit it can cause flickering and/or premature failure of the “high power factor” electronic drivers.
The harmonic distortion from low power factor devices alters the Waveform of the AC supply which can cause componentry in high power factor electronic drivers to resonate, run over temperature and fail after prolonged exposure.
WARNING: FIRE RISK EXISTS IF THE LAMP IS COVERED BY OR POSITIONED CLOSE TO CURTAINS OR OTHER COMBUSTIBLE MATERIALS.
56210835 V1.0
