Karibu 52582 Furnace And External Control Without Roof Rim With Bronzed Instruction Manual

Karibu 52582 Furnace and External Control Without Roof Rim with Bronzed

Building Instructions

First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!

1 x W1	1920 x 433 x 68mm	ID 25547
2 x W2	1920 x 606 x 68mm	ID 25548

1 x W3	1920 x 606 x 68mm	ID 25550

1 x W4	1920 x 433 x 57mm	ID 23623
4 x W5	1920 x 606 x 57mm	ID 23624

1 x W6	1920 x 606 x 57mm	ID 23629

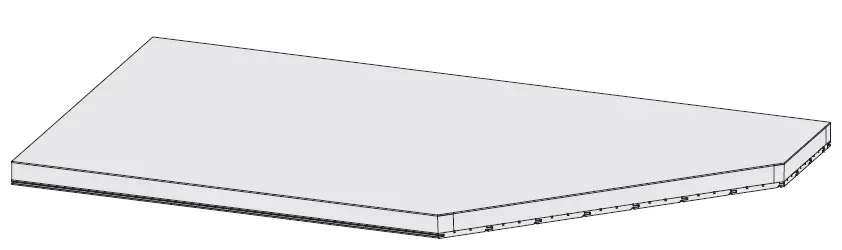

1 x T1	1872 x 780 x 42mm	ID 25551

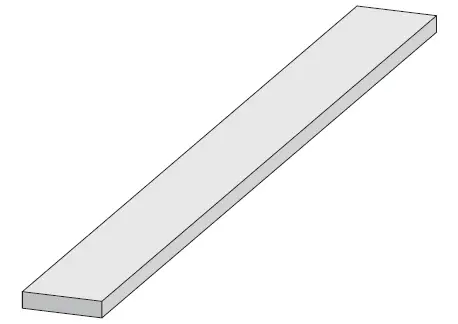

10 x B1	1920 x 19 x 3mm	ID 20799
4 x B2	70 x 45 x 18mm	ID 26366
6 x B3	800 x 45 x 18mm	ID 24796
4 x B4	1884 x 45 x 18mm	ID 48037
4 x B5	480 x 95 x 18mm	ID 20930
4 x B6	580 x 95 x 18mm	ID 16708
1 x B7	765 x 95 x 18mm	ID 26357
1 x B8	1050 x 95 x 18mm	ID 25761
1 x B9	1227 x 95 x 18mm	ID 26379
1 x B10	300 x 120 x 18mm	ID 22467
2 x B11	550 x 42 x 28mm	ID 24053
2 x B12	900 x 42 x 28mm	ID 25866
1 x B13	1641 x 42 x 28mm	ID 52515
2 x B14	1750 x 42 x 28mm	ID 52514
1 x B15	1759 x 42 x 28mm	ID 24133
2 x B16	1841 x 42 x 28mm	ID 26376
3 x B17	1874 x 52 x 52mm	ID 26165

1 x C1	1020 x 42 x 28mm	ID 52524
2 x C2	1117 x 42 x 28mm	ID 52517
1 x C3	1178 x 42 x 28mm	ID 25867
2 x C4	1247 x 42 x 28mm	ID 25740

1 x D1	859 x 42 x 28mm	ID 24114
2 x D2	896 x 42 x 28mm	ID 24110

2 x G1	1884 x 58 x 17mm	ID 48521
4 x G2	1980 x 95 x 17mm	ID 48540

2 x E1	1920 x 97 x 12mm	ID 22863

2 x L1	1810 x 550 x 90mm	ID 52616

2 x K1	1874 x 76 x 38mm	ID 43464

1 x M1	1665 x 918 x 57mm	ID 52518

1 x M2	1665 x 918 x 57mm	ID 52516

1 x

ID 20708

10m

ID14025

20 x	4 x 30mm	ID 3686

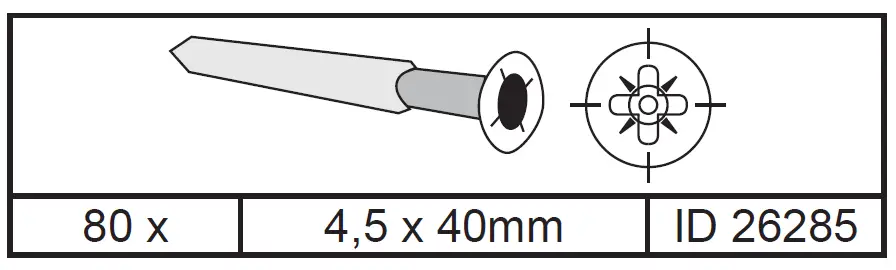

60 x	4 x 50mm	ID 3688
50 x	4 x 70mm	ID 3689
50 x	4,5 x 80mm	ID 9204
15 x	6 x 60mm	ID 14014

6 x S1

ID 14266

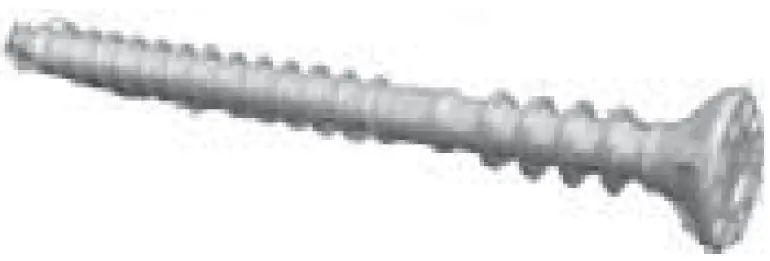

150 x S2	4,5 x 30mm	ID 26116
16 x S3	12 x 18mm	ID 46403

20 x

ID 14005

2 x

ID 26496

1 x

ID 26183

6 x	3 x 16mm	ID 46376

Attention!

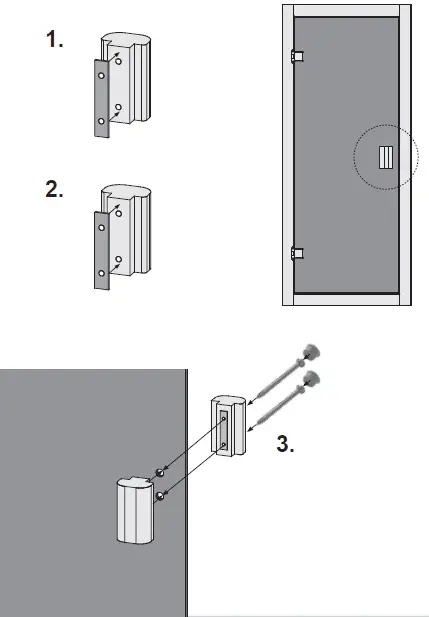

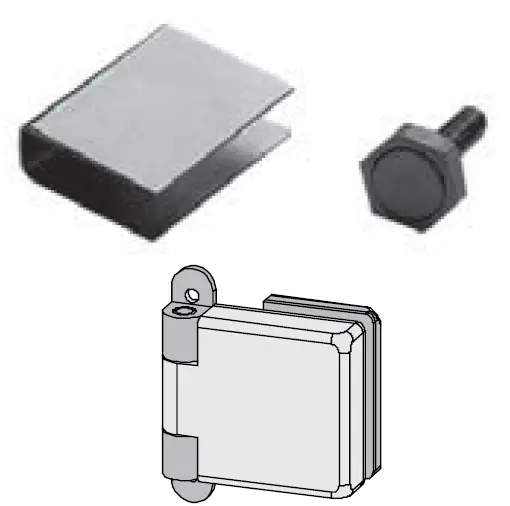

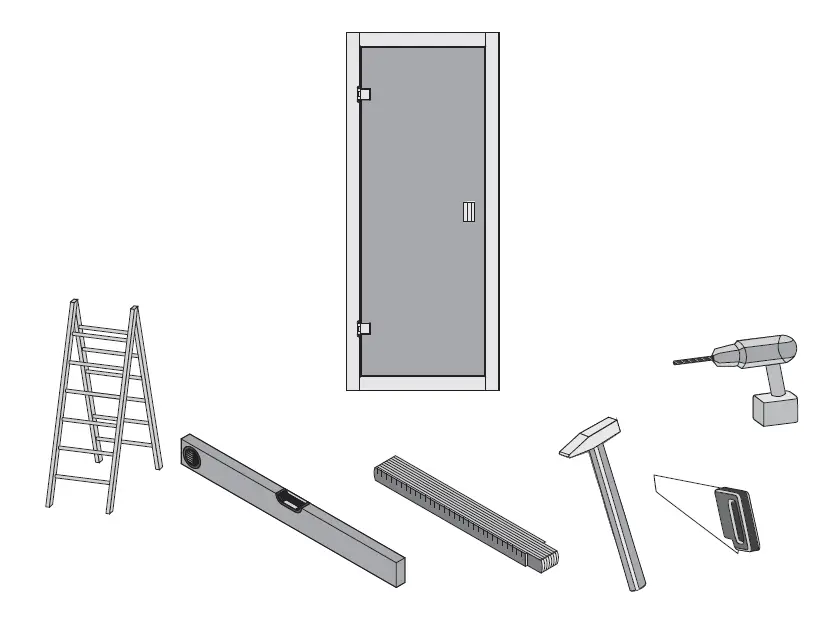

Installation of glass door

Only 9 kW heater

For all other furnaces

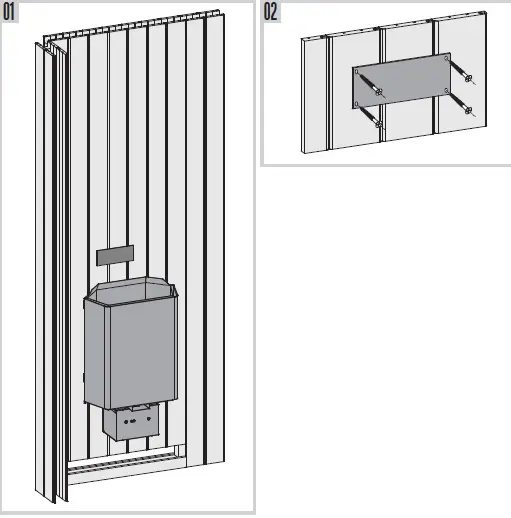

oven fixing

First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only!

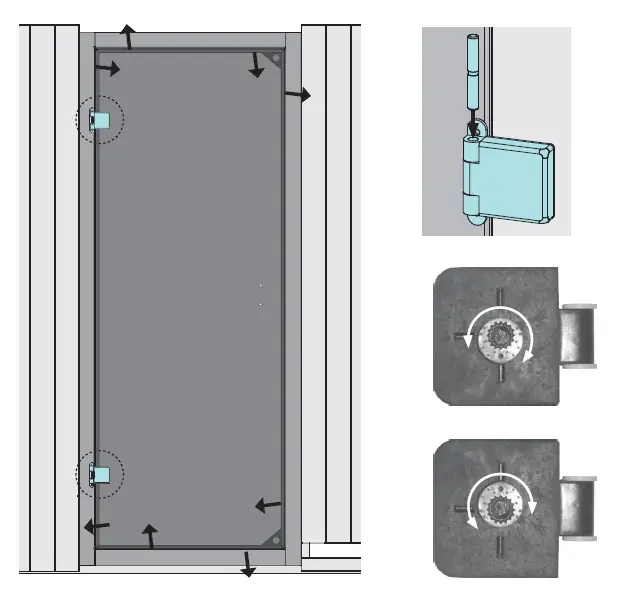

Put the door glass in the frame

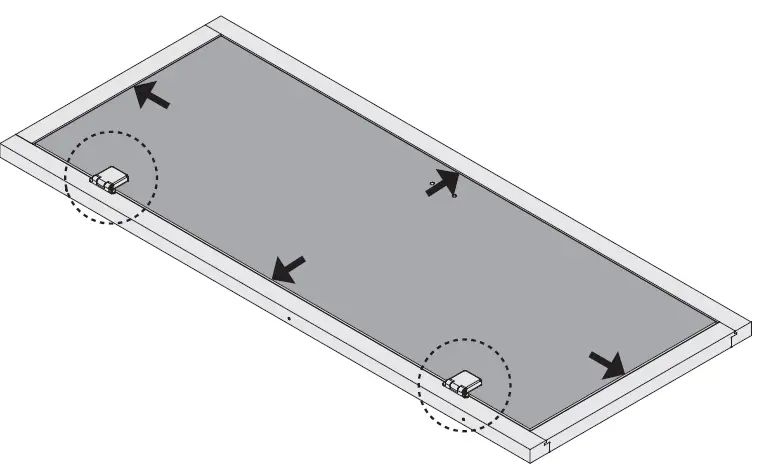

Center the glass in the wooden frame

All adjustable eccentrics must have the same basic adjustment in the glass panel
