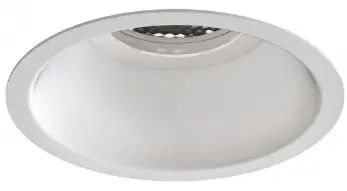

astro MINIMA SLIMLINE Fire Rated
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE COMMENCING ASSEMBLY

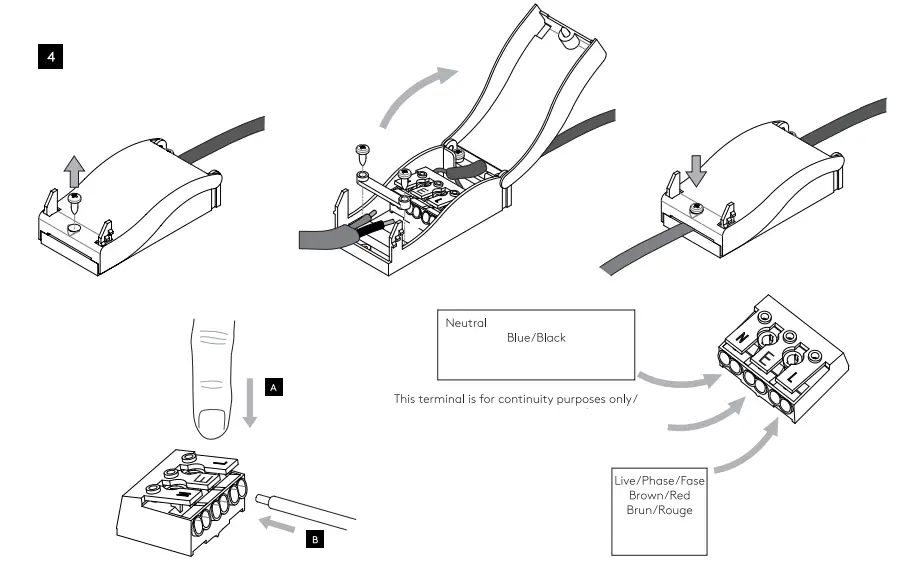

- Live: Normally Brown /Red
- Neutral: Normally Blue/ Black
If the external cord of this luminaire is damaged, it must be replaced by the manufacturer or a qualified person.
NOT SUITABLE FOR COVERING WITH THERMAL INSULATION.
FOR ceiling USE ONLY
WHAT IS IN THE BOX
Glare guard
CEILING TYPES
These products are suitable to install in fire-protected timber floor and ceiling systems which have previously been successfully tested for at least 30 minutes, 60 minutes or 90 minutes to EN 1365-2: 2014/

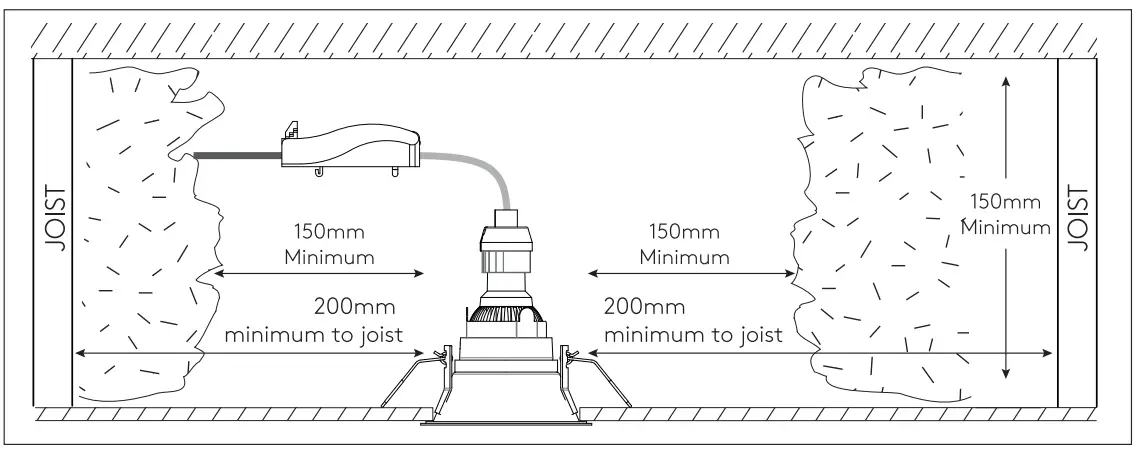

JOIST TYPES
Solid softwood or hardwood timber joists manufactured from strength grade Cl6 or greater, installed at centers not exceeding 600 mm/
DIMENSION

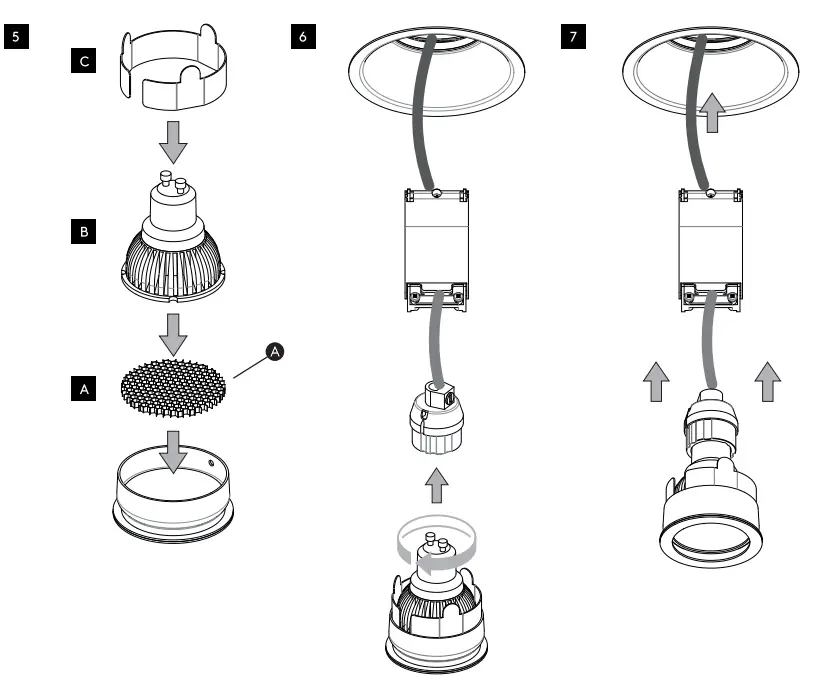

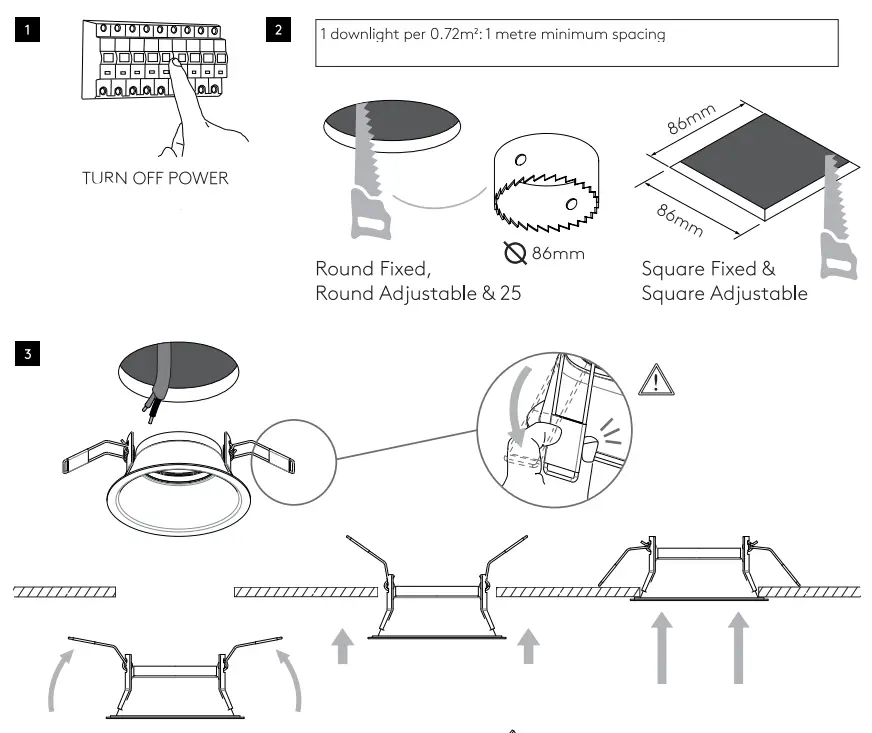

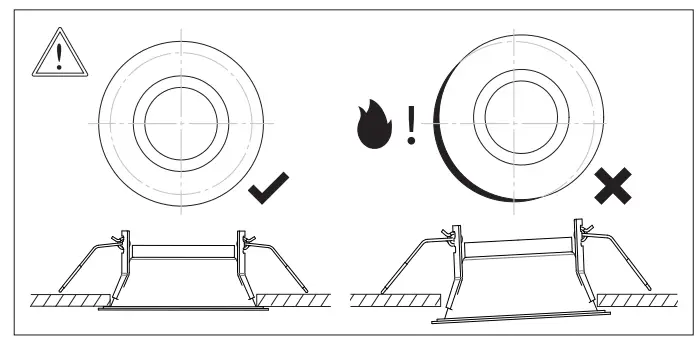

INSTALLATION
