ET1291-EXP-EXP
OIL FUNNEL FOR VAG GROUP
Owner’s Manual

FEATURES

• Funnel can be directly connected to oil filler necks, eliminating unsafe oil spills
• Engine oil bottles can be put up side down on funnel – hands-free and one-person operation
• Large oil passage allows oil to flow down more rapidly
• Lower transparent chamber shows oil flows down to engine

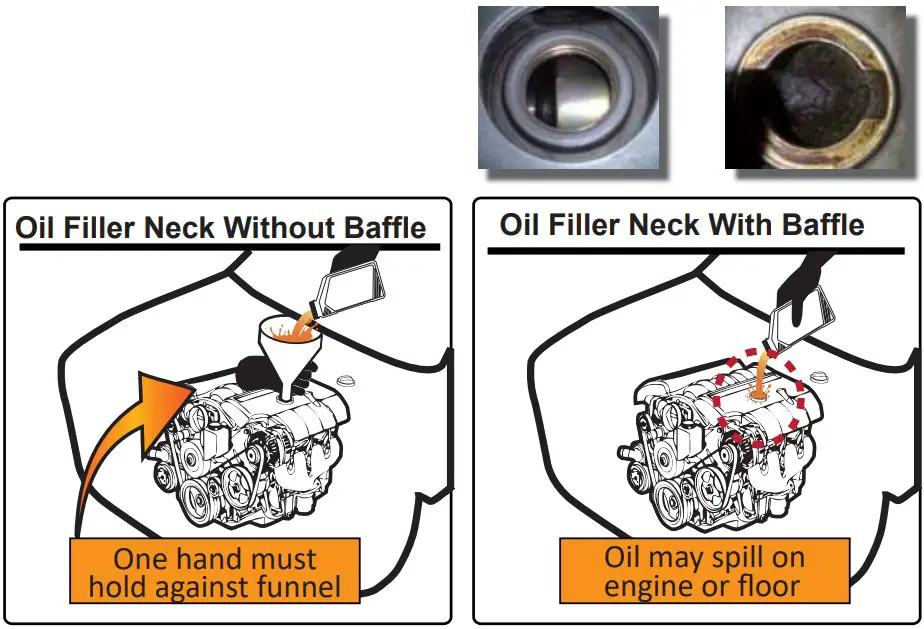

Different engines have different configurations below oil filler neck. Some engines might have parts that create a baffle (as the images shown on the right), and this can make conventional funnels hard to stabilize on oil filler neck, or one hand is needed to hold against the funnel when refilling engine oil. However, this funnel is to solve these problems. Aseamless connection can be created to prevent unsafe oil spills on engine or floor.

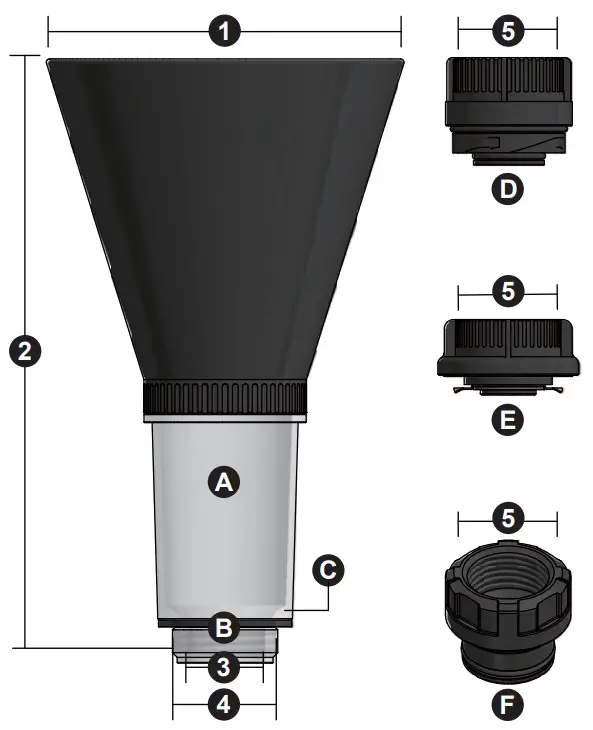

SPECIFICATIONS

INSTRUCTIONS

• Always read the instructions carefully before using the tool
• Ensure the working area has adequate lighting
• Keep children and unauthorized persons away from the working area
• Keep working area clean and tidy, dry and free from unrelated materials
• DO NOT allow untrained persons to use this tool kit
• Always wear eye protection that meets OSHA and ANSI Z87.1 standards
• Always wear gloves when working with the tool
• Always wear ear protection
• Disposal: Customers should follow local regulations to handle used/waste parts

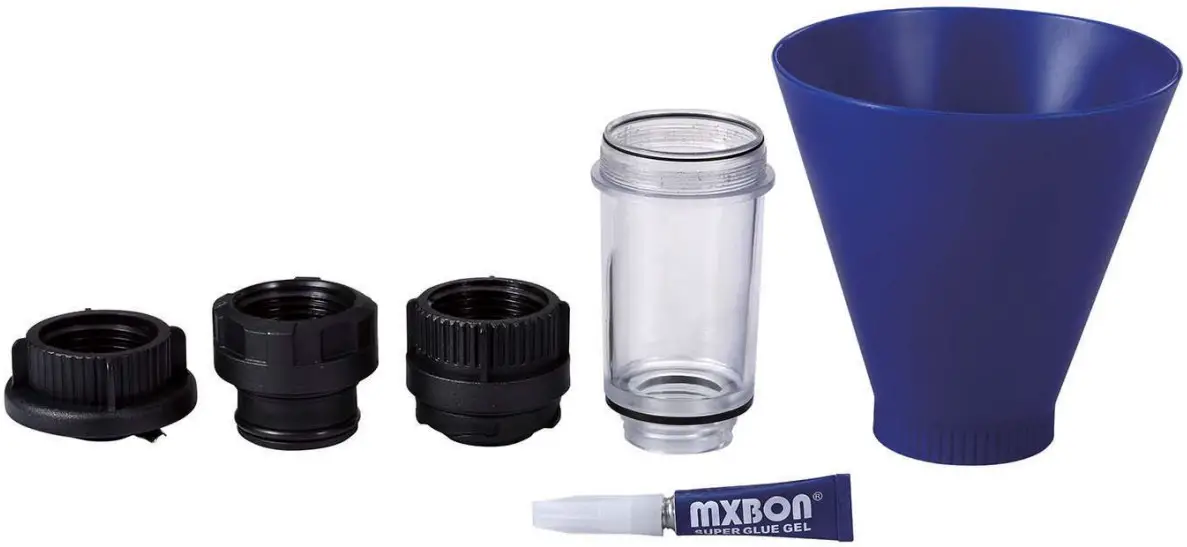

INITIAL USE

1. Apply the adhesive around the fine threads on the transparent chamber
2. Connect the transparent chamber to the upper funnel part to form a complete funnel

REGULAR USE

1. Remove original oil cap on engine.
2. Connect oil funnel or funnel with adapter to oil filler neck.

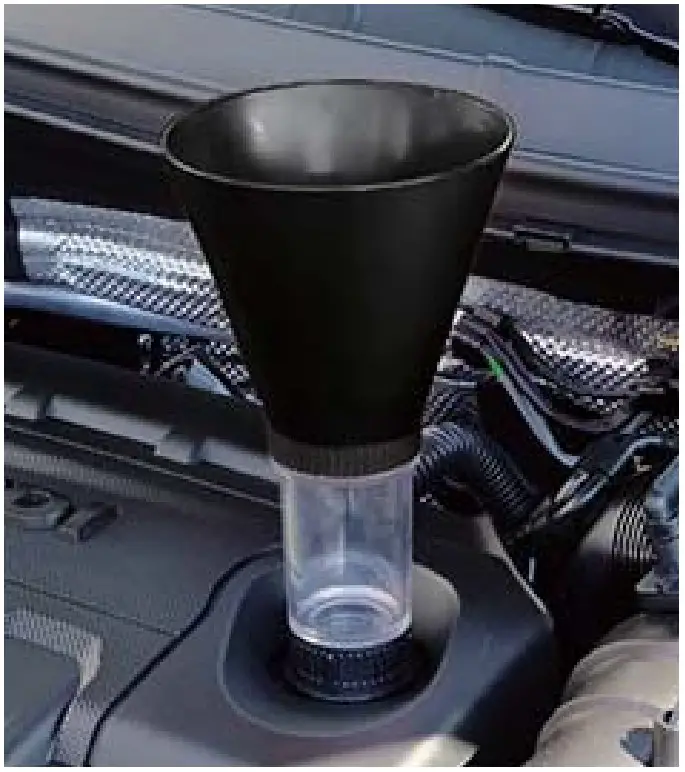

3. Make sure the funnel is securely connected on the engine (as the image on right).
4. Pour engine oil.
5. Disconnect oil funnel from oil filler neck.
6. Clean the residual oil inside the funnel and store the funnel in a dry and well-ventilated place.

APPLICATIONS

The application below is for reference only. More vehicle applications are possible. Some car models may have multiple suitable adapters due to variations in body style, engine size/capacity, and engine numbers.

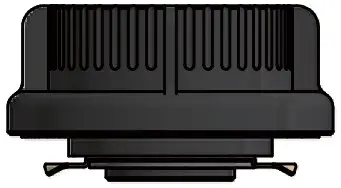

Clip Common type. Details are not included in the table below

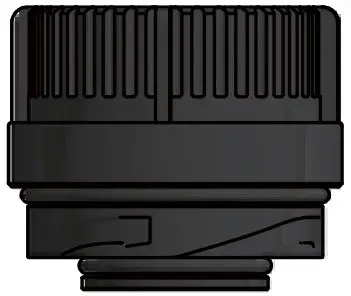

Twist

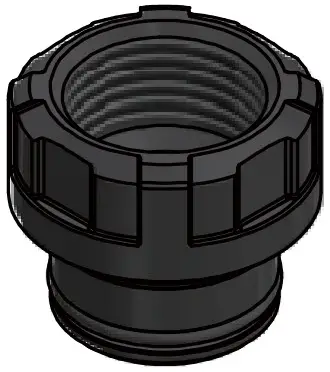

Knob
