Maintenance
- Recommended lights to be turn on between 10 -14 hrs, it will be ideal to turn the Lights Reactor on when the main aquarium lights is off. Please ensure pumps are running at all times except during maintenance.
- When Chamber is 70-80% full, please harvest its content.
- During harvesting, please off both the lights and pump, ensure power plugs are remove from wall socket. Lift the strainer to the top of the chamber and flip out the holder (see diagram).
HONYA CO., LTD is committed to continuous product development, we hereby reserve the right to revise the product specifications or designs without prior notice.
For any further enquiry/assistance and latest product updates, Please Visit at www.reefoctopus.com.

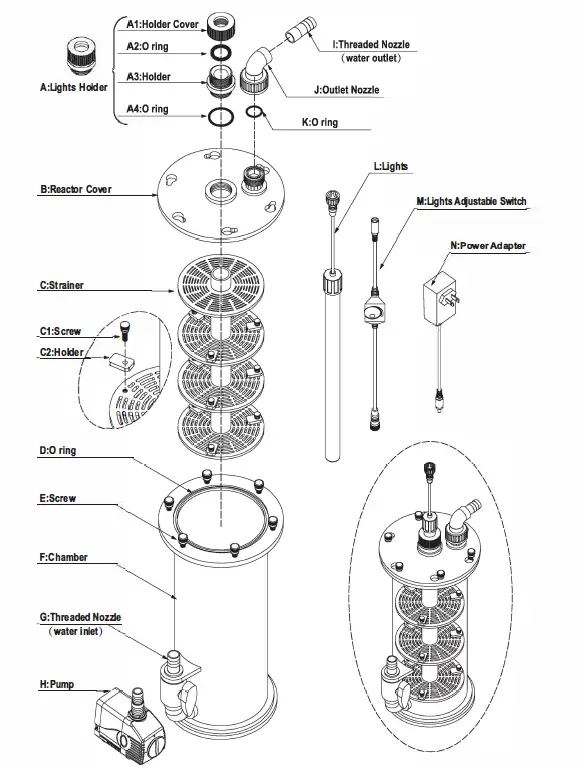

Explosion Chart
What is included
| LR–150 | LR-200 | ||||
| Article Code | Items | Model No. | Qty | Model No. | Qty |
| A | Lights Holder | ||||
| A1 | Holder Cover | ||||
| A2 | 0 ring | 22*5 | 22*5 | ||
| A3 | Holder | ||||
| A4 | 0 ring | 35*3 | 35*3 | ||
| B | Reactor Cover | ||||
| C | Strainer | ||||
| C1 | Screw | M5*15 | 9 | M5*15 | 9 |
| C2 | Holder | 9 | 9 | ||
| D | 0 ring | 145*4 | 203*3.5 | ||
| E | Screw | M8*25 | 6 | M8*25 | 8 |
| F | Chamber | ||||
| G | Threaded Nozzle | 17120mm | 20mm | ||
| H | Pump | AQ-1200 | AQ-2000 | ||
| Threaded Nozzle | 20mm | 25mm 20mm/25mm | |||
| J | Outlet Nozzle | ||||
| K | 0 ring | 22.2*2.4 | 28.8*3.1 | ||
| L | Lights | L-410 | L-410 | ||
| M | Lights Adjustable Switch | ||||
| N | Power Adapter | DC12V /2A | DC12V /2A | ||
Product Specification
| Item No. | Product | Wet/Dry | Diameter | Footprint | Height | Tank Volume | Power(w) | Pump | |||||||
| mm | inch | mm | inch | mm | inch | L | US Gal | LED | Pump | ||||||
| 130309 | LR-150 | Both | 150 | 5.9 | 230 | 205 | 9.1 | 8.1 | 510 | 20.1 | 200-600 | 52-158 | 18 | 15 | AQ-1200 |
| 130310 | LR-200 | Both | 200 | 7.9 | 285 | 265 | 11.2 | 10.4 | 510 | 20.1 | 500-1000 | 132-264 | 18 | 45 | AQ-2000 |
