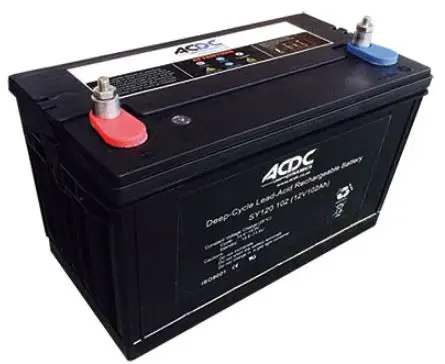

ACDC 6FM102D Deep Cycle Batteries 12Volt 102Ah
Product Information
The Deep Cycle Batteries are designed for frequent cycling applications. They use a high-tin alloy positive plate, active paste materials, and a stronger electrolyte, which gives them a 30% longer life than normal batteries. These batteries are suitable for solar and wind energy systems.
General Features:
- Nominal Voltage: 12V
- Battery Model: 6FM102D/12Volt 102Ah
- Rated capacity (10Hour rate): 102Ah
- Cells Per battery: 6
- Approx Weight: 29.0Kg
- Internal Resistance: Full charged at 25°C (77°F): Approx 5mΩ
- Max.discharge current: 800A (5s)
- Floating design life @ 25°C (77°F): 15 years
- Heavy Duty Grid
- Mechanized assembly
- Non-spillable construction
- High Reliability and Stability
- Sealed and Maintenance-free
- Long Life and low self-discharge design
Construction
- Positive……..Lead dioxide
- Electrolyte……..Sulfuric acid
- Separator……..Fiber glass
- Container……..ABS(UL94-HB) Flame Retardant ABS (UL94-V0)
- Negative……..Lead
- Safety Valve……..EPDR
- Terminal……..Copper
Specification
| Capacity @ 25°C (77°F) | Temperature | Capacity |
|---|---|---|
| 10Hour rate (10.2A/10.8V) | 25°C (77°F) | 102Ah |
| 5Hour rate (17A/10.8V) | 25°C (77°F) | 85Ah |
| 3Hour rate (25A/10.8V) | 25°C (77°F) | 75Ah |
| 1Hour rate (55A/10.5V) | 25°C (77°F) | 55Ah |
|
Battery Model | Nominal Voltage | 12V | |||||||||
| Rated capacity (10Hour rate) | 102Ah | ||||||||||
| Cells | Per battery | 6 | |||||||||
| Dimension | Length | Width | Height | Total Height | |||||||
| 331mm±1.5 | 173mm±1.5 | 213mm±1.5 | 218mm±2 | ||||||||
| Approx Weight | 29.0Kg | ||||||||||
| Internal Resistance | Full charged at 25 | (77 | ): Approx 5m | ||||||||
| Max.discharge current | 800A(5s) | ||||||||||
| Floating design life @ 25 (77 ) | 15 years | ||||||||||
| Capacity @ 25 (77 ) | 10Hour rate(10.2A/10.8V) | 5Hour rate(17A/10.8V) | 3Hour rate(25A/10.8V) | 1Hour rate(55A/10.5V) | |||||||
| 102Ah | 85Ah | 75Ah | 55Ah | ||||||||
| Capacity affected by Temp(10 HR) | 40 | (104 | ) | 25 (77 ) | 0 (32 ) | -15 | (5 | ) | |||
| 102% | 100% | 85% | 65% | ||||||||
| Self Discharge @ 25 (77 ) | After 3 months storage | After 6 months storage | After 12 months storage | ||||||||
| 91% | 82% | 64% | |||||||||
| Charge method @ 25 (77 ) | Cycle Use | 14.5-14.9V (Initial charging current less than 30A) | |||||||||
| Float Use | 13.6-13.8V | ||||||||||
Caution:
- Avoid short circuit
- Do not charge in sealed container
- Keep sparks, flame away
- Charge Method:
- Cycle use: 14.5-14.9V
- Float use: 13.6-13.8V
- Initial current: 30A
Product Usage Instructions
To use the Deep Cycle Batteries:
- Make sure to avoid short circuiting the batteries.
- Do not charge the batteries in a sealed container.
- Keep sparks and flames away from the batteries.
- For cycle use, charge the batteries with a voltage between 14.5-14.9V.
- For float use, charge the batteries with a voltage between 13.6-13.8V.
- During the initial charging, make sure the current does not exceed 30A.
If you have any further questions or concerns, please contact our National Sales Centre at 010 202 3400 or our Technical Support at 010 202 3500.
For more information, visit our website at www.championpower.cn.
Deep cycle Series Battery is specially designed for frequent cycling applications.The series battert uses high-tin alloy positive plate, active paste materials and stronger electrolyte,which gives 30% longer life than normal battery. Suitable for solar and wind energy systems.
Application
- Emergency Power System
- Communication equipment
- Telecommunication systems
- Uninterruptible power supplies
- Electric toy car and wheelchairs, etc
- Power tools
- Alarm system
- Marine equipment
- Medical equipment
- Fire and Security System

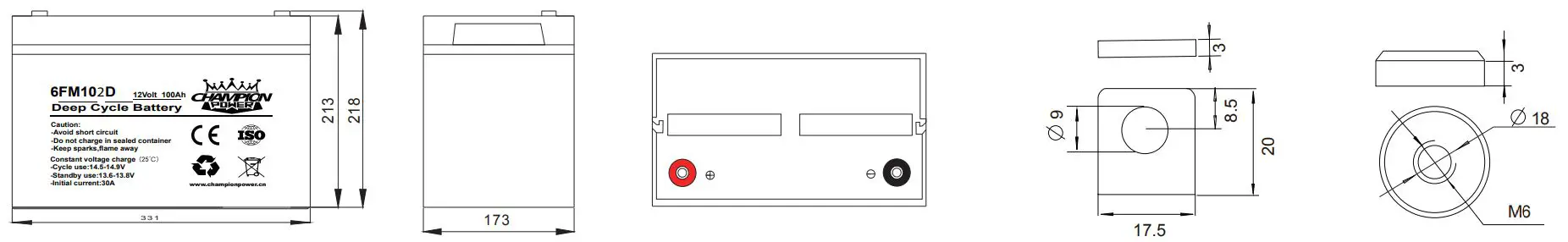

Outer Dimension(mm) and Terminal Type(mm)
Constant Current(Amp) and Constant Power(Watt) Discharge Table at 25°C (77°F)
| F.V / TIME | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 8h | 10h | 20h | |
| 9.60V | A | 360.00 | 220.00 | 175.00 | 115.00 | 60.00 | 35.00 | 26.00 | 21.00 | 17.54 | 11.58 | 11.00 | 5.70 |
| W | 3816.00 | 2336.40 | 1872.50 | 1242.00 | 654.00 | 381.50 | 286.00 | 231.00 | 192.96 | 128.57 | 122.10 | 64.13 | |
| 10.20V | A | 330.00 | 220.83 | 160.83 | 109.17 | 62.00 | 33.58 | 25.50 | 20.00 | 17.21 | 11.40 | 10.50 | 5.60 |
| W | 3597.00 | 2451.25 | 1793.29 | 1228.13 | 697.50 | 379.49 | 288.15 | 227.00 | 195.31 | 129.39 | 119.18 | 63.56 | |
| 10.50V | A | 306.04 | 211.00 | 150.00 | 105.83 | 60.00 | 32.92 | 25.00 | 19.00 | 17.00 | 11.25 | 10.30 | 5.53 |
| W | 3366.46 | 2373.75 | 1695.00 | 1206.50 | 684.00 | 376.90 | 286.25 | 218.50 | 195.50 | 129.38 | 118.45 | 63.60 | |
| 10.80V | A | 278.67 | 201.67 | 140.00 | 101.00 | 58.00 | 32.08 | 24.50 | 18.67 | 16.25 | 10.96 | 10.00 | 5.46 |
| W | 3065.33 | 2299.00 | 1603.00 | 1166.55 | 669.90 | 370.56 | 284.20 | 217.47 | 189.31 | 127.66 | 116.50 | 63.61 | |
| 11.10V | A | 241.00 | 190.00 | 130.00 | 94.00 | 55.00 | 31.25 | 23.50 | 18.33 | 15.54 | 10.67 | 9.75 | 5.40 |
| W | 2723.30 | 2194.50 | 1508.00 | 1099.80 | 643.50 | 365.63 | 276.13 | 216.33 | 183.39 | 125.87 | 115.05 | 63.72 | |
