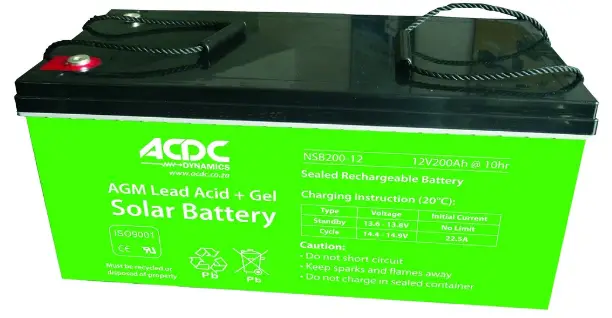

ACDC DYNAMICS NSB065-12 Gel Series Battery
Gel series is specially designed for power supply under extreme weather condition.It can be designed with AGM or PVC separator, byusing strong grids, high purity lead and patented Gel electrolyte,With 15-year design life,ait has rapid charging acceptance and floating or cyclic endurance
Application
- Emergency Power System
- Communication equipment
- Telecommunication systems
- Uninterruptible power supplies
- Solar energy, wind energy storage system
General Features
- Heavy Duty Grid
- Mechanized assembly
- Non-spillable construction
- High Reliability and Stability
- Sealed and Maintenance-free
- Long Life and low self-discharge design
- Power tools
- Alarm system
- Marine equipment
- Medical equipment
- Fire and Security System
Construction
- Positive……..Lead dioxide
- Electrolyte……..Sulfuric acid
- Separator……..PVC or AGM
- Container……..ABS(UL94-HB) / Flame Retardant ABS (UL94-V0)
- Positive……..Lead dioxide
Negative……..Lead
- Safety Valve……..EPDR
- Terminal……..Copper
Specification
|

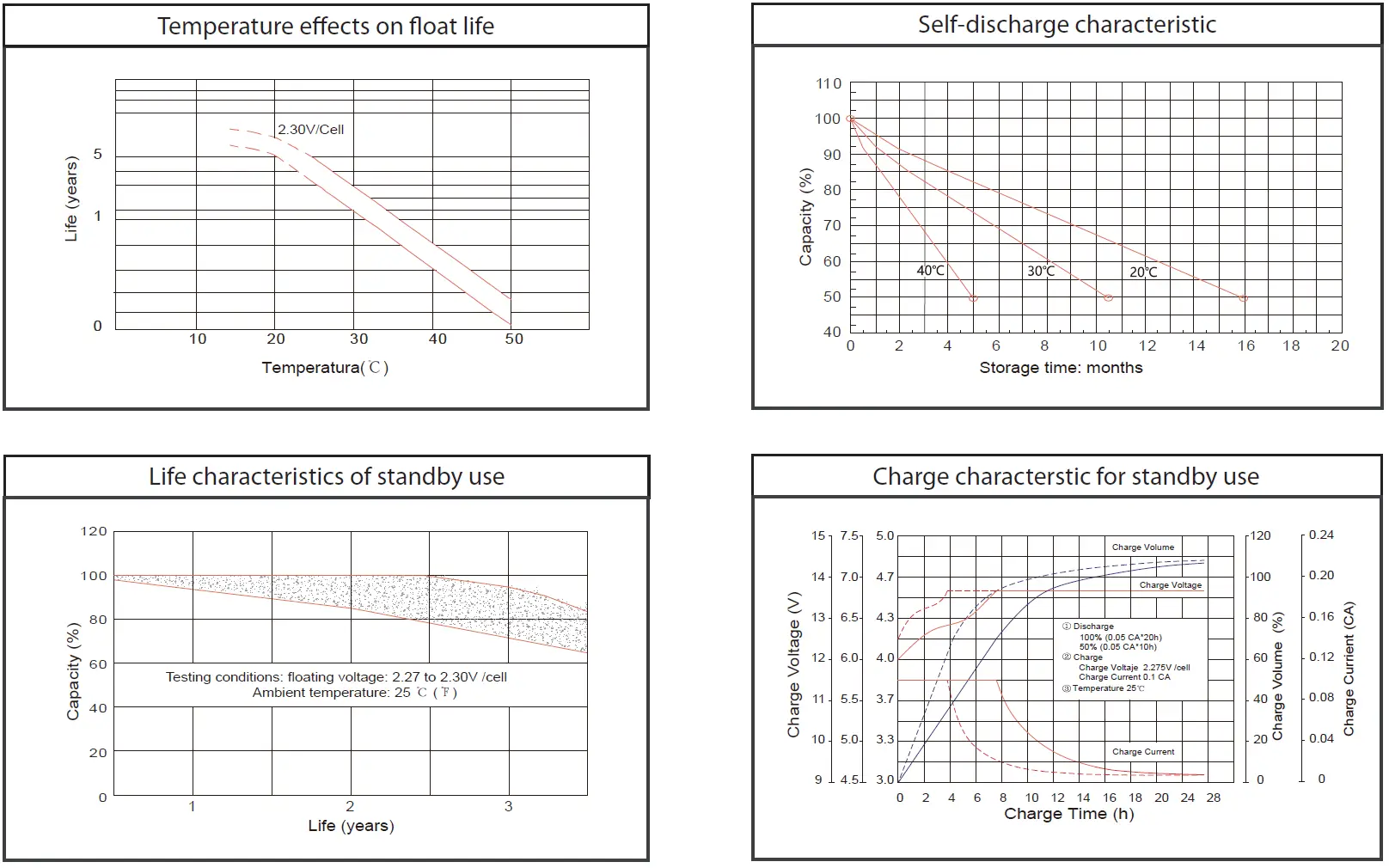

Battery Model | Nominal Voltage | 12V | |||||||||
| Rated capacity (10Hour rate) | 65Ah | ||||||||||
| Cells Per battery | 6 | ||||||||||
| Dimension | Length | Width | Height | Total Height | |||||||
| 350mm | 166mm | 178mm | 178mm | ||||||||
| Approx Weight | 19.0Kg | ||||||||||
| Internal Resistance | Full charged at 25 | (77 | ): Approx 7m | ||||||||
| Max.discharge current | 780A(5s) | ||||||||||
| Floating design life @ 25 (77 ) | 15 years | ||||||||||
| Capacity @ 25 (77 ) | 10Hour rate(6.5A/10.8V) | 5Hour rate(10.5A/10.5V) | 3Hour rate(13A/10.5V) | 1Hour rate(26.8A/9.60V) | |||||||
| 65Ah | 52.5Ah | 39Ah | 26.8Ah | ||||||||
| Capacity affected by Temp(10 HR) | 40 | (104 | ) | 25 (77 ) | 0 (32 | ) | -15 | (5 | ) | ||
| 102% | 100% | 85% | 65% | ||||||||
| Self Discharge @ 25 (77 ) | After 3 months storage | After 6 months storage | After 12 months storage | ||||||||
| 93% | 84% | 65% | |||||||||
| Charge method @ 25 (77 ) | Cycle Use | 14.5-14.9V (Initial charging current less than 19.5A) | |||||||||
| Float Use | 13.6-13.8V | ||||||||||

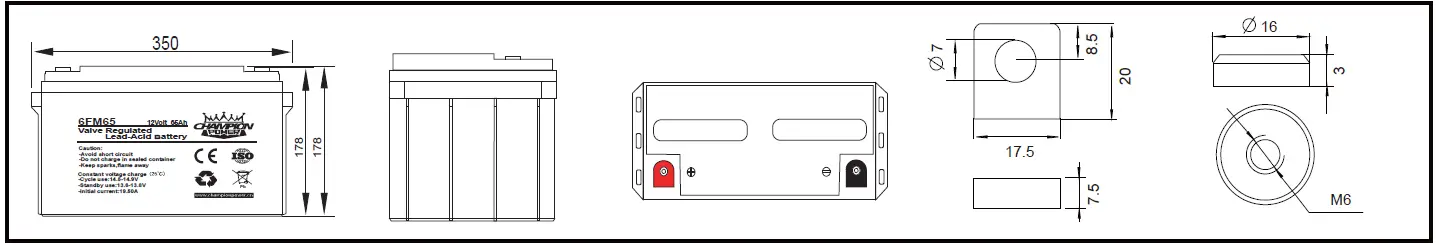

Outer Dimension

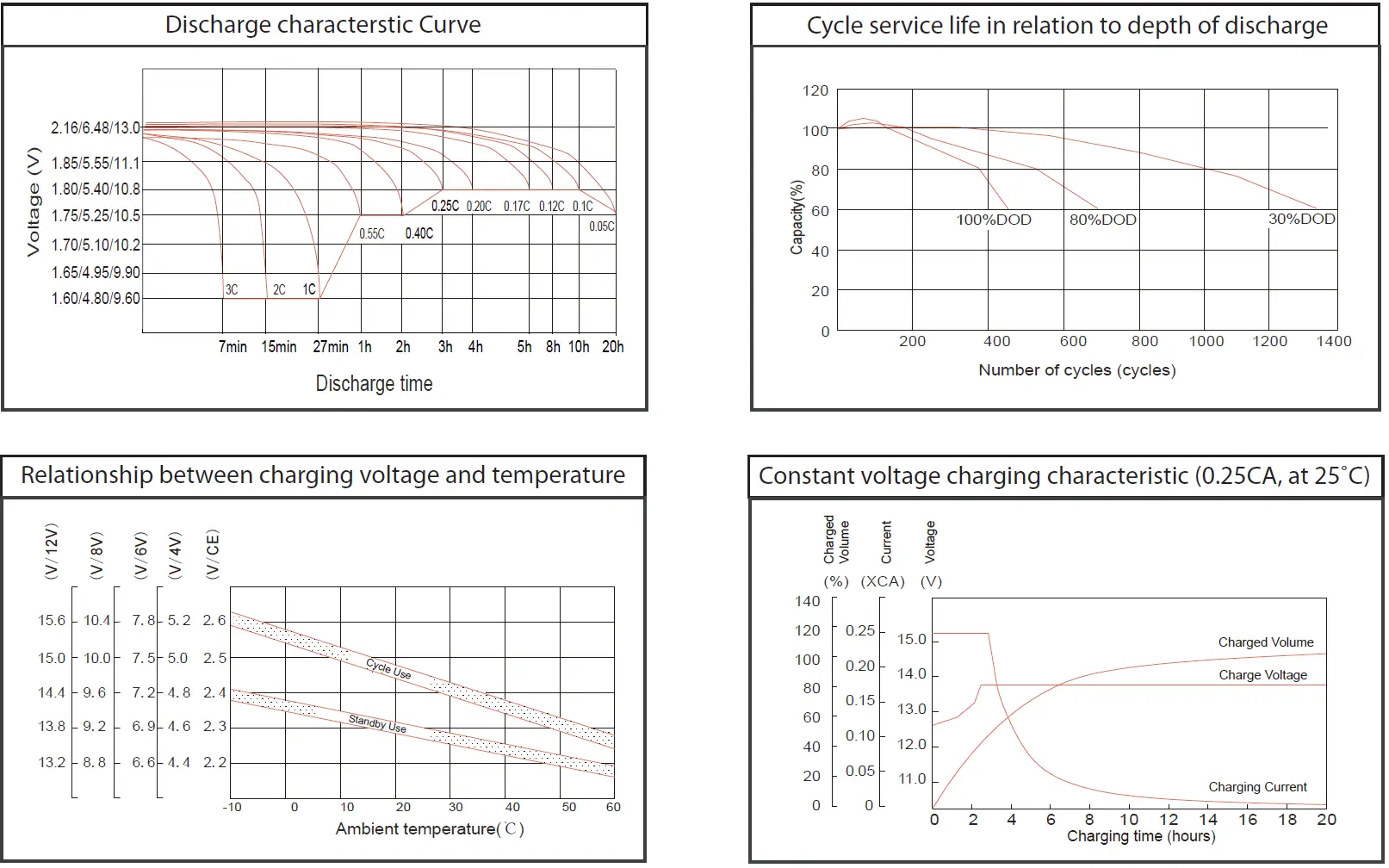

Constant Current
(Amp) and Constant Power(Watt) Discharge Table at 25°C (77°F)
| F.V / TIME | 5min | 10min | 15min | 30min | 1h | 2h | 3h | 4h | 5h | 8h | 10h | 20h | |
| 9.60V | A | 900.00 | 550.00 | 437.50 | 287.50 | 150.00 | 87.50 | 65.00 | 52.50 | 43.85 | 28.96 | 27.50 | 14.25 |
| W | 9540.00 | 5841.00 | 4681.25 | 3105.00 | 1635.00 | 953.75 | 715.00 | 577.50 | 482.40 | 321.44 | 305.25 | 160.31 | |
| 10.20V | A | 825.00 | 552.08 | 402.08 | 272.92 | 155.00 | 83.96 | 63.75 | 50.00 | 43.02 | 28.50 | 26.25 | 14.00 |
| W | 8992.50 | 6128.12 | 4483.23 | 3070.31 | 1743.75 | 948.73 | 720.38 | 567.50 | 488.29 | 323.48 | 297.94 | 158.90 | |
| 10.50V | A | 765.10 | 527.50 | 375.00 | 264.58 | 150.00 | 82.29 | 62.50 | 47.50 | 42.50 | 28.13 | 25.75 | 13.83 |
| W | 8416.15 | 5934.38 | 4237.50 | 3016.24 | 1710.00 | 942.24 | 715.63 | 546.25 | 488.75 | 323.44 | 296.13 | 158.99 | |
| 10.80V | A | 696.67 | 504.17 | 350.00 | 252.50 | 145.00 | 80.21 | 61.25 | 46.67 | 40.63 | 27.40 | 25.00 | 13.65 |
| W | 7663.33 | 5747.50 | 4007.50 | 2916.38 | 1674.75 | 926.41 | 710.50 | 543.67 | 473.28 | 319.16 | 291.25 | 159.02 | |
| 11.10V | A | 602.50 | 475.00 | 325.00 | 235.00 | 137.50 | 78.13 | 58.75 | 45.83 | 38.85 | 26.67 | 24.38 | 13.50 |
| W | 6808.25 | 5486.25 | 3770.00 | 2749.50 | 1608.75 | 914.06 | 690.31 | 540.83 | 458.48 | 314.67 | 287.63 | 159.30 | |
