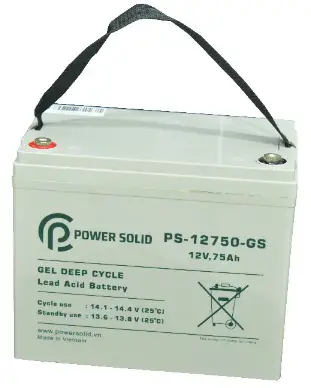

PS-12750-GS GEL Deep Cycle Battery
Owner’s Manual
GEL Deep Cycle Battery
PS-12750-GS
12V , 75Ah
The Crown of Power Solution
General Features
- Designed floating charging service life: 15 years (25ºC)
- Safety valve installation for explosion proof ,Sealed and maintenance free operation
- By using strong grids, high purity lead and patented Gel electrolyte
- Extremely low self-discharge characteristic
- Wide operating temperature range from -20ºC~55ºC
- Lead Aluminum calcium Tin alloy high energy, prevent corrosion
- Maximum discharge current :750 Amperes for 5 seconds
Application
- DC power supply
- UPS/EPS power supply
- Electrical devices & instruments
- Security and fire alarm systems
- Telecom stations and power stations
- Medical equipments
- Emergency lighting systems
Constant-Voltage Charge
Rated Capacity
| 20 hour rate (3.75A) | 79.5AH |
| 10 hour rate (7.5A) | 75.0AH |
| 5 hour rate (12.75A) | 63.7AH |
| 3 hour rate (18.75A) | 56.3AH |
| 1 hour rate (45.0A) | 45.0AH |
Capacity affected by Temperature
| 40ºC(104ºF) | 103% |
| 25ºC(77ºF) | 100% |
| 0ºC(32ºF) | 86% |
Cycle Application
- Limit initial current less than 18.75A.
- Charge until battery voltage (under charge) reaches 14.1V to 14.4V at 25ºC(77ºF).
- Hold at 14.1V to 14.4V until current drop to under0.45A for at least 3 hours.
- Temperature compensation coefficient of charging voltage is -30mV/ºC.
Standby Service
- Hold battery across constant voltage source of 13.6 to 13.8 volts with current limit 18.75A continuously .When held at this voltage , the battery will seek its own current level and maintain itself in a fully charge status.
- Temperature compensation coefficient of charging voltage is -18mV/ºC.
Battery Discharge Table
| End Voltage (V) | Minute (M) | Hour (H) | |||||||||||
| 5 | 10 | 15 | 30 | 45 | 1 | 1.5 | 2 | 3 | 5 | 8 | 10 | 20 | |
| Condtant Current Discharge Data Sheet (Amperes at 25°C) | |||||||||||||
| 10.20 | 227 | 173 | 131 | 69.0 | 64.1 | 45.1 | 35.5 | 29.77 | 18.65 | 12.95 | 9.22 | 7.63 | 4.07 |
| 10.50 | 202 | 158 | 121 | 66.2 | 61.2 | 43.2 | 34.1 | 28.68 | 18.05 | 12.37 | 8.71 | 7.53 | 4.00 |
| 10.80 | 187 | 144 | 114 | 64.1 | 58.3 | 41.5 | 32.7 | 27.56 | 17.41 | 11.83 | 8.28 | 7.50 | 3.88 |
Constant Power Discharge Data Sheet (Watt at 25ºC)
| 10.20 | 2254 | 1908 | 1385 | 863 | 648 | 563 | 410 | 309 | 230 | 148 | 110 | 93.6 | 49.1 |
| 10.50 | 2167 | 1620 | 1244 | 842 | 634 | 554 | 404 | 299 | 223 | 144 | 109 | 90.7 | 47.5 |
| 10.80 | 2016 | 1512 | 1187 | 825 | 612 | 530 | 386 | 289 | 215 | 139 | 107 | 86.4 | 46.5 |
Physical Specifications
| Nominal Voltage | Nominal Capacity (10HR) | Dimension | Weight ±3% | Internal ResiStanc (In full charge Status) | Standard Terminals | |||
| L | W | H | TH | |||||
| 12V | 75AH | 260±3mm | 168±2mm | 212±3mm | 218±3mm | Approx 23.5kg (51.7Ibs) | =5.37m0 | T12 (standard) |

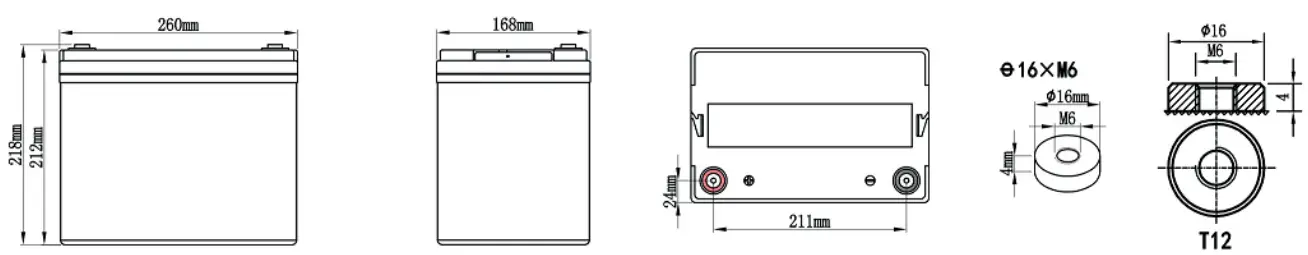

Dimensions(mm)

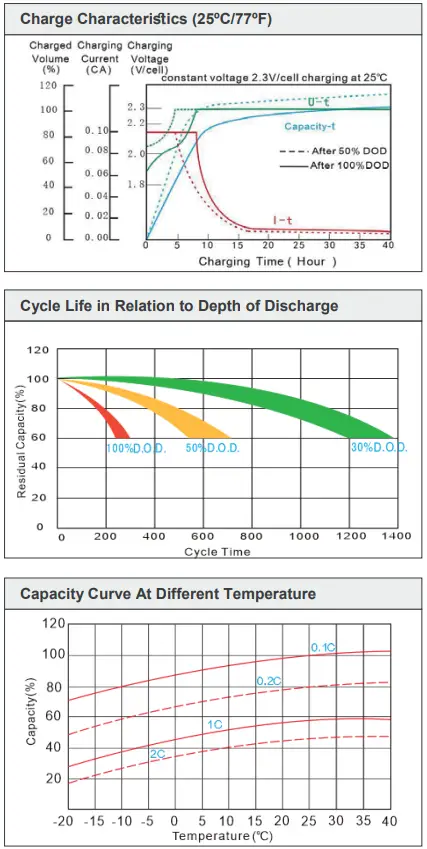

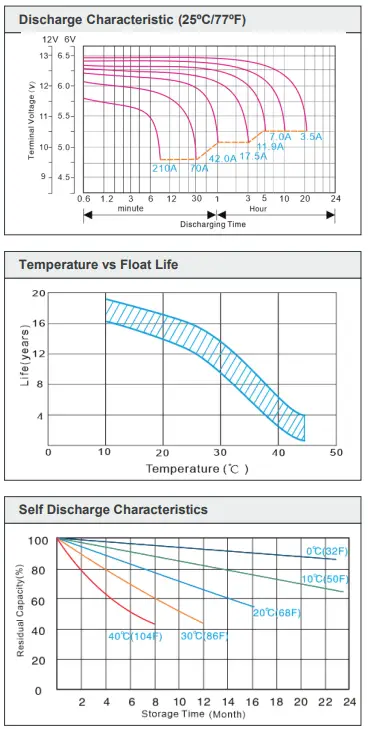

Performance Characteristics
