CS7 Standard Control Relays
User Manual

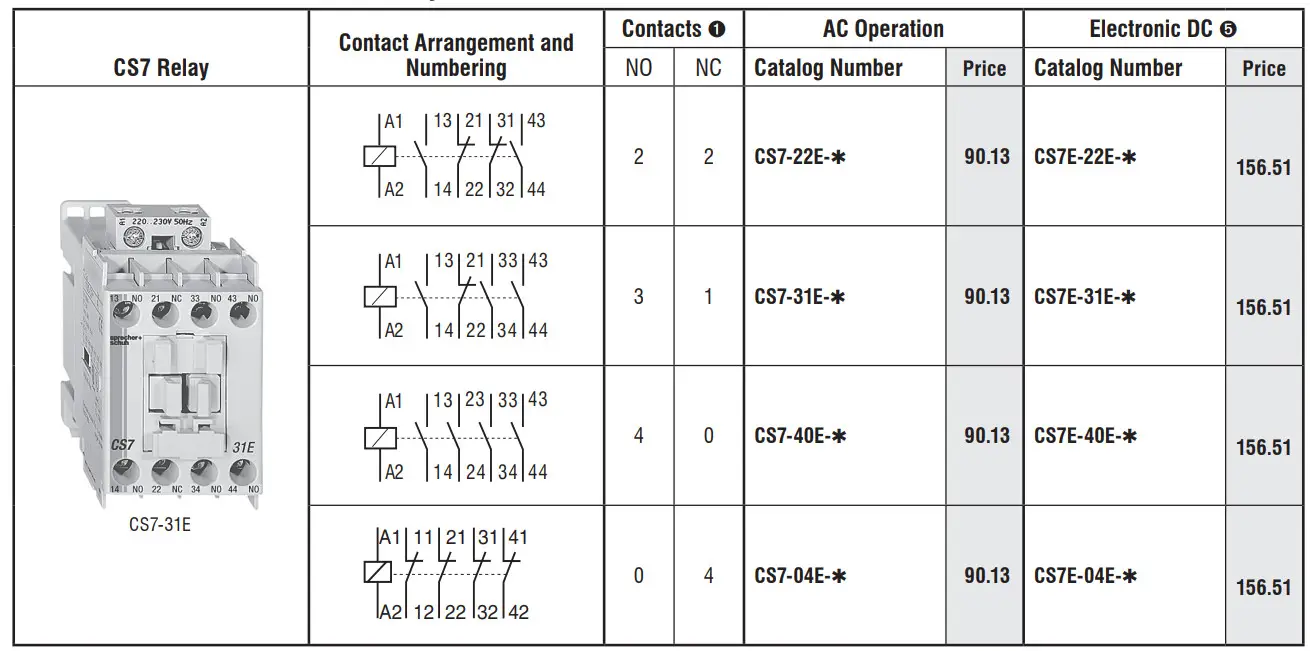

Series CS7 Standard Control Relays – 4 Pole
Contact Ratings (Per UL508/NEMA A600 & P600)
Other UL Ratings
Maximum Voltage 600 volts AC or DC
General Purpose Amps
| CS7 | 25 amps |
| Auxiliaries (@ 40°C) | 10 amps |
| Auxiliaries (@ 60°C) | 6 amps |
AC Coil Codes ➌
| AC Coil Code | Voltage Range | |
| 50 Hz | 60 Hz | |
| 24Z | 24V | 24V |
| 120 | 110V | 120V |
| 208 | — | 208V |
| 220W | — | 208V-240V |
| 240 | 220V | 240V |
| 277 | 240V | 277V |
| 380 | 380V-400V | 440V |
| 480 | 440V | 480V |
| 600 | 550V | 600V |
DC Coil Codes ➎
| DC Coil Codes 12E | Voltage |
| 24E | 12V |
| 36E ➏ | 24V |
| 48E ➏ | 36-48V |
| 110E ➏ | 48-72V |
| 220E ➏ | 110-125V |
| 220-250V |
Ordering Instructions
| Specify Catalog Number | |
| Replace (✱) with Coil Code | See Coil Codes on this page |
- Side mounted and/or top auxiliaries may be field installed to increase the number of available poles, limitations apply. Refer to page G14 for ordering and restriction details. Please note that side mount auxiliary terminal markings may conflict with base relay and/or top mount auxiliary terminal markings.
- DC rating for CS7 base control relay.
- Other voltages available, see page G12.
- Positively-Guided/Mechanically-Linked Contacts per IEC 947-5-1 Annex L on 4 main poles.
- CS7E electronic coils are not interchangeable with non-electronic DC or AC coils.
- Not applicable with Electronic Timer accessories (CRZ_7).
