Commercial Lighting
Ecko 05

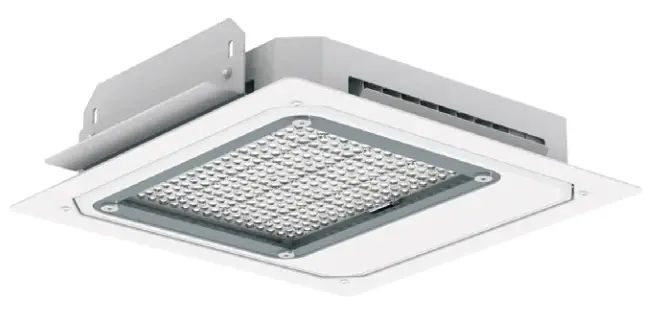

Gas Station LED Canopy Light
Microwave Motion Sensor Remote Control
Emergency Function Options
Better Solutions for LED Canopy Light
| IP65 water-proof | |
| Easy Installation | |
| AC100-277V 50/60Hz | |
| 140lm/W |
Options
| Driver | Voltage | CCT |
| Sosen Driver | AC100-277V | 3000K 4000K 5000K 5700K |

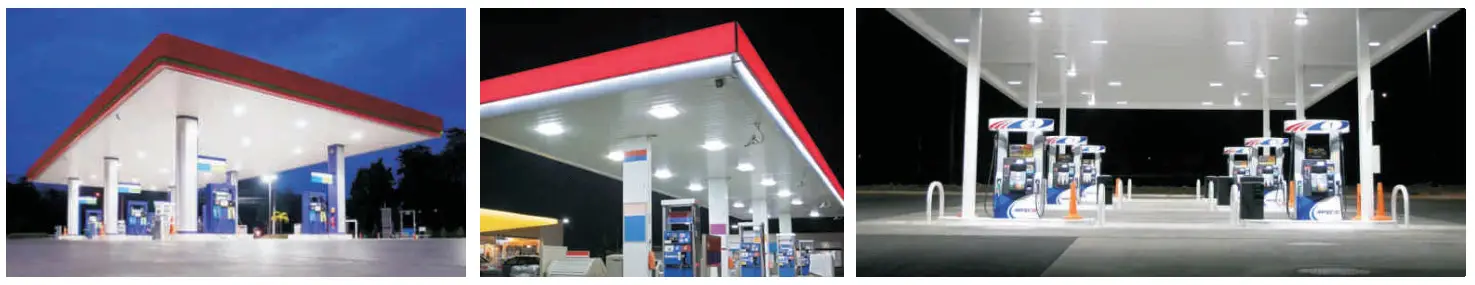

Application
The Gas Station LED Canopy Light provides a energy saving solution to a wide spectrum of applications including: but not limited to security lighting in schcools, office, complexes, light commercial development, apartments, parking garages, entryways, and stairwells. It also can be used in workshop, warehouse, parking lot, toll gate, gas station, supermarket, exhibition hall, gym and other places.

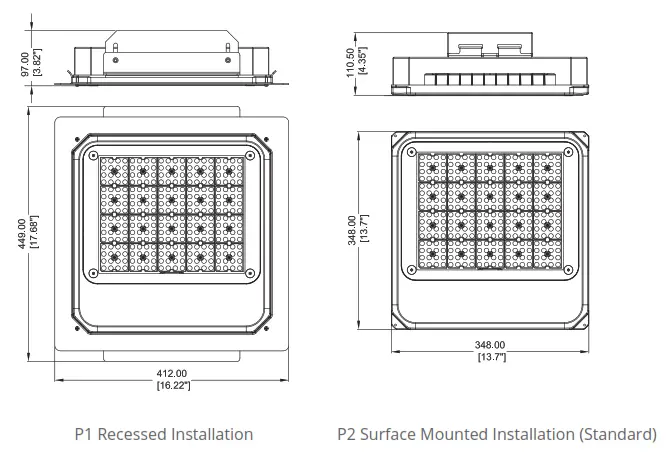

Dimensions (mm)


Model
| Model | Power | Luminous Efficacy | LEDs | CRI | Weight | Beam Angle |
| GBECK-80W-05 | 80W | 140lm/W | LUMILEDS 2835 | > 80 | 7.80kg | 30° / 60° / 90° / 150° |
| GBECK-100W-05 | 100W | |||||
| GBECK-120W-05 | 120W | |||||
| GBECK-150W-05 | 150W |

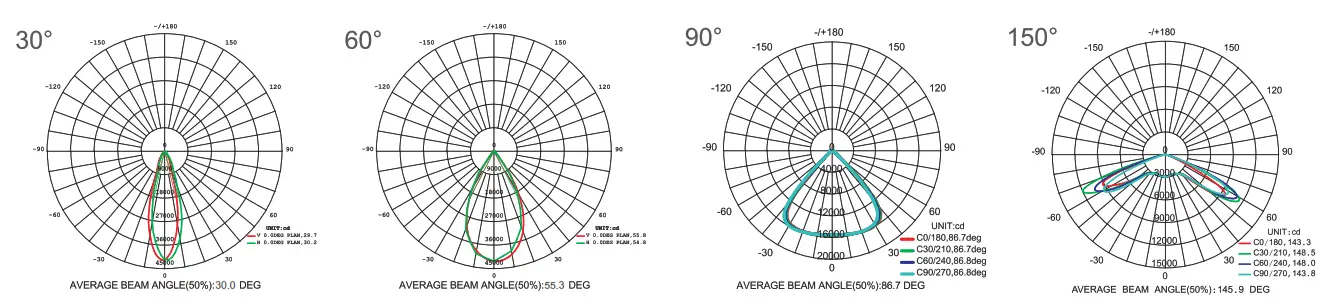

Photometry

Model Options

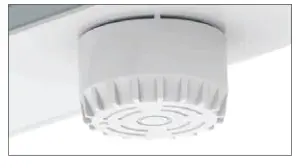

Microwave Motion Sensor Options

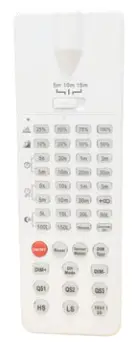

(Extra Remote Control Options)
Only for TUV,UL List Driver
Default Setting: Detection area:100%, Hold time:5 seconds, Daylight threshold:50Ix, Stand-by dimming level:50%, Stand-by period:10 seconds

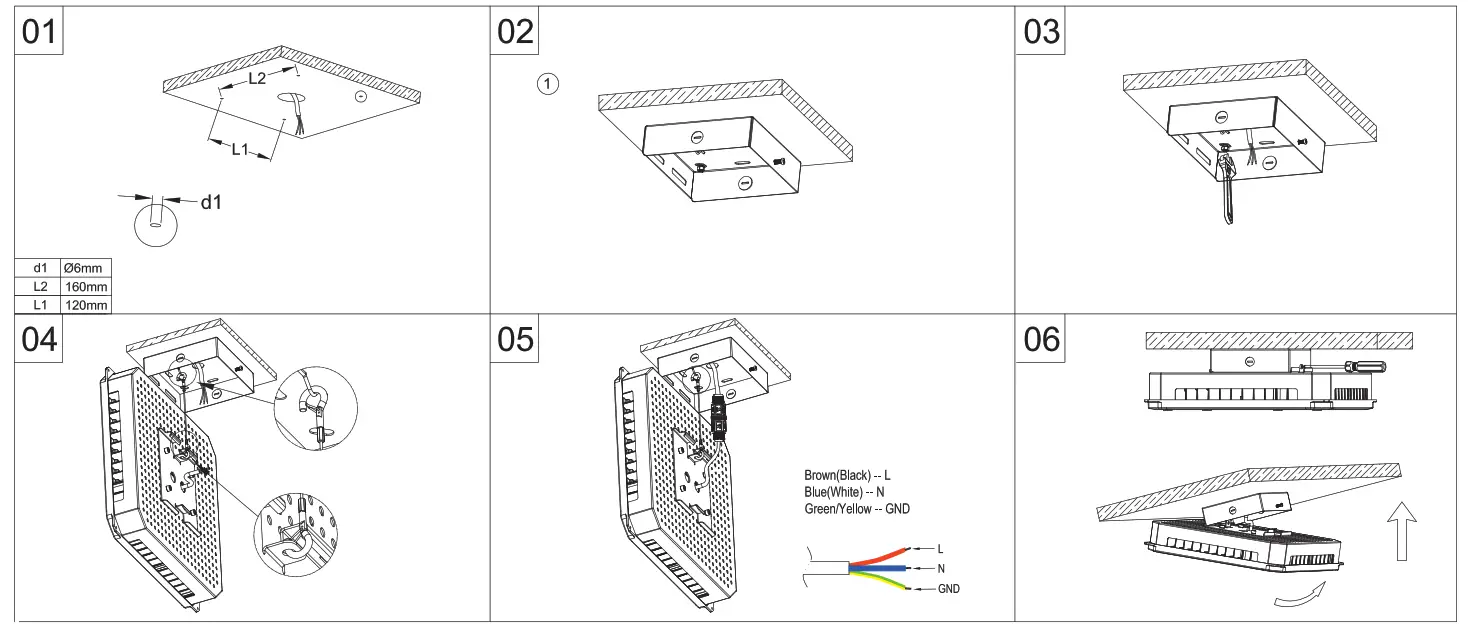

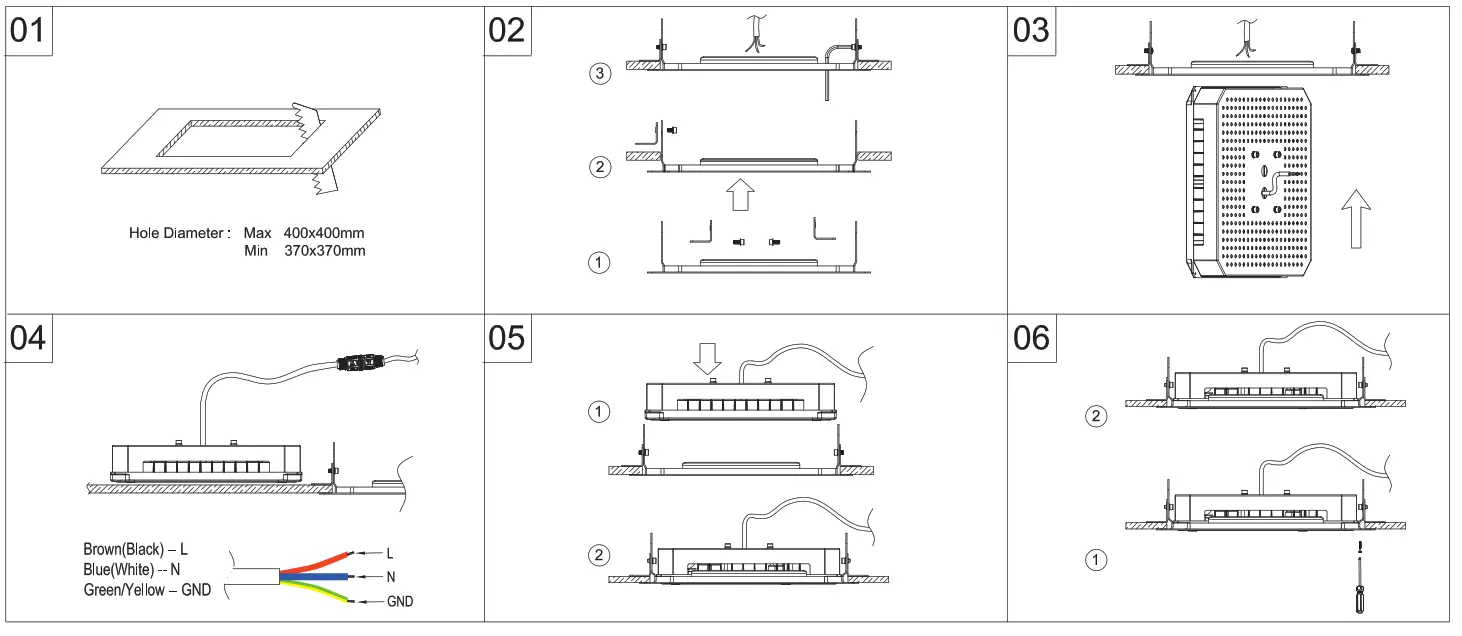

Installation and Use

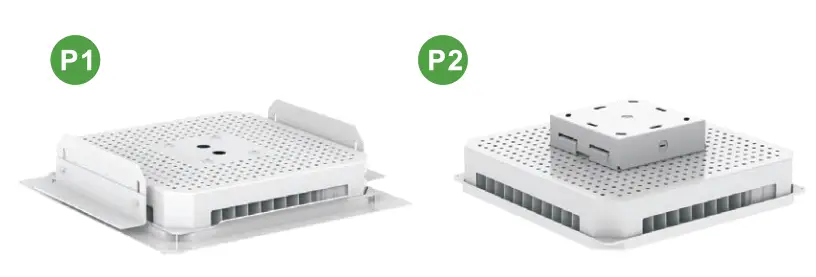

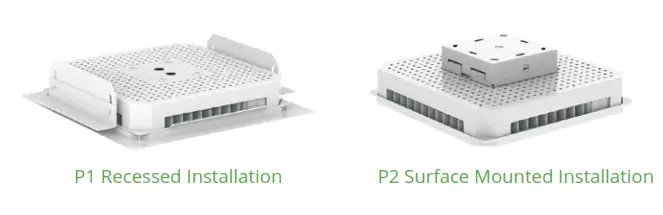

p1 Recessed Instinstallation Frame

P2 Surface mounting installation (standard)

![]()
