nVent CADDY N00136 Pyramid Light-Duty Equipment Support Kit

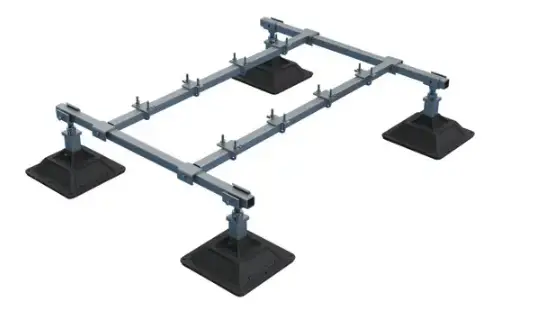

Extension KitThe nVent CADDY Pyramid Light-Duty Equipment Support Kit provides contractors with a quick and easy way to install HVAC MiniSplit units on rooftops. Utilize with nVent CADDY Pyramid Light-Duty Equipment Support Frame Extension Kit (PEKLDEF) for linking multiple HVAC units. The unique attachment clamps/framedesign allows for a more flexible and efficient installation method, saving contractors time, money, and space.
Product Information
- Material: Steel
- Finish: Hot-Dip Galvanized
- Catalog Number: [Catalog Number]
- Temperature Resistance in demanding environments
- Height: [Height]
- Length: [Length]
- Post Base Square Tube: [Post Base Square Tube]
- Cross Bar Assembly Width: [Cross Bar Assembly Width]
- Surface Area: [Surface Area]
- Unit Weight: 32.2 lb
- Ultimate Static Load: 400 lb
Product Usage Instructions
- Ensure that the rooftop surface is suitable for installation and can support the weight of the HVAC Mini Split unit.
- Assemble the nVent CADDY Pyramid Light-Duty Equipment Support Kit according to the provided instructions.
- Position the assembled support kit at the desired location on the rooftop.
- Secure the support kit to the rooftop surface using appropriate fasteners and anchors.
- Attach the HVAC Mini Split unit to the support kit using the unique attachment clamps/frame design.
- If linking multiple HVAC units, use the nVent CADDY Pyramid
Light-Duty Equipment Support Frame Extension Kit (PEKLDEF) to connect them securely. - Ensure that all connections are tight and secure before operating the HVAC system.
For more information, please visit nVent.com/CADDY.
The nVent CADDY Pyramid Light-Duty Equipment Support Kit provides contractors with a quick and easy way to install HVAC Mini Split units on rooftops. Utilize with nVent CADDY Pyramid Light-Duty Equipment Support Frame Extension Kit (PEKLDEF) for linking multiple HVAC units. The unique attachment clamps/frame design allows for a more flexible and efficient installation method, saving contractors time, money and space.
PYRAMID LIGHT-DUTY EQUIPMENT SUPPORT FEATURES:
- System takes 80% less time to install than using other standard options on the market
- Adjustable from 12″ – 18″, reduces the need to use multiple SKUs
- Increased adjustability enables flexibility to move bars, sliding the kit as needed
- Evenly distributes loads and avoids damaging roof membrane with nVent CADDY PEK-style foam bottom feet
- 400 lb. load rating can handle range of equipment BTU outputs/sizes
- Hot dip galvanized construction and hardware provide superior corrosion resistance in demanding environments
Material: Steel
Finish: Hot-Dip Galvanized
| Catalog Number | Temperature | Height | Length | Post Base | Square Tube | Cross Bar Assembly | Width | Surface Area | Unit Weight | Ultimate Static Load |
| PEKLD4 | −30 to 130°F | 12 – 18 in | 41.4 in | 6″ x 4 pc in | 38.2″ x 2 pc in | 20.5″ x 2 pc in | 26 in | 144 in² | 32.2 lb | 400 lb |
| PEKLDEF | −30 to 130°F | 12 – 18 in | 49.8 in | 6″ x 2 pc in | 48.2″ x 2 pc in | 20.5″ x 2 pc in | 26 in | 72 in² | 25.4 lb | 400 lb |
- ©2023 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice.
- CADDY-DS-N00136-PyramidLightDutySupportKit-USEN-2307-Updated2308
