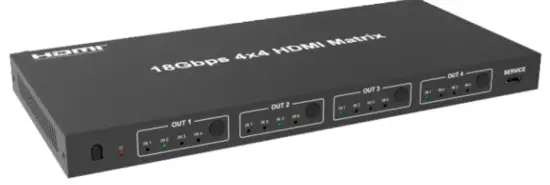

DIGITUS DS-55511 4×4 HDMI Matrix Switch 4K-60Hz
Introduction
With the DIGITUS® 4×4 HDMI Matrix Switch, you can choose between 4 HDMI signal sources and output signals to 4 different HDMI outputs independently or simultaneously. All HDMI ports can be assigned to different HDMI outputs or all HDMI outputs as desired. Convenient operation using remote control or on the device itself. The Matrix Switch also offers EDID management (changeover switch) and downscaling functionality so that 4K content can be output on Full HD displays without a problem.
Main Features
- Supports 4K2K/60Hz (4:4:4)
- ideo bandwidth: 18 Gbps
- HDCP 2.2 / 1.4
- HDMI 2.0
- EDID management
- Supports downscaling of 4K contents on Full HD (1080p) displays
- HDR, HDR10, HDR10+, Dolby Vision
- Output of up to 4 HDMI signals on 4 HDMI monitors possible either simultaneously or independently
- Convenient switching between all HDMI connections using remote control or on the device itself
Package Contents
- 1x 4×4 HDMI Matrix Switch
- 1x Power adapter (DC 12V/2.5A, 1.45 m)
- 1x IR remote control
- 2x Mounting plate
- 1x User manual
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP | HDCP 2.2/1.x |
| Video Bandwidth | 594MHz/18Gbps |
| Video Resolution | 480i ~1080p, 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio |
| ESD Protection | Human body model ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |
| Inputs | 4×HDMI Type A [19-pin female] 1×IR Receiver Window 1×Micro USB |
| Outputs | 4×HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm (W) × 105mm (D) × 19mm (H) |
| Weight | 535g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certificated) |
| Power Consumption | 11.04W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

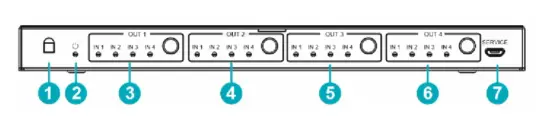

Front Panel
| No. | Name | Function Description |
| 1 | IR | IR receive window |
| 2 | Power LED | The red LED illuminates when the device is working or on standby. |
| 3 | OUT 1 | Button: Short press to switch the input selected by OUT 1; Long press for 3s to turn on/off the downscaler corresponding to OUT 1. LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up. |
| 4 | OUT 2 | Button: Short press to switch the input selected by OUT 2; Long press for 3s to turn on/off the downscaler corresponding to OUT 2. LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up. |
| 5 | OUT 3 | Button: Short press to switch the input selected by OUT 3; Long press for 3s to turn on/off the downscaler corresponding to OUT 3. LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up. |
| 6 | OUT 4 | Button: Short press to switch the input selected by OUT 4; Long press for 3s to turn on/off the downscaler corresponding to OUT 4. LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up. |
| 7 | SERVICE | Connect to PC via Micro to USB cable for firmware upgrade. |
Rear Panel
| No. | Name | Function Description |
| 1 | INPUT | Connect to HDMI source device such as DVD player or PC. |
| 2 | OUTPUT | Connect to HDMI display device such as TV or Projector. |
| 3 | EDID | EDID SWITCH control. 0000 1080P, Stereo Audio 2.0 0001 1080P, Dolby/DTS 5.1 0010 1080P, HD Audio 7.1 0011 4K2K30_444, Stereo Audio 2.0 0100 4K2K30_444, Dolby/DTS 5.1 0101 4K2K30_444, HD Audio 7.1 0110 4K2K60_444, Stereo Audio 2.0 SDR 0111 4K2K60_444, Dolby/DTS 5.1 SDR 1000 4K2K60_444, HD Audio 7.1 SDR 1001 4K2K60_444, Stereo Audio 2.0 HDR 1010 4K2K60_444, Dolby/DTS 5.1 HDR 1011 4K2K60_444, HD Audio 7.1 HDR 1100 COPY OUTPUT 1 1101 COPY OUTPUT 2 1110 COPY OUTPUT 3 1111 COPY OUTPUT 4 |
| 4 | DC 12V | DC 12V power supply interface |

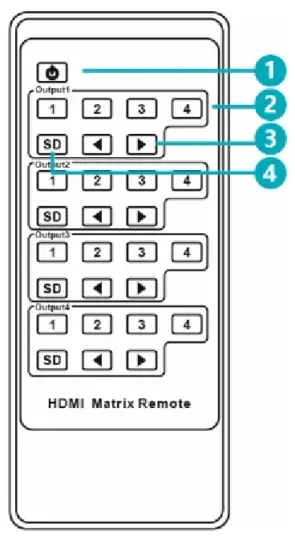

Remote Control
| 1 | Power button: Press this button to power on the device or put it into standby mode. |
| 2 | 1/2/3/4: Press buttons 1~4 to select the required source for Output 1 |
| 3 | t u: Select the last or next input channel among 1/2/3/4, to select the required source for Output1. |
| 4 | SD: Press this button to turn on / off the downscaler function |
The corresponding button function of Output2/Output3/Output4 is the same with that of Output1
Disclaimer
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com
