Fueltech Ft200 Efi System Electronic Fuel Injection User Guide

FuelTech FT200 EFI System Electronic Fuel Injection User Guide

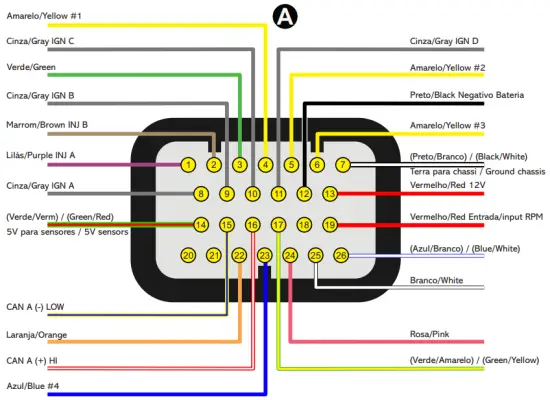

Overview

Contents:

• 1 FT450 – A Connector
• 1 CAN-A Cable
• 1 Gear Sensor Cable
• 30 Wire Terminals
• 1 Conector FT450 – A
• 1 Cabo CAN-A
• 1 Cabo Gear Sensor
• 30 Terminais Avulsos

For more information, consult your FT450 user manual.

Assembly Instruction

1. Scrape wires with 4mm clearance

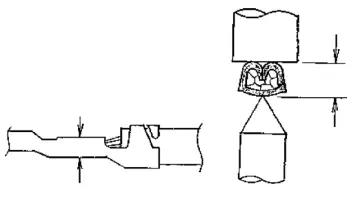

2. Insert wire in terminal and crimp

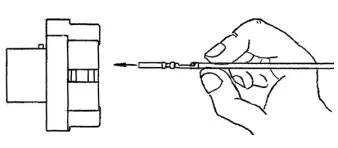

3. Insert terminal into connector

4. Lock connector when done inserting terminals

5. Rear view


 DO NOT FORCE THE LOCK! VERIFY TERMINALS!

Distributed:
FuelTech Ltda.
Av. Bahia, 1248, São Geraldo
Porto Alegre, RS, Brasil
CEP 90240-552
CNPJ 05.704.744/0001-00
Fone: +55 (51) 3019-0500
[email protected] / [email protected]
www.fueltech.com.br / www.fueltech.net
