MODEL #100485

Champion Power Equipment, Inc., Santa Fe Springs, CA USA

PARTS INFORMATION

9200W ELECTRONIC FUEL INJECTION GENERATOR SERIAL NUMBER RANGE: ALL

To order replacement parts please visit:
shop.championpowerequipment.com or call 1-877-338-0999.

REV 20210415

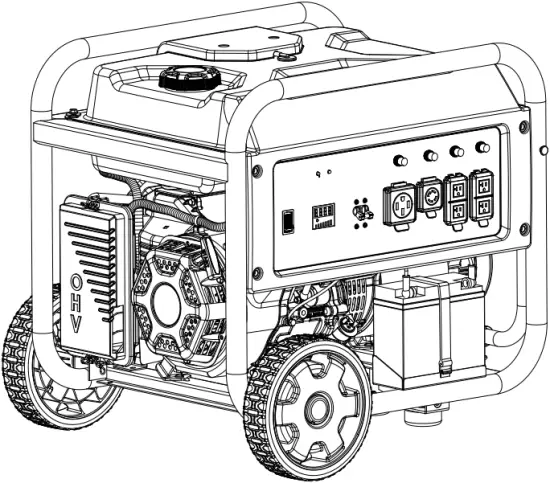

100485 – 9200W ELECTRONIC FUEL INJECTION GENERATOR

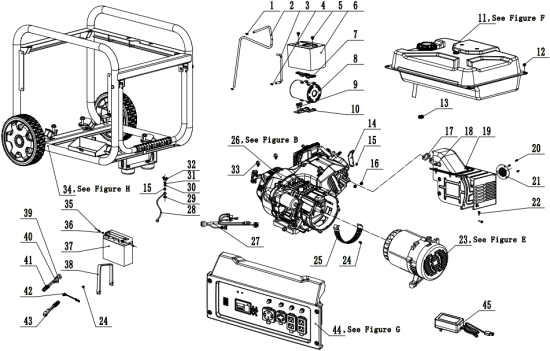

GENERATOR PARTS DIAGRAM

Figure A

GENERATOR PARTS LIST

#	Part Number	Description	Qty.
1	2.06.006	Clamp Ø7 x Ø1	2
2	152.070014.05	Tube, Fuel Tank Vent	1
3	152.070013.03	Tube, Carbon Canister Vent, 135 mm	1
4	2.06.004	Clamp, Ø8 x Ø1	1
5	1.5789.0608.1	Flange Bolt M6 x 8, Black	2
6	152.070018.03	Board, Heat Insulation	1
7	152.070702.06	Bracket, Carbon Canister Top	1
8	152.070700.02	Carbon Canister, 650 cc	1
9	1.16674.0812	Flange Bolt M8 x 12	2
10	152.070702.05	Bracket, Carbon Canister Bottom	1
11	152.070000.49.48	Fuel Tank, 29L, Yellow, See Figure E	1
12	2.08.143.1	Flange Bolt/Washer Assembly M6 x 20, Black	4
13	2.06.029	Clip Ø15	1
14	45.090006.20	Bracket, Air Cleaner Support	1
15	1.6177.1.06	Lock Nut M6, Flange	2
16	1.6177.1.08	Lock Nut M8, Flange	2
17	46.100001.07	Gasket, Exhaust	1
18	191.100008.00	Oxygen Sensor	1
19	191.101000.00.2	Muffler Assembly	1
20	1.9074.4.0510	Screw/Washer Assembly M5 x 10	3
21	46.101300.00	Spark Arrester Assembly	1
22	1.16674.0820	Flange Bolt M8 x 20	2
23	155.190000.06	Alternator Assembly, Al, Ø204 x 158 mm, DC 12V, See Figure D	1
24	1.5789.0608	Flange Bolt M6 x 8	2
25	152.192300.01	Cover, Alternator Fan Inlet	1
26	48.605	Engine, 459cc, See Figure B	1
27	5.1900.109	Wire Harness	1
28	5.1900.026	Grounding Line 150 mm	1
29	1.862.06	Lock Washer Ø6, Toothed	1
30	1.97.1.06	Washer Ø6	2
31	1.93.06	Lock Washer Ø6	1
32	1.62.06	Butterfly Type Nut M6	1
33	2.05.009	Clamp Ø12.5 x 7	2
34	65306.100485	Frame, Wheel Kit, See Figure G	1
35	1.9074.3.0510	Screw/Washer Assembly M5 x 10	2
36	1.6177.1.05	Lock Nut M5, Flange	2
37	9.1000.150	Battery 12V15AH	1
38	152.200904.00	Strap, Battery Hold Down	1
39	152.200013.02	Jacket, Wire, Blcak	1
40	152.200013.02.3	Jacket, Wire, Red	2
41	5.1900.127	Battery SAE Wire	1
42	152.200013.03	Sleeve, Connector	1
43	5.1900.129	Motor SAE Wire	1
44	100485.21	Control Panel Assembly, See Figure F	1
45	9.1700.009	Smart Charger, SAE	1

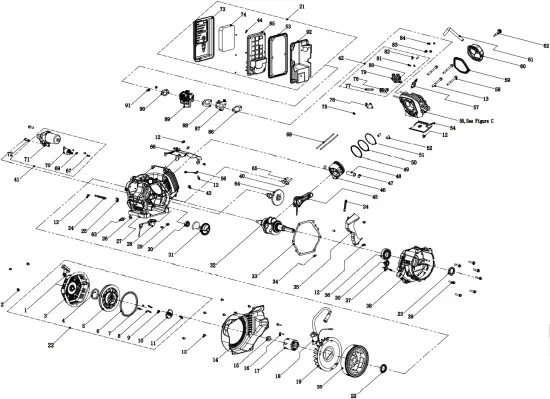

ENGINE PARTS DIAGRAM

Figure B

ENGINE PARTS LIST

#	Part Number	Description	Qty.
1	21.061300.00	Handle, Recoil, Soft	1
2	1.5789.0608	Flange Bolt M6 x 8	3
3	46.061100.00.2	Cover, Recoil Starter, Black	1
4	45.060005.00	Spring, Recoil Starter	1
5	45.061102.00	Reel, Recoil Starter	1
6	2.10.003.1	Rope Ø4 x 1550, Black	1
7	45.060003.00	Spring, Ratchet	2
8	45.060002.00	Starter Ratchet, Steel	2
9	45.060009.00	Spring, Ratchet Guide	1
10	45.060007.00	Ratchet Guide	1
11	45.060008.00	Screw, Ratchet Guide	1
12	1.5789.0612	Flange Bolt M6 x 12	13
13	2.08.174	Flange Bolt M12 x 95	2
14	47.080100.01.48	Fan Cover, Yellow	1
15	2.02.007	Nut M16 x 1.5	1
16	1.5789.0620	Flange Bolt M6 x 20	2
17	45.060001.00	Pulley, Starter	1
18	191.123000.00	Ignition Coil With RPM Sensor	1
19	48.080001.00	Cooling Fan	1
20	191.120100.00	Flywheel	1
21	191.091000.00.2	Air Cleaner Assembly	1
22	46.061000.00	Recoil Assembly	1
23	2.11.007	Oil Seal Ø35 x Ø52 x 8	2
24	2.05.050	Wire Clip, 100 mm	2
25	152.070031.01	Sheath, Wire	1
26	2.03.023	Washer Ø12.5 x Ø20 x 2, Drain Bolt	1
27	191.030100.00	Crankcase	1
28	45.127000.00	Oil Level Sensor	1
29	1.5789.0615	Flange Bolt M6 x 15	2
30	1.276.6202	Bearing 6202	2
31	48.050006.00	Weight Balancer	1
32	47.050100.51	Crankshaft	1
33	46.030008.00	Gasket, Crankcase Cover	1
34	2.04.001	Dowel Pin Ø9 x 14	2
35	46.080600.00	Air Guide, Right Side	1
36	1.276.6207.9	Bearing TM6207	1
37	46.031000.01.48	Oil Dipstick Assembly, Yellow	1
38	191.030007.00	Cover, Crankcase	1
39	1.5789.0840	Flange Bolt M8 x 40	7
40	45.040013.00	Lifter, Exhaust Valve	1
41	45.125000.03	Starter Motor Assembly	1
42	46.040200.00	Rocker Arm Assembly	1
43	2.05.005	Clamp Ø6	1
44	1.6177.1	Flange Nut M5	6
45	47.050200.00	Connecting Rod	1
46	48.050005.00	Piston	1
47	2.09.004	Circlip Ø21 x Ø1	2
48	45.050003.00	Pin, Piston	1
49	48.050303.00	Ring, Oil	1

50	48.050302.00	Ring, Second Piston	1
51	48.050301.00	Ring, First Piston	1
52	2.04.004	Dowel Pin Ø12 x 20	2
53	45.091002.20	Seal, Air Cleaner	1
54	46.080400.01	Air Guide, Lower	1
55	191.010000.00	Cylinder Head Assembly – See Figure C	1
56	5.1900.111	Sensor, Engine Temperature	1
57	2.15.008	Spark Plug F7RTC	1
58	2.08.122	Flange Bolt M10 x 95	2
59	46.020002.01	Gasket, Cylinder Head Cover	1
60	47.021000.01	Cover, Cylinder Head	1
61	45.020001.03	Breather Tube	1
62	47.020100.00	Bolt, Cylinder Head Cover	1
63	2.08.039	Drain Bolt M12 x 1.5 x 15	1
64	48.041000.00	Camshaft	1
65	48.040013.00	Lifter, Intake Valve	1
66	191.080300.00	Air Guide, Upper	1
67	1.16674.0516	Flange Bolt M5 x 16	2
68	46.040005.00	Push Rod	2
69	1.93.05	Lock Washer Ø5	2
70	45.125200.03	Relay, Starter, Three Gear	1
71	45.125100.00	Starter Motor	1
72	1.5789.0835	Flange Bolt M8 x 35	2
73	191.091200.00	Cover, Air Cleaner	1
74	45.091003.20	Element, Air Cleaner	1
75	45.040008.00	Rotator, Exhaust Valve	1
76	46.040004.00	Guide Plate, Push Rod	1
77	46.040016.00	Shaft, Rocker Arm	1
78	46.040201.00	Retainer, Rocker Arm	1
79	46.040009.00	Rocker Arm, Intake Valve	1
80	46.040018.00	Rocker Arm, Exhaust Valve	1
81	1.97.1.06	Washer Ø6	2
82	22.040012.00	Screw, Valve Adjustment	2
83	1.6177.1.06	Flange Nut M6	2
84	21.040021.00	Nut M6 x 0.5, Lock	2
85	45.091001.20	Separator, Air Cleaner	1
86	46.130002.20	Gasket, Insulator	1
87	45.130001.00	Insulator, Throttle Body	1
88	46.130003.20	Gasket, Throttle Body	1
89	191.130000.00	Throttle Body	1
90	46.130004.20	Gasket, Air Cleaner	1
91	1.6177.06	Flange Nut M6	2
92	191.091100.00	Base, Air Cleaner	1

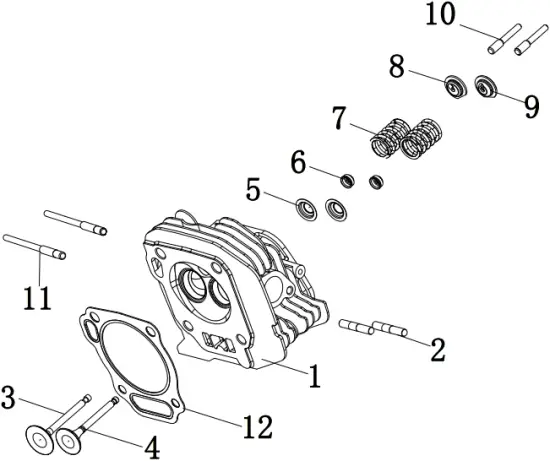

CYLINDER HEAD DIAGRAM

Figure C

CYLINDER HEAD LIST

#	Part Number	Description	Qty.
1	191.010100.00	Cylinder Head	1
2	2.01.010	Stud Bolt M8 x 35	2
3	47.040002.00	Valve, Intake	1
4	47.040006.00	Valve, Exhaust	1
5	45.040015.00	Retainer, Valve Spring	2
6	45.040017.00	Oil Seal, Valve	2
7	45.040003.00	Spring, Valve	2
8	45.040001.00	Retainer, Intake Valve Spring	1
9	45.040007.00	Retainer, Exhaust Valve Spring	1
10	23.040010.00	Bolt, Rocker Arm	2
11	2.01.008	Stud Bolt M6 x M8 x 105	2
12	191.030009.00	Gasket, Cylinder Head	1

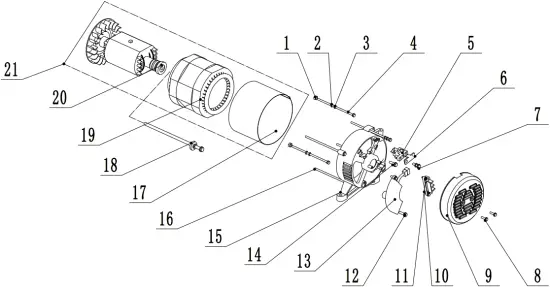

ALTERNATOR PART DIAGRAM

Figure E

ALTERNATOR PART LIST

#	Part Number	Description	Qty.
1	1.6175.05	Nut M5	2
2	1.97.1.05	Washer Ø5	2
3	1.93.05	Lock Washer Ø5	2
4	2.08.071	Bolt M5 x 229	2
5	152.190300.00	Carbon Brush Assembly	1
6	122.190004.01	Bracket, Carbon Brush Retaining	1
7	1.9074.15.0520	Bolt/Washer Assembly M5 x 20	1
8	1.16674.0512.1	Flange Bolt M5 x 12, Black	2
9	152.190003.00.48	Cover, End Housing, Yellow	1
10	1.9074.17.0516	Screw/Washer Assembly M5 x 16	2
11	122.190400.00	Terminal Block	1
12	1.16674.0516	Flange Bolt M5 x 16	2
13	153.190200.03	AVR	1
14	1.16674.0512	Flange Bolt M5 x 12	1
15	152.190002.00	End Housing	1
16	2.08.069	Flange Bolt/Washer Assembly M6 x 194	4
17	154.191002.00	Stator Cover	1
18	2.08.070	Flange Bolt/Washer Assembly M10 x 280	1
19	155.191200.06	Stator Assembly, Cu, Ø204 x 158 mm, CSA	1
20	155.191100.00	Rotor Assembly, Cu, Ø204 x 158 mm, CSA	1
21	155.191000.06	Alternator Assembly, Cu, Ø204 x 158 mm, CSA	1

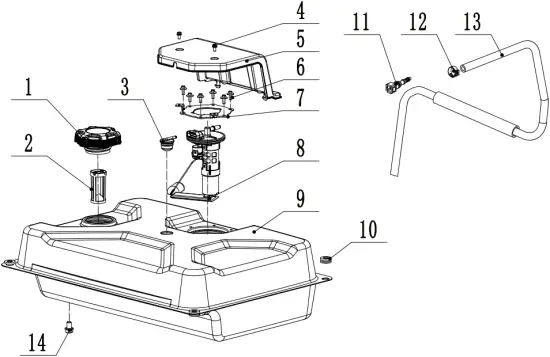

CONTROL PANEL PART DIAGRAM

Figure F

CONTROL PANEL PART LIST

#	Part Number	Description	Qty.
1	122.070100.09	Fuel Tank Cap	1
2	122.070300.03	Fuel Filter	1
3	24.070800.00	Reversal Valve	1
4	1.9074.4.0512.1	Screw/Washer Assembly, M5 x 12, Black	2
5	152.070008.03	Cover, Fuel Pump	1
6	2.08.068.2	Flange Bolt, M5 x 13	6
7	191.070046.00	Plate, Fuel Pump Retainer	1
8	191.075000.00	Fuel Pump	1
9	152.071000.49.48	Fuel Tank, 29L, Yellow	1
10	122.070015.01	Mount Vibration, Fuel Tank	4
11	191.070600.00	Connect, Fuel Pump	1
12	2.06.048	Clamp, Oil Hose	1
13	191.070011.00	Tube, Fuel Supply, 850 mm	1
14	2.08.172	Flange Bolt Assembly M10 x 15	1

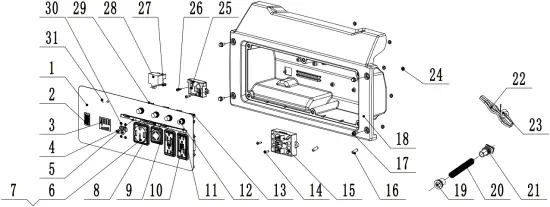

FUEL TANK PART DIAGRAM

Figure G

FUEL TANK PART LIST

#	Part Number	Description	Qty.
1	152.299.1.2	Control Panel	1
2	5.1000.007.3	Ignition Switch, Red	1
3	5.1440.011	Intelligauge	1
4	5.1240.380	38Amp Circuit Breaker, Double Pole	1
5	5.1870.024	Receptacle Cover, Receptacle 14-50R	1
6	5.1120.044	Receptacle 14-50R	1
7	1.6177.1.04.1	Lock Nut M4, Flange, Black	8
8	5.1870.020	Receptacle L14-30R	1
9	5.1120.009	Receptacle Cover, Receptacle L14-30R	1
10	5.1120.050	Receptacle 5-20R, Duplex GFCI	2
11	5.1870.022	Receptacle Cover, Receptacle 5-20R, Duplex GFCI	2
12	5.1870.014	Circuit Breaker Cover, Push Button	4
13	5.1210.920	20Amp Circuit Breaker, Push Button, CSA	2
14	1.845.4216	Screw, ST4.2 x 16	2
15	5.1820.011	Charger, 5A	1
16	5.1280.003	Fuse, 10A	2
17	1.5789.0615.1	Flange Bolt M6 x 15, Black	4
18	152.210002.43	Control Panel Housing	1
19	122.210003.01	Wire Jacket, Control Box	1
20	5.1330.116	Sheath, Wire	1
21	152.210003.02	Plug, Control Box	1
22	100485.21.10	Wire Harness	1
23	5.210400.00	Current Transformer	1
24	1.6177.1.05	Flange Lock Nut M5, Black	6
25	5.1830.026	CO Module	1
26	1.845.4213	Screw, ST4.2 x 13	2
27	1.818.0514.2	Screw M5 x 14	1
28	5.1810.008	OVP Diode	1
29	5.1210.930	30Amp Circuit Breaker, Push Button, CSA	2
30	1.9074.4.0306.1	Screw/Washer Assembly M3 x 6, Black	4
31	5.1460.019	Module, CO Shutdown LED	1

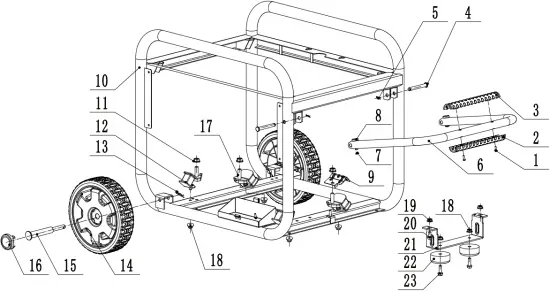

FRAME PART DIAGRAM

Figure H

FRAME PART LIST

#	Part Number	Description	Qty.
1	1.818.0414.1	Screw M4 x 14, Black	2
2	122.200702.13	Cover, Handle, Upper	1
3	122.200702.14	Cover, Handle, Lower	1
4	152.200703.03	Long Pin, Handle	2
5	11.110008.00	“R” Shape	2
6	152.200701.23.2	Handle, U Shape	1
7	1.894.1.08	Circlip Ø8	2
8	152.200703.02	Short Pin, Handle	2
9	152.100007.00	Heat Shield, Motor Mount	1
10	65306.0.10.2	Frame,700 x 541 x 600	1
11	1.6177.1.10	Lock Nut M10, Flange	4
12	152.201200.03	Vibration Mount 1	2
13	2.16.001.1	Pin Ø2 x 33, “R” Shape, Blcak	2
14	152.201701.13.48	9.5 in. Wheel, PU, Yellow	2
15	122.201501.25.1	Pin Roll, Wheel, Ø16 x Ø10 x 97, Blcak	2
16	122.201702.11.48	Wheel Cover, Tooth Profile 8-10 in, Yellow	2
17	152.201200.04	Vibration Mount 2	2
18	1.6177.1.08	Flange Lock Nut M8	6
19	1.6177.1.08.1	Flange Lock Nut M8, Blcak	2
20	1.5789.0816.1	Flange Bolt M8 x 16, Blcak	2
21	152.200002.01.2	Support Leg 84 mm	1
22	152.201400.00	Rubber, Support	2
23	1.5789.0825	Flange Bolt M8 x 25	2

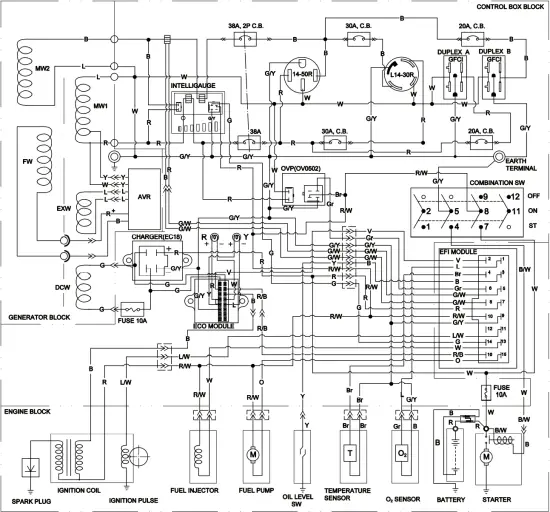

WIRING DIAGRAM
