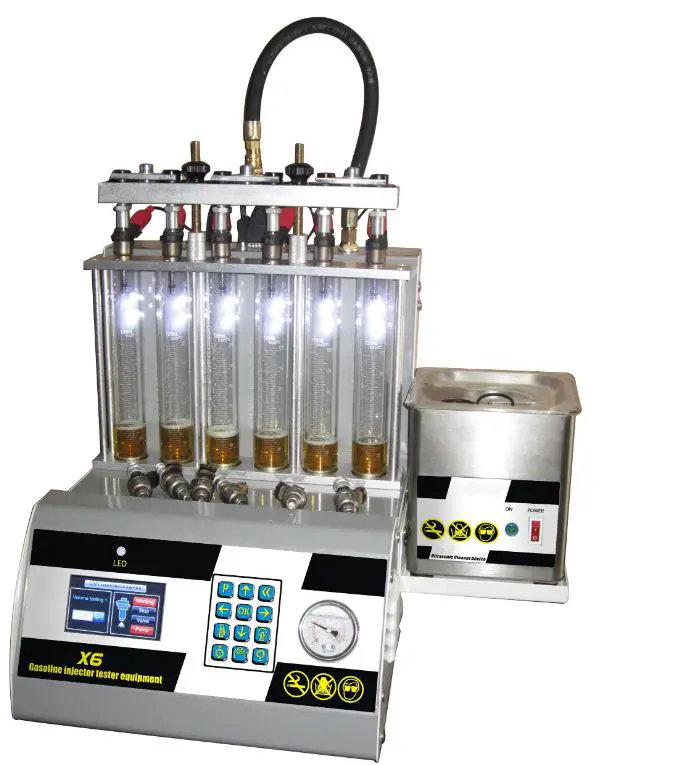

INTEREQUIP BulletPro Elite X6-X8 Fuel Injector Cleaner
Security Information
The Elite X6/X8 is designed for voltage AC 180~264V or AC 90~132V. Please wear glasses to avoid liquid slashing into the eyes and please wear gloves when operating the machine.
Machine Introduction

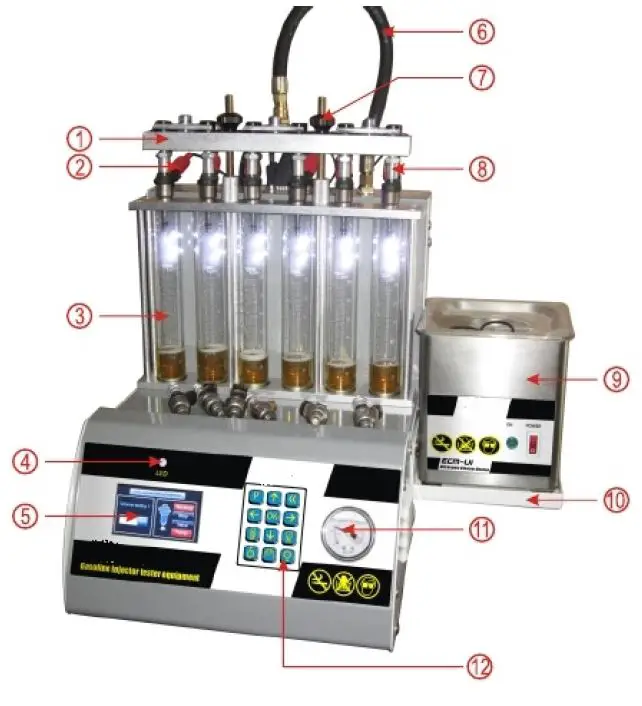

Front View
- Fuel Rail
- Pulse Line
- Inspection Tubes
- LED Lights
- Color LCD
- Fuel Pipe For Injector
- Bolt
- Fuel Injector of Standard International Connector
- Ultrasonic Bath
- Tray
- Oil Pressure Gauge
- Button

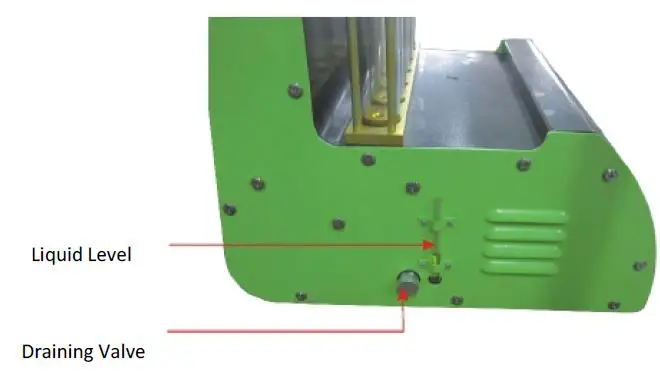

Side View
Rear View

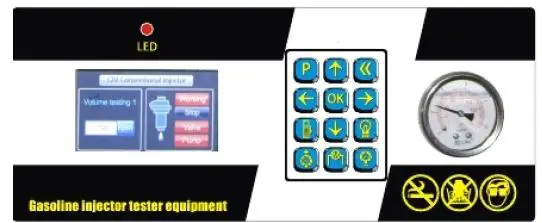

Panel

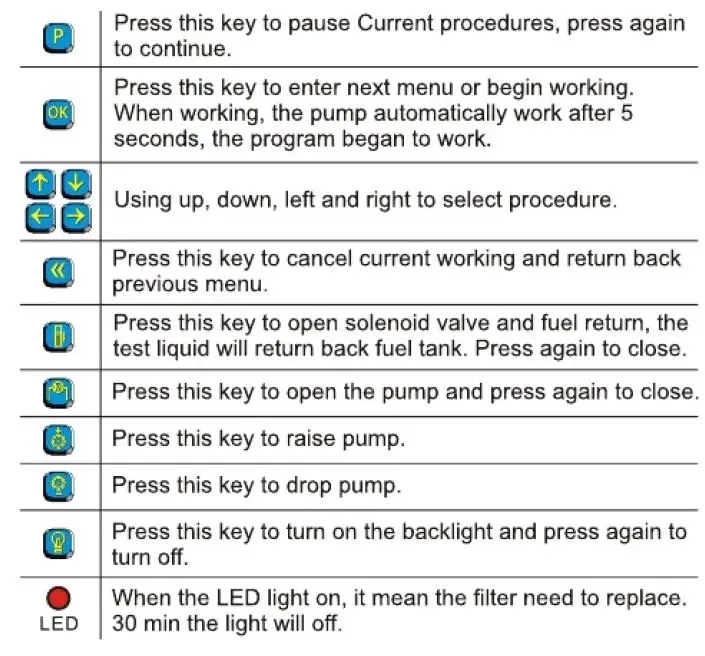

Key Instructions

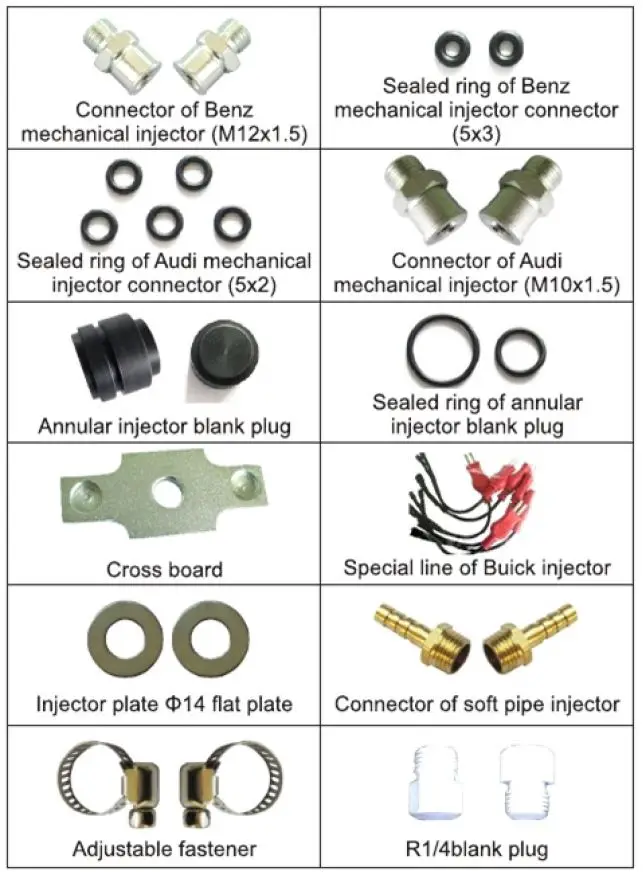

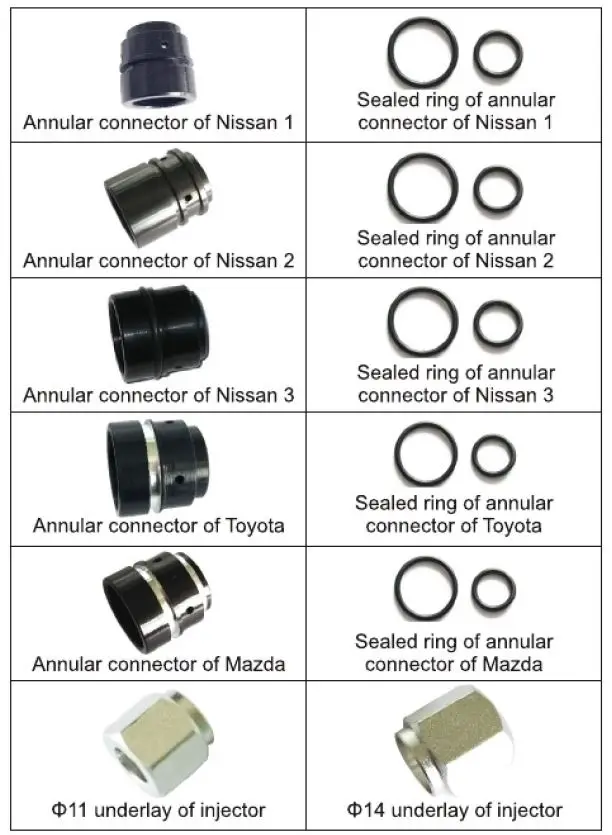

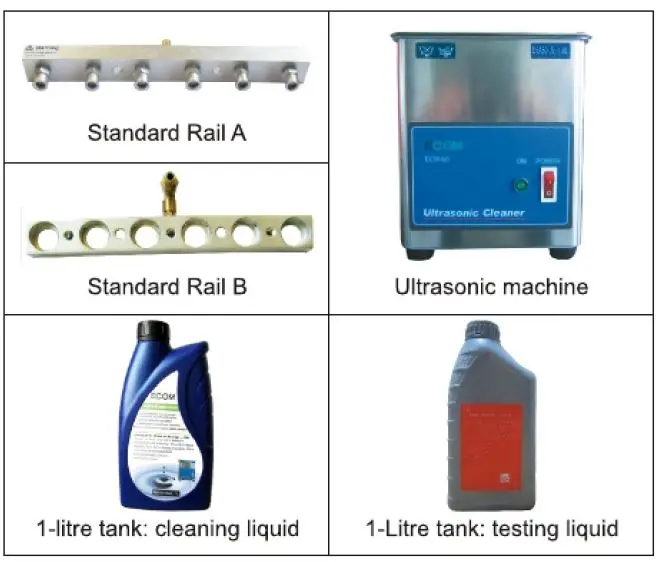

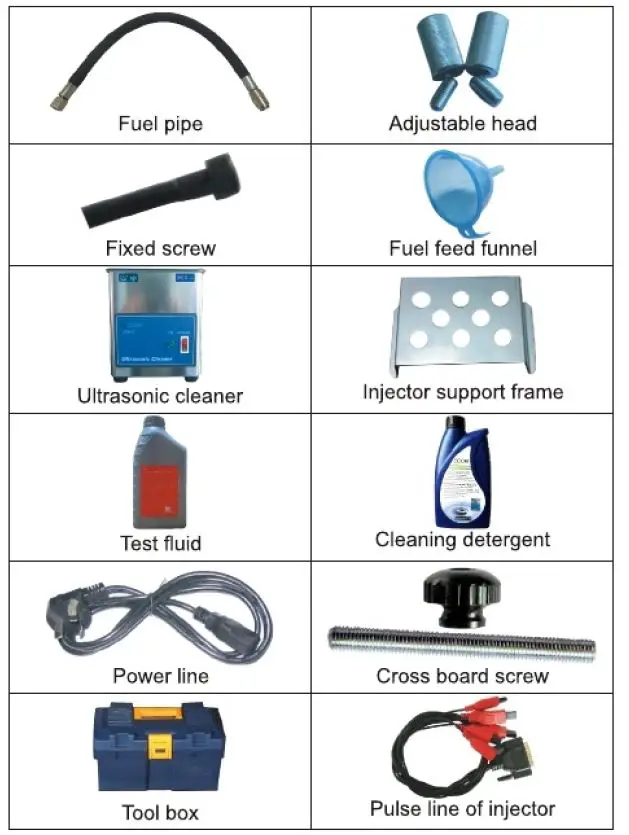

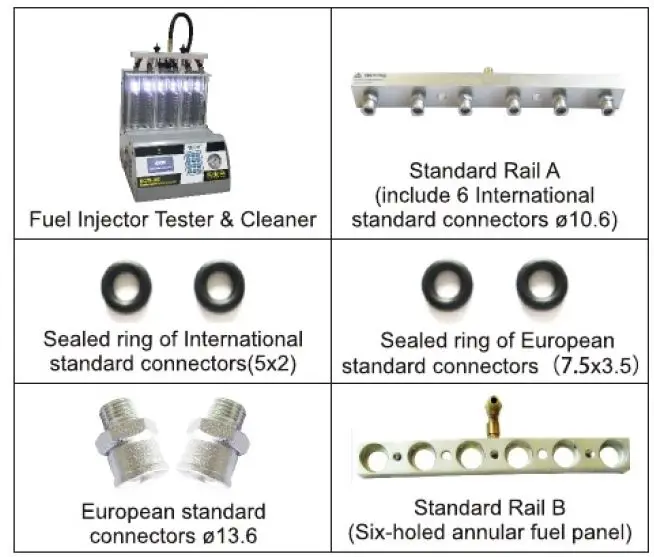

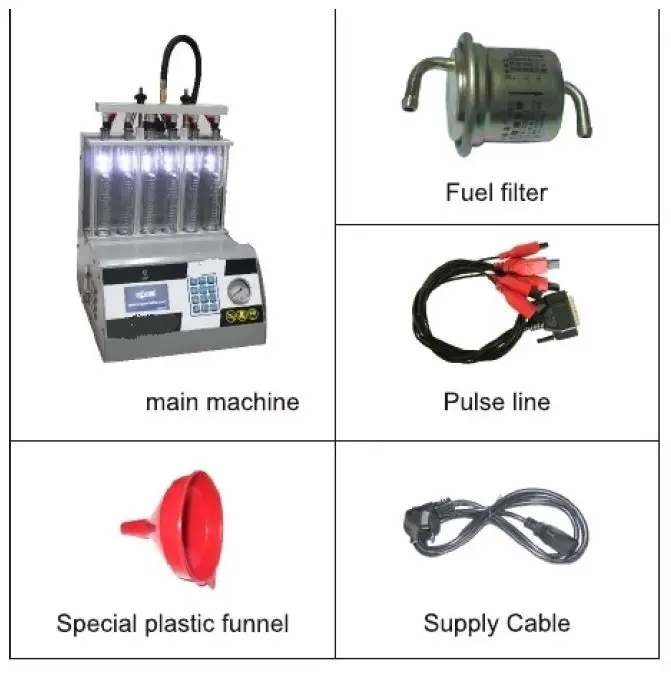

Accessories
Technical Spec
- Voltage: AC 180~264V or AC 90 ~132V
- Power: 300W
- Fuse: 5A
- Fuel Pressure: 0~6.5 bar
Display: LCD 4.3 inch color display - Working Temperature: from 10 to 45 degree
- Ultrasonic Power: 100 W
- Dimensions: 370 mm * 430 mm * 450 mm
- Gross Weight: 28 kg
Instructions

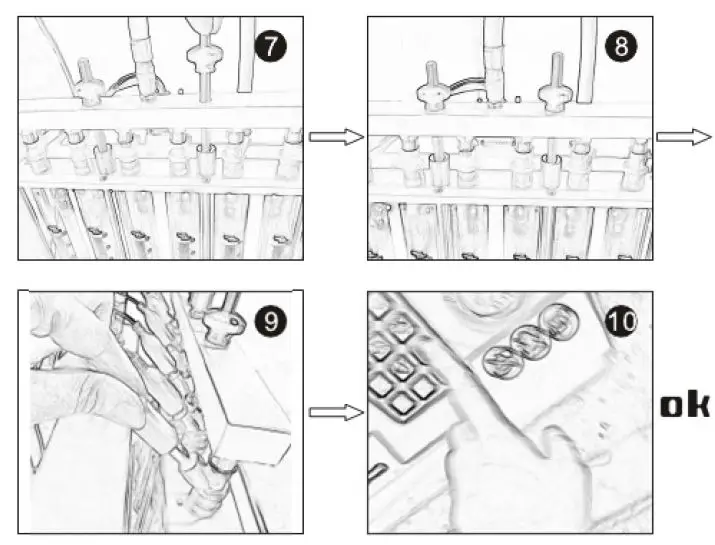

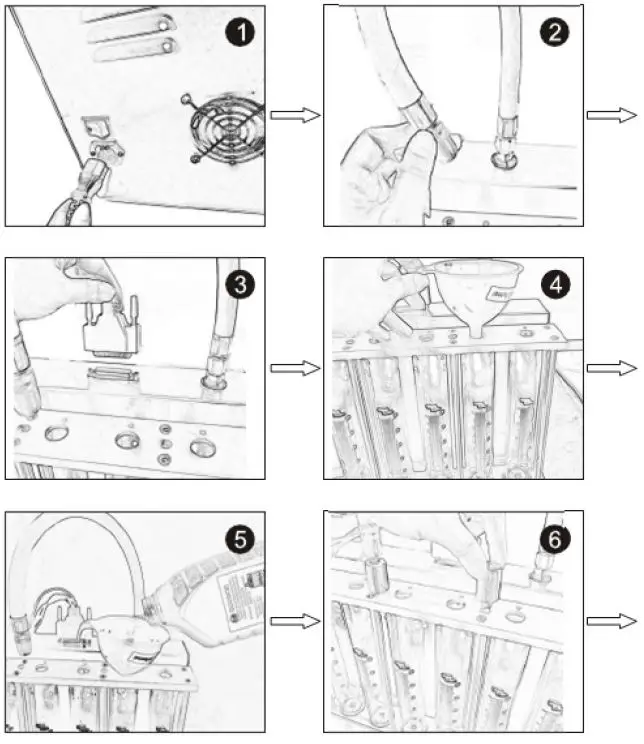

Installation Drawing

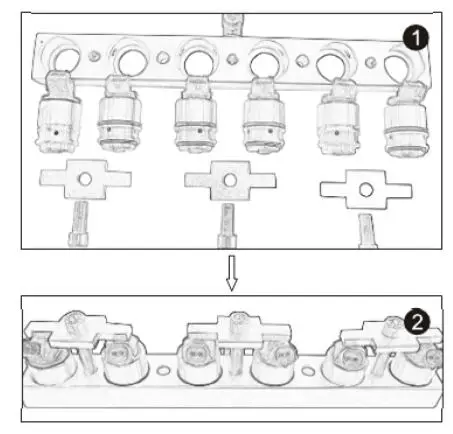

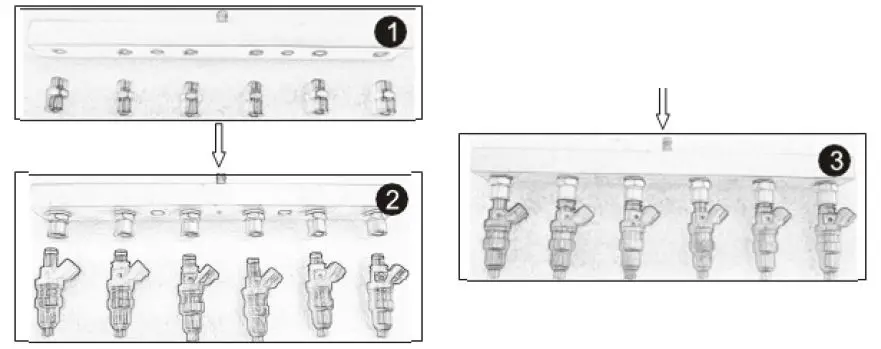

Top Feed Injectors Installation
Side Feed Injectors Installation

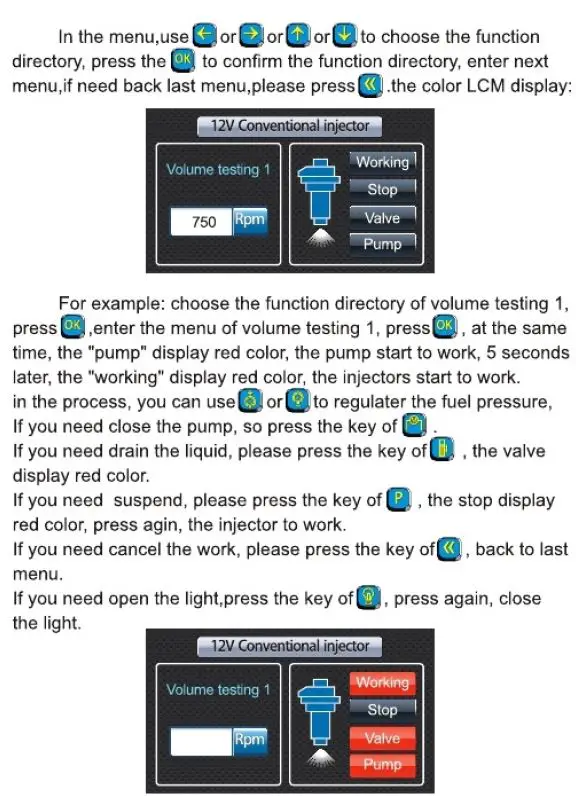

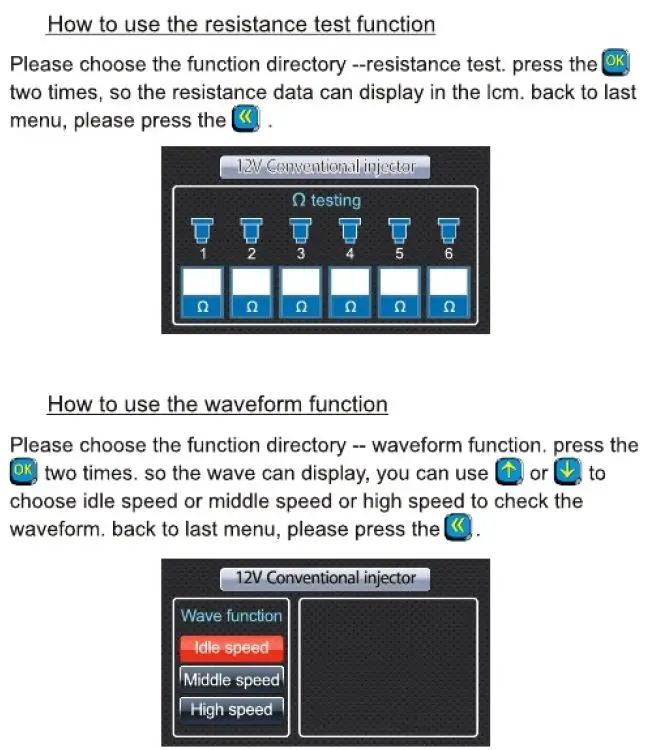

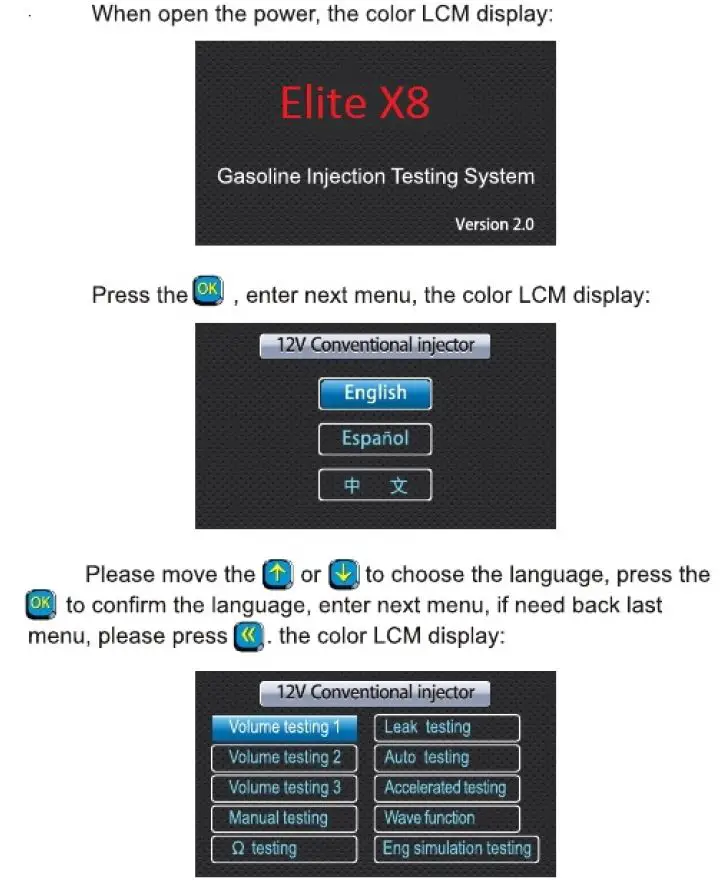

Instructions on machine operation

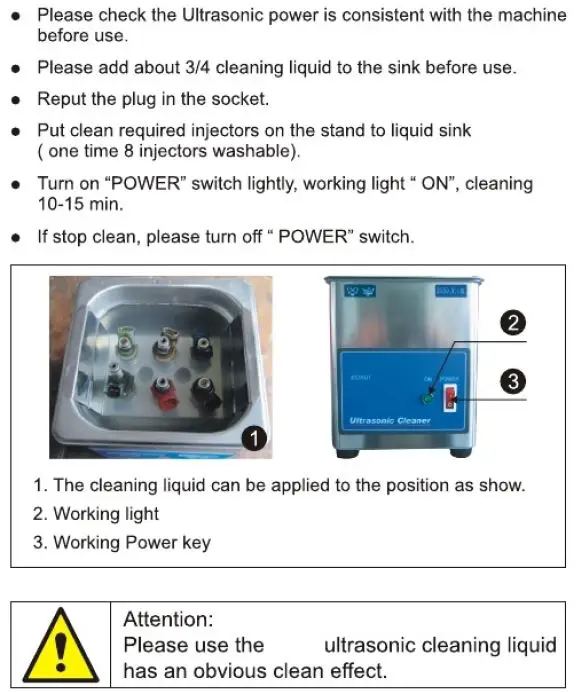

How to Use the Ultrasonic Bath
Maintenance
The Elite X8 fuel injector cleaner hydraulic system has 2 stage filtering. When the LED light on panel is turned on for more than 30 minutes, user should replace the filter. If filter is not replaced, the pump can be damaged.
Attachment
