User Manual
Ceiling Fan with Light
YO-LY-4223
Please observe the owner’s manual general safety precautions carefully before and during all phases of handling, installation, removal, operation, and maintenance of this product. Failure to comply with these precautions violates safety standards of design, manufacture, and intended use of the product. BAYSQUIRREL assumes no liability for cus- Customer’s failure to comply with these requirements.
CEILING FAN LIGHT INSTALLATION VIDEO

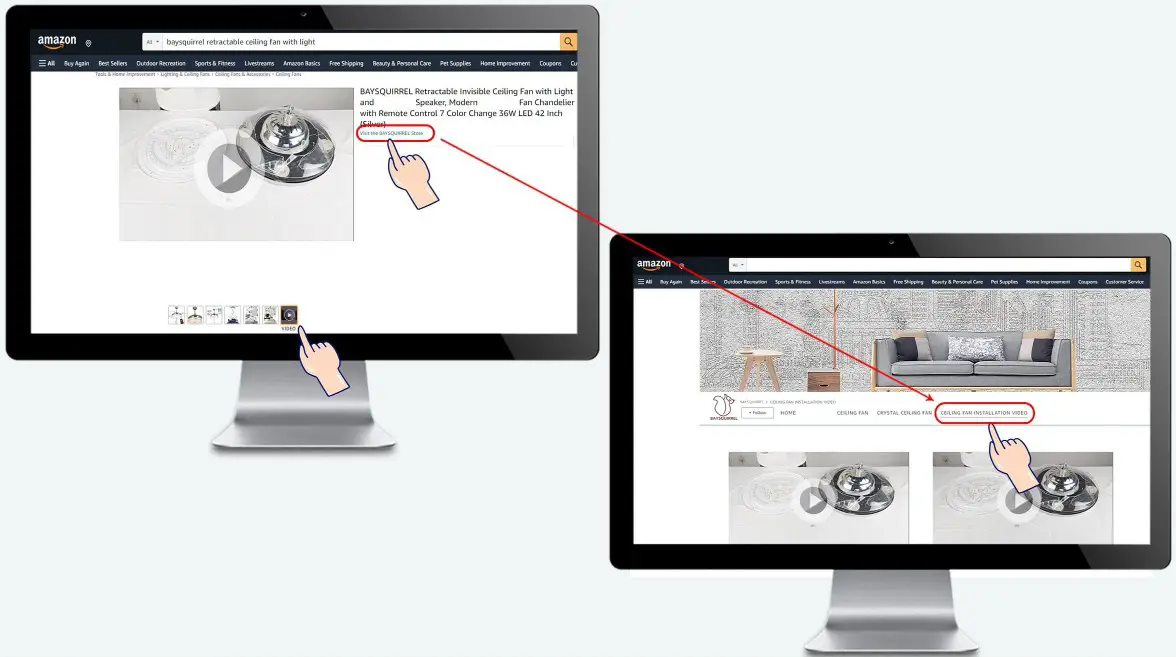

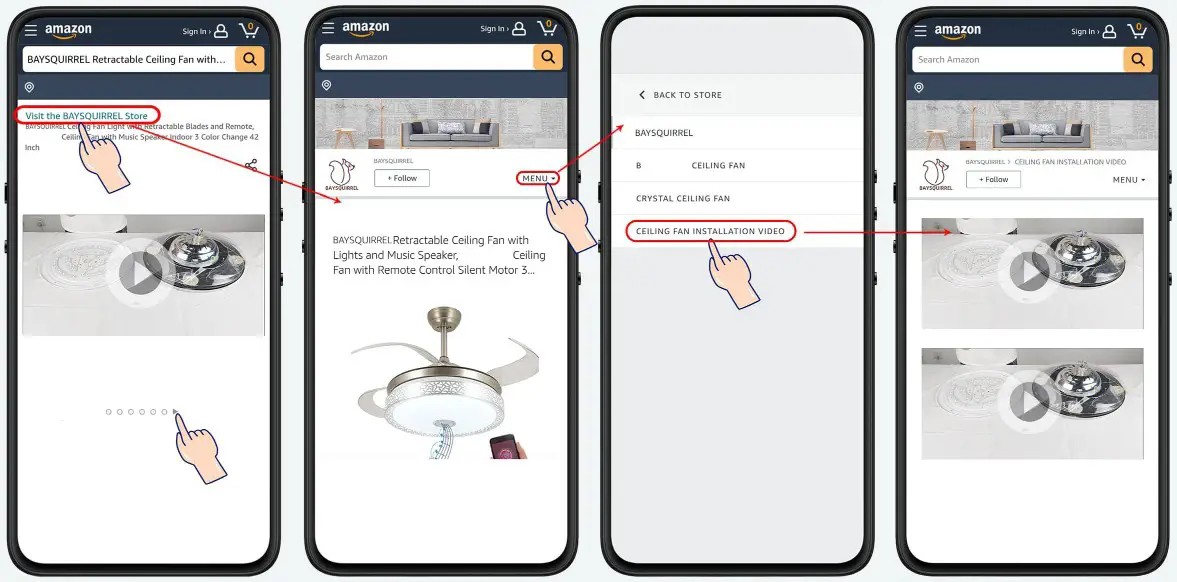

Please see the seventh picture on the product details page for the ceiling fan Lamp installation video, or you can view it in the installation video section of our Amazon brand flagship store. 1
Please see the seventh picture on the product details page for the ceiling fan lamp installation video, or you can view it in the installation video section of our Amazon brand flagship store. 2

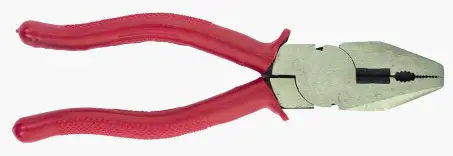

CEILING FAN INSTALLATION TOOL LIST
 |  |

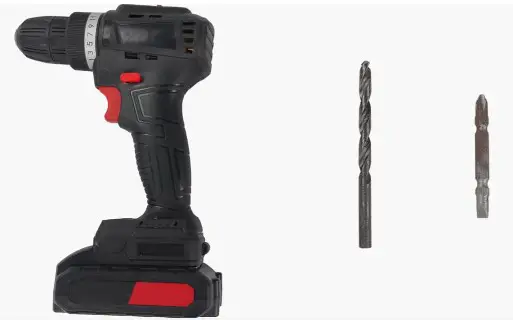

| Electric Drill & 8mm Drill bit & Screwdriver Bit | Marker Pen |
 |  |

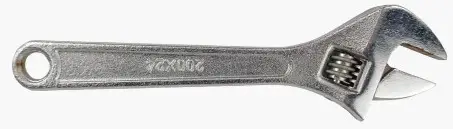

| Wrencn | Wire Stripper |
 |  |

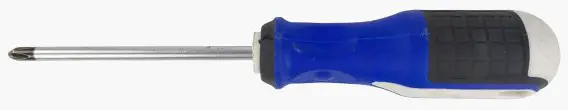

| Screwdriver | Test Electric Pen |
 |  |

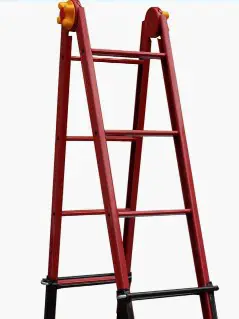

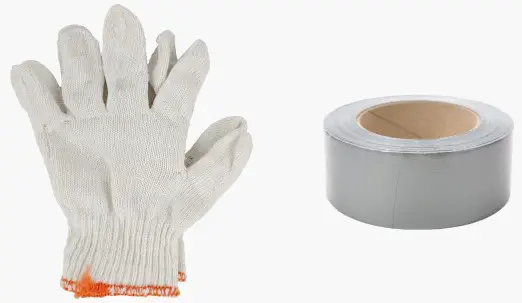

| Gloves & Electric Tape 4 | Herringbone Ladder |

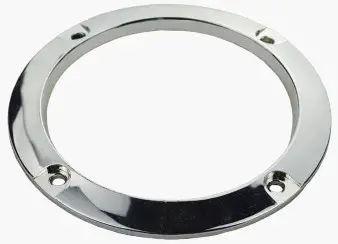

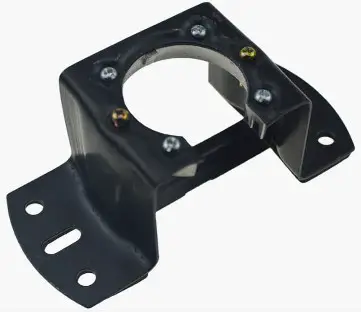

CEILING FAN ACCESSORIES LIST
 |  |

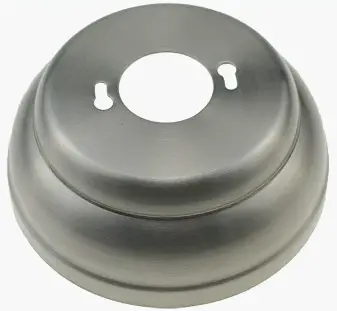

| Wrethitats ele dell | Canopy |
 |  |

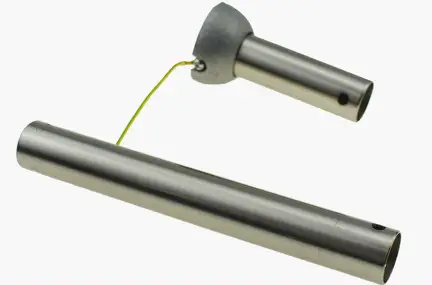

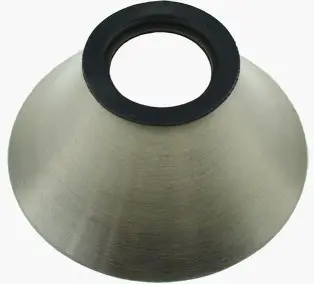

| Coupling Cover | 10° and 5 Downrod 5 |
 |  |

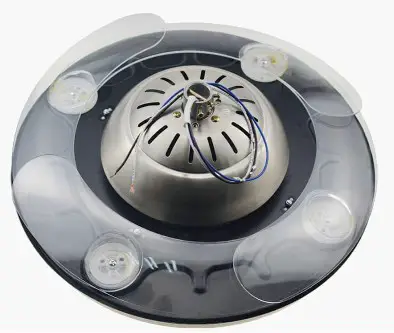

| Fan Motor & Fan Blades | Lampshade |
 |  |

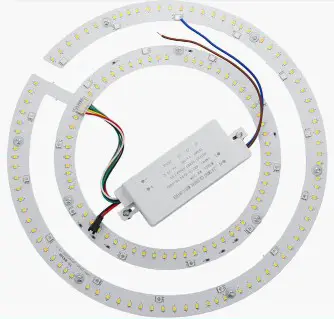

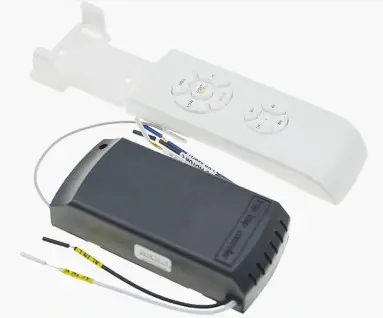

| LED speaker driver & LED light source | Remote Receiver & Remote Control |
 |  |

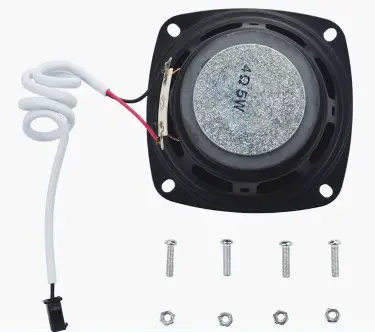

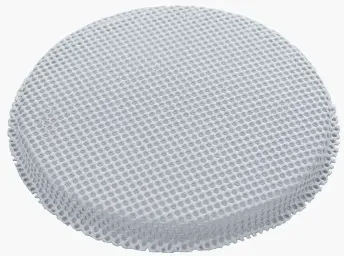

| Speaker & Screws & Nuts | Speaker Cover |
 |  |
| Speaker Inner Cover | Wire Cover Canopy Screws Wood Screws 7 |

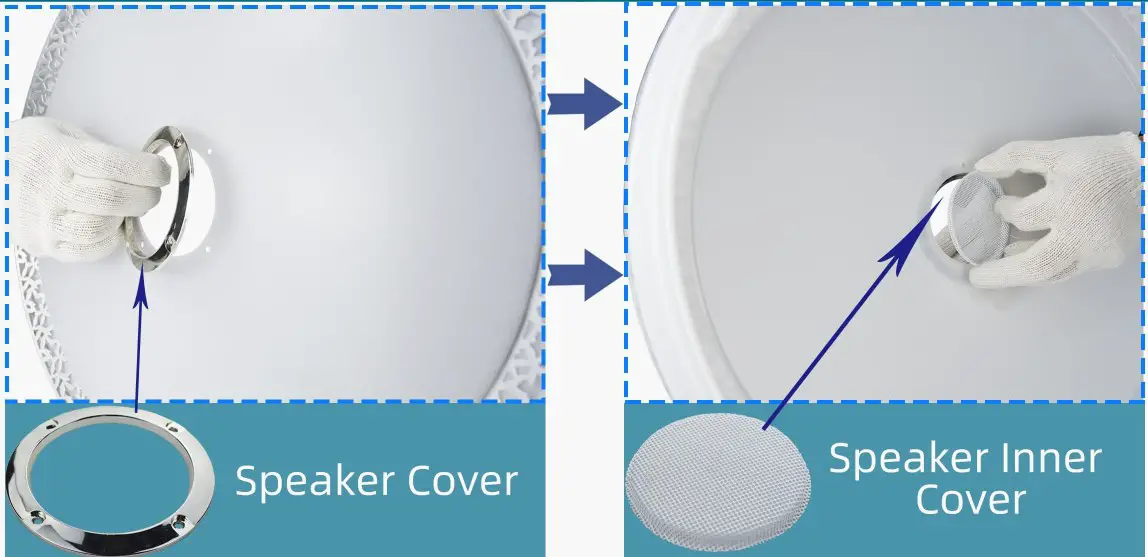

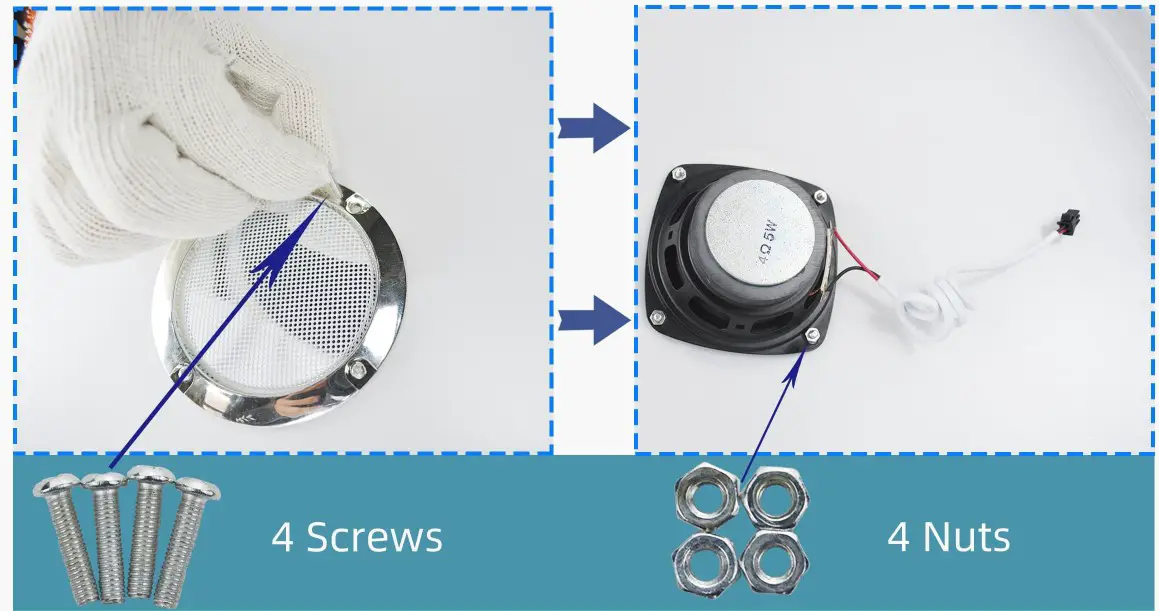

INSTALL THE SPEAKER IN THE LAMPSHADE
Put the speaker cover on the lampshade
Put the speaker inner cover from the inside of the Lampshade 8
Insert the screw from the outer hole of the speaker cover, tighten the nut and the screw, and then tighten the remaining three screws in turn 9
INSTALL THE LIGHT SOURCE, SPEAKER, AND LAMPSHADE

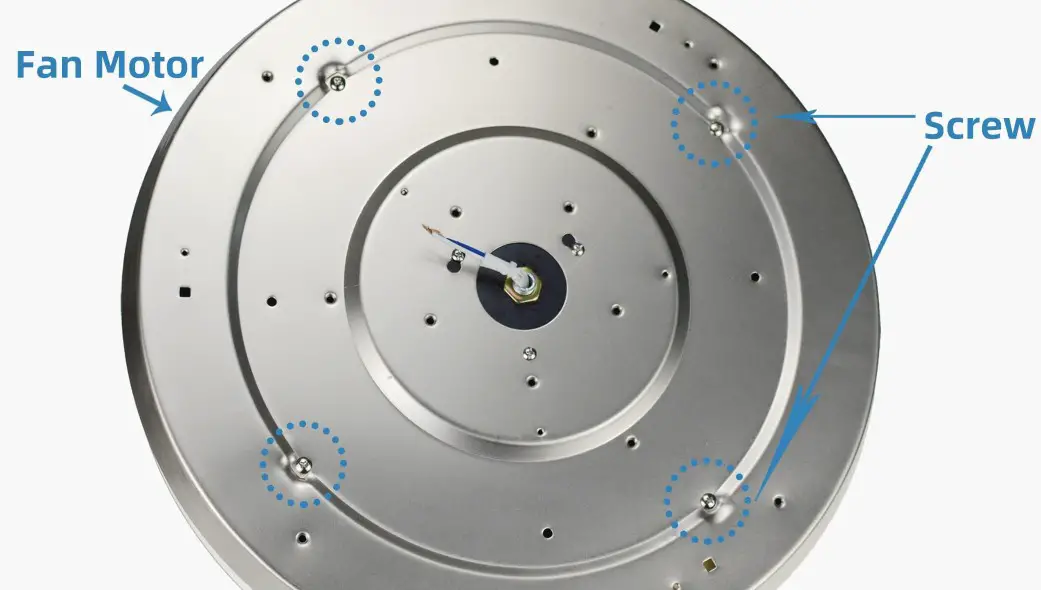

Unscrew the 4 screws on the motor with a screwdriver In turn 10

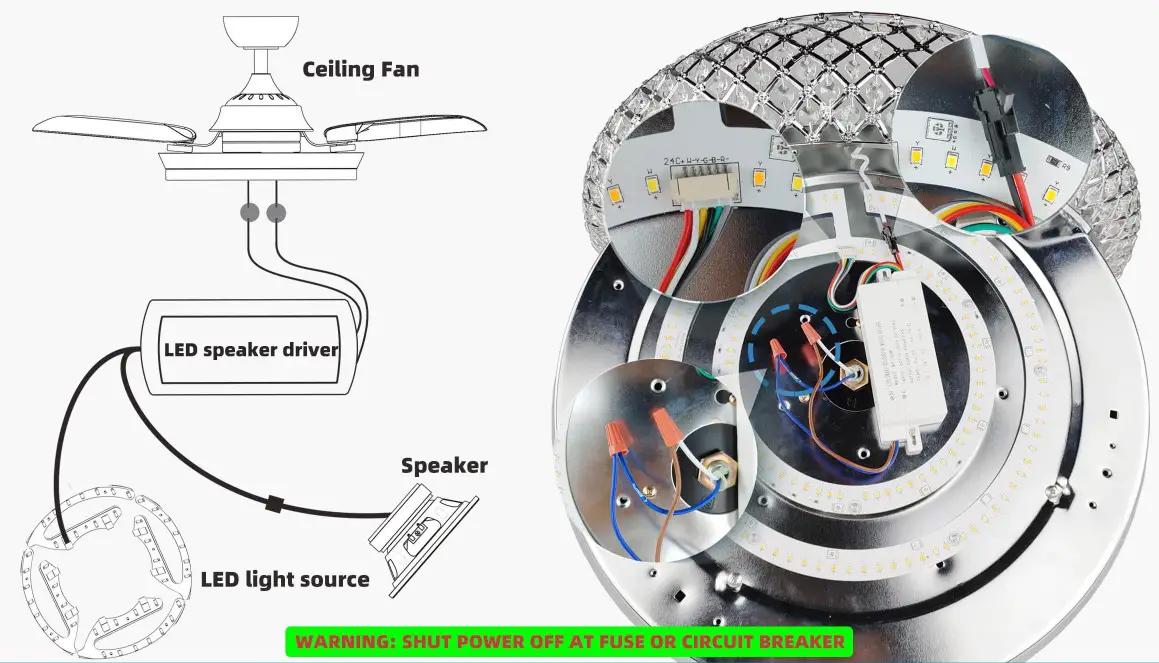

Connect the Led Speaker driver with the wires from bottom of motor, you can choose any two wires for connection each other, and connect the speaker interface on the LED Speaker driver with the interface on the speaker, Then connect the LED light source interface on the driver with the interface on the LED light source. 11

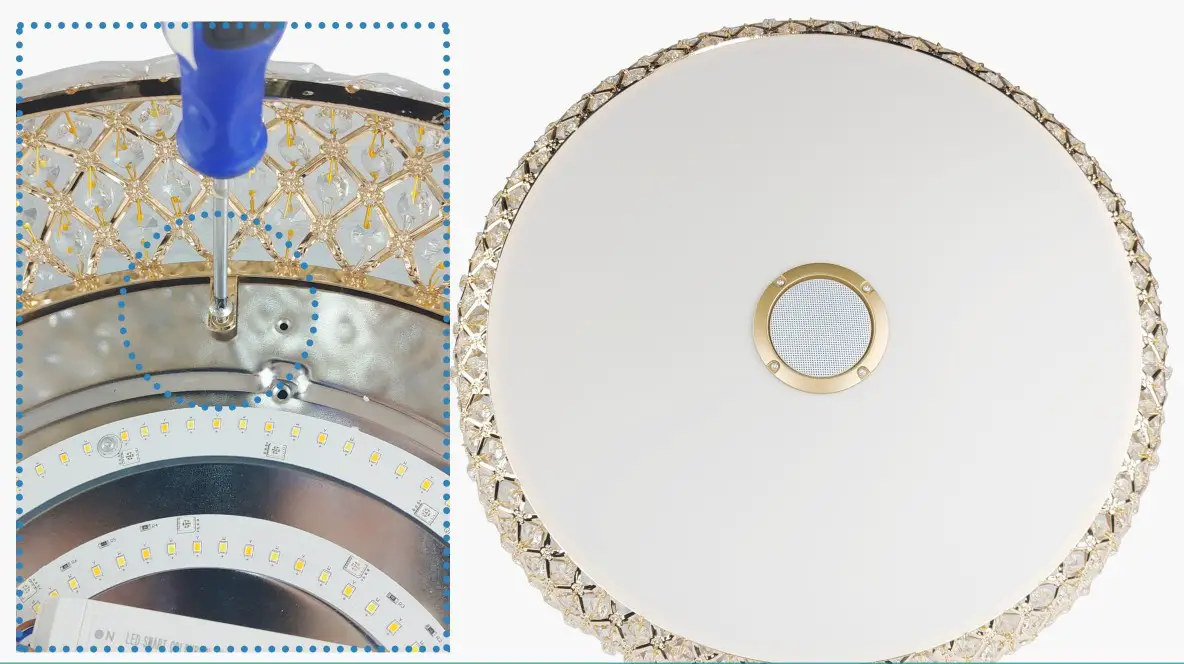

Use a screwdriver to tighten the four screws previously removed from the motor with the four holes of the lamp cover in turn. 12
INSTALL CEILING FAN DOWNROD, COUPLING COVER, AND CANOPY

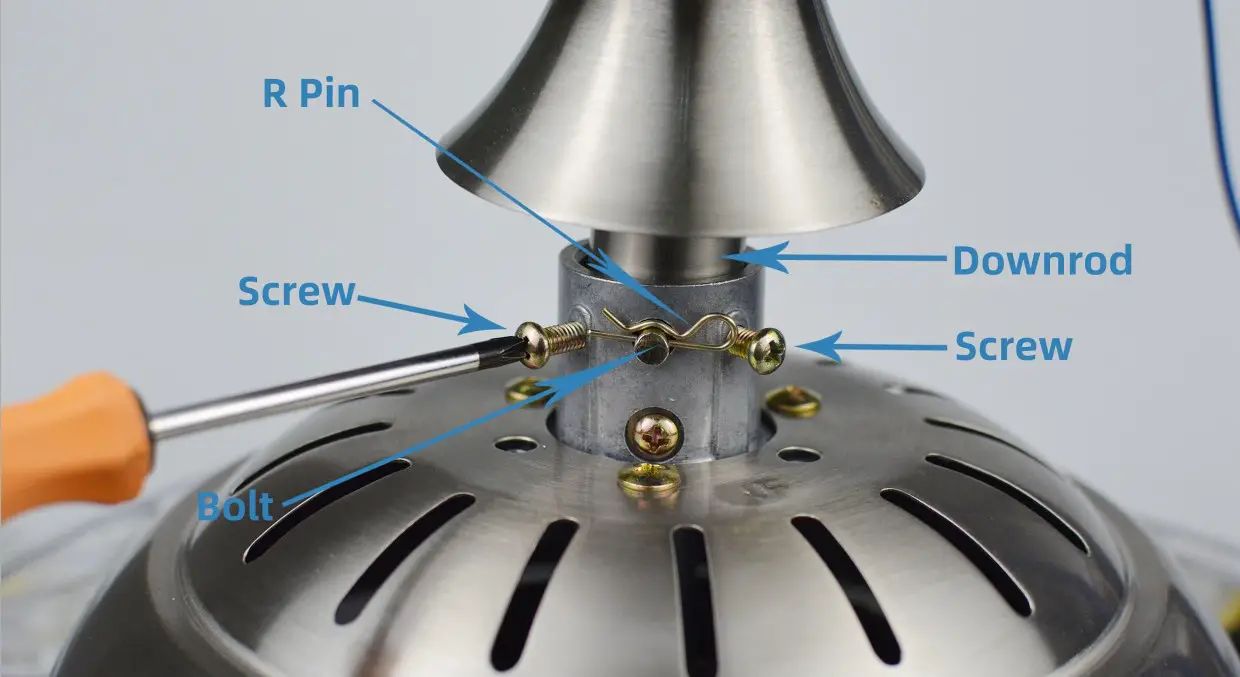

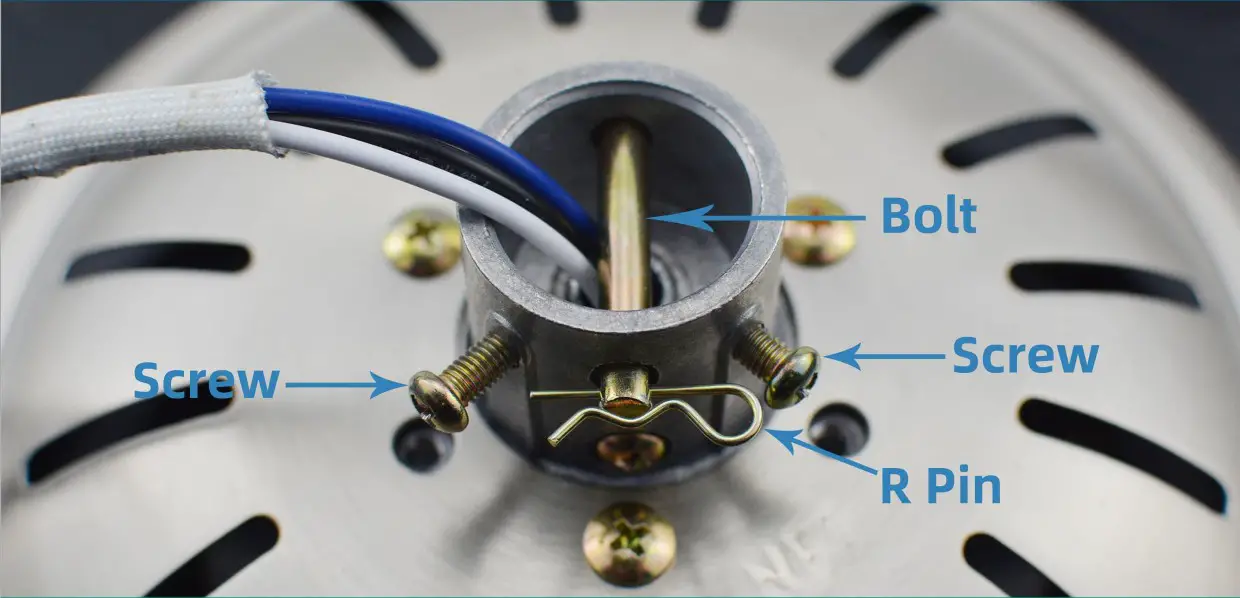

Remove the R pin from the motor and bolts, and loosen the screws on both sides 13

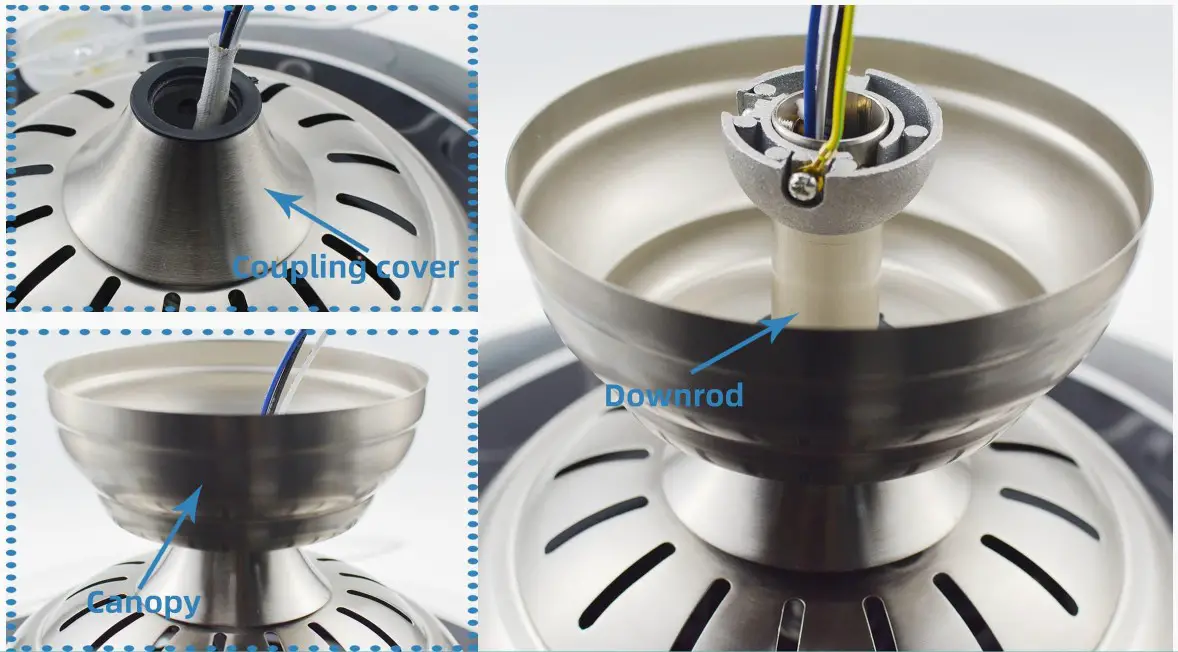

Pass the three wires of the motor through the Coupling cover, canopy, and downrod in turn 14
Lift the coupling cover, pass the bolt out of the hole in the motor base, then insert the R pin into the bolt.Finally, tighten the 2 screws evenly from both sides, otherwise it will cause the fan to shake. 15
MOUNTING BRACKET INSTALLATION, INSTALL THE CEILING FAN TO THE MOUNTING BRACKET

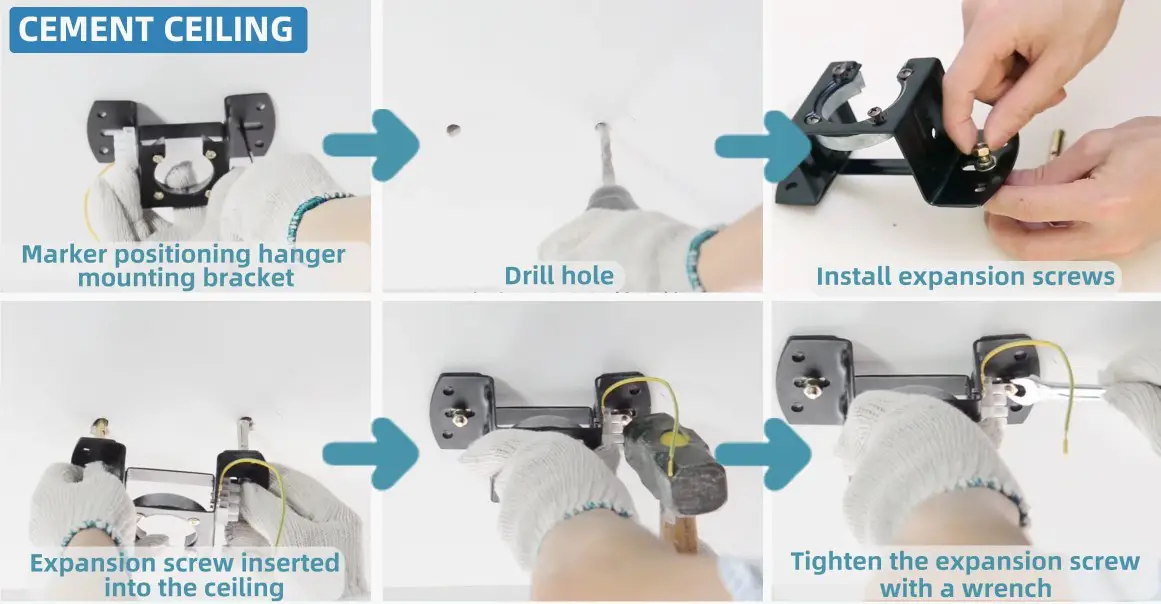

Use a marker to mark the location of the screw holes on the ceiling, then use an electric impact drill to drill holes in the cement ceiling, insert the expansion screws on the Mounting bracket into ‘the holes, and finally fix the expansion screws in the cement ceiling with a wrench. 16

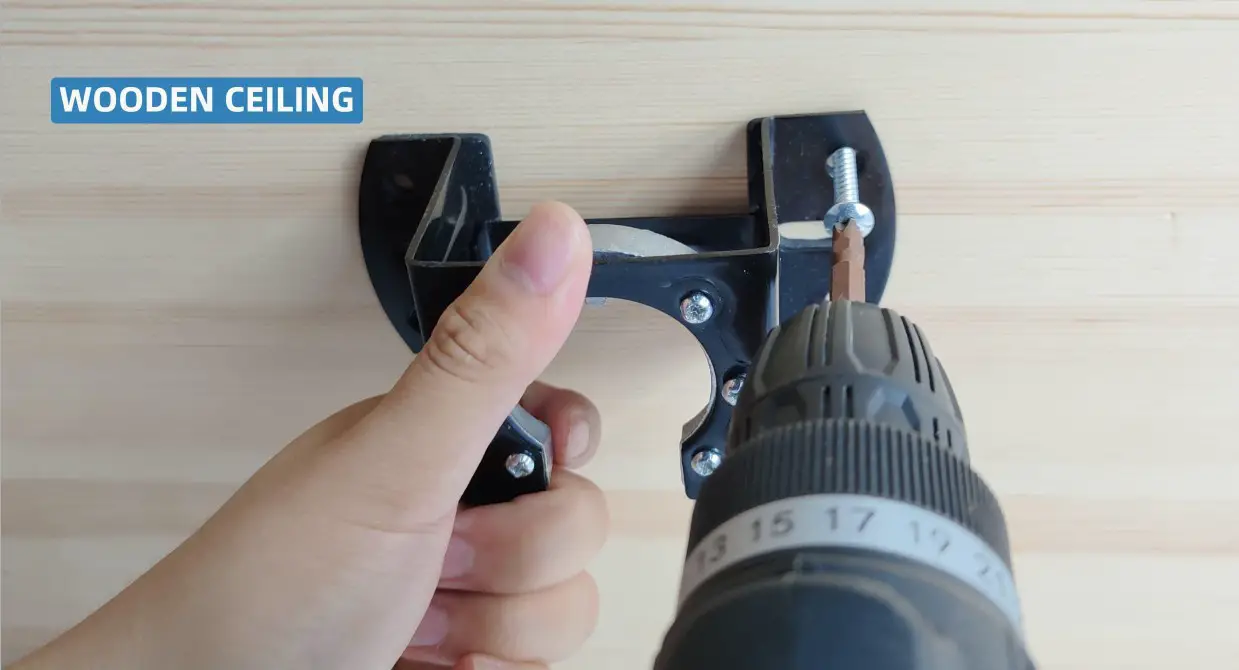

Use an electric drill to screw 4 self-tapping screws into the wooden ceiling to fix the mounting bracket 17

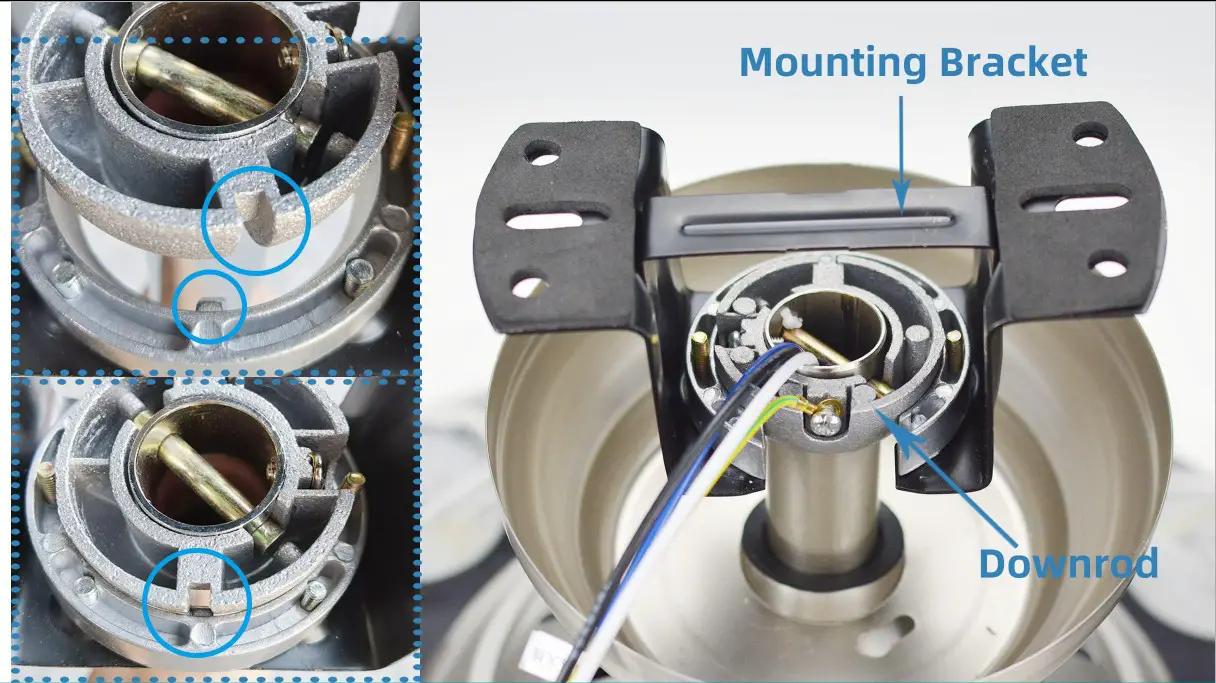

Hang the motor to the ceiling mounting bracket, rotating the ball to mesh the groove of the ball with the bump of the hanger, the down rod must fix to the round hole and confirm its Stability, otherwise, it will cause the fan to shake. 18

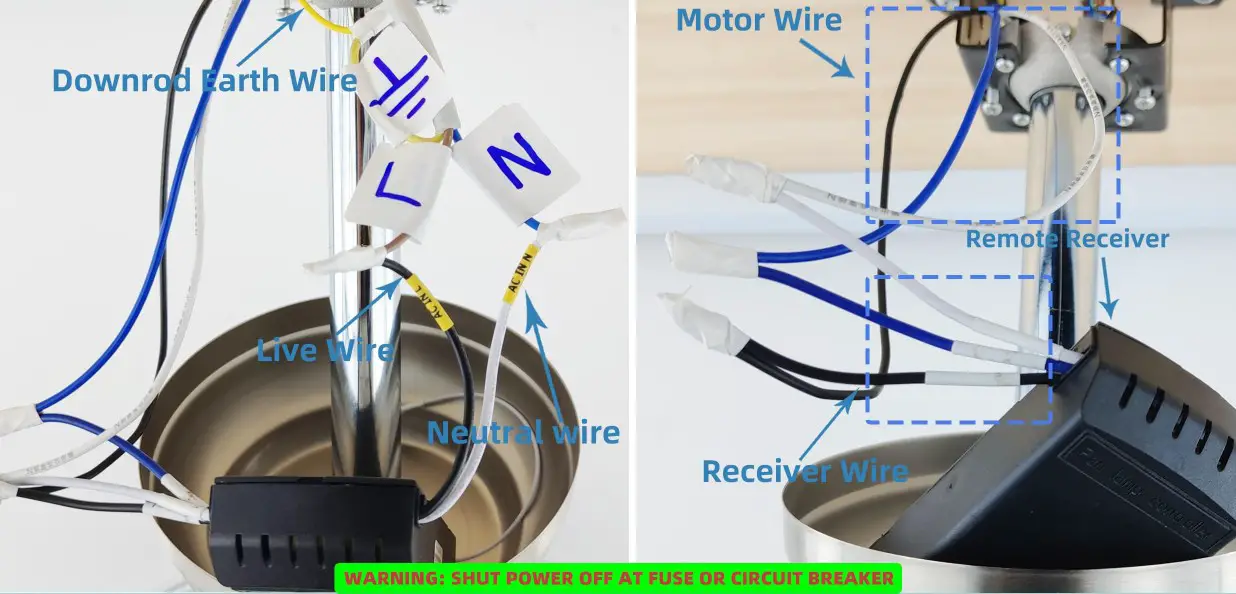

INSTALL THE REMOTE CONTROL RECEIVER
Connect the black wire of the receiver to the live wire of the ceiling, the white wire to the Neutral wire of the ceiling, and yellow wire on Downrod to the earth wire.
Connect the wire of the motor and the wire of the remote control receiver according to the color, and then put on the red wire protective cover. 19
