Brondell Vivaspring Vitamin C Shower Filter Instruction Manual

VivaSpring Vitamin C Shower Filter Installation

WARNING: Remove and discard the two end caps on the Vitamin C Shower Filter before installing.

NOTE: If unable to remove the showerhead by hand and pliers are needed, place a towel between the pliers and showerhead connection to prevent scratching.

NOTE: If leaking occurs, use the plumber’s tape at connections.

Standard Shower Installation

1. Remove the existing shower head from the shower arm.

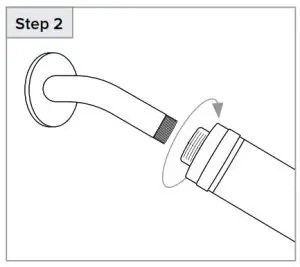

2. Screw the large end of the filter onto the shower arm until tightly secured.
3. Screw the showerhead onto the open end of the shower filter until tightly secured.

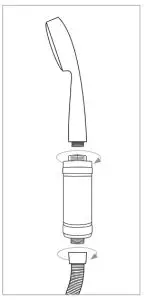

Handheld Shower Head Installation

1. Disconnect the handheld shower head from the shower hose.
2. Screw the small end of the filter onto the shower hose until tightly secured.
3. Screw handheld showerheads onto the open end of the shower filter until tightly secured.

Handheld Shower Head Installation (Alternate)

1. Remove the hose from the base mount on the shower arm.
2. Screw the large end of the filter onto the base mount until tightly secured.
3. Screw the hose onto the open end of the shower until tightly secured.

Questions about installation?

Call our customer service department at 888-542-3355 or visit:brondell.co
