Overview
The MuxMeet Share Dongle-U1 (model: 500828) is a USB-C Dongle that enables meeting participants using Windows or MAC based laptops to wirelessly share content with the push of a button, making connecting and sharing desktop screens in a meeting a simple and enjoyable experience. The MuxMeet Share Dongle-U1 is easy to connect and easy to use. Thanks to its plug-and-play connectivity, there is no need to install drivers. Sharing your desktop screen is as easy as pushing a button on the attached MuxMeet Share Dongle-U1, and an LED indicates the unit status. This device works in conjunction with MuxMeet Share Base-1 or with MuxMeet Share Base-2. (MuxMeet Share Base-1 and MuxMeet Share Base-2 are sold separately).
Key Features
- Can be plugged to a Windows or Mac based laptop
- Can wireless transmit the computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
- Supports transmit the computer desktop in mirror or extend mode
- Supports VESA PC resolution, auto-detecting
- No driver installation required
- With the push of a button, it is possible to start or stop a transmission
Specification | |
| Video Input Formats | Compliant with DP 1.2 for 1.62Gbps, 2.7Gbps, 5.4Gbps Compliant with DP 1.2 and eDP1.4 Supports DP 1, 2, and 4 lanes Over type C |
| HDCP | HDCP 1.3 |
| Video Input Resolution | VESA, maximum 1920×1080 |
| Video Input Timing | 1920×1080, 1680×1050, 1600×900, 1440×900, 1400×1050, 1366×768, 1280×1024, 1280×800, 1280×720, 1024×768, 1920×1200, 1600×1200, 2560×1440 @50HZ~60HZ |
| Video Output Formats | 1 x Wireless |
| Wireless Output | WIFI 11b/g/n/ac |
| Audio Input Formats | PC embedded digital, 2CH PCM |
| Audio Output Formats | WIFI 11b/g/n/ac |
| USB Input | USB Type C |
| Video Capacity | Wireless Transmission 1080P@ < 60Hz, 2560×1440 30Hz |
| Distance | Typical: 35m without obstacle between WMT3-H and WMS |
| Control Button | Capacitive touch Key and vibration |
| Indicator | Green/Red/color back-lit LED indicator |
| Unit Dimension (DxWxH) | 3.14” x 2.55” x 0.51” (80mm x 65mm x 13mm) |
| Unit Weight | 0.18 lbs (0.081Kg) |
| Operating temperature | -20°C ~ +45°C (-4°F ~ +113°F) |
| Storage Temperature | -20°C ~ +60°C (-4°F ~ +140°F) |
| Relative Humidity | 20% ~ 85% RH (No condensation) |
| DC Power | USB Internal 5V |
| Power Consumption | 3W (MAX) |
| Warranty | Two (2) years |
| Order Information | 500828 MuxMeet Share Dongle-U1 (UPC: 627699008287) |
| Accessories | MuxMeet Share Base-1 (model: 500826), and MuxMeet Share Base-2 (model: 500829) |
Typical Application

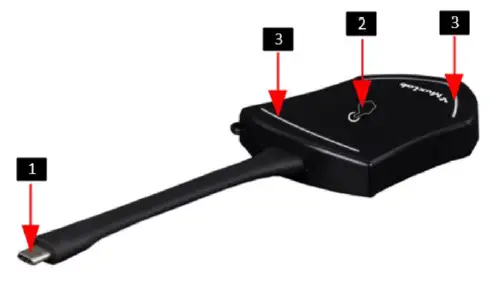

Description
| ID | Name | Description |
| 1 | Type C (DP) Connector | Plug it into the USB-C connector of a PC/Laptop to power the Dongle and share your screen |
| 2 | Touch Button | Touch the button to start or stop streaming PC/Laptop screen content on the main screen. |
| 3 | LED indicator | Indicates the status of the Dongle. |
