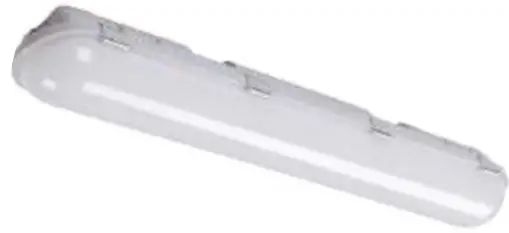

ELMARK CORP IL LED Fixtures
Product Information
- Product Name: LED fixtures
- Manufacturer: Elmark Holding

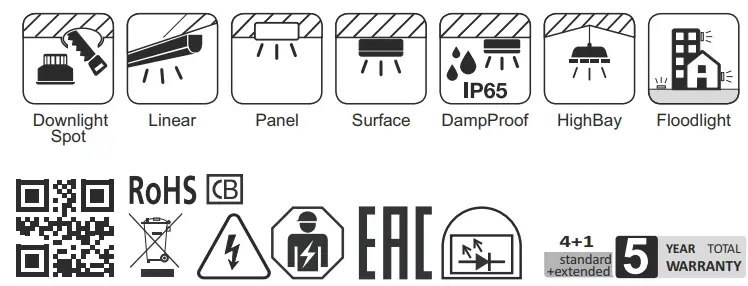

- Product Types: Downlight, Spot, Linear, Panel, Surface
DampProof, HighBay, Floodlight - Warranty: 5 years (standard) + 1 year (extended)
Product Usage Instructions
The LED light fixture must only be installed and put into operation by a qualified electrician. Before installation, make sure to check the color-coded markings on the wires. The following color codes should be followed:
- Black or brown (L) = phase wire
- Blue (N) = neutral wire
- Green-yellow = protective wire (for fixtures with touch protection)
- When installing the fixture, make sure not to damage the electrical cable. Follow the installation instructions provided in the user manual.
- The LED fixture comes with an emergency block and a battery. Refer to the scheme provided in the user manual for installation instructions.
Read carefully before installation

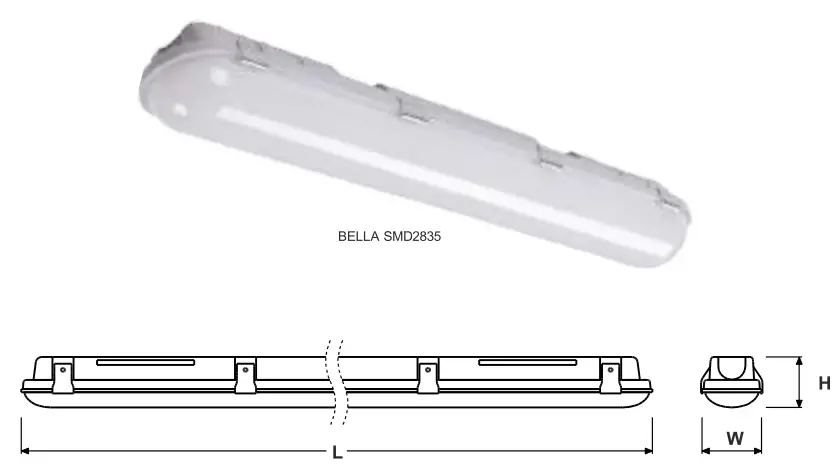

Dimension
| member | Watt | Mounted | Color temp. | Color | Length | Width | Height |
| (W) | Emergency Kit | Lumens (Im) (K) | body | (mm) | (mm) | (mm) | |
| 9BR20LED | 20 | 1800 4000-4300 | grey | 600 | 80 | 70 | |
| 9BR20LEDCW | 20 | 1800 6300-6500 | grey | 600 | 80 | 70 | |
| 9BR40LED | 40 | 4400 4000-4300 | grey | 1200 | 80 | 70 | |
| 9BR40LEDCW | 40 | 4400 6300-6500 | grey | 1200 | 80 | 70 | |
| 9BR55LED | 55 | 5000 4000-4300 | grey | 1476 | 80 | 70 | |
| 9BR55LEDCW | 55 | 5000 6300-6500 | grey | 1476 | 80 | 70 | |
| 9BR40LEDE | 40 | Yes | 4400 4000-4300 | grey | 1200 | 80 | 70 |
| 9BR40LEDCWE | 40 | Yes | 4400 6300-6500 | grey | 1200 | 80 | 70 |
| 9BR55LEDE | 55 | Yes | 5000 4000-4300 | grey | 1476 | 80 | 70 |
| 9BR55LEDCWE | 55 | Yes | 5000 6300-6500 | grey | 1476 | 80 | 70 |
BELLA LUMINAIRE SMD2835
Features

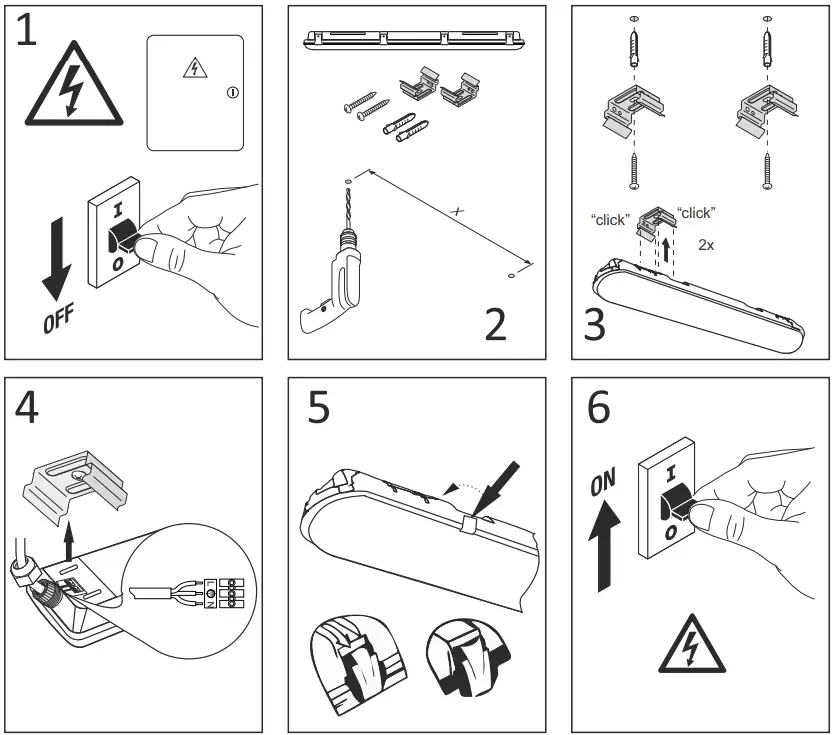

INSTALLATION INSTRUCTION
WIRING

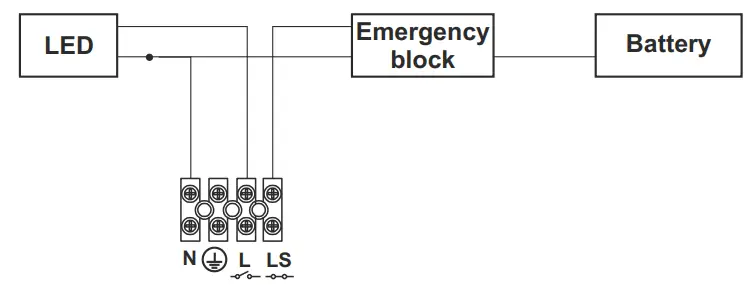

Scheme of a lighting fixture with an emergency block
The light fitting must only be mounted and put into operation by a qualified electrician! Make sure that you do not damage any electric cables when you are mounting the light fitting. The color codes of the wire are the following: black or brown (L) = phase conductor, blue (N) = neutral conductor, and in the case of a light fitting of shock protection class 1: green-yellow =protecting conductor. Only a light source of maximum performance and of the type indicated in the data plate and around the socket can be used for the product. The light fitting must only be mounted and put into operation by a qualified electrician!
