MGC LT-6129 RS-485 and Audio Extension Cables

connection

This document describes how to add ribbon cables to extend the RS-485 and audio connections between the FleXNet main board and the ANC-5000 board when they are located in different cabinets

For the audio connection

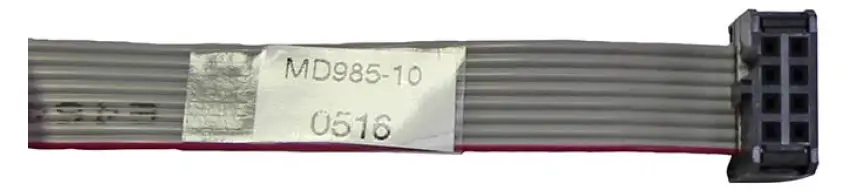

• RPL-MD-985-10 – 10ft High Speed Audio Cable
• RPL-MD-985-15 – 15ft High Speed Audio Cable
• RPL-MD-985-20 – 20ft High Speed Audio Cable

For the RS-485 connection

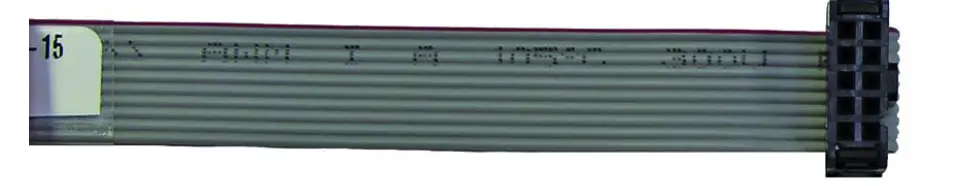

• RPL-MD-991-10 – 10ft RS-485 Ribbon Cable
• RPL-MD-991-15 – 15ft RS-485 Ribbon Cable
• RPL-MD-991-20 – 20ft RS-485 Ribbon Cable

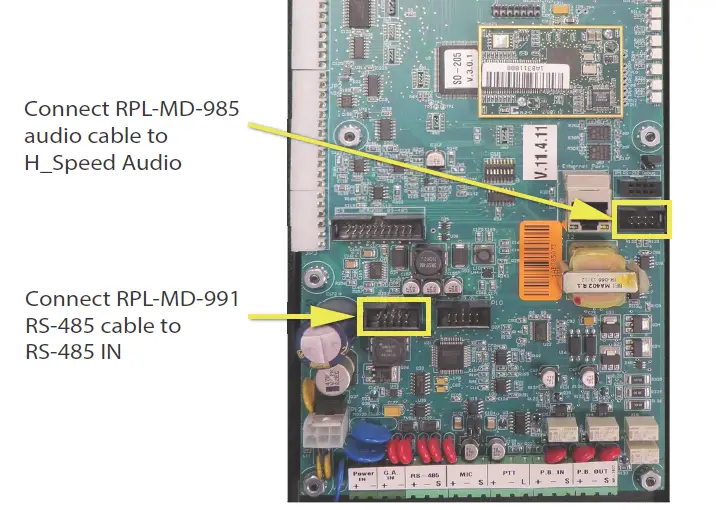

Connections on ANC-5000

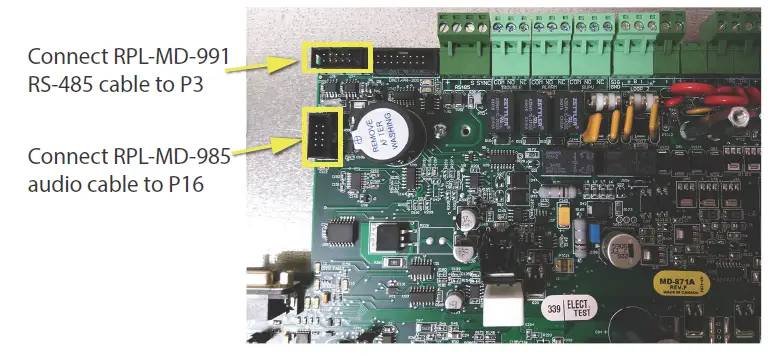

Connections on FX-2000 main board

Installation of RS-485 and Audio Extension Cables
