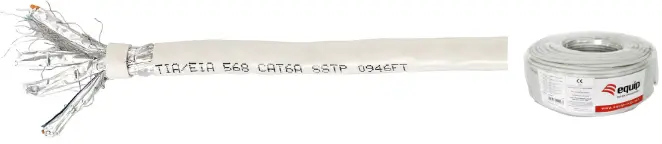

401491 Cat.6A S/FTP Installation
Cable, LSZH, 100m
Installation Guide
Product Images
Short Description
- 23AWG
- Solid bare copper conductor
- Low Smoke Zero Halogen (LSZH/LSOH)
- RoHS compliant
- CPR Certified, Class Eca
- 500MHz performance
- PoE Power over Ethernet support
- Package: PE Wrapped
Description
The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards defined by the EIA / TIA, ISO and EN standard bodies. The performance is guaranteed via a comprehensive test including attenuation, return loss, NEXT (Next End Crosstalk) and FEXT (Far End Crosstalk) up to 500 MHz and hence the equip® Installation Cable serves well in the most demanding networking environments.
Additional Information
| Approval and compliance | RoHS |
| Conductor material | Copper |
| Conductor size (AWG) | 23AWG |
| Conductor type | Solid |
| Jacket material | LSZH |
| Category | Cat.6A |
| Shielded | Yes |
| Product weight (kg) | 2 |
| Product breadth (mm) | 5 |
| Product depth (mm) | 5 |
| Product height (mm) | 100000 |
| Cable length | 100M |
| Color | Grey |
| EAN | 4.02E+12 |
| Model number | 401491 |
| Package contents | 401491 |
| Cable Length | 100m |
| Shielding | S/FTP |
