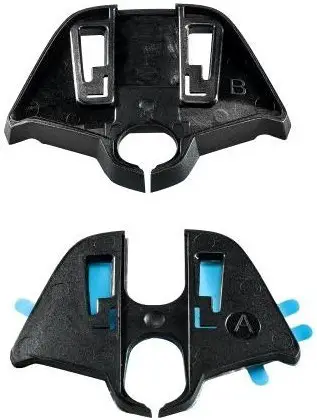

n-com SPCOM00000110 Nolan Adapter Kit
Specification
SPCOM00000110
| LETTER ON THE ADAPTER | COMPATIBLE HELMETS |
| A | N100-5/PLUS, N90-3, N80-8, N87/PLUS, N70-2 GT/X |
| B | N40-5 GT/-5, N40/FULL |
| C | N44/EVO |
| D | N104/EVO/ABSOLUTE |
N100-5, N70-2 GT/X
POSITIONING ADAPTER “A”
- After having repositioned the shell edge gasket, completely remove the film of the double-sided adhesive tape (sections 1, 2, 3).
- Apply adapter “A” to the helmet shell, following the predefined template.
- Hook the light to the adapter, making it slide downwards.
N90-3
POSITIONING ADAPTER “A”
- After having repositioned the shell edge gasket, peel off sections 1 and 2 of the film of the double-sided adhesive tape.
- Apply adapter “A” to the helmet shell, following the predefined template.
- Hook the light to the adapter, making it slide downwards.
N80-8, N87
POSITIONING ADAPTER “A”
- After having repositioned the shell edge gasket, peel off sections 2 and 3 of the film of the double-sided adhesive tape.
- Insert the flex cable of the ESS system in the hole of adapter “A”.
- Rotate the adapter and apply it to the helmet shell.
- Hook the light to the adapter, making it slide downwards.
POSITIONING ADAPTER “B”
POSITIONING ADAPTER “B”, “C”, “D” / POSIZIONAMENTO ADATTATORE “B”, “C”, “D” / POSITIONNEMENT ADAPTATEUR “B”, “C”, “D” / POSICIONAMIENTO ADAPTADOR “B”, “C”, “D” ANBRINGUNG DES ADAPTERS “B”, “C”, “D”
- Apply the double-sided adhesive tape supplied with the adapter.
- After having repositioned the shell edge gasket, completely remove the film of the double-sided adhesive tape.
- Insert the flex cable of the ESS system in the hole of the adapter.
- Rotate the adapter and apply it to the helmet shell.
- Hook the light to the adapter, making it slide downwards.
