Aiwa Sb-x100 Desktop Bluetooth Speaker User Manual

SB-X100
User Manual

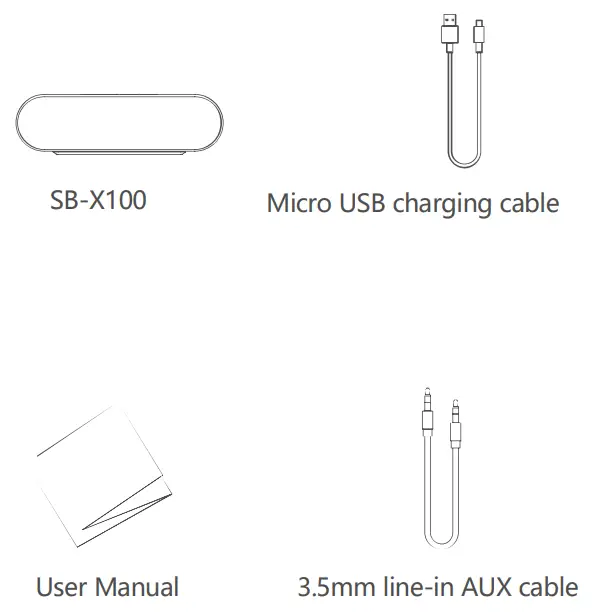

Product List

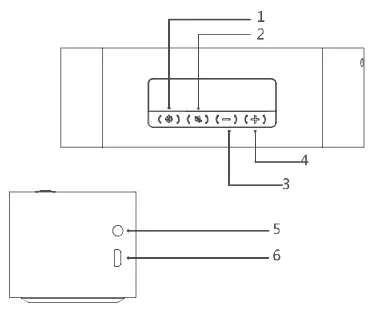

Instructions

1. Power button
2. Play/Pause/TWS connection/BT Disconnection
3. Volume-/Previous track
4. Volume+/Next track
5. AUX in slot
6. Micro USB charging slot

Power button
To turn on SB-X100, press and hold the Power button for 2 seconds

Play/Pause/TWS connection/BT Disconnection

1. BT, AUX play Mode, Short press ” ” to Pause music, press again to replay.BT play mode, long press ” ” to disconnect BT.
2. TWS mode, double press ” ” to connect TWS.

Previous Track/Volume-
BT, AUX play mode, short press ” – ” to go to the previous track, AUX play mode does not support turning to the previous track. Long press ” – ” to reduce the volume

Next Track/Volume+
BT, AUX play mode, short press ” + ” to go to the next track, AUX play mode does not support turning to the next track. Long press ” + ” to increase the volume

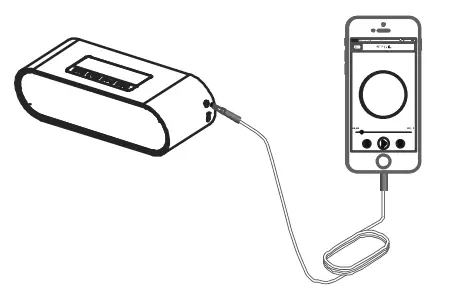

AUX Connect
Turn on the speaker, insert a 3.5mm audio cable, the white indicator on, and music playing from the external audio source device Automatically

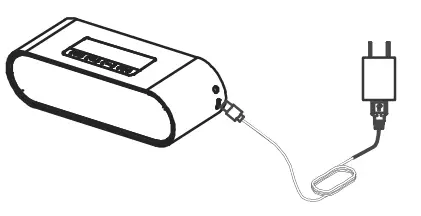

Micro USB charging slot
Please insert our provided cable connect with a 5V/1A power supply into Micro USB charging slot. (Please purchase the power supply by yourself)

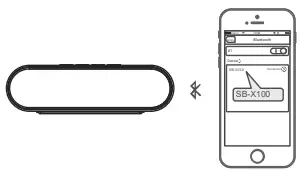

BT connect
Turn on the speaker, BT indicator light flash, open your Bluetooth device to search ”SB-X100 ” and connect it. BT indicator light stays on, BT is connected successfully.

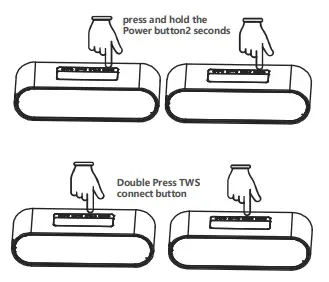

TWS Play Mode:
Turn on the 2pcs of SB-X100 (no need for Synchronous boot), double press TWS connect button for 2 speakers, and speakers are ready to pair after one beep. After connected successfully, one of the speaker’s BT indicates a light flash ( this unit is the Host left channel), and the other one’s BT indicate light stay on(this unit is the Secondary right channel), open the BT device, and search “SB-X100”, select and connect it. connected successfully after one beep. BT indicator light stays on after music playing. both units support button operation.

TWS disconnection
Long press TWS connect button of Host left channel unit, 2 speakers drop out of the TWS mode, disconnect with BT device at the same time. Long press TWS connect the button of secondary right channel unit, 2 speakers drop out of the TWS mode, the Host unit keeps connecting with BT devices and keeping play music.

Two device connection modes: (BT mode)

1. When playing music, long-press the play/pause button to disconnect the current BT. then can connect with multiple devices after disconnected successfully.
2. Another BT device connected with the speaker first, then the old BT device connected with the speaker, and 2 BT devices connected with the speaker successfully.
3. Speaker will play the first connected device, the other device can be playing only pause the first one.

LED Indicator light

Low battery requirement:
When the battery is low, Speaker will send out a low battery alarm beep, an Orange LED on one beep for each 15S, and the speaker will turn off after 3 beeps.

Specification

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Conned the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.

Aiwa Electronics Int’l Co., Ltd.
Explore more at www.int-aiwa.com
