Clarke Devil371pd Devil Quartz Halogen Heater Instruction Manual

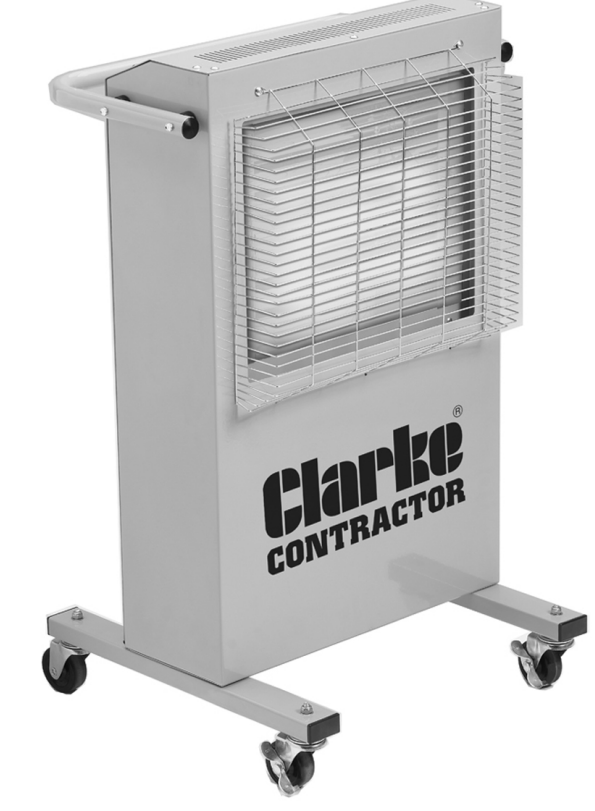

DEVIL QUARTZ HALOGEN HEATER
MODEL NO: DEVIL371PD
PART NO: 6920258

OPERATING & MAINTENANCE INSTRUCTIONS

INTRODUCTION

Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater.
Before attempting to use this product, please read this manual thoroughly and follow the  instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and  satisfactory service.

SPECIFICATIONS

GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of  purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188

GENERAL SAFETY RULES

1. These heaters are for INDOOR USE only.
2. DO NOT expose the heater or power cable to rain or wet conditions. Any water entering the heater will increase the risk of electric shock. DO NOT use this heater in a bathroom, shower room or any other wet environment.
3. NEVER locate the heater near combustible materials such as curtains, furniture etc. Allow at least 1 metre distance.
4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a distance of at least 1 metre from a wall or ceiling. Avoid placing the heater directly below power socket outlets.
5. Take care to ensure that the wire guard cannot be covered.
6. Do not operate heater in explosive atmospheres such as in the presence of flammable liquids, gases or dust such as in a paint spray booth or any explosive environment.
7. NEVER stand the heater on a movable vehicle where it could tip over.
8. DO NOT allow the halogen tubes to become covered with dust which could become a fire hazard. If used in a dusty workplace it should be cleaned as described under  Cleaning and Maintenance.
9. NEVER touch the halogen tubes until at least 15 minutes after switching off.
10. DO NOT leave the heater unattended.
11. If children are present always use with a fireguard.
12. Store the heater out of the reach of children and do not allow persons unfamiliar with these instructions to operate it.
13. Use ONLY in an upright position.
14. ALWAYS manoeuvre the heater using the handles provided and avoid trapping the fingers between the handle and the heater body.
15. NEVER LEAVE THE HEATER UNATTENDED WHILE IN USE. TURN OFF AT NIGHT IF UNATTENDED.

ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug in any way. DO NOTuse adaptor plugs with earthed (grounded) appliances. Correct plugs and outlets will reduce the risk of electric shock.
2. DO NOT abuse the electrical cable. Never use the cable for pulling or unplugging the heater. Keep the cable away from sources of heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
3. Keep the power cable well away from machines and ensure an adequate electrical supply is close at hand so that the operation is not restricted by the length of the cable.
4. DO NOT use this product with an extension cable.
5. ALWAYS disconnect from the power supply before moving the heater or performing any cleaning or maintenance tasks.
6. Inspect the mains cable regularly for signs of damage. DO NOT use if it is damaged, and ALWAYS keep it away from the source of heat.
7. Check the heater for damage before use. DO NOT use if the heater tubes are damaged or broken. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer.

SERVICE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using identical replacement parts. This will ensure that the safety of the appliance is maintained.
   Please keep these instructions in a safe place for future reference.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment,  recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and  Electronic Equipment (WEEE) at a recognised disposal facility.
This product contains valuable raw materials. Metal products should be takento your local civic amenity site for recycling of metal products. Recycle unwanted materials  instead of disposing of them as waste. All unwanted accessories and packaging should be sorted and taken to a recycling centre for disposal in a manner which is compatible with the environment.

ELECTRICAL CONNECTIONS

DEVIL 371PD (110V) UNIT
The 110V model is fitted with a 32 Amp, three pin industrial plug to EN 60309 and MUST be connected to a 110 volt, 1 phase 50 Hz supply through a suitably fused isolator switch.
On no account must a 230V, 13 amp (BS1363) plug be used.
NOTE: If a portable 110V transformer is used, make sure it has a rated capacity sufficient to take the load of the heater.
If the heater is hard wired into the electrical system, all work must be carried out in accordance with IEE regulations.

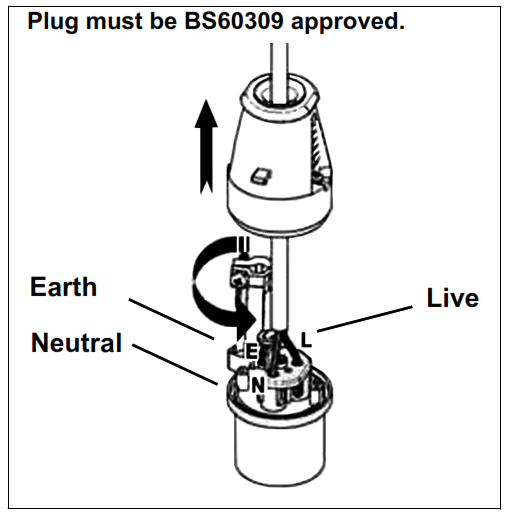

If the plug has to be changed due to damage, a replacement should be fitted, following the wiring instructions shown below. The old plug must be disposed of as insertion into a 110v socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE  COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW = EARTH

If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.

• The Blue wire must be connected to the terminal which is marked N or Neutral.
• The Brown wire must be connected to the terminal which is marked L or Live.
• The Yellow wire must be connected to the terminal which is marked E or Earth.
  If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

UNPACKING AND ASSEMBLY

UNPACKING
Before assembling, please check contents against the following list and advise
your dealer immediately if any parts are missing.
1 x Heater
2 x Support Frames with castors (2 with brakes)
1 x Handle
1 x Fixings pack
1 X Remote control unit

ASSEMBLY

1. Attach the supporting frames to the heater body using 14 mm securing bolts supplied.
   • The braked castors should be atthe rear of the heater

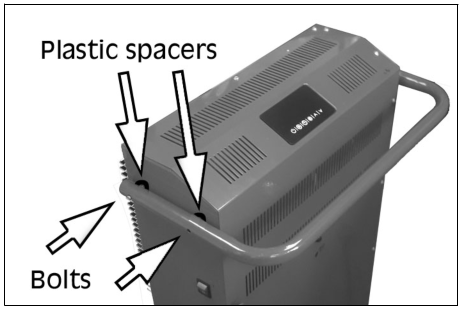

2. Attach the handle to each side of the heater body using the 10 mm bolts and plastic spacers.
   • The handle should be facing away from the rear of the heater.

OPERATION

WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ THESE INSTRUCTIONS BEFORE USE.
WARNING: PLEASE NOTE THAT THE HEATING ELEMENTS OF THIS PRODUCT DO NOT GLOW WHILST IN OPERATION. ANY PICTURES  SHOWING THIS IN ADVERTISING MATERIAL ARE FOR ILLUSTRATION ONLY.

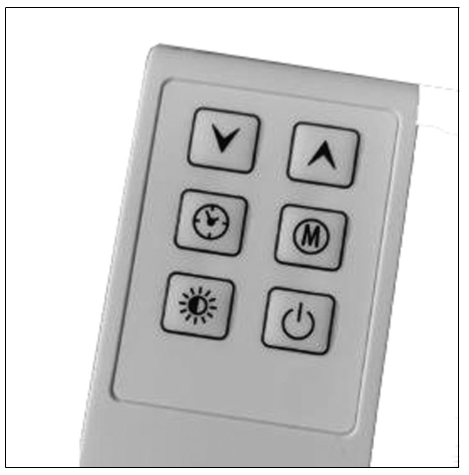

USING THE REMOTE CONTROL
All operations must be done using the remote control.

• 2 x AAA batteries are required and are installed as shown by the diagram found inside the control unit.
• The remote control must be directed at the heater display panel. It has a range of approx 2.5 metres and must be aimed at the correct angle.
• The function of each button on remote control is the same as operation panel.

MANUAL OPERATION

1. Stand the heater on a firm, level surface and following all safety precautions, connect to a suitable power supply.
   • The heater is equipped with an anti-tilt switch that automatically cuts the power off should the heater tip over. If this happens, stand the heater upright and it will immediately re-set.
2. Switch on the power at the primary switch.

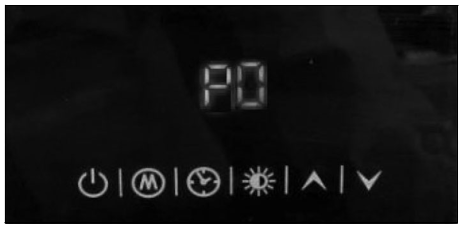

   • The heater will be in Standby with the display showing PO.

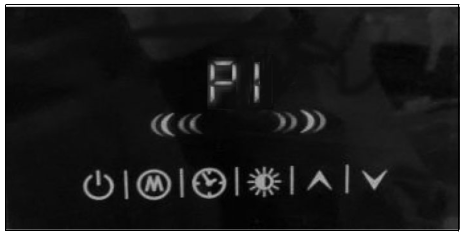

3. Press to turn on the upper heating lamp and the screen will show P1.
4. Press    to select the mode from P1-P6, referring to the different temperature settings.


   P1	Only the upper element is working
   P2	24o
   P3	26o
   P4	28o
   P5	30o
   P6	Both elements are working

   • During mode P2-P5 the upper element is working all the time and the lower element will be turned off automatically according to the set temperature.

5. The user can change from mode

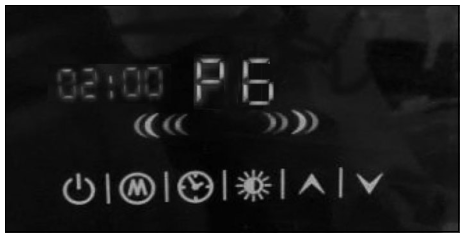

   P1 and P6 by pressing  . The screen will show a cascade effect when in mode P6.
6. To power off the unit, press again, the heater stops working, and returns to standby with the screen showing ‘PO’.
7.  Then switch off the main switch and unplug the heater.

SETTING THE SHUTDOWN TIMER

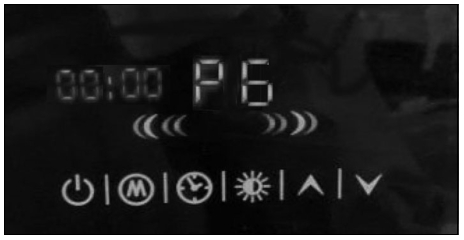

1. Press to set the shutdown timer. The time on the screen flickers with initial status 00:00.
2. Pressand   to set the time to turn the heater off.
   • It increases/decreases 1 hour per press.
3. Press  when you finish setting and the heater will be in the countdown mode.
   • It will shut down 2 hours later.
4. When the time is up, the heater turns off automatically and enters the standby state P0.

FUNCTION FOR DETECTING OPENING WINDOWS

1. When the ambient temperature drops over 5°C within 10 minutes, the heater will turns off automatically and enters a standby state with three alarm beeps.
   • Users need to turn on the heater manually by pressing-

CLEANING & MAINTENANCE

If the heater has been used, always allow it to cool down for at least 15 minutes and disconnect from the power supply before performing any maintenance tasks.
FITTING/ REPLACING HALOGEN TUBES
Before attempting to fit/replace halogen lamps, ensure the heater is switched off and isolated from the electrical supply by removing the plug from the socket.
NEVER handle the heater tubes with bare hands. ALWAYS handle using either a soft clean glove or a piece of soft clean cloth wrapped around the lamp.

1. Loosen and remove the two pozidrive screws securing the wire guard, remove the guard and store removed parts safely.
2. To remove the tube, grasp and gently but firmly push it to one end of the heater. The tube holders are spring loaded and will allow the tube sufficient movement to clear the opposite holder.
3.  Remove the tube and dispose of it, according to local regulations.
4. Fit new halogen tubes in reverse order.
5.  Replace the guard using the screws removed earlier.
   The heater is now ready for use again.

PERIODICALLY

1. If there is any serious build up of dirt, wipe the exterior thoroughly with a damp cloth. Take care that no moisture enters the heater. Take care NOT to touch the tubes with your fingers.
2. Inspect the power cable for damage. Undue heat will cause the cable to stiffen and crack. If this is found, have the cable replaced. Check cable routing and ensure it is well away from the heat source.
3. Ensure heating tubes are clear of dust (use compressed air to clean if possible. (ALWAYS wear a dust mask if performing this operation)
4. Refer to your CLARKE dealer if internal repair is required.
5. When storing the heater, allow it to cool down, then place it in its packing box for storage in a dry, ventilated place.

FAULT FINDING

COMPONENT PARTS

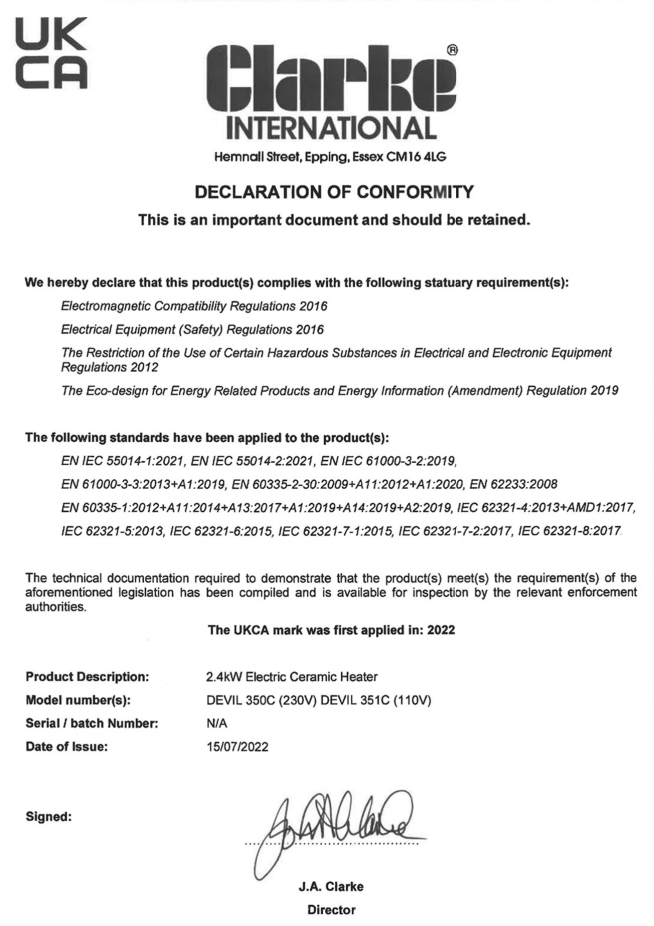

DECLARATION OF CONFORMITY-UK

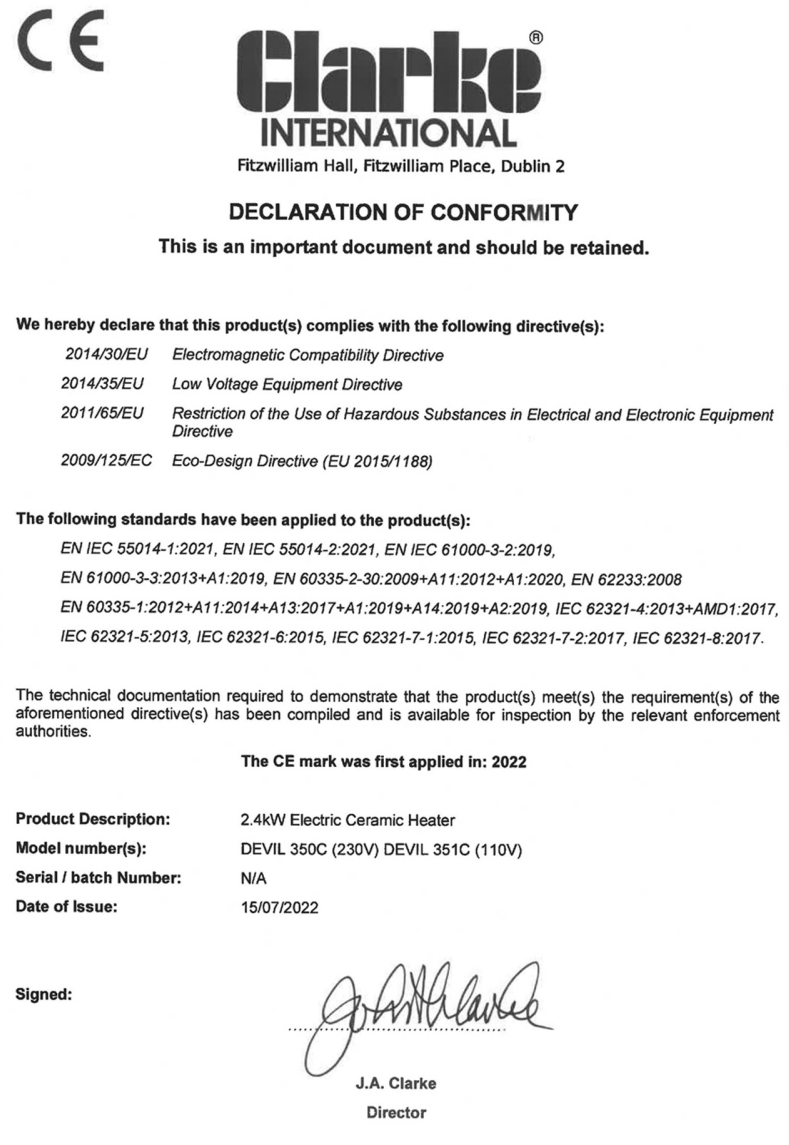

DECLARATION OF CONFORMITY-CE
