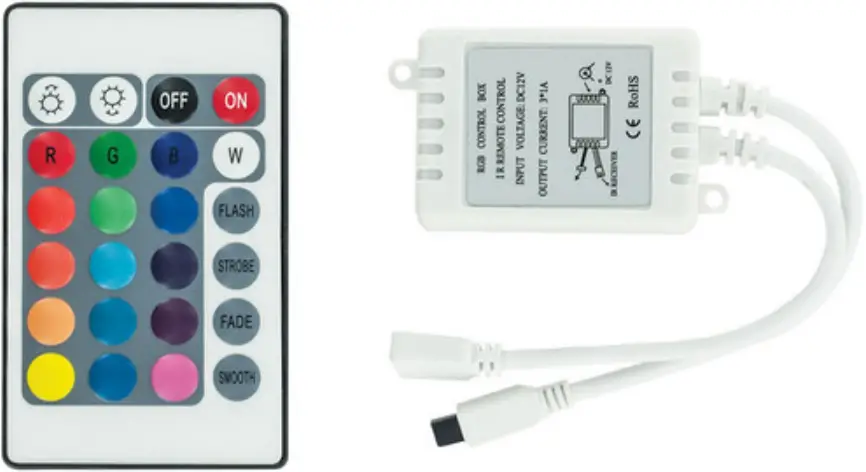

OUTWATER RGB12 RGB LED Controller 12V User Manual
OPERATING INSTRUCTIONS FOR LED-RGB12-CON
Specifications
Working Temperature: – 20-60°C
Supply Voltage: DC12~24V
Product Size: L 62 x W 35 x H 23mm
Package Size: L 105 x W 65 x H 55mm
Net Weight 50g
Gross Weight: 70g
Output: Three CMOS drain – open output
Connecting Mode: Common anode
Max Load Current: 2A each colo
Control Method:
Use the IR remote to control the LED controller. The remote has 24 buttons, the functions of each are displayed in the table below.
| Brightness + Speed Up | Brightness – Speed Down | OFF | ON |
| Static Red | Static Green | Static Blue | Static White |
| Static Orange | Static Pea Green | Static Dark Blue | 7 Color Jumpy |
| Static Dark Yellow | Static Cyan | Static Brown | All Fade Out & Fade In |
| Static Yellow | Static Light Blue | Static Pink | 7 Color Fade Change |
| Static Straw Yellow | Static Sky Blue | Static Purple | 3 Base Color |

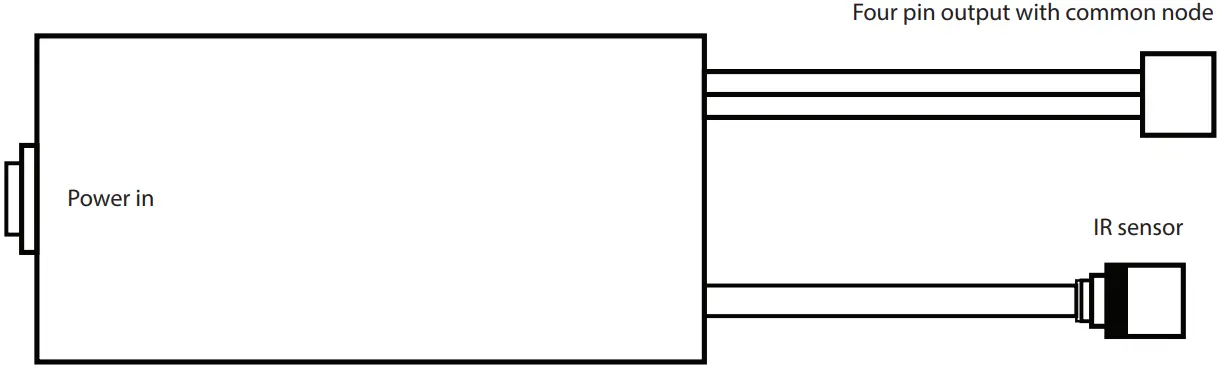

Panel Specification and Connecting Drawing
Warnings
- Supply voltage of this product is DC12V~24V. Never connect AC220V.
- Never connect two wires directly in case of a short circuit.
- Lead wire should be connected correctly matching the common node.
- The warranty of this product is one year. During this period we guarantee replacement or repairing with no charge but exclude the artificial situation of damaged or overload working.
Outwater Industries
