Kogan Kabtfmtrvca Bluetooth Smart Fm Transmitter With Voice Control User Guide

USER GUIDE

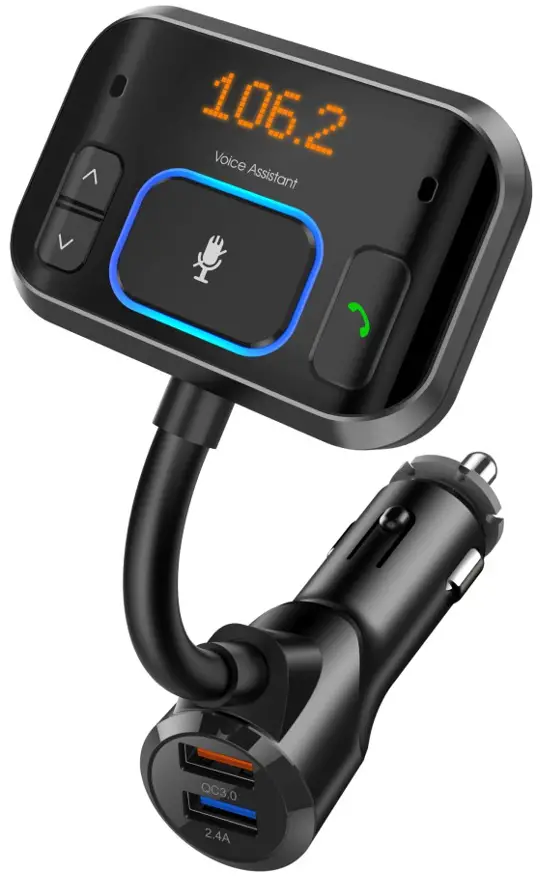

BLUETOOTH SMART FM TRANSMITTER WITH VOICE CONTROL
KABTFMTRVCA

SAFETY & WARNINGS

Please read and understand all instructions before using this product.

• Read all instructions and cautionary markings before using this product.
• Do not expose to rain, moisture, or snow.
• Use of any attachment that is not recommended or sold by kogan.com may result in a risk of fire, electric shock, or injury to persons.
• Do not operate this device if it has received a sharp blow, been dropped, or otherwise damaged in any way; contact kogan.com.
• Do not disassemble this device; contact kogan.com when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
• To reduce the risk of electric shock, unplug this device before attempting any maintenance or cleaning. Turning off the controls will not reduce this risk.
• To reduce the risk of fire or electric shock, do not interconnect the output terminations.
• Avoid long exposure to direct sunlight, as this may cause damage to the device.
• Exposing this product to open flames may cause it to explode.
• Do not use this product in strong magnetic fields.
• Use a dry, soft lint-free cloth to clean. Do not use any corrosive cleaners or oils to clean.

CAUTION: For continued protection against the risk of fire, replace only with the same type and ratings of fuse, fuse rating is 250V DC/3A.

•  Always obey traffic laws and pay attention to the road. Do not attempt to use this device while driving, as some features are limited while the vehicle is in motion.
  Failure to pay full attention to the operation of your vehicle could result in death, serious injury, or property damage.

OVERVIEW

Button controls

Buttons	Activities	Functionalities
	Press once	To activate Siri/Google assistant (blue and green lights blink alternately)
	Press once again	To deactivate Siri/Google assistant (blue light stays on)
	Press once	Pause/Play music
		Answer/hang-up phone calls
		Play/Pause music
	Press and hold	Reject phone calls
		Switch to Private Call
		Enter frequency tuning mode
	Press twice	Redial the last caller from the call log
	Press once	Last track
		Last frequency
	Press and hold	Increase volume or frequency
	Press once	Next track
		Next frequency
	Press and hold	Decrease volume or frequency

LED Indications

OPERATION

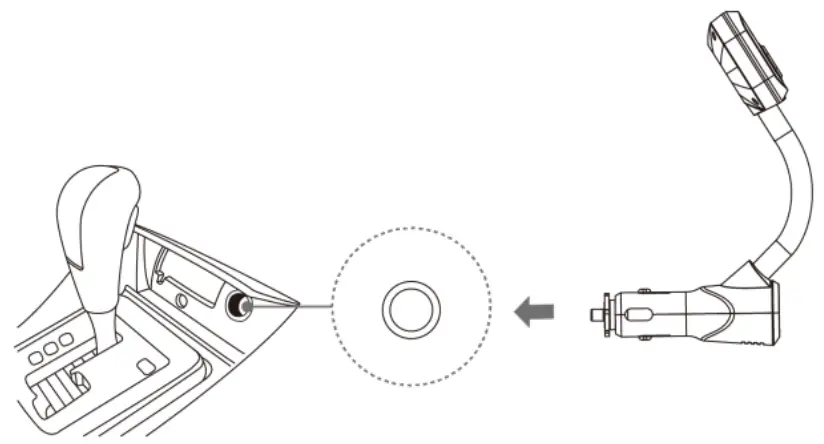

Plug the device into your vehicle’s cigarette lighter socket and then start the engine; the LED ring-light indicator will illuminate and stay blue.

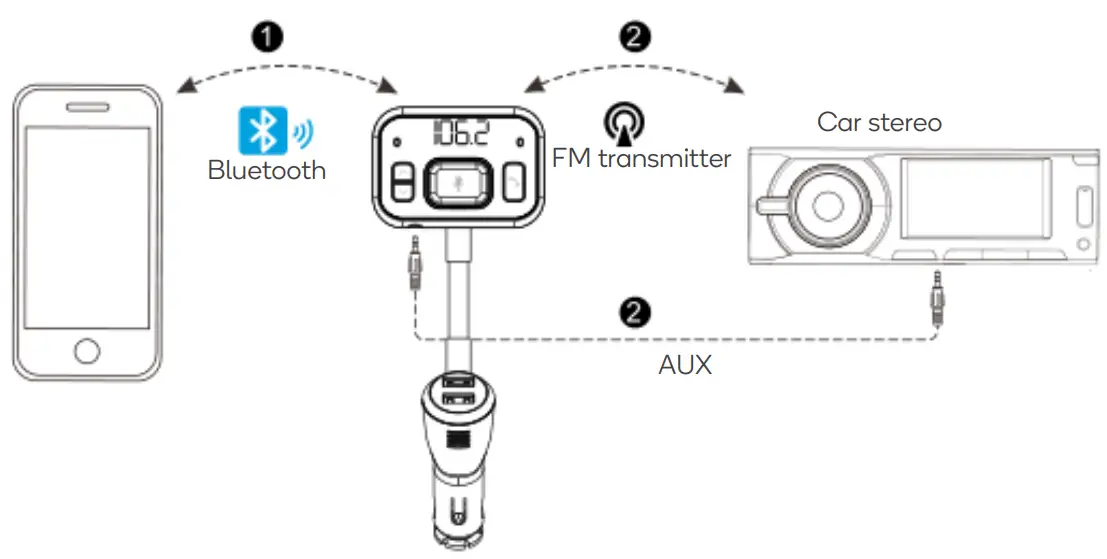

Streaming audio from mobile phone to car stereo

1.  Connect the mobile phone to the car stereo via Bluetooth.
2. Set up the unit and your car radio with the same frequency. You can also use an Aux cable to connect the unit to your car stereo.

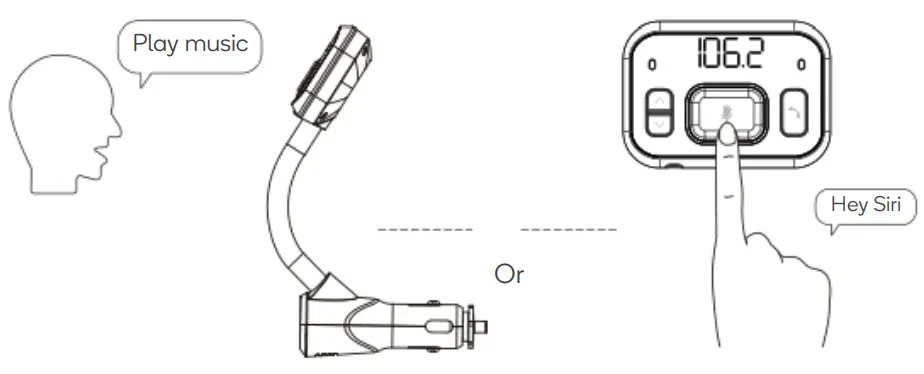

Using the AI voice assistant

This device comes with an offline voice command feature that is completely data-free. You can play/pause music, take/reject a voice call, etc. by using your voice.

To activate the voice service feature says one of the 8 wake phrases:

The device will respond instantly.

Charging devices

The transmitter features dual USB charging ports, allowing the charging of two devices at the same time with a maximum output of 5V/2.4A+QC3.0.

SPECIFICATIONS

IN THE BOX

• FM transmitter
•  User Guide
•  3.5mm AUX cable
• Spare fuse

NOTES
—————————————————————————–

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require,
head online to help.kogan.com
KOGAN.COM
