A-iPOWER SUA2000iP 2000-Watt Recoil Start Gasoline Powered Inverter Generator User Guide

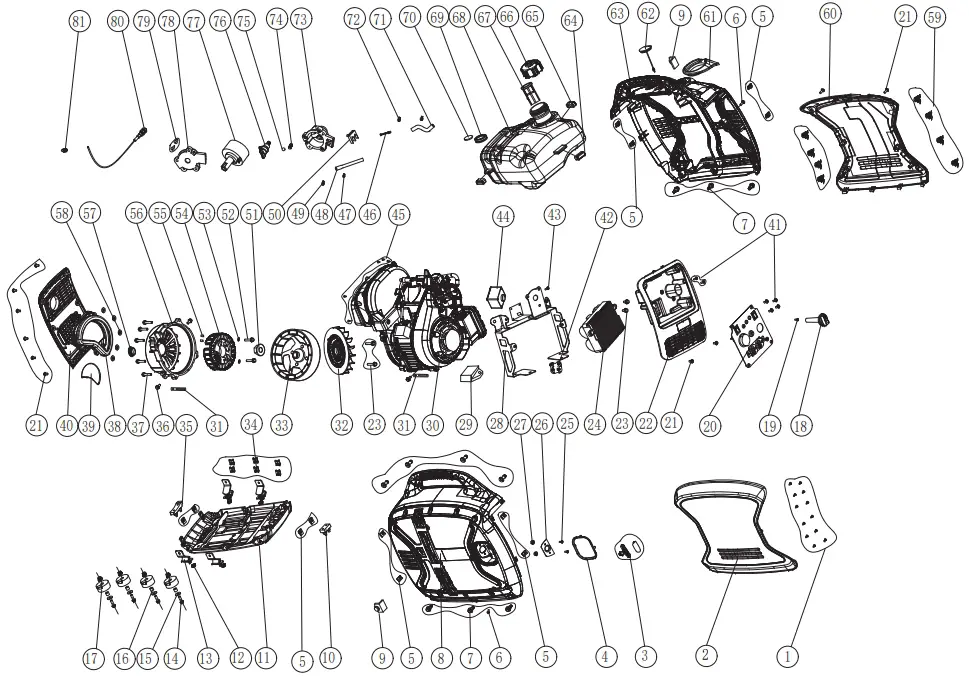

PARTS DIAGRAM
Parts List
| NO. | Part Number | Description | Qty. |
| 1 | 30117-00010-00 | Self-tapping screw ST4.2*13 | 12 |
| 2 | 33013-00092-00 | Side Cover | 1 |
| 3 | 70010-00079-00 | Recoil starter | 1 |
| 4 | 33014-00081-00 | Start the protection circle | 1 |
| 5 | 34024-00105-00 | Clip nut M5 | 12 |
| 6 | 30111-00027-00 | Cross recessed bolt M6*12 | |
| 7 | 30111-00027-00 | Hexagon socket bolt M6*12 | 6 |
| 8 | 33013-00078-00 | Side Cover Base | 1 |
| 9 | 33275-00111-00 | Cylinder head positioning pad | 2 |
| 10 | 33275-00019-00 | Box bottom pad | 1 |
| 11 | 33089-00073-00 | Base assy | 1 |
| 12 | 30125-00002-00 | Hexagon flange nut M6 | 8 |
| 13 | 34030-00026-00 | Shock mount | 4 |
| 14 | 30101-00042-00 | Hexagon flange bolt M6*20 | 4 |
| 15 | 30136-00113-00 | Flat Washers | 4 |
| 16 | 34032-00015-00 | Bushing | 4 |
| 17 | 33275-00018-00 | Machine shell rubber pad | 4 |
| 18 | 31026-00121-00 | Switch knob | 1 |
| 19 | 30111-00070-00 | Screw M4*12 | 1 |
| 20 | 20114-05265-00 | Control panel assy | 1 |
| 21 | 30111-00088-00 | Cross pan head bolts | 14 |
| 22 | 33013-00080-00 | Inverter intake cover | 1 |
| 23 | 30101-00588-00 | Hex flange bolt M6*18 | 4 |
| 24 | 20136-00131-00 | Inverter module | 1 |
| 25 | 30111-00071-00 | Screw M3*8 | 2 |
| 26 | 33593-00019-00 | Handle stop | 1 |
| 27 | 30125-00015-00 | Hex flange nut M3 | 2 |
| 28 | 20014-00496-00 | Bracket | 1 |
| 29 | 70009-01292-00 | CO flameout actuator | 1 |
| 30 | 20260-01168-04 | Engine assy | 1 |
| 31 | 34024-00004-00 | Metal clip | 3 |
| 32 | 33155-00066-00 | fan | 1 |
| 33 | 20006-00002-00 | Rotor assy | 1 |
| 34 | 34024-00085-00 | Clip nut M6 | 6 |
| 35 | 33275-00006-00 | Motor rubber pad | 1 |
| 36 | 30101-00342-00 | Hexagon flange bolt M6*16 | 4 |
| 37 | 30101-00530-00 | Hexagon flange bolt M6*30 | 5 |
| 38 | 33015-00026-00 | Motor rubber sleeve | 1 |
| 39 | 60007-00141-00 | Sound-absorbing cotton | 1 |
| 40 | 33013-00093-00 | Exhaust cover | 1 |
| 41 | 30111-00085-00 | Cross pan head screw M5*25 | 6 |
| 42 | 30101-00070-00 | Hexagon flange bolt M6*12 | 4 |
| 43 | 30111-00064-00 | Phillips screw M5*20 | 1 |
| 44 | 70009-00687-00 | CO sensor | 1 |
| 45 | 30117-00011-00 | Self-tapping screw ST4.81 6 | 5 |
| 46 | 34037-00003-00 | Oil outlet filter mesh | 1 |
| 47 | 34024-00024-00 | Clamp B10.5 | 1 |
| 48 | 34023-00114-00 | Fuel hose | 1 |
| 49 | 34024-00031-00 | Clamp B10.5 | 2 |
| 50 | 31026-00060-00 | Flameout switch | 1 |
| 51 | 30125-00034-00 | Hexagon flange nut M12 | 1 |
| 52 | 30101-00276-00 | Hex flange bolt M6*1 8 | 2 |
| 53 | 30139-00005-00 | Spring washer | 2 |
| 54 | 20005-00043-00 | Stator assy | 1 |
| 55 | 34006-00001-00 | Positioning pin | 2 |
| 56 | 33191-00130-00 | Motor cover | 1 |
| 57 | 33126-00011-00 | Plug | 1 |
| 58 | 30150-00026-00 | Wire retaining ring for hole | 5 |
| 59 | 70009-00317-00 | Spring clip | 8 |
| 60 | 33013-00091-00 | Maintenance cover | 1 |
| 61 | 33275-00012-00 | Refueling septum | 1 |
| 62 | 33015-00043-00 | Spark plug rubber sleeve | 1 |
| 63 | 33013-00079-00 | Maintenance cover base | 1 |
| 64 | 33015-00066-00 | Fuel tank rubber sleeve | 1 |
| 65 | 33015-00023-00 | Fuel tank rubber sleeve | 2 |
| 66 | 20131-00006-00 | Fuel cap | 1 |
| 67 | 34037-00001-00 | Inlet filter mesh | 1 |
| 68 | 20130-00281-00 | Fuel tank assy | 1 |
| 69 | 33036-00053-00 | Oil level mouth rubber ring | 1 |
| 70 | 70009-00068-00 | Oil level port transparent block | 1 |
| 71 | 34023-00009-00 | Fuel hose | 1 |
| 72 | 34024-00003-00 | Clamp B12 | 1 |
| 73 | 31026-00089-00 | Three-in-one switch seat | 1 |
| 74 | 34015-00043-00 | spring | 1 |
| 75 | 70002-02056-00 | Steel ball | 1 |
| 76 | 31026-00087-00 | Starting dial switch | 1 |
| 77 | 31026-00088-00 | Three-in-one rotor | 1 |
| 78 | 31026-00090-00 | Three-in-one switch fixing plate | 1 |
| 79 | 30117-00007-00 | Self-tapping screws | 2 |
| 80 | 20030-00021-00 | Throttle cable assy | 1 |
| 81 | 34015-00049-00 | Return spring | 1 |
