Generator Quick Start Guide
SUA2000iV
Unpack Generator: Remove generator, accessories, inserts, and Literature from the carton. If any item is missing or damaged, contact our product service department at 1-855-888-3598.

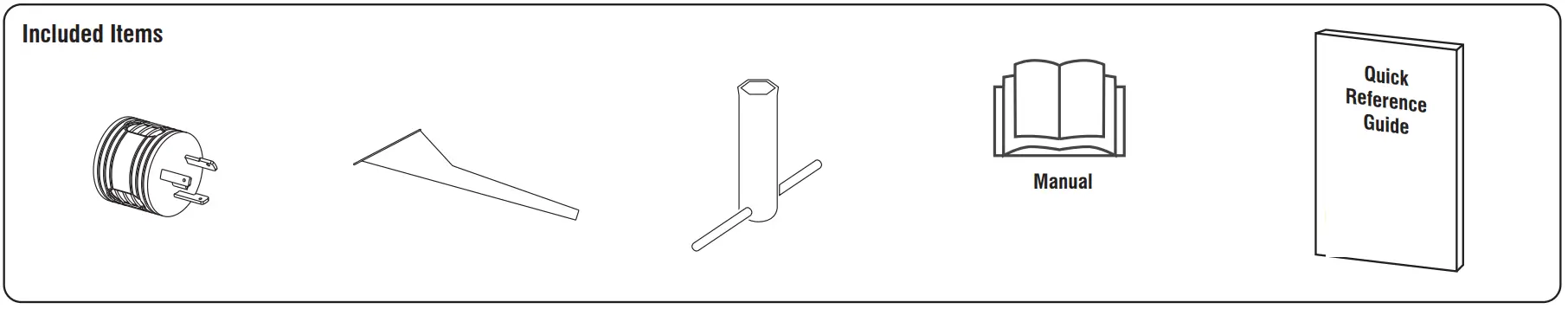

Included Items
This Quick Reference Guide is not a substitute for reading the operator’s manual. To reduce the risk of injury or death, user must read and understand the operator’s manual before using this product. All pages reference the operator’s manual.

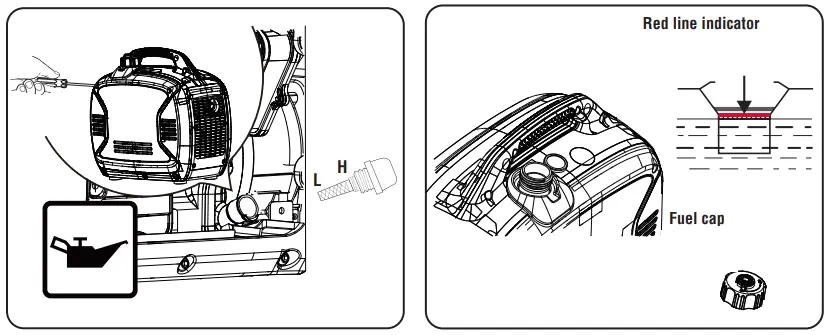

1. Add Lubricant and Fuel
Use a funnel to pour 10W-30 engine oil into the engine. Fill to the upper mark of the oil dipstick H.
Use clean/fresh regular UNLEADED gasoline with a minimum 87 octane.
Start Generator
 DANGER | |
| Using a generator indoors CAN KILL YOU IN MINUTES. The generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. | |

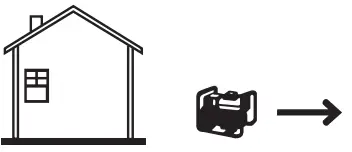

 NEVER use inside a home or garage, EVEN IF doors and windows are open. |  Only use OUTSIDE and far away from windows, doors and vents. |
| Avoid other generator hazards. READ THE MANUAL BEFORE USE. | |
WARNING
Do not overload the generator or electrical cords. Consult operation manual.

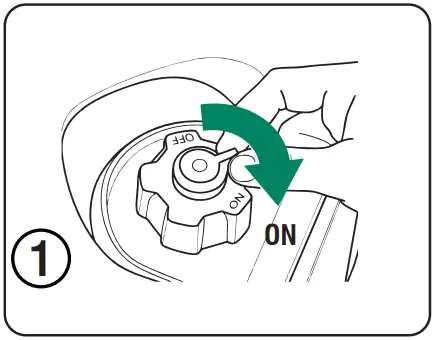

 | Turn the fuel cap vent lever to the “ON” position. |

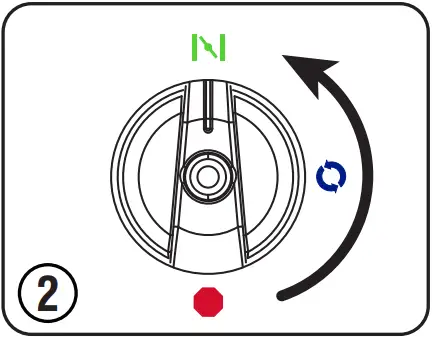

 | Turn the Starting Dial Switch to the “START” position. |

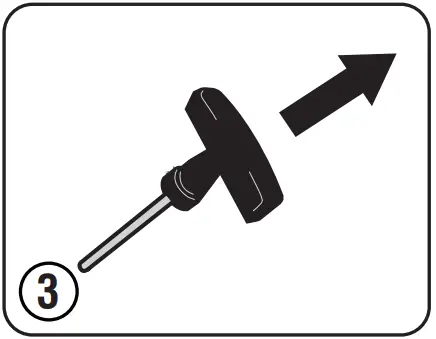

 | Pull recoil starter slowly until resistance is felt, then pull rapidly. |
 | As soon as the engine starts and warms up, turn the Starting Dial Switch to the “RUN” position. |

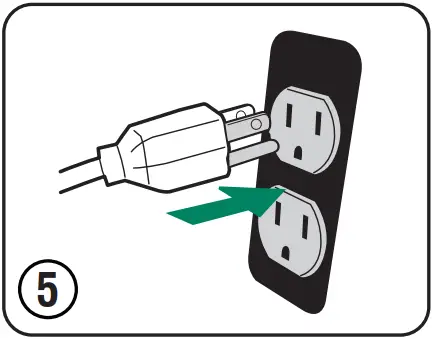

 | Plug in items to be powered, using only grounded extension cords. |
Shutdown and Storage

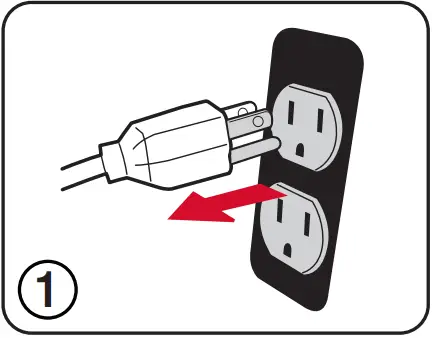

 | Remove any load from the generator. |
 | Turn the Starting Dial Switch to the “STOP” position. |

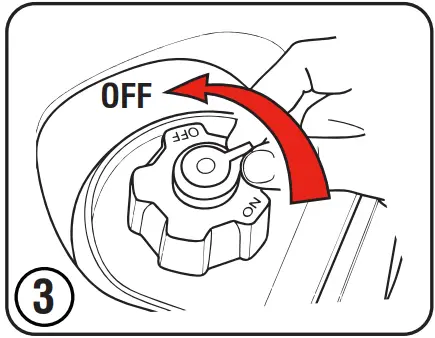

 | Turn the fuel cap vent lever to the “OFF” position. |
If the generator is to be stored for longer than 30 days, refer to the operator’s manual for further instruction.
Questions? Call 1-855-888-3598 or email [email protected]
