Underwater floodlight

Instructions for use

Application
Water pressure tight underwater floodlight with very shallow construction form for the illumination of ponds, water pools and water features up to a depth of 20 m.
The floodlight must only be operated under water and must be protected against freezing in.
To avoid damages on the surface of the floodlight, the water must have a neutral pH-value and should be free from metal attacking ingredients.

Lamp

* preliminary data

Product description

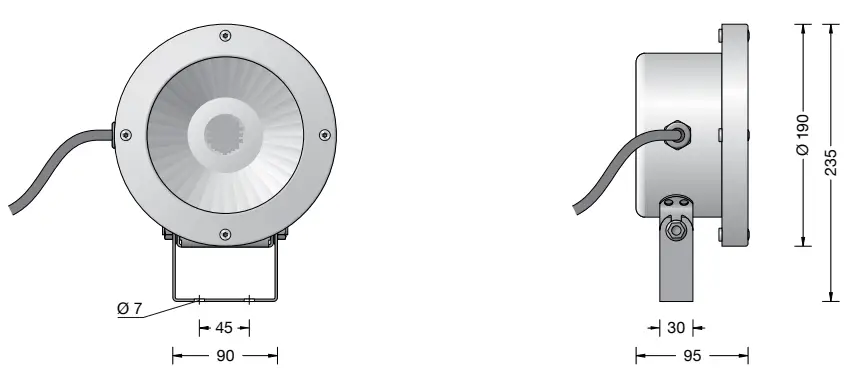

Luminaire made stainless steel Steel grade no. 1.4301 – electropolished Clear safety glass Reflector made of pure anodised aluminium Swivel range 90° Mounting bracket with 2 holes ø 7 mm · 45 mm spacing water-resistant connecting cable 05RN8-F 2 × 1@ Cable length 4 m
Safety class
Protection class IP 68 20 m Dust-tight and water pressure tight Maximum submersion depth 20 m Impact strength IK08 Protection against mechanical impacts < 5 joule
  – Conformity mark
Weight: 2.2 kg
This product contains light sources of energy efficiency class(es) C

Light technique
Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting as well as luminaire data in  EULUMDAT and IES-format you will find on the BEGA web page www.bega.com.
The details apply to free burning floodlights.
The lighting intensity is depending on the submerged depth of the floodlight and on the purity of the water.

Important:
The luminaire must only be operated with a SELV operating device that meets the requirements of EN 61347-2-13.
The maximum open-circuit voltage of 30 V DC must be SELV or SELV-equivalent.
Alternatively, the connection may be made to safety transformers in compliance with EN 61558/VDE 0570 Parts 2-6 with an opencircuit voltage of < 30 V DC.
The transformer must be approved for this type of installation.

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Installation
The floodlight must only be operated under water.
Minimum installation depth of floodlight 3 cm below water level. Undo hexagon nuts and remove floodlight housing from the slotted fixing bracket. Fix mounting bracket on the mounting surface using delivered stainless steel screws. Insert the floodlight housing into the slotted fixing bracket, align and fix it. Tighten hexagon nuts firmly and evenly. Torque = 5 Nm.
A 24 V safety direct voltage source with a smoothed residual ripple of max. 10 % is required for the electrical connection of the luminaire – see accessories.
If other safety direct voltage sources are used, an upstream fuse (max. 6 A) must be provided by the customer.
Make sure that the poles are connected correctly. (otherwise destruction of the DC-converter)
Connect black conductor with negative pole and red conductor with positive pole of the power supply unit.

Cleaning · Maintenance

Soilings and foulings on the stainless steel parts should be removed frequently. They can be removed with suitable stainless steel cleansers. For cleaning do not use high pressure cleaners.

Replacement of the LED module ·

Maintenance

Disconnect the electrical installation.
Undo hexagon nuts, remove floodlight housing from the slotted fixing bracket and lift floodflight above water level.
Open the floodlight: Undo counter sunk screws.
Lift cover ring and glass with gaskets.
Remove reflector.
Disassemble LED module.
Clean the luminaire (see Cleaning ·
Maintenance).
It is imperative to replace damaged gaskets and cable.
The lamp compartment must be completely clean and absolutely dry.
Assemble LED replacement module.
Note installation instructions of the LED module.
Insert reflector.
Place the glass between the gaskets and into the housing.
Make sure that gasket is positioned correctlyApply cover ring and firmly tighten countersunk-head screw crosswise.
Torque = 3 Nm.
Insert the floodlight housing into the slotted fixing bracket, align and fix it.
Tighten hexagon nuts firmly and evenly.
Torque = 5 Nm.
Only correctly positioned gaskets and tight screw cable glands guarantee a watertight housing.

Accessories
BEGA Safety transformers according to
EN 61558-2-6/VDE 0570, part 2-6
70 565 Power supply unit for 20-35 W
70 566 Power supply unit for 30-50 W
70 567 Power supply unit for 40-75 W
70 169 Power supply unit for 70-150 W
For the accessories a separate instructions for use can be provided upon request.
