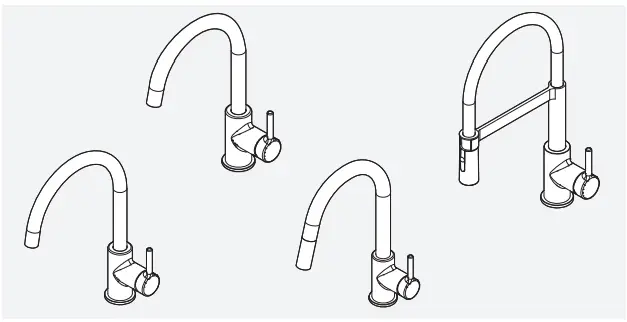

FRANKE FC 6088.031 LINA Brass Faucet

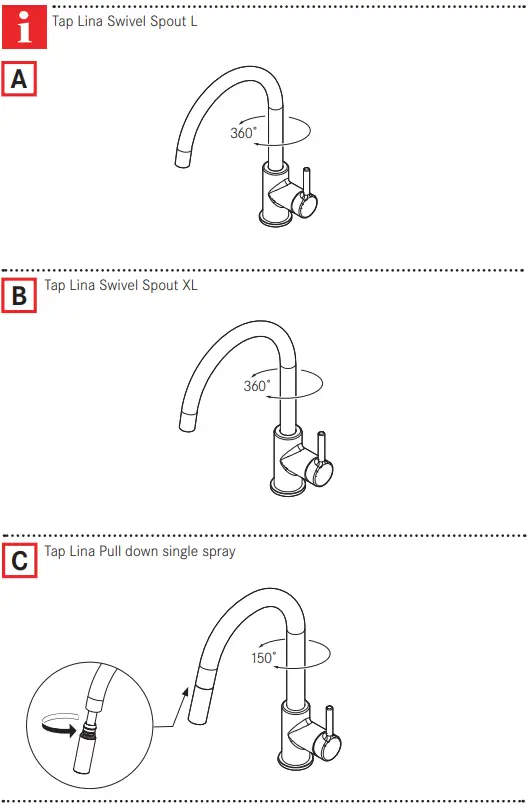

- Tap Lina Swivel Spout L
- Tap Lina Swivel Spout XL
- Tap Lina Pull down single spray
- Tap Lina Semipro

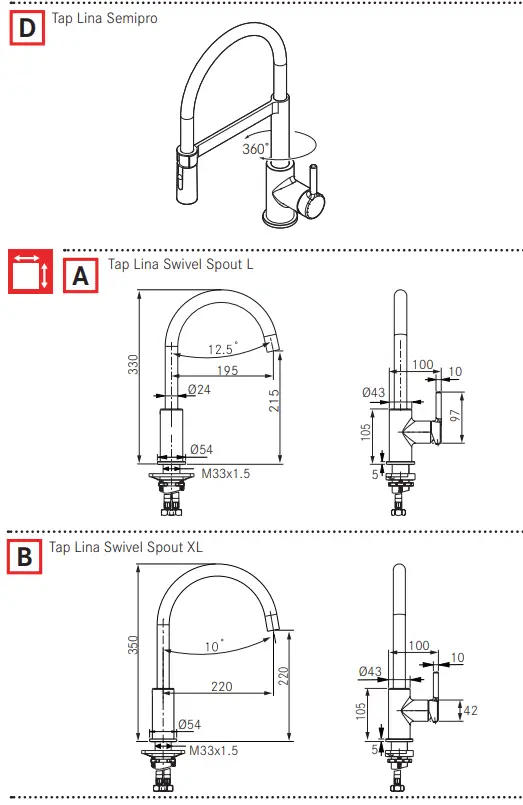

- Tap Lina Swivel Spout L
- Tap Lina Swivel Spout XL

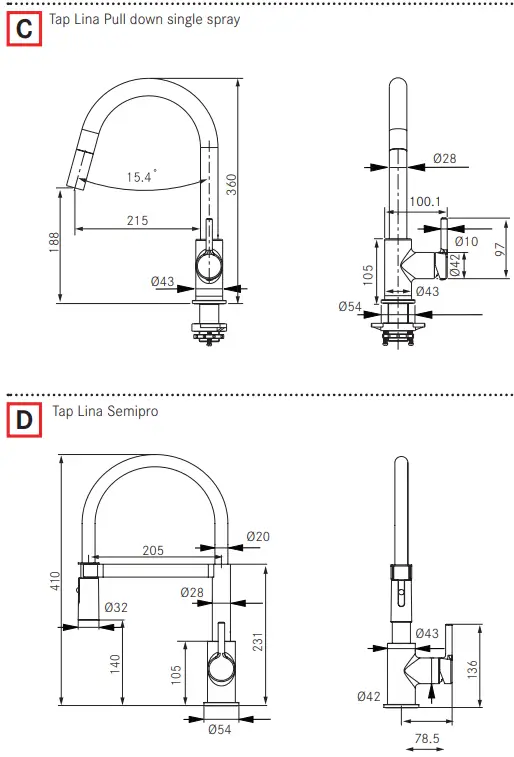

- Tap Lina Pull down single spray
- Tap Lina Semipro

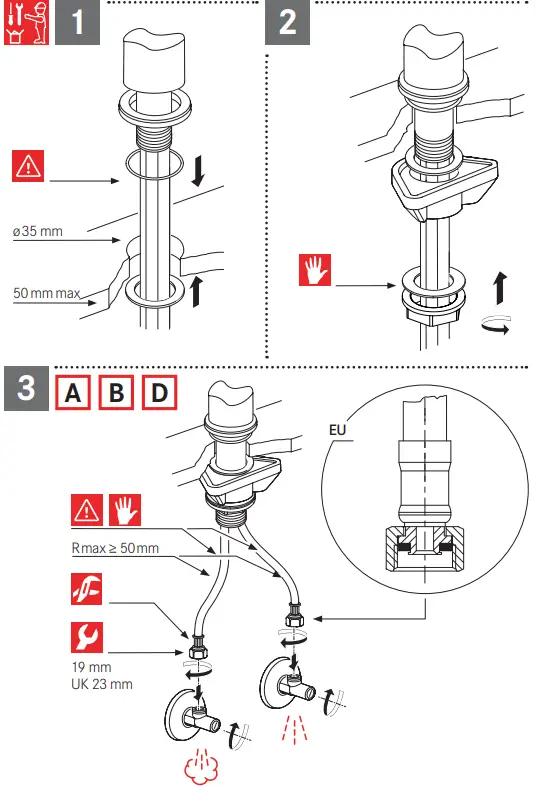

INSTALLATION
Periodic checks
- Check connection and shower hoses periodically for the following:
- Watertightness
- Corrosion
- Mechanical damage
- Use original spare parts only.
- Replace damp or dripping hoses.
- Replace hoses with rusty or oxidized surfaces.
- Replace hoses that show signs of mechanical damage.
Replacement of the flexibles
- Don‘t use a wrench or other items to mount the flexibles on the tap side.
Mount these only by hand.
Flush all pipes thoroughly before installation
| Operating data | Value | ||
| Operating pressure (ideal) | 3 bar | 45 PSI | 300 kPa |
| Operating pressure (max.)* | 5 bar | 70 PSI | 500 kPa |
| Operating pressure (min.)* | 1 bar | 14.5 PSI | 100 kPa |
| Water temperature (ideal) | 60 °C | 140 °F | |
| Water temperature (max.) | 70 °C | 158 °F | |
Equal pressure is recommended
