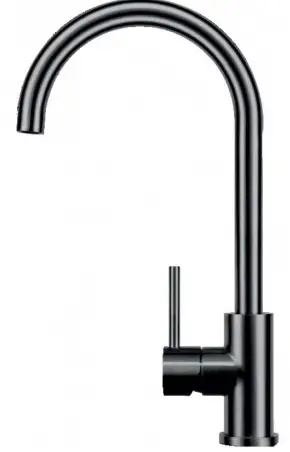

FRANKE EOS NEO Stainless Copper Kitchen Faucet

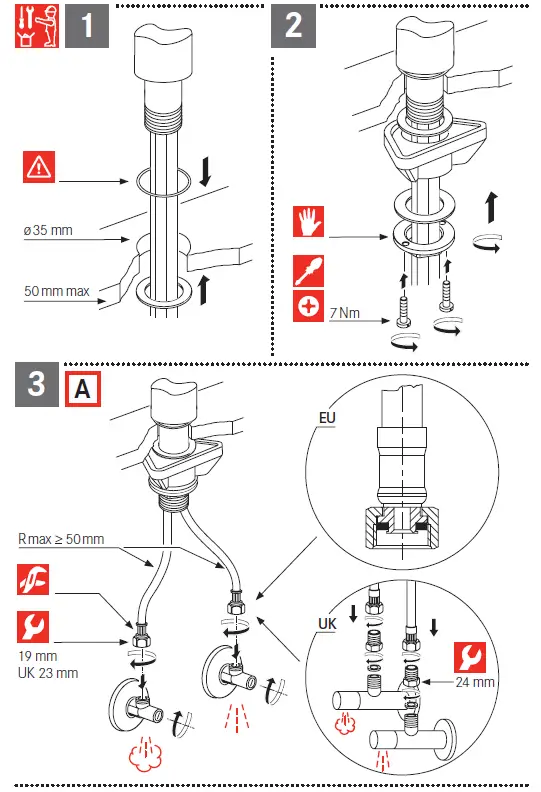

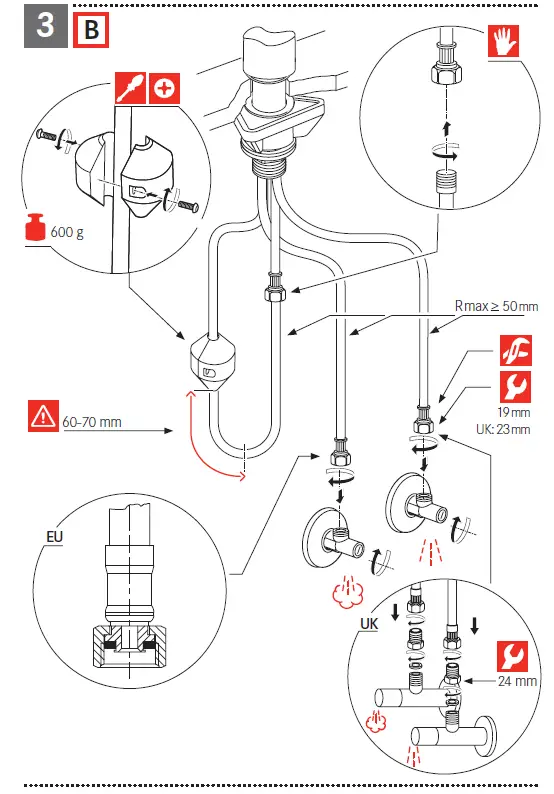

INSTALLATION INSTRUCTION
Periodic checks
- Check connection and shower hoses periodically for the following:
- Watertightness
- Corrosion
- Mechanical damage
- Use original spare parts only.
- Replace damp or dripping hoses.
- Replace hoses with rusty or oxidized surfaces.
- Replace hoses that show signs of mechanical damage.
- Flush all pipes thoroughly before installation.
Operating data Value
- Operating pressure (ideal) 3 bar 45 PSI 300 kPa
- Operating pressure (max.)* 5 bar 70 PSI 500 kPa
- Operating pressure (min.)* 1 bar 14.5 PSI 100 kPa
- Water temperature (ideal) 60°C 140°F
- Water temperature (max.) 70°C 158°F
- Equal pressure is recommended.
