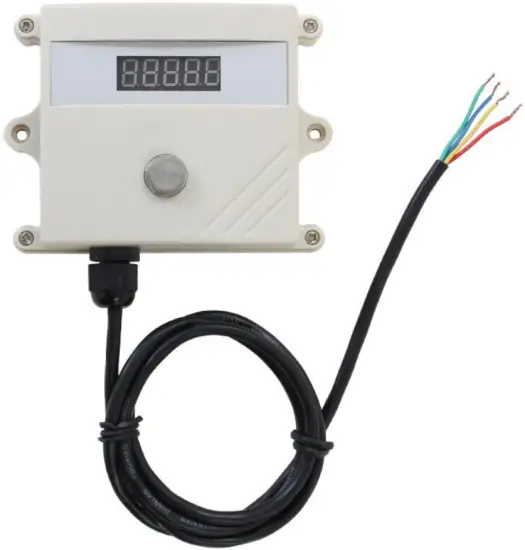

KD21V30-NH3

Wall-mounted ammonia sensor

User Manual

File Version: V21.3.6

KD21V30-NH3 using the standard DC0 ~ 10V voltage output signal,easy access to PLCDCS and other instruments or systems for monitoring ammonia state quantities.The internal use of high -precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA, DC0~5V10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.

Technical Parameters

Technical parameter	Parameter value
Brand	KLHA
NH3 range	0~150ppm
NH3 accuracy	±15ppm
Output Interface	DC0~10V
Power	DC9~24V 1A
Running temperature	-40~80°C
Working humidity	5%RH~90%RH

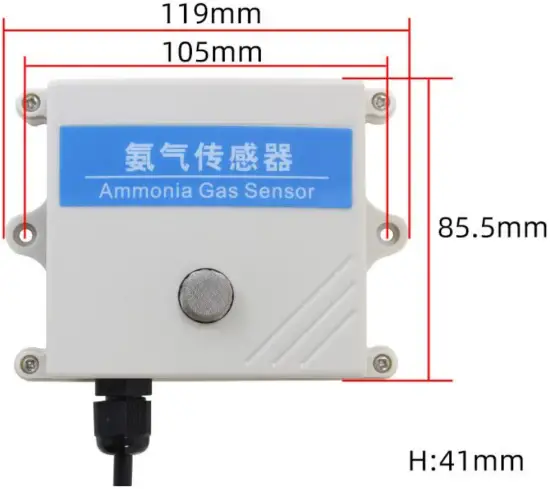

Product Size

How to wiring?

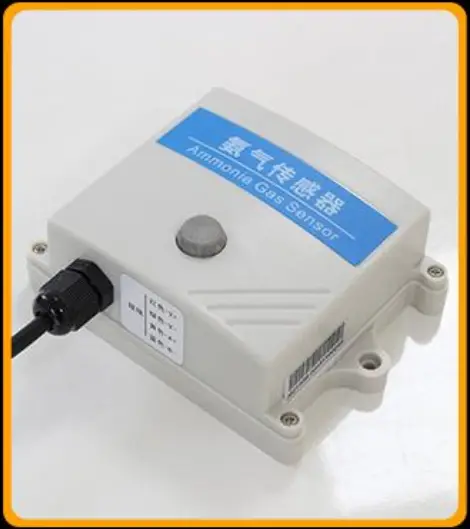

PVC SHELL
Environmentally friendly material, wear-resistant and durable Not easy to corrode, not easy to deform

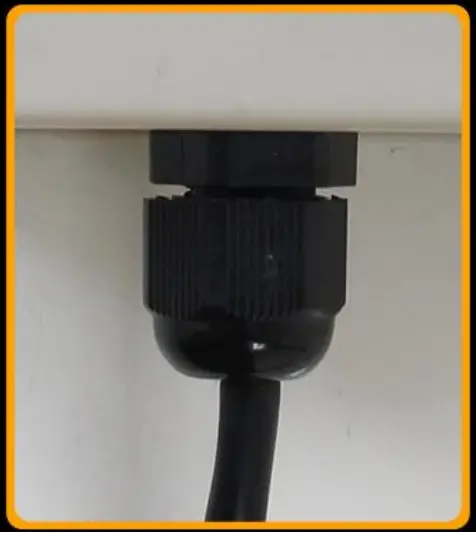

WATERPROOF TERMINAL
Tighten the terminal after wiring Anti-pull by mistake

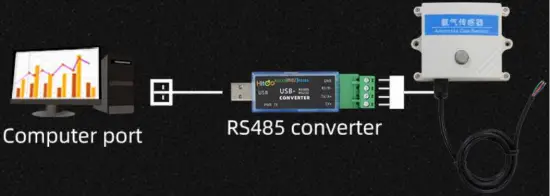

RS485 Wiring mA/V Wiring
RD PWR+ RD PWR+

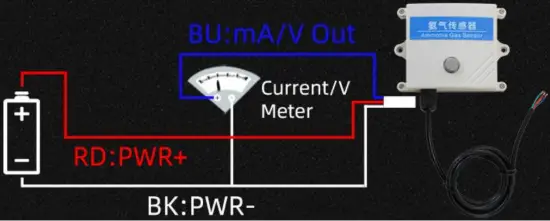

GN PWR- BK PWR-
YE RS485 A+ BU mA\V Out
BU RS485 B-

* Note: When wiring, connect the positive and negative poles of the power supply first, and then connect the signal line

Application solution

• RS485 Wiring

• mA/V Wiring

How to use?
