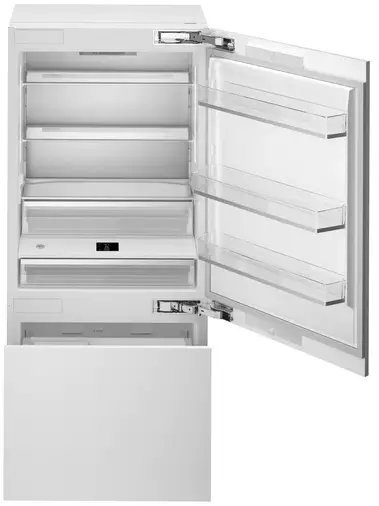

BERTAZZONI REF36BMBIPRT 36 Inch Panel Ready Counter Depth Bottom Freezer Refrigerator

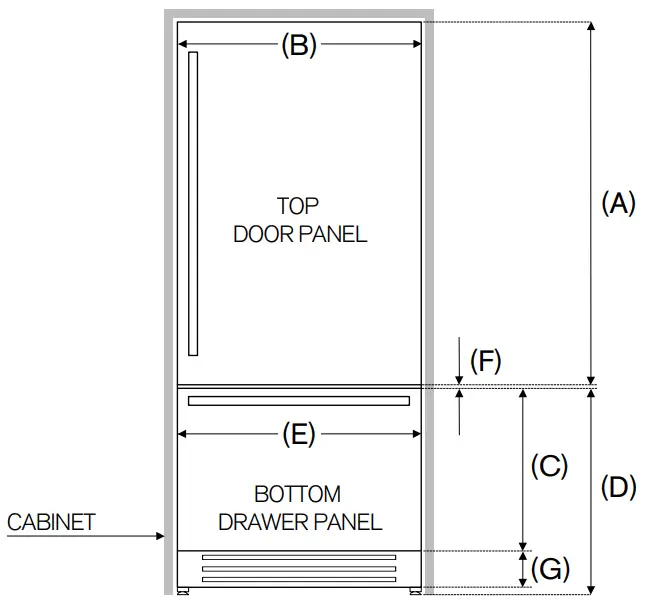

DIMENSIONS
NOTE: These specifications assume a standard toe kick height of 4”. For different toe kick heights, adjust C accordingly. C must in any case be between 21 1/2” and 25 3/4”.
DIMENSIONS – INCHES | ||
(A) | Height of top door panel | 54 3/4” |
| (B) | Width of top door panel | 35 3/4” |
(C) | Height of bottom drawer panel | 24 7/8” |
| (D) | Height from bottom of product to top of bottom drawer panel | 28 7/8” |
(E) | Width of bottom drawer panel | 35 3/4” |
| (F) | Gap between top door panel and bottom drawer panel | 1/8” |
(G) | Toe kick height | 3 1/8” – 7 3/8” |
| (A+D) | Overall height | 83 5/8″ |
Thickness of custom panels | min 3/4” – max 1 1/8” | |
WEIGHT – POUNDS | |
Maximum weight of top door panel | 51 lbs |
Maximum weight of bottom drawer panel | 25 lbs |
Disclaimer: while every effort has been made to insure the accuracy of the information contained in this document, Fratelli Bertazzoni reserves the right to change any part of the information at any time without notice. For detailed installation specifications consult the installation manual. Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of Bertazzoni Spa.
