REFRIGERATOR FREEZER
RF135BRPJX6 N FP US

PRODUCT CODE: 25935-B

PARTS MANUAL
US CA

INTRODUCTION

BRAND	VOLTAGE	MODEL	PRODUCT CODE
Fisher & Paykel	110-120 60Hz	RF135BRPJX6 N FP US	25935-B

MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.

PARTS LIST KEY

NI	As a part reference, indicates the part is not illustrated on the diagram.
NOT USED	As a part number, indicates the diagram part reference is not used in this manual.
NS	As a part number, indicates the part is not serviceable.

Fisher & Paykel Appliances Inc
e-mail: [email protected]
tel: 888 936 7872
Fax: (714) 372-7003

Fisher & Paykel Appliances Canada Inc
e-mail: [email protected]
tel: 888 936 7872

Contents hide

1 DOOR COMPONENTS

2 CABINET COMPONENTS

3 ICEMAKER COMPONENTS & ICE BIN

4 ICEMAKER COMPONENTS & ICE BIN

5 FAN, COVER AND EVAPORATOR COMPONENTS

6 DUCT COVER COMPONENTS

7 TERMINAL, PLUGS & SOCKETS

8 COMPRESSOR AREA COMPONENTS

9 Documents / Resources

9.1 References

10 Related Posts

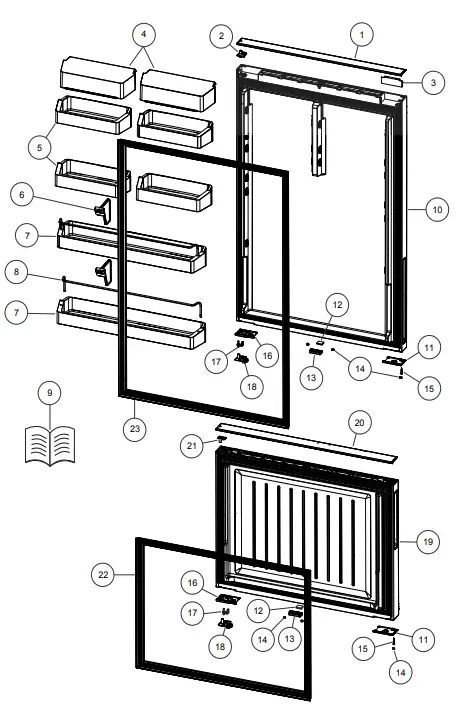

DOOR COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	843902	COVER DOOR TOP 635 GR
2	839659	BEARING HINGE WATER RH UD
3	842103	COVER DOOR TOP NONHINGE GR
4	839718	COVER SHELF DAIRY 635
5	839722	SHELF DOOR SOLID 635
6	821805	DIVIDER BOTTLE 522B
7	839716	SHELF DOOR BOTTOM 635
8	839717	RAIL SHELF DOOR 635
9	845266	BOOK UUC AS U-DOOR USA CA
9	846248	BOOK U&C AS U_DOOR US-CA FRCA
10	848380P	DOOR PC 635X1052.5 P SX2 RH
11	842369P	COVER DOOR BOT NONHINGE RH GR
12	851058	MAGNET 12MM HALL SENSOR
13	842122	COVER MAGNET DOOR UD GR
14	842483P	PLUG DOOR BOTTOM GR
15	817825P	SCREW #8X22 WAFER PH ST TV
16	842372	COVER DR BOT UD HINGE RH GR
17	814537	DOORSTOP ASSY
18	843387	CLOSING HOOK DR STOP RH GR NO FLAG
19	849060P	DOOR FC 635X605 P SX2 RH
20	844778	COVER DOOR TOP 635 GR RH
21	813931	BEARING HINGE TOP GR
22	841363P	GASKET FRAME PUSHIN 635B FC
23	841360P	GASKET FRAME PUSHIN 402B PC

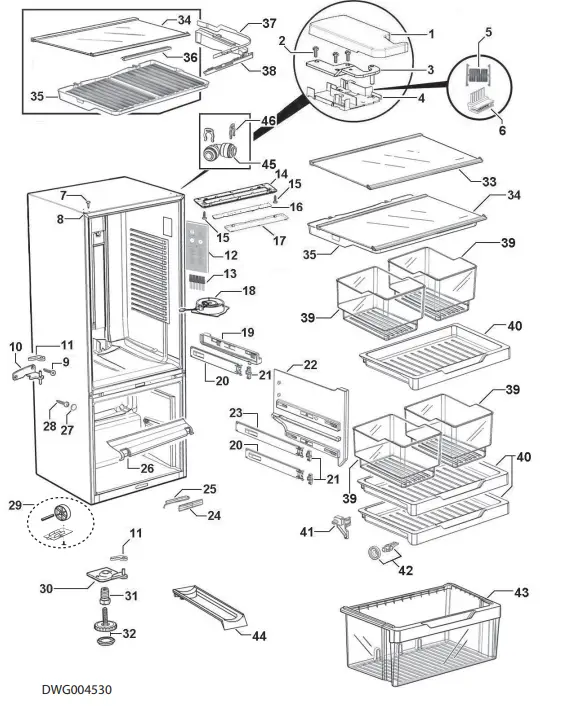

CABINET COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	846778P	COVER HINGE LOW NEW GRY R
2	817818P	SCREW M5X20 HEX PH ST TV (PKT 10)
3	820717	BRACKET HINGE IW RH
4	846774P	SUPPORT HINGE LOW NOW
NI	847437	KIT COVER HINGE LOW GRY RH
	Includes 846778P	COVER HINGE LOW NEW GRY R
	Includes 846774P	SUPPORT HINGE LOW NOW
5	821917	CONNECTOR PCB RAST 8 WAY
6	873279	CONNECTOR RAST 7234-008-500
7	883948P	PLUG TAPPED HOLE SILVER (PKT 3)
8	883951	TRIM CORNER SILVER 680/790
9	880656P	SCREW 10GX25CSK SQ SS (PKT 10)
10	881283P	BRACKET CTR HINGE RH (PKD)
	Includes 883988P	CAP DOOR CLOSING RH HGE BRKT G
11	883988	CAP DOOR CLOSING RH HGE BRKT G
12	821286P	MOD DISP AS U2 INT 8 BUT SVC
13	838437	HARNESS DISPLAY SPARES
14	820736	HOUSING FRONT LED PC
15	817816P	SCREW 6 X12 AB TRUSS PH ST TV (PKT 10)
16	845096P	MOD LAMP AS CEILING SVC
17	820737	WINDOW LED PC
18	848320P	PC 3W FAN ASSY JST/DCT
	Includes	FAN HOUSING PC ASSY
	Includes	DUCT JUNCTION
	Includes	CONNECTOR IDC UP2 (2)
	Includes	LABEL WARNING 12 VOLT DC
	Includes	SHEET INSTRUCTION PC FAN ASSY
19	836808	RETAINER & SLIDE 680 RH ASSY RC
	Includes	RETAINER SLIDE PC B RH
	Includes 836700	SLIDE 305 RH ASSEMBLY
	Includes 836520P	CLIP SLIDE
	836807	RETAINER & SLIDE 680 LH ASSY RC
	Includes	RETAINER SLIDE PC B LH
	Includes 836701	SLIDE 305 LH ASSEMBLY
	Includes 836520P	CLIP SLIDE
20	836700	SLIDE 305 RH ASSEMBLY RC
	Includes 836520P	CLIP SLIDE
	836701	SLIDE 305 LH ASSEMBLY RC
	Includes 836520P	CLIP SLIDE
21	836520P	CLIP SLIDE (PKT 2)
22	836545	RETAINER SLIDE FC RH
	836546	RETAINER SLIDE FC LH
23	836702	SLIDE 355 RH ASSEMBLY
	Includes 836520P	CLIP SLIDE
	836703	SLIDE 355 LH ASSEMBLY
	Includes 836520P	CLIP SLIDE
24	884011	COVER REED SWITCH ST4 SILVER
	881420	COVER REED SWITCH WHITE ST4
25	865214P	MOD HALL SWITCH RF

26	836593	DUCT RETURN AIR FC 635
27	883953P	CAP SCREW CROSS RAIL SILVER
	880595P	CAP SCREW CROSS RAIL WHITE
28	817822P	SCREW #10X19 AB #2 SQ TV (PKT 10)
29	847316P	RETAINER WHEEL STEEL KIT
	Includes	RETAINER WHEEL STEEL
	Includes	SCREW 8-32X8 TY T PAN PH TV
	Includes	ROLLER FOOT FRONT
	Includes	PIN ROLLER PLATED
30	818614P	BRACKET HINGE BASE RH (PKD)
	Includes 883988P	CAP DOOR CLOSING RH HGE BRKT G
31	813481	BOLT BLIND END HINGE BRACKET
32	880512	FOOT LEVELLING ASSEMBLY
	Includes	WHEEL LEVELLING FOOT ASSY
	Includes	BASE LEVELLING FOOT
33	838362P	SHELF GL PC 635 ASSY SC
	Includes	SHELF GLASS PC 635
	Includes	TRIM SHELF PC 635 SC
	Includes	STIFFENER SHELF PC 635 GR
	Includes 836567	PLUG TRIM SHELF RH
	Includes 836568	PLUG TRIM SHELF LH
34	839631P	SHELF GL HCL 635B ASSY SC
	Includes	SHELF GLASS PC 635
	Includes	TRIM SHELF HCL 635 SC
	Includes	STIFFENER SHELF PC 635 GR
	Includes 836567	PLUG TRIM SHELF RH
	Includes 836568	PLUG TRIM SHELF LH
	Includes 836580	RETAINER HCL FRONT 635
	Includes 836631	SLIDE CONTROL HUMIDITY RH
	Includes 836633	SLIDE CONTROL HUMIDITY LH
	Includes 836632	GUIDE CONTROL HUMIDITY RH
	Includes 836634	GUIDE CONTROL HUMIDITY LH
35	836729	LID HUMIDITY CONTROL 635B
36	836580	RETAINER HCL FRONT 635
37	836633	SLIDE CTRL HUMIDITY LH
	836631	SLIDE CTRL HUMIDITY RH
38	836634	GUIDE CTRL HUMIDITY LH
	836632	GUIDE CTRL HUMIDITY RH
39	836522	BIN SMALL
40	836512	TRAY 635
41	836585	SKID TRAY RH
	836586	SKID TRAY LH
42	836517	WHEEL & CHASSIS ASSEMBLY (PKT 2)
43	836659	BIN LARGE 635 ASSY
44	860593	HOLDER BOTTLE SINGLE ASSY
45	837192	CONNECTOR WATER ELBOW C10308W
46	837193P	COLLET LOCKING CLIP PIC1808R (PKT 2)
NI	874107	TRAY ICE BASE
NI	874121	TRAY ICE LID

JOINER KIT FOR SIDE BY SIDE CABINET CONNECTION
Used for combining any of the following 1695mm high cabinet models: N388, C450, E402B, E411T, E415H, E440T, E442B, E521T and E522B
NI	819264	KIT JOINER SILVER

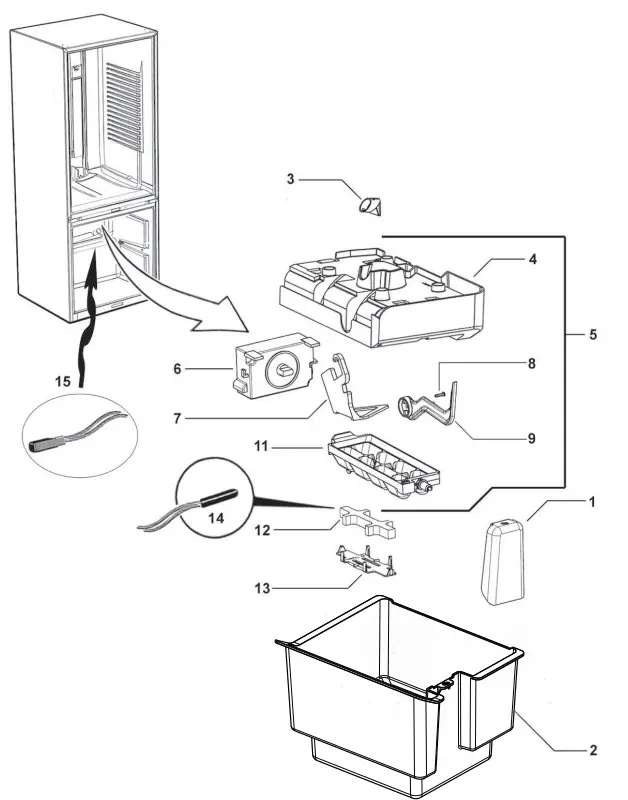

ICEMAKER COMPONENTS & ICE BIN

DWG 005397

ICEMAKER COMPONENTS & ICE BIN

REFERENCE	PART NUMBER	PART DESCRIPTION
1	836929	SCOOP ICE
2	836886	BIN AND SCOOP ASSEMBLY
	Includes 836928	BIN ICE
	Includes 836929	SCOOP
3	836936	SPIGOT FILL ICE MAKER
4	836915	HOUSING ICE MAKER
5	820833P	ICEMAKER ASSEMBLY LARGE
	Includes 820841	TRAY ICE AUTO LARGE
	Includes 836910	LEVER GEARBOX ICE
	Includes 836915	HOUSING ICE MAKER
	Includes 836934	GEARBOX ICE MAKER
	Includes 836948	SCREW 6X1/2 PAN PH SS
6	836934	GEARBOX ICE MAKER
7	836912	LEVER BIN DETECT
8	836948P	SCREW 6X1/2 PAN PH SS (PKT 10)
9	836910	LEVER GEARBOX ICE
11	820841	TRAY ICE AUTO LARGE
12	836909	FOAM CLIP SENSOR
13	837180	CLIP SENSOR ICE TRAY
14	321107	ICE MAKER SENSOR LEAD WIRE KIT
	Includes	SENSOR THERMISTOR ICEMAKER
	Includes	CONNECTOR IDC UY2 – 3MS
	Includes	INSTRUCTIONS ICE SENSOR KIT
15	821689P	ICE FILL TUBE HEATER KIT MK2

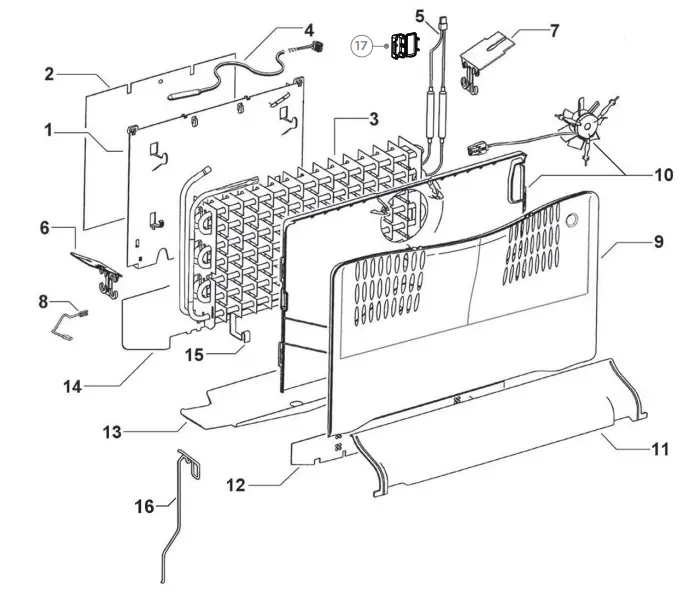

FAN, COVER AND EVAPORATOR COMPONENTS

DWG 005374

FAN, COVER AND EVAPORATOR COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	814446	CHASSIS EVAP 635 B
2	880423P	DEF HRT CHASSIS
3	821064P	EVAP ASSY 635B 120V DP
	Includes	EVAPORATOR FINNED 635 R600A
	Includes 814446	CHASSIS EVAP 635 B
	Includes 814631	SHIELD EVAP B CHASSIS
	Includes 847021	HEATER DEF DBLE 120V 635
	Includes 880423P	DEF HRT CHASSIS
	Includes 820604	CLIP EVAP BAFFLE
	Includes 813992	CLIP ACTIVE SMART BAFFLE
	Includes 820835	CLIP DEFROST HEATER B SHORT (2)
	Includes 814460	HARNESS EARTH 100MM
	Includes	CABLE TIE 200MMX3.6
4	855203P	SENSOR KIT ASSY
	Includes	HEATSHRINK 25MM
	Includes	HARNESS SENSOR PC
	Includes	CONNECTOR BUTT (2)
	Includes	SHEET INSTRUCTION BUTT CONNECTORS
5	847021	HEATER DEF DBLE 120V 635
6	813992	CLIP ACTIVE SMART BAFFLE
7	820604	CLIP EVAP BAFFLE
8	814460	HARNESS EARTH 100MM
9	873398	COVER FAN FC FRONT 635B
10	848314P	FAN FC 3W KIT 635 SERIES A TO
	Includes 880409P	COVER HEAT SHIELD ALUM 635
	Includes	COVER FAN FC REAR 635
	Includes	CONNECTOR IDC UP2 (2)
	Includes	FAN DC SUSPENDED FC ASSY
11	836593	DUCT RETURN AIR FC 635
12	880409P	COVER HEAT SHIELD ALUM 635 P42
13	872831	SHIELD DRAIN HTR DEFROST 635B
14	814631	SHIELD EVAP B CHASSIS
15	820835	CLIP DEFROST HEATER B SHORT
16	821251	WIRE DRAIN HEATER DOUBLE B
17	821745	COVER PLUG TYCO

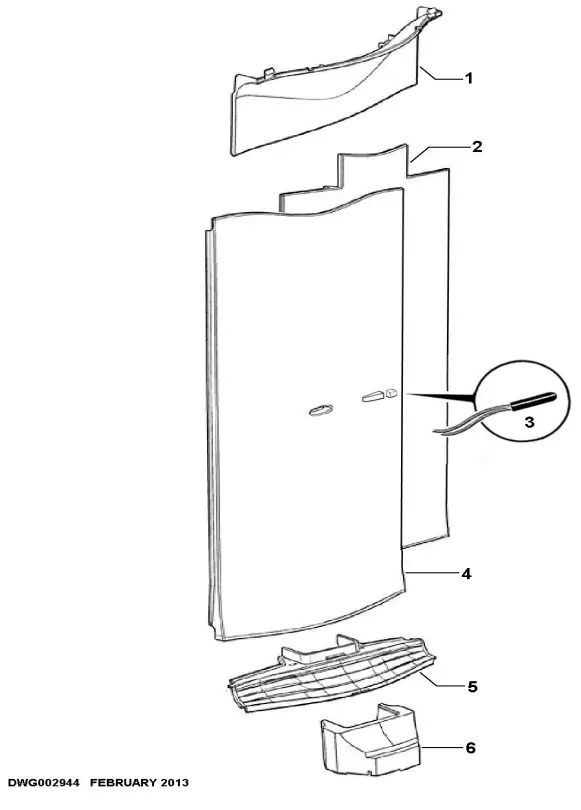

DUCT COVER COMPONENTS

DWG 002944

DUCT COVER COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	837405	COVER DUCT PC TOP B
2	873950	INSULATION COVER DUCT LONG B
3	855203P	SENSOR KIT ASSY
	Includes	CONNECTOR BUTT
	Includes	HARNESS SENSOR PC
4	836861	COVER DUCT PC B LONG WATER
5	813287	GRILLE PC RETURN AIR B MODEL
6	872823	INSULATION INSERT PID

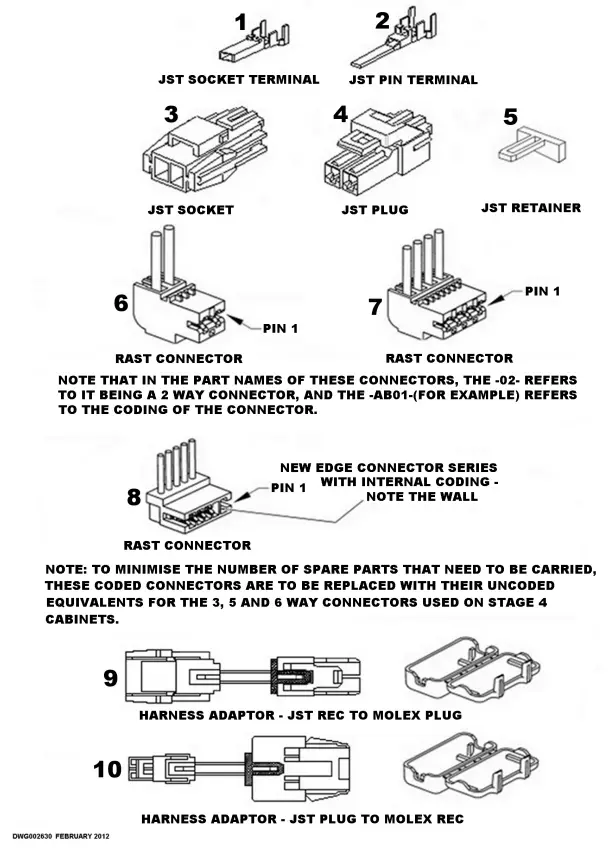

TERMINAL, PLUGS & SOCKETS

DWG 002630

TERMINAL, PLUGS & SOCKETS

REFERENCE	PART NUMBER	PART DESCRIPTION	COMMENTS
1	819607P	TERMINAL SYF-01T PKT 10	26/20 AWG
	819608P	TERMINAL SYF-41T PKT 10	20/16 AWG
2	819609P	PIN/TERM SYM-01T PKT 10	26/20 AWG
	819610P	PIN/TERM SYM-41T PKT 10	20/16 AWG
3	819615	JST SOCKET 2PIN YLR-02V
	819616	JST SOCKET 3PIN YLR-03V
	819617	JST SOCKET 4PIN YLR-04V
	819618	JST SOCKET 6PIN YLR-06VF
	819619	JST SOCKET 8 PIN YLR-08V
4	819611	JST PLUG 2PIN YLP-02V
	819612	JST PLUG 4PIN YLP-04V
	819613	JST PLUG 6PIN YLP-06V
	819614	JST PLUG 8PIN YLP-08V
5	819620	RETAINER 2 WAY YLS-02V
	819621	RETAINER 3 WAY YLS-03V
6	881588	CONNECTOR RAST 9290-02-AB01	MAINS CORD
	881589	CONNECTOR RAST 9290-02-BA01	DEFROST HEATER
	881590	CONNECTOR RAST 9290-02-EE01	RUN CAPACITOR
7	881591	CONNECTOR RAST 9290-04-EF02	COMPRESSOR CABLE
8	873251	CONNECTOR RAST 7234-003-500
	873250	CONNECTOR RAST 7234-004-500
	881135	CONNECTOR RAST 7234-005-500
	873247	CONNECTOR RAST 7234-006-500
	873279	CONNECTOR RAST 7234-008-500
	873248	CONNECTOR RAST 7234-010-500
	873243	CONNECTOR RAST 7234-012-500
	881136	CONNECTOR RAST 7234-014-500
	881137	CONNECTOR RAST 7234-017-502
9	820687P	ADAPTOR JST REC TO MOLEX KIT
	Includes 884412	COVER PLUG MOLEX
10	820688P	ADAPTOR JST PLUG TO MOLEX KIT
	Includes 884412	COVER PLUG MOLEX

NOTE: THE NUMBERS IN THE DESCRIPTION OF THE RAST CONNECTOR DENOTE THE NUMBER OF CONNECTIONS – EXAMPLE: 7234-017-502 =17 WAY CONNECTOR

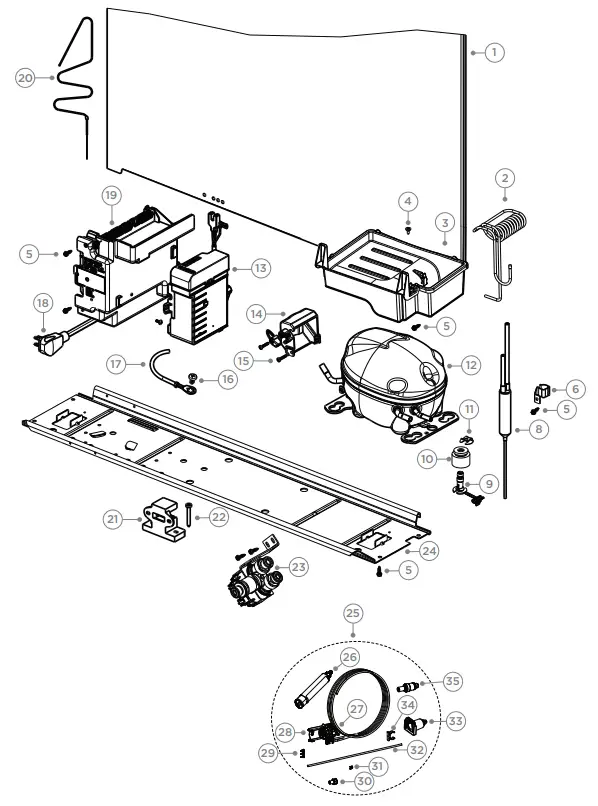

COMPRESSOR AREA COMPONENTS

COMPRESSOR AREA COMPONENTS

REFERENCE	PART NUMBER	PART DESCRIPTION
1	821301	PANEL BACK FORMED 635-1660
2	837283	TUBE DISCHARGE COILED
3	820573	TRAY EVAP COMPACT ASSY PP
4	815236P	SCREW #12X1/2 CSK PH TV (PKT 10)
5	817834P	SCREW #8X16 HEX (PKT 10)
6	839481	CLIP DRIER
8	814843P	FILTER DRIER LONG TAIL XH9 12 GRM
9	841291P	POST COMP MTG 26MM PKT X4
10	843824P	GROMMET 26MM KIT
11	855270P	CLIP FOOT COMPRESSOR (PKT 4)
12	207432P	COMPR PKD EMB VESD9CEVO
	includes	COMPR EMB VESD9CEVO
	includes 207310	COVER PROTECTOR VEM
	includes 207313	SCREW INVERTER VEM (4)
	includes	FILTER PREBRAZED LONG TAIL
	includes	POST COMPR MNTG 26MM (4)
	includes	GROMMET COMPR MTG 26MM (4)
	includes	CLIP FOOT COMPRESSOR (4)
	includes	PIN LOCKING COMP (4)
13	207437P	INVERT PKD VESD9CEVO 115V FA
14	207310	COVER PROTECTOR VEM
15	207313P	SCREW INVERTER VEM (PKT10)
16	817828P	SCREW 8-32X8 TY T PAN PH TV (PKT 10)
17	863228	HARNESS MOD VCC UL EMB
18	837802	CORD SET USA MODEL
19	851578P	MOD CTRL VES AS51 120-230V SVC
20	849742	SUCTION CAPILLARY BENT B
21	880911	BRACKET STABILITY ASSY
22	815267P	SCREW #10X40 TAB PAN PH STS TV (PKT 10)
23	820718	VALVE ICE WATER 16 WATT
24	820335	TRAY COMP MOUNTING 635VCC
25	864164	KIT INSTL FILTER WATER FIXATION THE US
	includes 847200	REFRIGERATOR WATER FILTER
	includes 847480	BRACKET FILTER WATER ASSY
	includes 611812	SCREW ST 10X5/8 MSH PAN HP 430 (3)
	includes 847848	TUBE FILTER WATER 1/4″ 500MM
	includes 312198	ADAPTOR TUBE-TAP1/4″-7/16″ UNS
	includes 847700	CLIP LOCKING I&W
	includes 847538	BRACKET WALL PLV
	includes 846219	VALVE PRESSURE LIMIT 550KPA
	includes 847312	HEAD FILTER WATER 90 DEG FS
	includes 863600	WATER INLET FIXATION ASSY
26	847200	REFRIGERATOR WATER FILTER
27	847312	HEAD FILTER WATER 90 DEG FS
28	847480	BRACKET FILTER WATER ASSY
29	611812P	SCREW ST 10X5/8 MSH PAN PKT 10
30	312198	ADAPTOR TUBE-TAP1/4”-7/16” UNS
31	847700	CLIP LOCKING I&W
32	847848	TUBE FILTER WATER 1/4” 500MM
33	863600	WATER INLET FIXATION ASSY
34	847538	BRACKET WALL PLV
35	846219	VALVE PRESSURE LIMIT 550KPA

FISHERPAYKEL.COM

The models shown in this guide may not be available in all markets and are subject to change at any time.

The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.

For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.

PRODUCT CODE: 25935-B
06.21
