423363

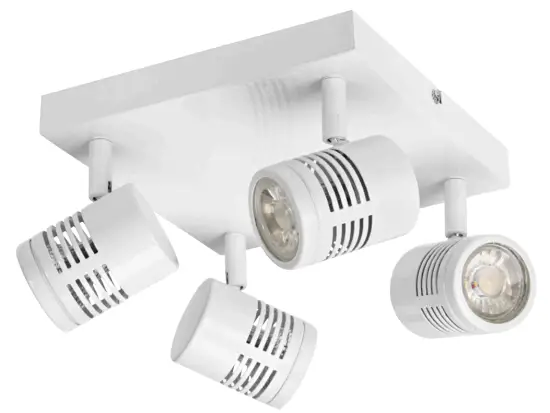

SPOTLIGHT
OPERATING INSTRUCTIONS
Important!
Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
SAFETY INSTRUCTIONS
Read the user instructions carefully before use! Save these instructions for future reference.
- FOR INDOOR USE ONLY.
- For wall mounting.
- Do not connect the product to the mains while it is still in the pack.
- Do not insert or remove bulbs when the product is connected to the main supply.
- Do not use in bathrooms, washrooms, etc.
- Do not use bulbs with more than the permitted output (see type plate) — the risk of
- The product gets hot when in use Leave the product switched off for at least 10 minutes before adjusting, cleaning, or changing the bulb, otherwise there is a risk of burn injuries.
- Handle glass path with care. Clean with a dry cloth. Never use liquids or abrasive
- No object may be placed closer than 0.5 meters to the product.
- Never modify the product in any way. Modifications can result in serious personal injury and void the warranty
ELECTRICAL SAFETY!
New installations and extensions to existing systems should always be carried out by an authorized electrician. If you have the necessary experience and knowledge, you may replace switches and power points, fit plugs, extension cords, and light sockets. If not, you should contact an electrician. Incorrect installation can result in electric shock or fire.
SYMBOLS
| Read the instructions. |
 | Approved in accordance with the relevant directives. |
| Recycle discarded product in accordance with local regulations. |
TECHNICAL DATA
| Rated voltage | 230 V/50 Hz |
| Power | Max. 200 W |
| Bulbs | 4 |
| Socket | GU1O |
| Width x Lenght x Height | 23 x 23 x 12,7 cm |
DESCRIPTION
 | Brown (Live) |
 | Green-yellow (Earth) |
 | Blue (neutral) |
FIG 1
INSTALLATION
PREPARATIONS
- Check that there are no concealed electric cables or conduits where the installation is to be carried out.
- Remove all the packaging material and check that all the parts are included. Follow these instructions when installing.
- Check that all screw connections and electrical connections are tightened before use. The product can be connected to a dimmer.
- Contact an authorized electrician for advice on a suitable type of dimmer.
- Tools
• Flat and crosshead screwdrivers.
• Drill and drills.
• Stripping pliers for electric wires.
