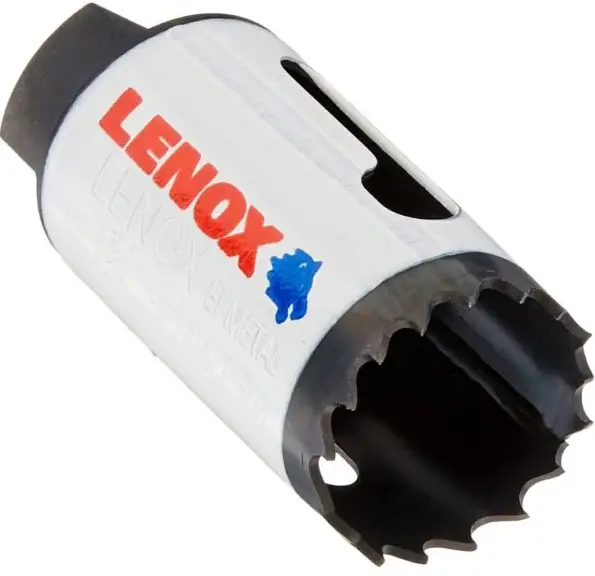

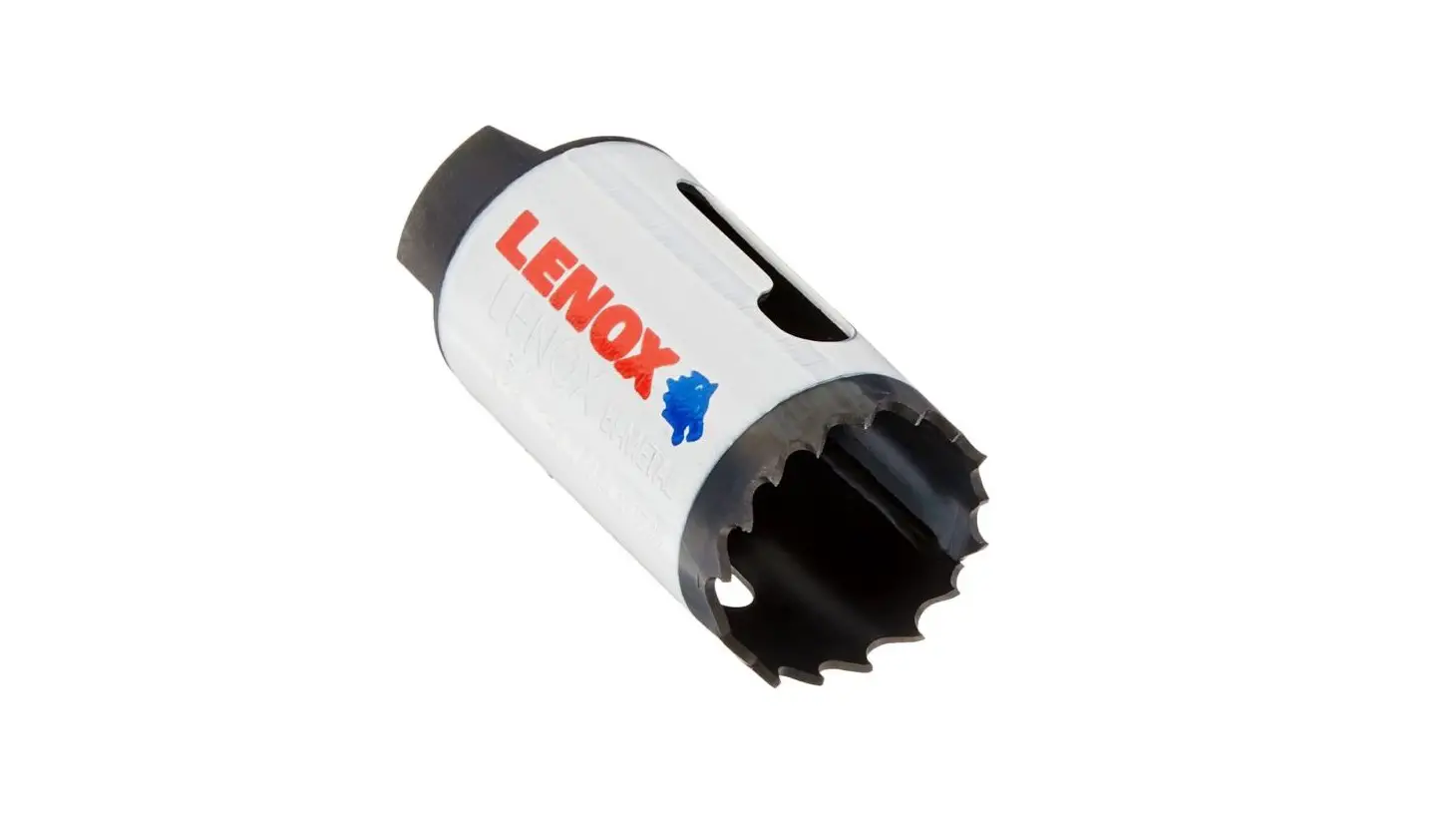

LENOX 3001919L Bi Metal Speed Slot Hole Saws

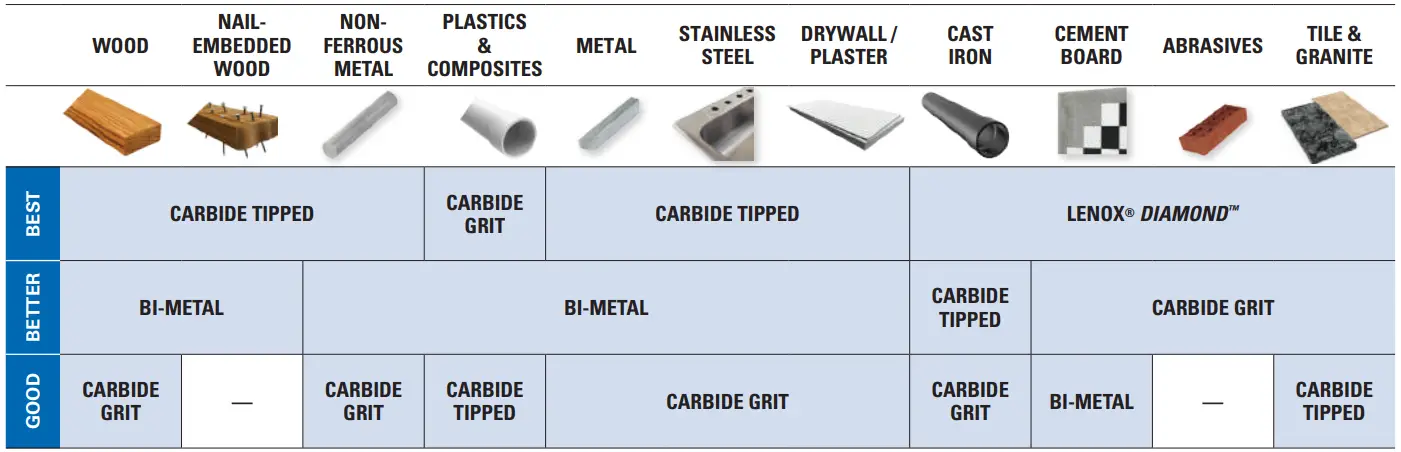

HOLE SAW SELECTION GUIDE

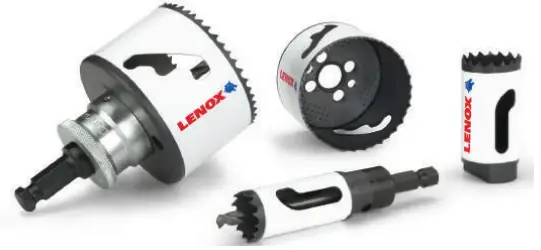

SPEED SLOT® HOLE SAWS WITH T3 TECHNOLOGY™

50% Longer Life. 2X More Durable.*

IMPROVED METAL CUTTING PERFORMANCE

Increased wall thickness improves durability and minimizes tooth loss
Optimized tooth design penetrates metal with ease

FAST, EFFICIENT CUTTING IN WOOD
Larger, sharper teeth remove more wood for fast cutting

EASY PLUG REMOVAL
SPEED SLOT staircase design for fast, easy plug ejection vs. Prior LENOX Generation

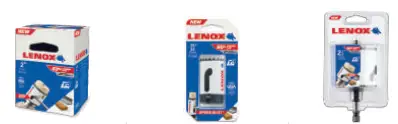

BI-METAL SPEED SLOT® HOLE SAW WITH T3 TECHNOLOGY™

DIaMeTer		1 per boX	1 per blISTer Seal	1 paCk arboreD	pIpe Tap		pIpe eNTraNCe		USe arbor
IN MM		proD No	proD No	proD No	IN	MM	IN	MM	*snap-BaCK*™	STaNDarD
9/16	14.3	300099L	1787781	1772423	—	—	—	—	5L	1L, 4L or 5L
5/8	15.9	3001010L	1771823	1772424	—	—	—	—	5L	1L, 4L or 5L
11/16	17.5	3001111L	1787773	1772425	—	—	—	—	5L	1L, 4L or 5L
3/4	19.1	3001212L	1771952	1772426	1/2	12.7	3/8	9.5	5L	1L, 4L or 5L
25/32	19.8	3009820MMHS	1771962	1772427	—	—	—	—	5L	1L, 4L or 5L
13/16	20.6	3001313L	1787775	1772428	—	—	—	—	5L	1L, 4L or 5L
7/8	22.2	3001414L	1771953	1772429	3/4	19.1	1/2	12.7	5L	1L, 4L or 5L
15/16	23.8	3001515L	1787776	1772430	—	—	—	—	5L	1L, 4L or 5L
1	25.4	3001616L	1771954	1772481	—	—	—	—	5L	1L, 4L or 5L
1-1/16	27.0	3001717L	1771955	1772482	—	—	—	—	5L	1L, 4L or 5L
1-1/8	28.6	3001818L	1771959	1772483	1	25.4	3/4	19.1	5L	1L, 4L or 5L
1-3/16	30.2	3001919L	1787777	1772474	—	—	—	—	5L	1L, 4L or 5L
1-1/4	31.8	3002020L	1771960	1772491	—	—	—	—	2L, 6L	2L, 3L or 6L
1-5/16	33.3	3002121L	1787778	1772492	—	—	—	—	2L, 6L	2L, 3L or 6L
1-3/8	34.9	3002222L	1771961	1772727	—	—	1	25.4	2L, 6L	2L, 3L or 6L
1-7/16	36.5	3002323L	1787779	1772728	—	—	—	—	2L, 6L	2L, 3L or 6L
1-1/2	38.1	3002424L	1771963	1772729	1-1/4	31.8	—	—	2L, 6L	2L, 3L, 6L or 7L
1-9/16	39.7	3002525L	1787780	1772730	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
1-5/8	41.3	3002626L	1771964	1772931	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
1-11/16	42.9	3002727L	1787800	1772932	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
1-3/4	44.5	3002828L	1771967	1772933	1-1/2	38.1	1-1/4	31.8	2L, 6L	2L, 3L, 6L or 7L
1-13/16	46.0	3002929L	1787841	1772935	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
1-7/8	47.6	3003030L	1771968	1772778	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2	50.8	3003232L	1771970	1772779	—	—	1-1/2	38.1	2L, 6L	2L, 3L, 6L or 7L
2-1/16	52.4	3003333L	1787842	1772780	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-1/8	54.0	3003434L	1772003	1772951	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-1/4	57.2	3003636L	1771983	1772952	2	50.8	—	—	2L, 6L	2L, 3L, 6L or 7L
2-3/8	60.3	3003838L	1771984	1772953	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-1/2	63.5	3004040L	1771987	1772954	—	—	2	50.8	2L, 6L	2L, 3L, 6L or 7L
2-9/16	65.1	3004141L	1787843	1772955	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-5/8	66.7	3004242L	1771988	1772956	2-1/2	63.5	—	—	2L, 6L	2L, 3L, 6L or 7L
2-11/16	68.3	3004343L	1771989	—	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-3/4	69.9	3004444L	1771990	1772961	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
2-7/8	73.0	3004646L	1787844	1772962	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
3	76.2	3004848L	1772021	1772963	—	—	2-1/2	63.5	2L, 6L	2L, 3L, 6L or 7L
3-1/8	79.4	3005050L	1772022	1772964	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
3-1/4	82.6	3005252L	1772023	1772966	3	76.2	—	—	2L, 6L	2L, 3L, 6L or 7L
3-3/8	85.7	3005454L	1787845	1772945	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
3-1/2	88.9	3005656L	1772012	1772946	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
3-5/8	92.1	3005858L	1772013	1772949	—	—	3	76.2	2L, 6L	2L, 3L, 6L or 7L
3-3/4	95.3	3006060L	1787846	1772950	3-1/2	85.7	—	—	2L, 6L	2L, 3L, 6L or 7L
3-7/8	98.4	3006262L	1787847	1773001	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
4	101.6	3006464L	1772014	1773002	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
4-1/8	104.8	3006666L	1772018	1773003	—	—	3-1/2	85.7	2L, 6L	2L, 3L, 6L or 7L
4-1/4	108.0	3006868L	1772019	1773004	4	95.3	—	—	2L, 6L	2L, 3L, 6L or 7L
4-3/8	111.1	3007070L	1787848	1773005	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
4-1/2	114.3	3007272L	1772075	1773006	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
4-5/8	117.5	3007474L	1787850	—	—	—	4	95.3	2L, 6L	2L, 3L, 6L or 7L

4-3/4	120.7	3007676L	1772076	1773008	4-1/2	108.0	—	—	2L, 6L	2L, 3L, 6L or 7L
5	127.0	3008080L	1772077	—	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
5-1/2	139.7	3008888L	1787785	—	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L
6	152.4	3009696L	1772121	—	—	—	—	—	2L, 6L	2L, 3L, 6L or 7L

RECOMMENDED HOLE SAW RPM

BI-METAL

DIaMeTer		MIlD STeel	Tool / STaINleSS STeel	CaST IroN	braSS	alUM
IN	MM	MIlD STeel	Tool / STaINleSS STeel	CaST IroN	braSS	alUM
9/16 14.3 580 300 400 790 900
5/8	15.9	550	275	365	730	825
11/16	17.5	500	250	330	665	750
3/4	19.1	460	230	300	600	690
25/32	19.8	425	210	280	560	630
13/16	20.6	425	210	280	560	630
7/8	22.2	390	195	260	520	585
15/16	23.8	370	185	245	495	555
1	25.4	350	175	235	470	525
1-1/16	27.0	325	160	215	435	480
1-1/8	28.6	300	150	200	400	450
1-3/16	30.2	285	145	190	380	425
1-1/4	31.8	275	140	180	360	410
1-5/16	33.3	260	135	175	345	390
1-3/8	34.9	250	125	165	330	375
1-7/16	36.5	240	120	160	315	360
1-1/2	38.1	230	115	150	300	345
1-9/16	39.7	220	110	145	290	330
1-5/8	41.3	210	105	140	280	315
1-11/16	42.9	205	100	135	270	305
1-3/4	44.5	195	95	130	250	295
1-13/16	46.0	190	95	125	250	285
1-7/8	47.6	180	90	120	240	270
2	50.8	170	85	115	230	255
2-1/16	52.4	165	80	110	220	245
2-1/8	54.0	160	80	105	210	240
2-1/4	57.2	150	75	100	200	225
2-3/8	60.3	140	70	95	190	220
2-1/2	63.5	135	65	90	180	205
2-9/16	65.1	130	65	85	175	200
2-5/8	66.7	130	65	85	170	195
2-11/16	68.3	125	60	80	160	185
2-3/4	69.9	125	60	80	160	185
2-7/8	73.0	120	60	80	160	180
3	76.2	115	55	75	150	170
3-1/8	79.4	110	55	70	140	165
3-1/4	82.6	105	50	70	140	155
3-3/8	85.7	100	50	65	130	150
3-1/2	88.9	95	45	65	130	145
3-5/8	92.1	95	45	60	120	140
3-3/4	95.3	90	45	60	120	135
3-7/8	98.4	85	40	55	110	130
4	101.6	85	40	55	110	130
4-1/8	104.8	80	40	55	110	120
4-1/4	108.0	80	40	55	110	120
4-3/8	111.1	75	35	50	100	105
4-1/2	114.3	75	35	50	100	105
4-5/8	117.5	75	35	50	100	105

4-3/4	120.7	70	35	45	90	95
5	127.0	70	35	45	90	95
5-1/2	139.7	65	30	40	85	90
6	152.4	65	30	40	85	90

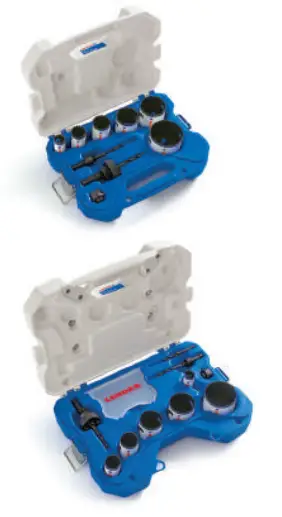

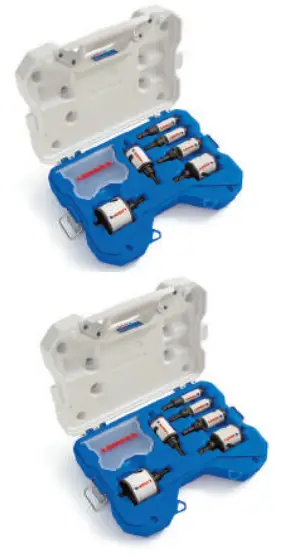

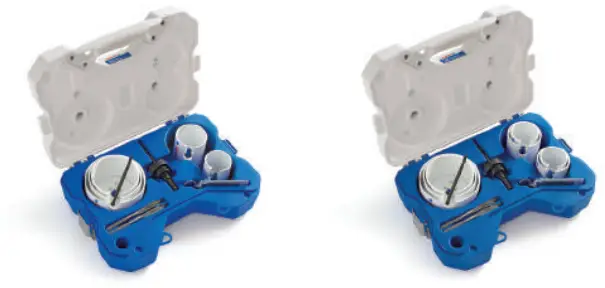

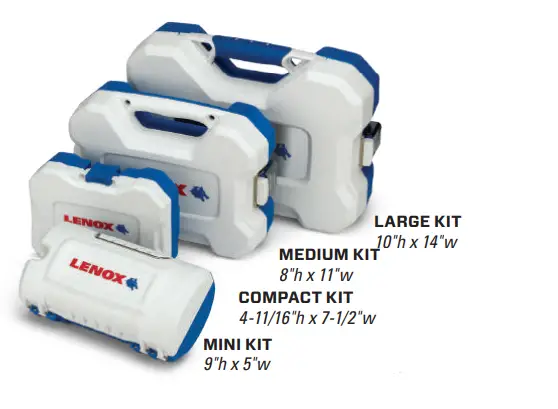

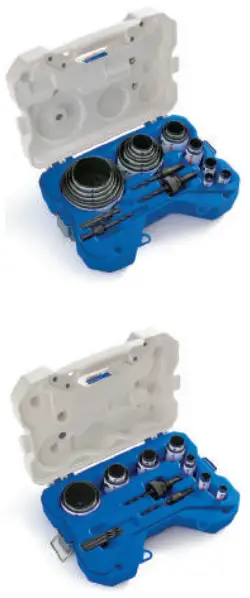

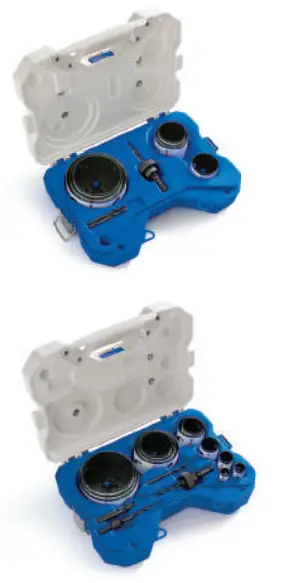

BI-METAL SPEED SLOT® HOLE SAW WITH T3 TECHNOLOGY™ KITS

Convenient Storage for Trade-Specific Uses

DURABLE
Durable construction resists damage caused by drops and tough workplace environments

SECURE
Latches close case tightly and securely

LONG LASTING
Metal latches and metal pin hinges won’t break or tear

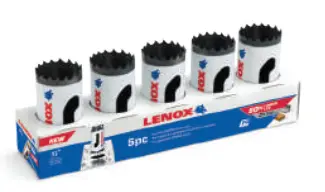

CONTRACTOR’S HOLE SAW 5 PACKS VALUE & CONVENIENCE

Unique packaging provides value and convenience for high-volume users

Prod No	iN	mm	Prod No	iN	mm
10735B14L	7/8	22.2	10739B22L	1-3/8	34.9
10736B16L	1	25.4	10740B24L	1-1/2	38.1
10737B18L	1-1/8	28.6	10741B28L	1-3/4	44.5

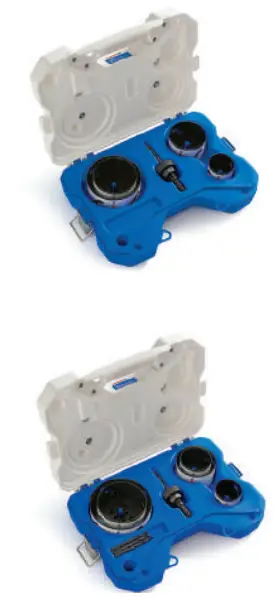

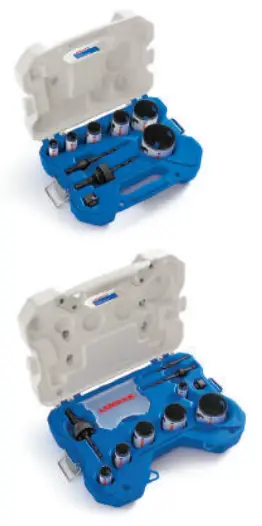

ARBORED KITS

34082600AP 6 Piece kit PLUMBER’S KIT
3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-3/4″, 2-1/4″
Large Kit
34081600AE 6 Piece kit Electrician’s KIT
7/8″, 1-/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″
Large Kit

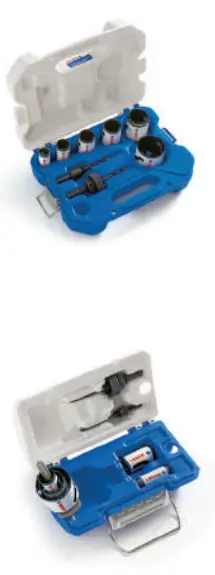

CONTRACTOR’S Kits

30370400G 5 Piece kit
2″, 3″, 3-3/8″, 4-1/8″
Standard Arbor: 2L
large Kit
30374500G 9 Piece kit
2-1/8″, 2-9/16″, 3-1/4″, 3-3/4″, 4-3/4″
Standard Arbor: 2L Three pilot drills
Large Kit

308042000G 26 Piece kit –BIG DADDY ™
3/4″, 7/8″, 1″, 1-1/8″, 1-3/8″, 1-1/2″, 1-3/4″, 2″, 2-1/8″, 2-1/4″, 2-1/2″, 2-11/16″, 3″, 3-1/4″, 3-3/8″, 3-5/8″, 3-3/4″, 4-1/8″, 4-1/2″, 4-3/4″
Standard Arbors: 1L, 2L, 5L Three pilot drills
Large Kit
308201200G 17 Piece kit
5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-3/4″, 2″, 2-1/2″, 3″
Standard Arbors: 1L, 2L Three pilot drills
Large Kit

30807700G 9 Piece kit
7/8″, 1″, 1-1/4″, 1-3/8″, 1-1/2″, 1-3/4″, 2-1/8″
Standard Arbors: 5L, 6L
medium Kit
1815140 7 Piece kit
7/8″, 1″, 1-1/8″, 1-1/2″, 2-1/8″
Standard Arbors: 2L, 5L
mini kit

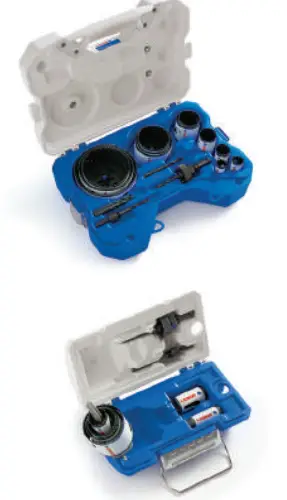

Electrician’s Kits

30856C600L 9 Piece Kit
7/8″, 1-1/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″
Standard Arbors: 2L, 5L One Arbor adaptor
medium Kit
30800600L 10 Piece kit
7/8″, 1-1/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″
Standard Arbors: 2L, 5L One pilot drill One Arbor adaptor
large Kit

308021200L 17 Piece kit
3/4″, 7/8″, 1-1/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″, 2-11/16″, 3″, 3-5/8″, 4-1/8″, 4-3/4″
Standard Arbors: 2L, 5L Three pilot drills
Large Kit
1815139 8 Piece kit
7/8″, 1-1/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″
Standard Arbors: 2L, 5L
mini kit

plumber’s Kits

30860C600P 9-PIECE KIT
3/4″, 7/8″, 1-1/8″, 1-3/8″, 2″, 2-1/2″
Standard Arbors: 2L, 5L One Arbor adaptor
medium Kit
30808600P 10 Piece kit
3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-3/4″, 2-1/4″
Standard Arbors: 2L, 5L One pilot drill One Arbor adaptor
large Kit

1853786 10 Piece kit
2-1/8″, 2-1/4″, 2-9/16″, 2-3/4″, 3-5/8″, 4″, 4-5/8″
Standard Arbor: 2L Two pilot drills
large Kit
308011200P 17 Piece kit
3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-3/4″, 2-1/4″, 2-9/16″, 3″, 3-1/2″, 4″, 4-1/4″, 4-1/2″
Standard Arbors: 2L, 5L Three pilot drills
large Kit

1815195 7 Piece Kit
1-1/4″, 1-3/8″, 1-1/2″, 2″, 2-1/2″
Standard Arbors: 2L, 5L
mini kit

Refrigeration Kit

30830600R 8 Piece Kit
5/8″, 7/8″, 1-1/8″ 1-3/8″, 1-5/8″, 2-1/8″
Standard Arbors: 5L, 6L
medium Kit

WELDER’S Kit

14789600W 9 Piece Kit
3/4″, 7/8″, 1″, 1-1/4″, 1-1/2″, 2″
Standard Arbors: 2L, 5L One Arbor adaptor
medium Kit

Automotive Kit

30805500A 7 Piece kit
3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″
Standard Arbor: 5L One Arbor adaptor
Compact Kit

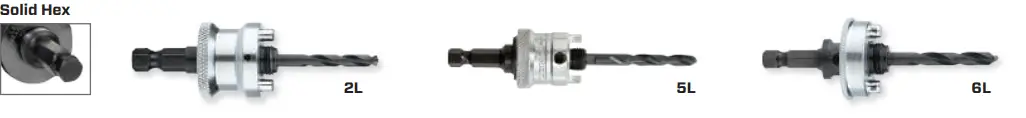

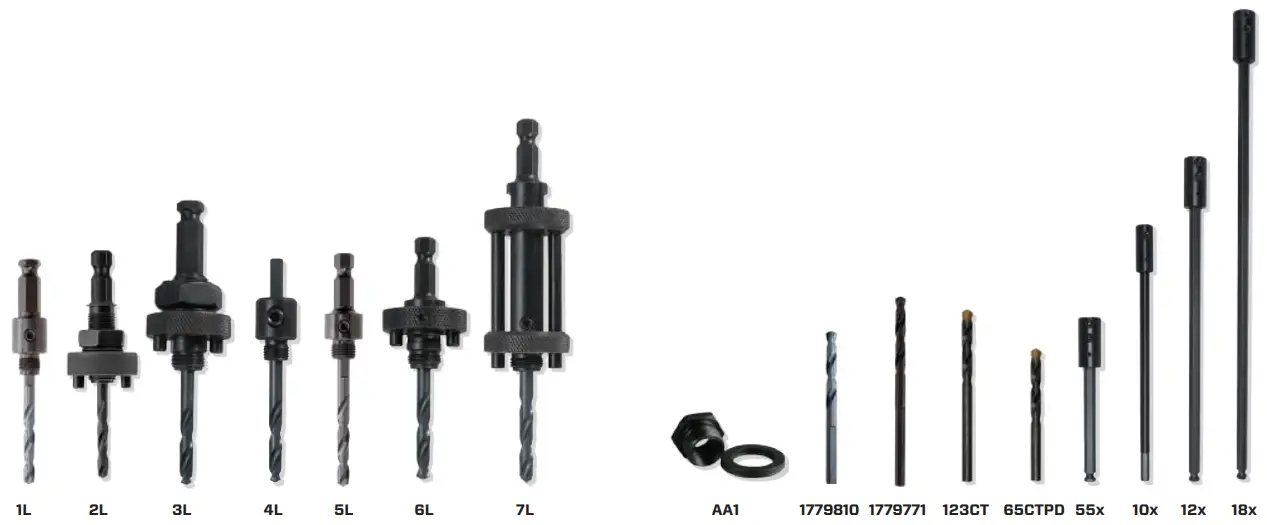

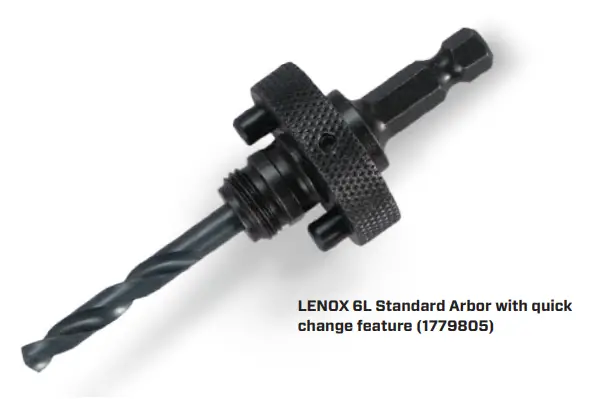

SNAP-BACK™ ARBORS

No Tools. No Adaptors. No Screwing Around.

QUICK CHANGE
Faster and easier to engage/disengage hole saw

PREVENTS THREADS FROM STRIPPING
Drives off pins, not threads

NO TOOLS NEEDED
Prevents hole saw from locking on arbor

NO ADAPTOR REQUIRED
Standard Arbor threads directly into all hole saws

EASIER PLUG REMOVAL

proD No

DeSC

fITS Hole SawS

SIzeS

THreaD SIze

SHaNk Type

SHaNk SIze

1779772 2L 20L-96L 1-1/4–6 31.8–152.4 5/8–18 Solid Hex 1/2 & larger 12.7 & larger

1779669

9L-19L

9/16–1-3/16

14–30

1/2–20

Solid Hex

3/8 & larger

9.5 & larger

1779670

20L-96L

1-1/4–6

31.8–152.4

5/8–18

Solid Hex

3/8 & larger

9.5 & larger

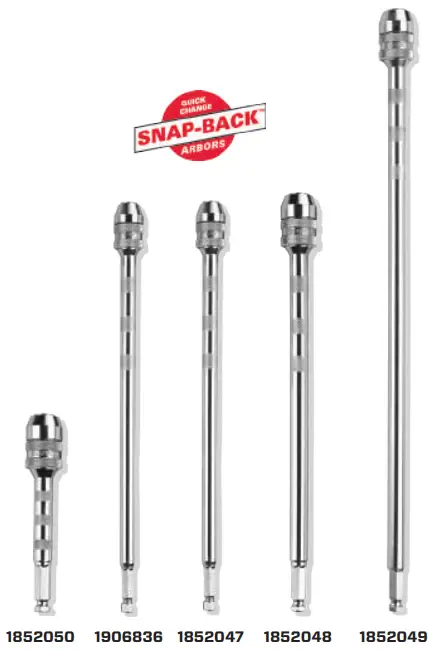

snap-back QUICK CHANGE EXTENSIONS

DURABILITY AND EXTENDED LIFE
Carbon steel collar and shaft for durability and extended life

ONE-HANDED RELEASE
SNAP-BACK Quick Change mechanism for quick and easy release

BIT HELD SECURELY IN PLACE
Holds bits securely on ball detent bits (Quick Change) 1/4″ extension works with 1/4″ arbors and insert bits. It is magnetic for additional holding power

proD No	IN	MM	CHUCk SIze		fITS arbor
			IN	MM	SNap-baCk	STaNDarD
1852050 5-1/2 140 7/16 11 2L 1L, 2L, 3L

1906836	12	305	1/4	6.4	—	4L
1852047	12	305	3/8	9.5	5L, 6L	5L, 6L, 7L
1852048	12	305	7/16	11	2L	1L, 2L, 3L
1852049	18	457	7/16	11	2L	1L, 2L, 3L

STANDARD ARBORS & ACCESSORIES

Arbors & Accessories for All Your Drilling Needs

ADDED DURABILITY
Hardened carbon steel for strength

STARTS ON CONTACT
Split point pilot drill for faster penetration and less walking

proD No	DeSC	fITS Hole SawS	SIzeS		SHaNk Type	SHaNk SIze		prIMary feaTUre
proD No	DeSC	fITS Hole SawS	IN	MM	SHaNk Type	IN	MM	prIMary feaTUre
1779774 1L 9L–19L 9/16–1-3/16 14.3–30.2 Hollow Hex 1/2 & larger 12.7 & larger Adjustable pilot bit
1779801	2L	20L–96L	1-1/4–6	31.8–152.4	Solid Hex	1/2 & larger	12.7 & larger	Use for enlarging holes
1779802	3L	20L–96L	1-1/4–6	31.8–152.4	Solid Hex	1/2 & larger	12.7 & larger	Solid shank
1779803	4L	9L–19L	9/16–1-3/16	14.3–30.2	3 Sided	1/4 & larger	6.4 & larger	Adjustable pilot bit, 3 flats on shank
1779804	5L	9L–19L	9/16–1-3/16	14.3–30.2	Hex	3/8 & larger	9.5 & larger	Use for 9A-19A arbored hole saws
1779805	6L	20L–96L	1-1/4–6	31.8–152.4	Hex	3/8 & larger	9.5 & larger	Quick change arbor
1779806	7L	24L–96L	1-1/2–6	31.8–152.4	Hex	3/8 & larger	9.5 & larger	Plug ejection feature

ACCESSORIES

proD No		DeSCrIpTIoN	CHUCk SIze		fITS arbor
			IN	MM	*snap BaCK*	SolID HeX
	1779771 4-1/4″ Pilot Drill (1 pack) 1/4 6.4 — 1L, 4L

1779841	4-1/4″ Pilot Drill (25 pack)	1/4	6.4	—	1L, 4L
1779810	3-1/4″ Pilot Drill (1 pack)	1/4	6.4	2L, 5L, 6L	2L, 3L, 5L, 6L, 7L
1864904	3-1/4″ Pilot Drill (25 pack)	1/4	6.4	2L, 5L, 6L	2L, 3L, 5L, 6L, 7L
30297123CT	Carbide Tipped Pilot Drill (1 pack)	1/4	6.4	—	1L, 4L
3029865CTPD	Carbide Tipped Pilot Drill (1 pack)	1/4	6.4	2L,5L, 6L	2L, 3L, 5L, 6L, 7L
30857AA1	Standard Arbor Adaptor (1 pack)	—	—	5L	1L, 4L, 5L
3084818X	18″ Extension (1 pack)	1/2 & larger	12.7 & larger	2L	1L, 2L, 3L
3084712X	12″ Extension (1 pack)	1/2 & larger	12.7 & larger	2L	1L, 2L, 3L
3084310X*	10″ Extension (1 pack)	3/8 & larger	9.5 & larger	5L, 6L	5L, 6L, 7L
3084655X	5-1/2″ Extension (1 pack)	1/2 & larger	12.7 & larger	2L	1L, 2L, 3L
2910114	1/4″ x 1/4″ Set Screw	—	—	2L, 5L, 6L	2L, 3L, 5L, 6L, 7L
29102516	5/16″ x 5/16″ Set Screw	—	— — 1L, 4L, Extension
3087935PD	1/4” Split point stubby pilot bit	—	— — —
308803CHCAS	Plug ejection springs	—	— — —

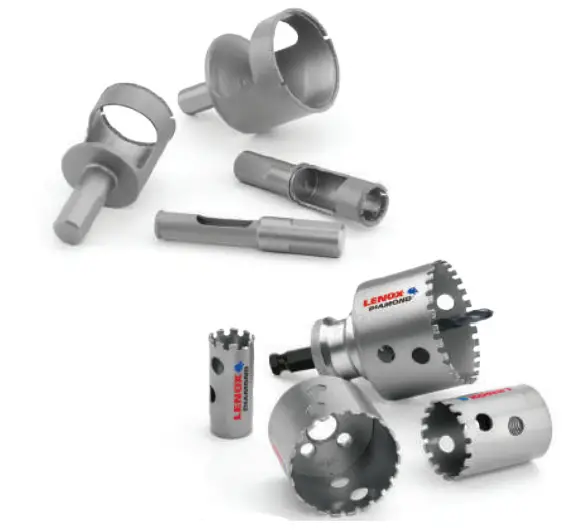

LENOX DIAMOND™ HOLE SAW S

More Holes. Less Time.

LONG-LASTING
Continuous, brazed edge lasts longer in tile and stone

DURABLE
Robust design for greater durability in tough applications

FAST, EASY CUTTING
Low torque, little pressure required

EASIER PLUG REMOVAL
Over-sized slot in hole saw for easy plug removal
USE STANDARD ARBOR, SNAP-BACK™ ARBOR FOR BEST RESULTS USE THE LENOX ARBOR WITH RETRACTABLE PILOT DRILL

ONE PIECE HOLE

1 per paCk		IN	MM		pIpe Tap					pIpe eNTraNCe				rpM*
proD No					IN		MM			IN	MM			IN		MM
121063DGDS		3/16	5		—		—			—	—			1500		2000
121074DGDS	1/4			6		—		—	—			—	2000				2500
121085DGDS	5/16			8		—		—	—			—	2000				2500
121096DGDS	3/8			10		—		—	—			—	2000				2500
121108DGDS	1/2			13		—		—	—			—	2000				2500
1211110DGDS	5/8			16		—		—	—			—	1500				2000
1211212DGDS	3/4			19		3/4		13	3/8			10	1500				2000
1211416DGDS	1			25		—		—	—			—			—
1211622DGDS	1-3/8			35		—		—	1			25			—

STANDARD HOLE SAWS

1 per paCk	IN	MM	pIpe Tap		pIpe eNTraNCe		USe arbor			rpM*
proD No	IN	MM	IN	MM	IN	MM	reTraCTable	*snap-BaCK*	STaNDarD	IN	MM
1211314DGHS	7/8	22	3/4	19	1/2	13	—	5L	1L, 4L, 5L	800	1200
1225618DGHS	1-1/8	29	1	25	3/4	19	—	5L	1L, 4L, 5L	500	900
1211520DGHS	1-1/4	32	—	—	—	—	5L 5/8-18	2L, 6L	2L, 3L, 6L	500	900
1211722DGHS	1-3/8	35			1	25	5L 5/8-18	2L, 6L	2L, 3L or 6L	500	900
1211824DGHS	1-1/2	38	1-1/4	32	—	—	5L 5/8-18	2L, 6L	2L, 3L, 6L, 7L	500	900
1211932DGHS	2	51	—	—	1-1/2	38	5L 5/8-18	2L, 6L	2L, 3L, 6L, 7L	400	800
1212040DGHS	2-1/2	64	—	—	2	51	5L 5/8-18	2L, 6L	2L, 3L, 6L, 7L	200	600

Suggested RPMs only: Porcelain, Ceramic, Slate, Granite, Marble, Glass, Fiberglass, Travertine, Cement Board, Laminates

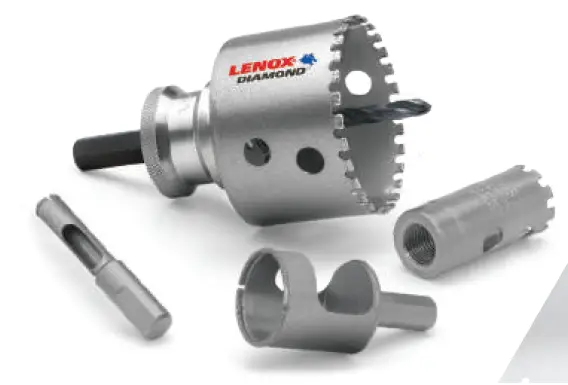

ARBOR WITH RETRACTABLE PILOT DRILL

CENTERING PIN ELIMINATES WALKING

CARBIDE TIPPED FOR LONGER LIFE

proD No	DeSC	fITS *dIamond* Hole SawS	SIzeS		SHaNk Type	SHaNk SIze
			IN	MM		IN	MM
1970538 5L 5/8-18 Standard 1-1/4–2-1/2 32–64 Solid Hex 3/8 & larger 9.5 & larger

proD No DeSCrIpTIoN	CHUCk SIze		fITS arbor
	IN	MM	SolID HeX
1970540 Retractable Pilot Drill 1/4 6.4 5L 5/8-18

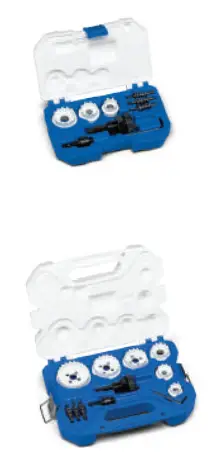

LENOX DIAMOND Kit

1853785 10 Piece kit
1/4″, 3/4″, 7/8″, 1-1/8″, 1-3/8″, 2″, 2-1/2″
Arbors: 2L, 5L. Hex Wrench
Large Kit

CARBIDE GRIT HOLE SAWS

Best for Cutting Abrasive Materials

CUTS ABRASIVE MATERIALS
Tungsten carbide grit cuts through fiberglass, ceramic tile, laminates and other abrasive materials

CLEAN CUTTING
Carbide grit edge will not snag or chip when cutting thin materials

Use standard Arbor or SNAP-BACK™ Arbor

1 per boX	DIaMeTer		pIpe Tap		pIpe eNTraNCe		USe arbor		reCoMMeNDeD rpM oNly
proD No	IN	MM	IN	MM	IN	MM	SNap-baCk	STaNDarD	brICk, Drywall, porCelaIN, Marble, CeraMIC TIle	SlaTe, fIberGlaSS, parTICle boarD, laMINaTeS, GraNITe, CeMeNT	CaST IroN
2991212CG 3/4 19.1 1/2 12.7 3/8 9.5 — 1L, 4L 800 900 600
2999820MMCG	25/32	19.8	—	—	—	—	—	1L, 4L	800	900	600
2991414CG	7/8	22.2	3/4	19.1	1/2	12.7	—	1L, 4L	800	900	600
2991616CG	1	25.4	—	—	—	—	—	1L, 4L	800	900	600
2991818CG	1-1/8	28.6	1	25.4	3/4	19.1	—	1L, 4L	500	600	400
2992020CG	1-1/4	31.8	—	—	—	—	2L	2L	500	600	400
2992222CG	1-3/8	34.9	—	—	1	25.4	2L	2L	500	600	400
2992424CG	1-1/2	38.1	1-1/4	31.8	—	—	2L	2L, 7L	500	600	400
2992828CG	1-3/4	44.5	1-1/2	38.1	1-1/4	31.8	2L	2L, 7L	500	600	400
2993232CG	2	50.8	—	—	1-1/2	38.1	2L	2L, 7L	400	500	200
2993434CG	2-1/8	54	—	—	—	—	2L	2L, 7L	400	500	200
2993636CG	2-1/4	57.2	2	50.8	—	—	2L	2L, 7L	400	500	200
2993838CG	2-3/8	60.3	—	—	—	—	2L	2L, 7L	200	300	100
2994040CG	2-1/2	63.5	—	—	2	50.8	2L	2L, 7L	200	300	100
2994141CG	2-9/16	65.1	—	—	—	—	2L	2L, 7L	200	300	100
2994848CG	3	76.2	—	—	2-1/2	63.5	2L	2L, 7L	200	300	100
2995252CG	3-1/4	82.6	3	76.2	—	—	2L	2L, 7L	200	300	100
2995858CG	3-5/8	92.1	—	—	3	76.2	2L	2L, 7L	100	200	100
2996464CG	4	101.6	—	—	—	—	2L	2L, 7L	100	200	100
2996666CG	4-1/8	104.8	—	—	3-1/2	88.9	2L	2L, 7L	100	200	100

plumber’s Kit

29984600CGP 9 Piece
3/4″, 7/8″, 1-1/8″, 1-1/2″, 2-1/8″, 2-9/16″
Arbors: 1L, 2L One arbor adaptor
MEDIUM Kit

CONTRACTOR’S Kit

29985700CGK 10 Piece
7/8″, 1″, 1-1/4″, 1-3/8″, 1-1/2″, 1-3/4″, 2-1/8″
Arbors: 1L, 2L One arbor adaptor
MEDIUM Kit

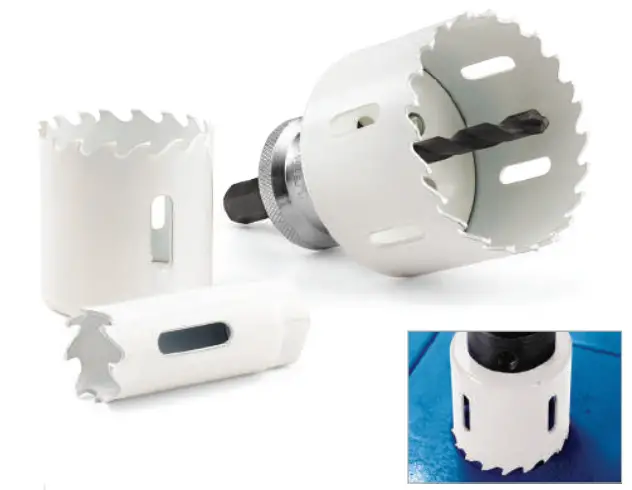

CARBIDE-TIPPED HOLE SAWS

Designed for Cutting Tile and Stainless Steel

LONG TOOL LIFE
Heat resistant carbide teeth for long life in tile and stainless steel

ADDED DURABILITY
Thick backing plate resists damage and increases life

UNIQUE TOOTH CONFIGURATION
Engineered design provides ability to cut in stainless steel like no other

Use standard Arbor or SNAP -BACk™ Arbor

1 per paCk	DIaMeTer		pIpe Tap		pIpe eNTraNCe		USe arbor		reCoMMeNDeD rpM
proD No	IN	MM	IN	MM	IN	MM	*snap-BaCK*	STaNDarD	alUM	STaINleSS STeel	fIber- GlaSS	CeraMIC TIle	CaST IroN
3021111CT	11/16	17.5	—	—	—	—	5L	1L ,4L, 5L	—	—	—	—	—
3021212CT	3/4	19.1	1/2	12.7	3/8	9.5	5L	1L ,4L, 5L	1700	410	250	500	410
3021414CT	7/8	22.2	3/4	19.1	1/2	12.7	5L	1L ,4L, 5L	1500	180	210	430	180
3021616CT	1	25.4	—	—	—	—	5L	1L ,4L, 5L	1300	150	190	370	150
3021818CT	1-1/8	28.6	1	25.4	3/4	19.1	5L	1L ,4L, 5L	1100	140	170	330	140
3022020CT	1-1/4	31.8	—	—	—	—	2L	2L, 3L 6L	—	—	—	—	—
3022222CT	1-3/8	34.9	—	—	1	25.4	2L	2L, 3L 6L	900	110	140	270	110
3022424CT	1-1/2	38.1	1-1/4	31.8	—	—	2L	2L, 3L, 6L, 7L	900	110	140	270	110
3022626CT	1-5/8	41.3	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3022828CT	1-3/4	44.5	1-1/2	38.1	1-1/4	31.8	2L	2L, 3L, 6L, 7L	700	90	110	210	90
3023232CT	2	50.8	—	—	1-1/2	38.1	2L	2L, 3L, 6L, 7L	600	80	90	190	80
3023434CT	2-1/8	54.0	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3023636CT	2-1/4	57.2	2	50.8	—	—	2L	2L, 3L, 6L, 7L	600	70	80	170	70
3023838CT	2-3/8	60.3	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3024040CT	2-1/2	63.5	—	—	2	50.8	2L	2L, 3L, 6L, 7L	500	60	70	150	60
3024141CT	2-9/16	65.1	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3024242CT	2-5/8	66.7	2-1/2	63.5	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3024343CT	2-11/16	68.3	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3024848CT	3	76.2	—	—	2-1/2	63.5	2L	2L, 3L, 6L, 7L	400	50	60	120	50
3025252CT	3-1/4	82.6	3	76.2	—	—	2L	2L, 3L, 6L, 7L	400	50	60	120	50
3025454CT	3-3/8	85.7	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3025656CT	3-1/2	88.9	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3025858CT	3-5/8	92.1	—	—	3	76.2	2L	2L, 3L, 6L, 7L	400	40	50	100	40
3026060CT	3-3/4	95.3	3-1/2	88.9	—	—	2L	2L, 3L, 6L, 7L	300	40	50	100	40
3026464CT	4	101.6	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3026666CT	4-1/8	104.8	—	—	3-1/2	88.9	2L	2L, 3L, 6L, 7L	300	40	50	90	40
3026868CT	4-1/4	108.0	4	101.6	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3027272CT	4-1/2	114.3	—	—	—	—	2L	2L, 3L, 6L, 7L	—	—	—	—	—
3027676CT	4-3/4	120.7	4-1/2	114.3	4	101.6	2L	2L, 3L, 6L, 7L	300	30	40	80	30
3028080CT	5	127.0	— — — — 2L					2L, 3L, 6L, 7L	200	30	40	80	30
3028888CT	5-1/2	139.7	— — — — 2L					2L, 3L, 6L, 7L	200	30	40	70	30
3029696CT	6	152.4	— — — — 2L					2L, 3L, 6L, 7L	100	30	30	60	30

Note:
We recommend the use of a carbide tipped pilot drill when cutting ceramic tile. Pilot drill 123CT fits the SNAP-BACK 2L or standard arbors 1L, 2L, 4L or 7L. Pilot drill 65CTPD fits the SNAP-BACK 2L or standard arbors 5L and 6L.

PLUMBER’S KIT

30294600CTP 8 PIECE
3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-3/4″, 2-1/4″
Arbors: 1L, 2L
MEDIUM Kit

ELECTRICIAN’S KIT

30294600CTP 8 PIECE
3/4″, 7/8″, 1-1/8″, 1-1/2″, 1-3/4″, 2-1/4″
Arbors: 1L, 2L
MEDIUM Kit

CONTRACTOR’S KIT

302901100CTG 15 Piece
3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-3/8″, 1-1/2″, 1-3/4″, 2″, 2-9/16″, 3″. Arbors: 1L, 2L Two pilot drills
LARGE Kit

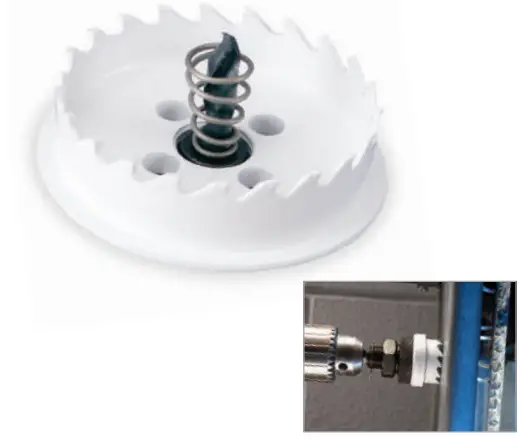

CARBIDE HOLE CUTTERS

Designed Specifically for Sheet Metal Hole Cutting

ACCURATE, BURR-FREE HOLES
Precision ground carbide teeth for fast cutting of clean, round holes

WILL NOT DAMAGE WORK
Over-drill stopper prevents the tool from penetrating beyond the hole

STARTS ON CONTACT
Split point pilot bit for faster penetration and less walking

1 per boX	DIaMeTer		CoNDUIT	USe arbor
proD No	IN	MM	SIze	*snap -BaCK*	STaNDarD
2009212CHC	3/4	19.1	3/8″	5L	5L
2009314CHC	7/8	22.2	1/2″	5L	5L
2009416CHC	1	25.4	—	5L	5L
2009618CHC	1-1/8	28.6	3/4″	5L	5L
20097195CHC	1-7/32	30.9	—	5L	5L
2009820CHC	1-1/4	31.8	—	—	3L, 6L
2010022CHC	1-3/8	34.9	1″	—	3L, 6L
2010224CHC	1-1/2	38.1	—	—	3L, 6L
2010328CHC	1-3/4	44.5	1-1/4″	—	3L, 6L
2010432CHC	2	50.8	1-1/2″	—	3L, 6L
2010534CHC	2-1/8	54.0	—	—	3L, 6L
2010840CHC	2-1/2	63.5	2″	—	3L, 6L
2010942CHC	2-5/8	66.7	—	—	3L, 6L
2011344CHC	2-3/4	69.9	—	—	3L, 6L
2011448CHC	3	76.2	2-1/2″	—	3L, 6L
3087935PD	1/4” Split point stubby pilot bit			— —
308803CHCAS	Plug ejection springs			— —

ELECTRICIAN’S KITS

30877300CHC 12 Piece kit
7/8″, 1-1/8″, 1-3/8″. Arbors: 3L, 5L 1/4″ split point pilot bit. Plug ejection springs, 1/8″ hex wrench
compact Kit
30878500CHC 15 Piece kit
7/8″, 1-1/8″, 1-3/8″, 1-3/4″, 2″, 2-1/2″ Arbors: 3L, 5L. 1/4″ split point pilot bit Plug ejection springs, 1/8″ hex wrench
medium Kit

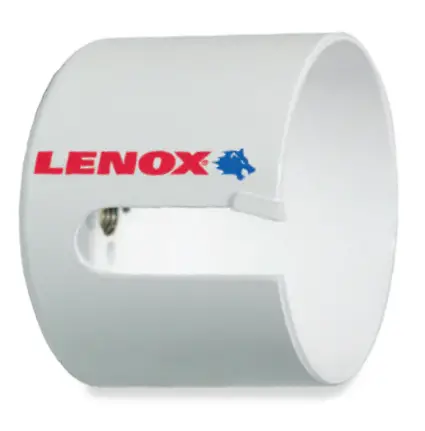

CARBIDE GRIT RECESSED LIGHTING Hole SawS

Best for Cutting Abrasive Materials
LONG LIFE
Hard tungsten carbide grit edge for a long life in abrasive materials

FAST, EASY CUTTING
Continuous cutting edge for smooth cutting

LIMITS DUST / DEBRIS
Solid back design collects dust and debris

1 per boX		DIaMeTer				for fIXTUreS	USe arbor
proD No		IN	MM				*snap-BaCK* STaNDarD
30861438RL 4-3/8 111 Capri, Marco, Halo, Mini-Juno 2L 2L
12100538RL	5-3/8			137	Capri, Marco, Halo, Mini-Juno, Lightolier®			2L	2L
30862638RL	6-3/8			162	Capri, Halo, Pathway & Thomas			2L	2L
30863658RL	6-5/8			168	Juno, Progress & Pathway			2L	2L
30864678RL	6-7/8			175	Capri, Hubbell®, Lightolier®, Lithonia®, Marco, Prescolite®, & Progress			2L	2L

Use 123CT or 1779771 Pilot Drill
HALO is a registered trademark of Halo Lighting, JUNO is a registered trademark of Juno Lighting Inc., LITHONIA is a registered trademark of Lithonia, Inc., LIGHTOLIER is a registered trademark of Lightolier, Inc., and PRESCOLITE is a registered trademark of Prescolite, Inc.

ONE TOOTH® ROUGH WOOD HOLE CUTTER

Drills Faster Than Self-Feed Bits

LONG LASTING
High speed steel tooth provides long tool life

CUTS FAST / LOW TORQUE
Designed to run at high speeds with very little torque

DURABLE WOOD CUTTING TOOL
Cuts wet, frozen, pressure treated and hard wood without binding

EASY PLUG REMOVAL
Patented design allows easy plug removal

CUTS AT AN ANGLE
Unique design provides the ability to cut at an angle

USE STANDARD Arbor or Snap-back ™ Arbor
For optimal performance use a 3/8″ Stubby Spade Bit with Standard Arbor

1 per paCk

CUTTer SIze

CUTTING DepTH

applICaTIoN

USe arbor

proD No

snap-BaCK STaNDarD

2542222HC 1-3/8 34.9 2-7/16″ 62 1″ pipe & lock installation 2L 2L, 3L

2543434HC

2-1/8

54.0

2-7/16″

1-1/2″ pipe & lock installation

2L, 3L

2543636HC

2-1/4

57.2

2-7/16″

1-1/2″ pipe & 45°/90° bend couplings

2L, 3L

2544141HC

2-9/16

65.1

2-7/16″

2″ pipe

2L, 3L

2544444HC

2-3/4

69.9

2-7/16″

2″ pipe & 45°/90° bend couplings

2L, 3L

2545454HC

3-3/8

85.7

2-7/16″

3″ duct pipe & bendable duct pipe

2L, 3L

2545656HC

3-5/8

92.1

2-7/16″

3″ pipe

2L, 3L

2546464HC

101.6

2-7/16″

3″ pipe & coupling & dryer vent

2L, 3L

2546969HC

4-5/16

109.5

2-7/16″

4″ duct pipe & bendable duct pipe

2L, 3L

2547474HC

4-5/8

117.5

2-7/16″

4″ pipe

2L, 3L

2548080HC

127.0

2-7/16″

4″ pipe & coupling

2L, 3L

2548787HC

5-1/2

139.7

2-7/16″

Toilet flange

2L, 3L

2550000HC

6-1/4

158.8

2-7/16″

6″ duct pipe

2L, 3L

25310SB38

—

3/8″ stubby spade bit

2L, 3L

25312DIAF1

—

Diamond file for re-sharpening

—

ONE TOOTH HOLE CUTTER

25476301G 7 Piece
2-1/8″, 2-9/16″, 3-5/8″ Arbor: 2L, Diamond file Two 3/8″ stubby spade bits
large Kit
25477701G 11 Piece
2-1/8″, 2-1/4″, 2-9/16″, 2-3/4″, 3-5/8″, 4″, 4-5/8″ Arbor: 2L, Diamond file Two 3/8″ stubby spade bits
large Kit

Customer Service: 800-628-8810
Technical Support: 800-642-0010
lenoxtools.com
LENX1082
301 Chestnut Street, East Longmeadow, MA 01028-0504 USA
©2016 LENOX, Newell Brands
