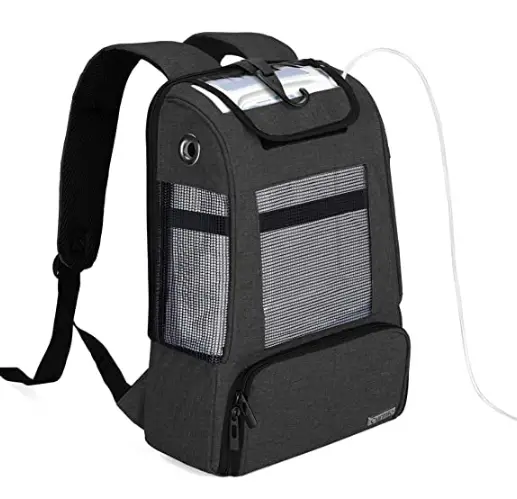

belluscura 8932 Oxygen Concentrator Backpack
Backpack Instructions
- Disconnect the cannula and remove the X-PLOR from the small carrying bag, if applicable.
- Place the backpack on a flat surface with the front pocket and ring facing up
- Pull on a ring to open the front pocket, so you can place the X-PLOR inside. (Be sure that the LCD screen is facing up, the cannula connector is located on the right side, and the intake vent aligns with the mesh panel.)
- Insert and thread the cannula through the opening at the top of the right shoulder strap.
- Continue threading the cannula down through the backpack, toward the X-PLOR. (Pull the cannula out through the grommet so it can connect to the X-PLOR.)
- Connect the cannula to the X-PLOR.
- Place the backpack on the shoulders and adjust the shoulder straps so the backpack is comfortable.
- Wrap the cannula up and over both ears and insert the nasal prongs into your nostrils. (The cannula should fit comfortably around your head.)
- Roll the cannula tubing to the desired length. Secure the excess tubing inside the backpack with the Velcro straps, making sure not to kink the tubing.
- Zip up the backpack and you’re ready to go X-PLOR.
- Store additional batteries inside the backpack if desired.
